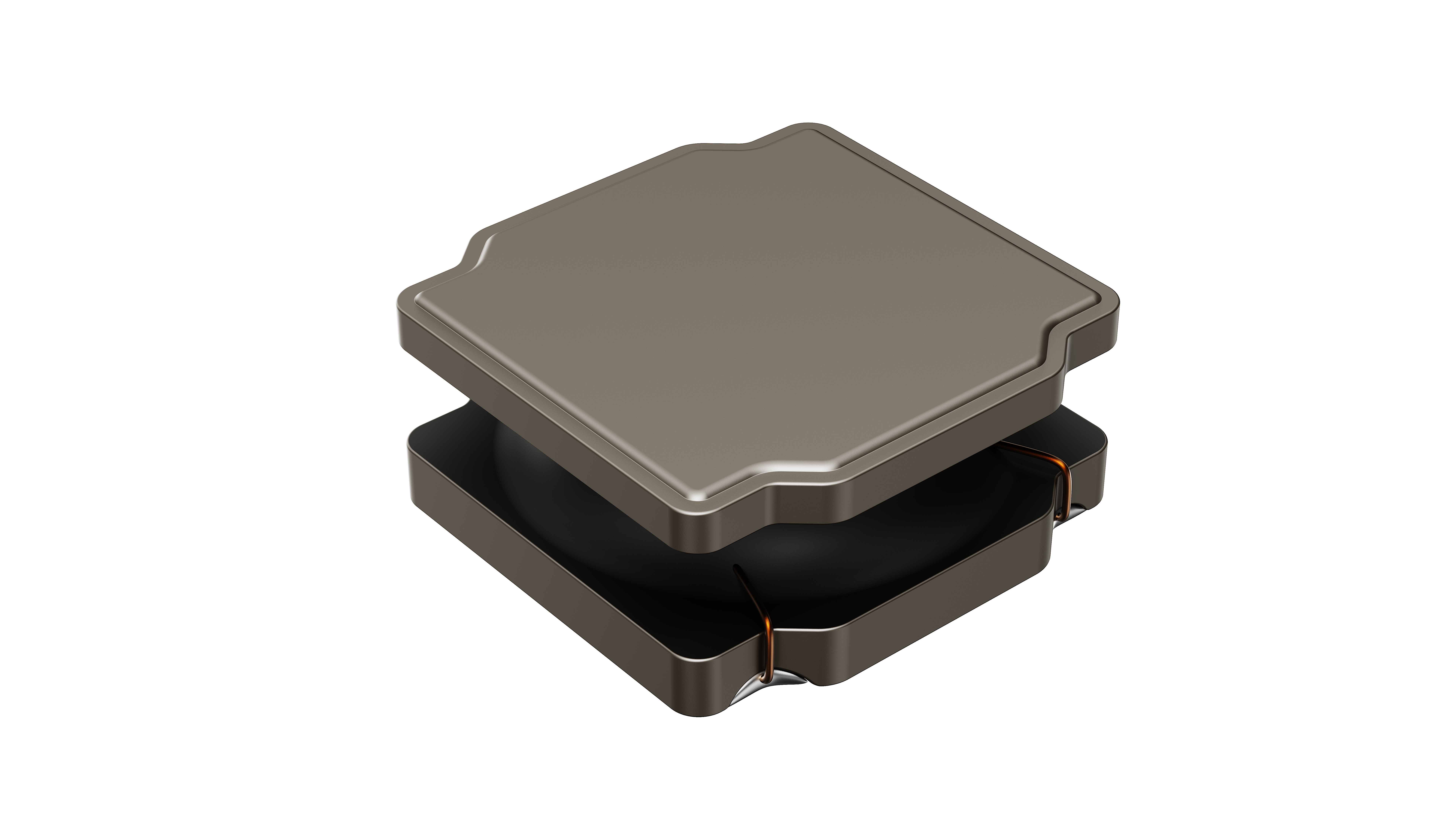

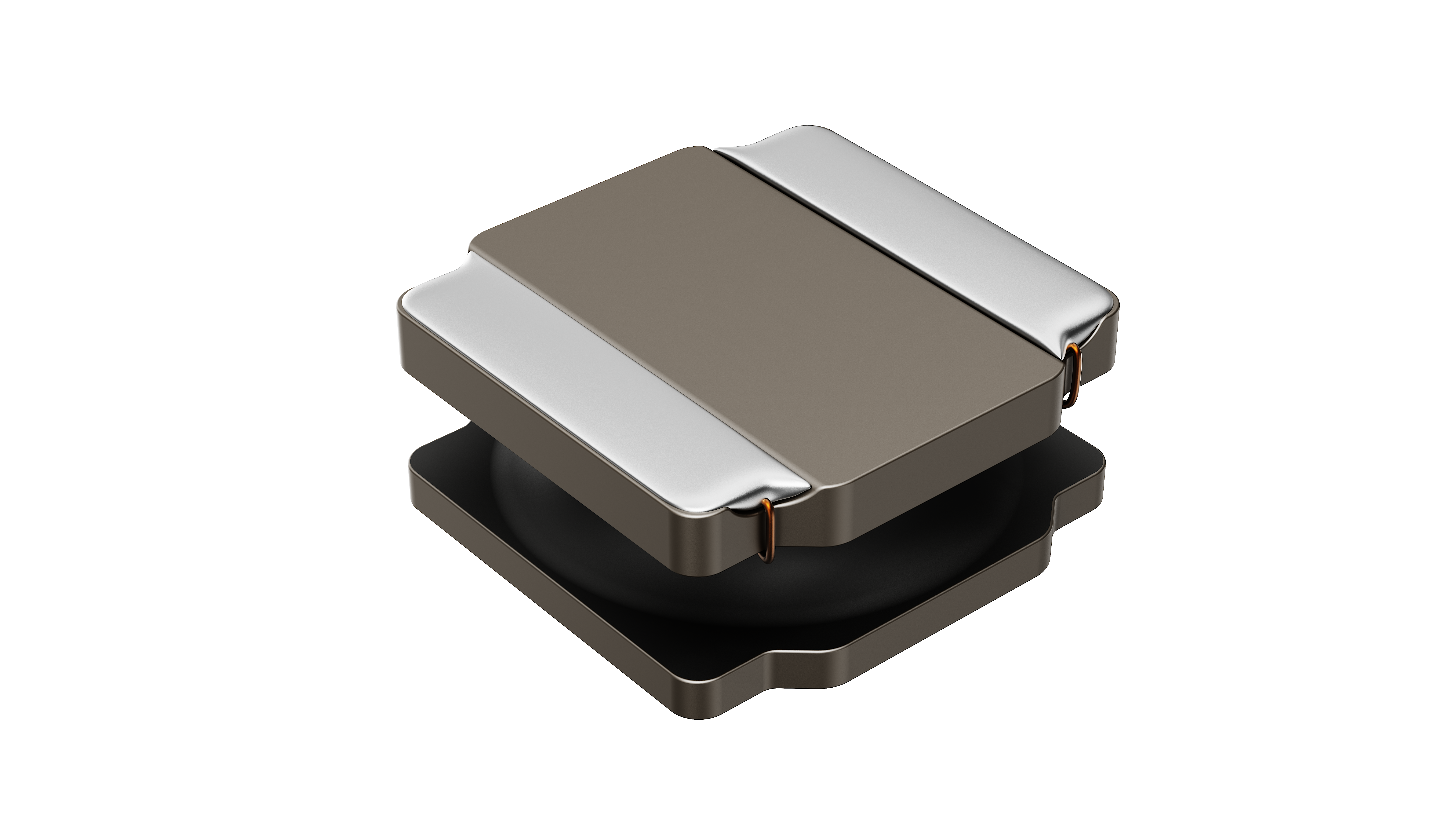

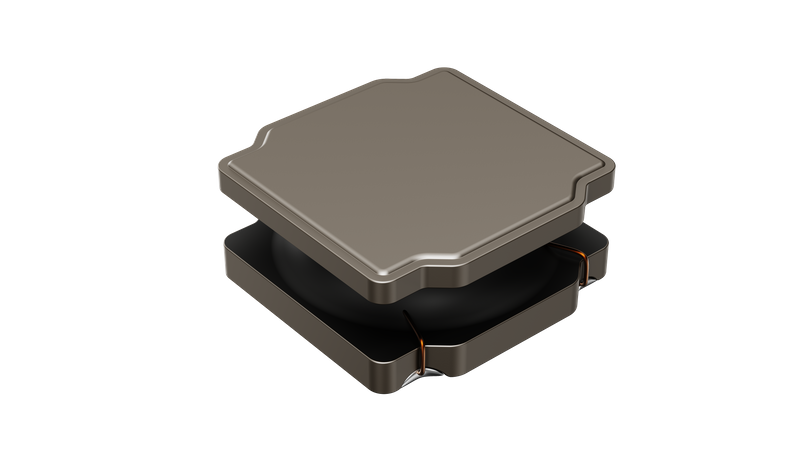

HAG SERIES | |||
| Product number | HAG SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
HAG SERIES appearance dimensions In mm |
| TYPE | A | B | C | D | H | I | J |
| 201610 | 2.0±0.2 | 1.6±0.2 | 1.1max | 0.6±0.2 | 1.6 | 0.8 | 0.8 |
| 252010 | 2.5±0.3 | 2.0±0.3 | 1.0+0.2-0.3 | 0.8±0.3 | 2.0 | 0.85 | 0.8 |
| 252012 | 2.5±0.3 | 2.0±0.3 | 1.2+0.2-0.3 | 0.8±0.3 | 2.0 | 0.85 | 0.8 |
| HAGN201610 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HAGN201610S4R24□N00 | 0.24 | 1MHz,1V | 45 | 5.5(4.5) | 3.45(3.0) | 20,30 | |
| HAGN201610S4R33□N00 | 0.33 | 1MHz,1V | 54 | 5.2(4.4) | 3.1(2.7) | 20,30 | |
| HAGN201610S4R47□N00 | 0.47 | 1MHz,1V | 56 | 4.7(4.06) | 3.1(2.7) | 20,30 | |
| HAGN201610S4R56□N00 | 0.56 | 1MHz,1V | 60 | 4.5(3.8) | 2.8(2.6) | 20,30 | |
| HAGN201610S4R68□N00 | 0.68 | 1MHz,1V | 62 | 4.0(3.5) | 2.7(2.5) | 20,30 | |
| HAGN201610S41R0□N00 | 1.0 | 1MHz,1V | 100 | 3.8(3.3) | 2.3(2.0) | 20,30 | |
| HAGN201610S41R5□N00 | 1.5 | 1MHz,1V | 135 | 2.3(1.9) | 2.0(1.7) | 20,30 | |
| HAGN201610S42R2□N00 | 2.2 | 1MHz,1V | 190 | 2.1(1.8) | 1.6(1.4) | 20,30 | |
| HAGN201610S43R3□N00 | 3.3 | 1MHz,1V | 315 | 1.6(1.4) | 1.3(1.1) | 20,30 | |
| HAGN201610S44R7□N00 | 4.7 | 1MHz,1V | 435 | 1.4(1.1) | 1.0(0.9) | 20,30 | |
| HAGN201610S46R8□N00 | 6.8 | 1MHz,1V | 630 | 0.95(1.1) | 0.8(0.7) | 20,30 | |
| HAGN201610S48R2□N00 | 8.2 | 1MHz,1V | 880 | 1.0(0.85) | 0.75(0.65) | 20,30 | |
| HAGN201610S4100□N00 | 10.0 | 1MHz,1V | 890 | 0.95(0.8) | 0.7(0.6) | 20,30 | |
| HAGN252010 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HAGN252010S4R24□N00 | 0.24 | 1MHz,1V | 33 | 7.1(6.1) | 4.5(3.7) | 20,30 | |
| HAGN252010S4R33□N00 | 0.33 | 1MHz,1V | 39 | 5.5(4.8) | 4.05(3.5) | 20,30 | |
| HAGN252010S4R47□N00 | 0.47 | 1MHz,1V | 45 | 5.2(4.4) | 3.6(3.2) | 20,30 | |
| HAGN252010S4R68□N00 | 0.68 | 1MHz,1V | 59 | 3.6(3.2) | 3.2(2.75) | 20,30 | |
| HAGN252010S41R0□N00 | 1.00 | 1MHz,1V | 85 | 3.5(3.1) | 2.5(2.2) | 20,30 | |
| HAGN252010S41R5□N00 | 1.50 | 1MHz,1V | 106 | 3.0(2.6) | 2.3(2.0) | 20,30 | |
| HAGN252010S42R2□N00 | 2.20 | 1MHz,1V | 155 | 2.2(1.9) | 1.8(1.5) | 20,30 | |
| HAGN252010S43R3□N00 | 3.30 | 1MHz,1V | 235 | 1.8(1.6) | 1.4(1.2) | 20,30 | |
| HAGN252010S44R7□N00 | 4.70 | 1MHz,1V | 290 | 1.5(1.3) | 1.1(1.0) | 20,30 | |
| HAGN252010S46R8□N00 | 6.8 | 1MHz,1V | 480 | 1.1(1.0) | 1.0(0.95) | 20,30 | |
| HAGN252010S4100□N00 | 10.0 | 1MHz,1V | 740 | 1.0(0.9) | 0.75(0.65) | 20,30 | |
| HAGN252012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HAGN252012S4R24□N00 | 0.24 | 1MHz,1V | 23 | 7.80(6.5) | 4.70(4.05) | 20,30 | |
| HAGN252012S4R33□N00 | 0.33 | 1MHz,1V | 28 | 6.30(5.35) | 4.30(3.70) | 20,30 | |
| HAGN252012S4R47□N00 | 0.47 | 1MHz,1V | 35 | 5.60(4.90) | 4.00(3.45) | 20,30 | |
| HAGN252012S4R68□N00 | 0.68 | 1MHz,1V | 45 | 4.50(3.80) | 3.60(3.15) | 20,30 | |
| HAGN252012S41R0□N00 | 1.00 | 1MHz,1V | 54 | 4.20(3.60) | 3.40(3.00) | 20,30 | |
| HAGN252012S41R5□N00 | 1.50 | 1MHz,1V | 78 | 3.50(2.90) | 2.80(2.40) | 20,30 | |
| HAGN252012S42R2□N00 | 2.20 | 1MHz,1V | 120 | 3.00(2.60) | 2.15(1.90) | 20,30 | |
| HAGN252012S43R3□N00 | 3.30 | 1MHz,1V | 215 | 2.10(1.70) | 1.80(1.50) | 20,30 | |
| HAGN252012S44R7□N00 | 4.70 | 1MHz,1V | 260 | 1.90(1.60) | 1.45(1.25) | 20,30 | |
| HAGN252012S46R8□N00 | 6.8 | 1MHz,1V | 366 | 1.40(1.20) | 1.10(0.95) | 20,30 | |
| HAGN252012S4100□N00 | 10.0 | 1MHz,1V | 480 | 1.35(1.10) | 1.00(0.85) | 20,30 | |
