HBF SERIES

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
Appearance size
Model and features

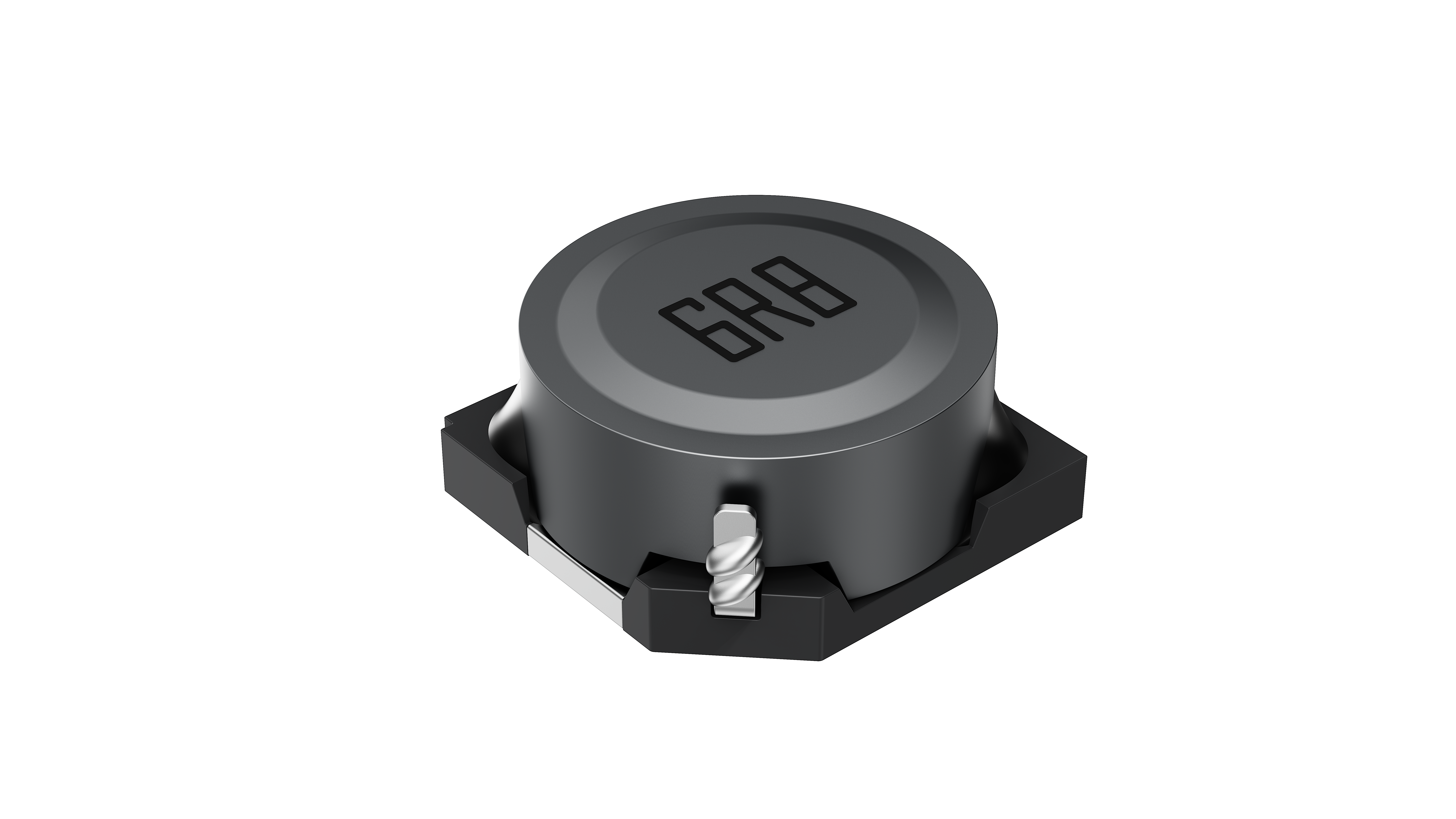

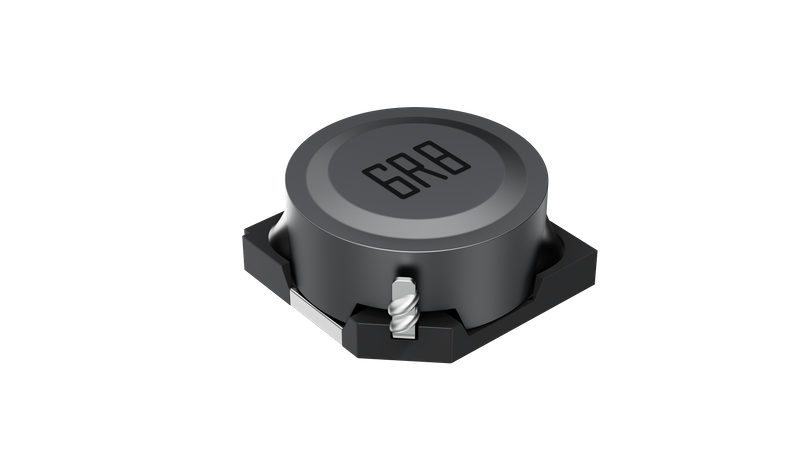

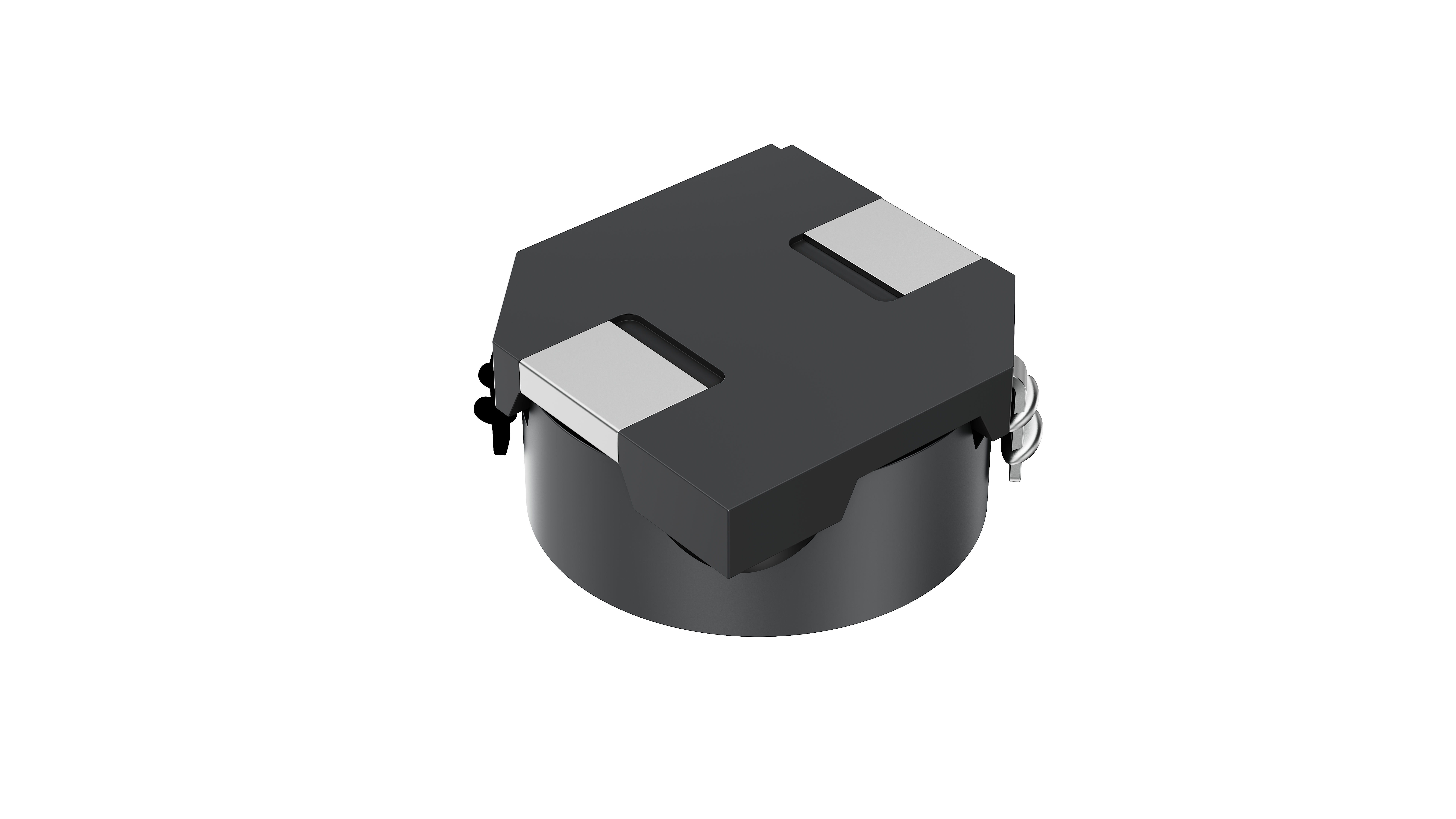

HBF SERIES
Picture 5 Product number HBF SERIES
manufacturer HUASUN
PID
Supply method Self-operated
product cycle In mass production
RoHs & lead-free situation Lead-free/RoHs compliant
describe Excellent price, good quality, wide range of values, and good reliability.


HBF SERIES appearance dimensions  In mm

12

TYPE A B C D E F
A B C D
0628 6±0.2 6±0.2 2.8±0.2 3.0typ 1.5typ 2.0±0.1
2.2 1.5 4.0 1.5
0728 7±0.2 7±0.2 2.8±0.2 4.9typ 0.9typ 2.0typ
2.2 1.5 4.9 1.5
0732 7±0.2 7±0.2 3.2±0.2 4.9typ 0.9typ 2.0typ
2.2 1.5 4.9 1.5
0745 7±0.2 7±0.2 4.5±0.2 4.9typ 0.9typ 2.0typ
2.2 1.5 4.9 1.5
0755 7±0.2 7±0.2 5.5±0.4 4.9typ 0.9typ 2.0typ
2.2 1.5 4.9 1.5
1045 10.1±0.3 10.1±0.3 4.5±0.4 6.0typ 2.0typ 3.0typ
3.2 2.5 5.6 2.5
1055 10.1±0.3 10.1±0.3 5.5±0.4 6.0typ 2.0typ 3.0typ
3.2 2.5 5.6 2.5
1255 12.5±0.3 12.5±0.3 5.5±0.4 8.6typ 2.0typ 3.0typ
3.2 2.5 8.6 2.5
1265 12.5±0.3 12.5±0.3 6.5±0.4 8.6typ 2.0typ 3.0typ
3.2 2.5 8.6 2.5
1275 12.5±0.3 12.5±0.3 7.5±0.4 8.6typ 2.0typ 3.0typ
3.2 2.5 8.6 2.5


HBFN0628 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN0628N4R7□E00 4.7 0.5V 1kHz 0.03692 1.60 2.50 4R7
HBFN0628N5R4□E00 5.4 0.5V 1kHz 0.04290 1.50 2.00 5R4
HBFN0628N6R8□E00 6.8 0.5V 1kHz 0.04602 1.50 2.20 6R8
HBFN0628N100□E00 10 0.5V 1kHz 0.06916 1.30 1.80 100
HBFN0628N150□E00 15 0.5V 1kHz 0.09685 1.00 1.40 150
HBFN0628N220□E00 22 0.5V 1kHz 0.1352 0.77 1.30 220
HBFN0628N330□E00 33 0.5V 1kHz 0.1924 0.69 1.10 330
HBFN0628N470□E00 47 0.5V 1kHz 0.273 0.59 0.92 470
HBFN0628N680□E00 68 0.5V 1kHz 0.377 0.50 0.78 680
HBFN0628N101□E00 100 0.5V 1kHz 0.559 0.42 0.64 101







HBFN0728 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN0728N2R2□E00 2.2 0.5V 1kHz 0.0416 1.80 2.30 2R2
HBFN0728N3R3□E00 3.3 0.5V 1kHz 0.0481 1.60 2.00 3R3
HBFN0728N4R7□E00 4.7 0.5V 1kHz 0.0585 1.50 1.80 4R7
HBFN0728N5R0□E00 5.0 0.5V 1kHz 0.0585 2.40 1.50 5R0
HBFN0728N6R8□E00 6.8 0.5V 1kHz 0.0767 1.30 1.30 6R8
HBFN0728N8R2□E00 8.2 0.5V 1kHz 0.0845 1.10 1.00 8R2
HBFN0728N100□E00 10 0.5V 1kHz 0.1079 1.10 1.00 100
HBFN0728N150□E00 15 0.5V 1kHz 0.169 0.88 0.85 150
HBFN0728N220□E00 22 0.5V 1kHz 0.234 0.75 0.78 220
HBFN0728N330□E00 33 0.5V 1kHz 0.312 0.65 0.66 330
HBFN0728N470□E00 47 0.5V 1kHz 0.442 0.54 0.52 470







HBFN0732 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN0732N2R2□E00 2.2 0.5V 1kHz 0.0234 2.10
2R2
HBFN0732N3R3□E00 3.3 0.5V 1kHz 0.0299 1.90
3R3
HBFN0732N4R7□E00 4.7 0.5V 1kHz 0.0468 1.70
4R7
HBFN0732N6R8□E00 6.8 0.5V 1kHz 0.0533 1.60
6R8
HBFN0732N100□E00 10 0.5V 1kHz 0.0689 1.40
100
HBFN0732N150□E00 15 0.5V 1kHz 0.0975 1.10
150
HBFN0732N220□E00 22 0.5V 1kHz 0.143 0.96
220
HBFN0732N330□E00 33 0.5V 1kHz 0.208 0.75
330
HBFN0732N470□E00 47 0.5V 1kHz 0.312 0.67
470
HBFN0732N680□E00 68 0.5V 1kHz 0.403 0.59
680
HBFN0732N101□E00 100 0.5V 1kHz 0.585 0.45
101
HBFN0732N151□E00 150 0.5V 1kHz 0.845 0.37
151
HBFN0732N221□E00 220 0.5V 1kHz 1.365 0.29
221
HBFN0732N331□E00 330 0.5V 1kHz 2.171 0.22
331
HBFN0732N471□E00 470 0.5V 1kHz 2.665 0.20
471
HBFN0732N681□E00 680 0.5V 1kHz 4.095 0.16
681
HBFN0732N102□E00 1000 0.5V 1kHz 6.214 0.13
102







HBFN0745 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN0745N3R3□E00 3.3 0.5V 1kHz 0.0260 2.50 2.30 3R3
HBFN0745N4R7□E00 4.7 0.5V 1kHz 0.0390 2.00 2.10 4R7
HBFN0745N6R8□E00 6.8 0.5V 1kHz 0.0507 1.70 1.74 6R8
HBFN0745N100□E00 10 0.5V 1kHz 0.0468 1.30 1.78 100
HBFN0745N150□E00 15 0.5V 1kHz 0.0676 1.10 1.53 150
HBFN0745N220□E00 22 0.5V 1kHz 0.0793 0.90 1.34 220
HBFN0745N330□E00 33 0.5V 1kHz 0.1248 0.82 1.09 330
HBFN0745N470□E00 47 0.5V 1kHz 0.1625 0.75 0.92 470
HBFN0745N680□E00 68 0.5V 1kHz 0.2275 0.60 0.77 680
HBFN0745N101□E00 100 0.5V 1kHz 0.325 0.50 0.65 101
HBFN0745N151□E00 150 0.5V 1kHz 0.442 0.40 0.55 151
HBFN0745N221□E00 220 0.5V 1kHz 0.676 0.33 0.45 221
HBFN0745N331□E00 330 0.5V 1kHz 0.962 0.25 0.37 331
HBFN0745N471□E00 470 0.5V 1kHz 1.365 0.22 0.31 471
HBFN0745N681□E00 680 0.5V 1kHz 1.924 0.20 0.27 681
HBFN0745N102□E00 1000 0.5V 1kHz 2.964 0.14 0.25 102







HBFN0755 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN0755N1R5□E00 1.5 1V 100kHz 0.02262 6.20 4.00 1R5
HBFN0755N2R2□E00 2.2 1V 100kHz 0.02821 5.30 3.50 2R2
HBFN0755N3R3□E00 3.3 1V 100kHz 0.03120 4.30 3.30 3R3
HBFN0755N4R7□E00 4.7 1V 100kHz 0.03640 3.60 3.10 4R7
HBFN0755N6R8□E00 6.8 1V 100kHz 0.04420 3.00 2.80 6R8
HBFN0755N100□E00 10 1V 100kHz 0.05083 2.60 2.50 100
HBFN0755N150□E00 15 1V 100kHz 0.06604 2.10 2.20 150
HBFN0755N220□E00 22 1V 100kHz 0.08359 1.70 2.00 220
HBFN0755N470□E00 47 1V 100kHz 0.20150 0.80 1.00 470







HBFN1045 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN1045N4R7□E00 4.7 0.5V 1kHz 0.02600 4.50 3.00 4R7
HBFN1045N100□E00 10 0.5V 1kHz 0.04732 3.00 2.50 100
HBFN1045N150□E00 15 0.5V 1kHz 0.06136 2.40 2.20 150
HBFN1045N220□E00 22 0.5V 1kHz 0.07683 2.10 1.90 220
HBFN1045N330□E00 33 0.5V 1kHz 0.10595 1.60 1.70 330
HBFN1045N470□E00 47 0.5V 1kHz 0.130 1.40 1.50 470
HBFN1045N680□E00 68 0.5V 1kHz 0.182 1.20 1.30 680
HBFN1045N101□E00 100 0.5V 1kHz 0.260 1.00 1.10 101
HBFN1045N151□E00 150 0.5V 1kHz 0.455 0.79 0.81 151
HBFN1045N221□E00 220 0.5V 1kHz 0.611 0.65 0.70 221
HBFN1045N271□E00 270 0.5V 1kHz 0.754 0.58 0.60 271
HBFN1045N331□E00 330 0.5V 1kHz 0.884 0.54 0.58 331
HBFN1045N471□E00 470 0.5V 1kHz 1.339 0.47 0.47 471
HBFN1045N681□E00 680 0.5V 1kHz 2.080 0.38 0.38 681
HBFN1045N102□E00 1000 0.5V 1kHz 3.640 0.32 0.29 102
HBFN1045N152□E00 1500 0.5V 1kHz 4.420 0.22 0.26 152







HBFN1055 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN1055N4R7□E00 4.7 0.5V 1kHz 0.0350 4.00 3.5 4R7
HBFN1055N100□E00 10 0.5V 1kHz 0.0400 3.00 2.8 100
HBFN1055N220□E00 22 0.5V 1kHz 0.0456 2.50 2.2 220
HBFN1055N330□E00 33 0.5V 1kHz 0.0850 2.10 1.8 330







HBFN1255 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN1255N6R0□E00 6.0 0.5V 1kHz 0.02132 3.60 4.90 6R0
HBFN1255N100□E00 10 0.5V 1kHz 0.02795 3.40 4.30 100
HBFN1255N150□E00 15 0.5V 1kHz 0.03367 2.80 3.90 150
HBFN1255N220□E00 22 0.5V 1kHz 0.04394 2.30 3.40 220
HBFN1255N330□E00 33 0.5V 1kHz 0.05395 1.90 3.10 330
HBFN1255N470□E00 47 0.5V 1kHz 0.08034 1.60 2.50 470
HBFN1255N680□E00 68 0.5V 1kHz 0.10816 1.30 2.20 680
HBFN1255N101□E00 100 0.5V 1kHz 0.15210 1.10 1.80 101
HBFN1255N151□E00 150 0.5V 1kHz 0.247 0.88 1.40 151
HBFN1255N221□E00 220 0.5V 1kHz 0.351 0.72 1.20 221
HBFN1255N331□E00 330 0.5V 1kHz 0.533 0.59 1.00 331
HBFN1255N471□E00 470 0.5V 1kHz 0.676 0.49 0.88 471
HBFN1255N681□E00 680 0.5V 1kHz 0.988 0.43 0.73 681
HBFN1255N102□E00 1000 0.5V 1kHz 1.456 0.34 0.60 102
HBFN1255N152□E00 1500 0.5V 1kHz 2.249 0.29 0.48 152







HBFN1265 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN1265N2R0□E00 2.0 0.5V 1kHz 0.01521 10.00 6.20 2R0
HBFN1265N4R2□E00 4.2 0.5V 1kHz 0.01950 7.30 5.50 4R2
HBFN1265N7R0□E00 7.0 0.5V 1kHz 0.02301 5.70 5.00 7R0
HBFN1265N100□E00 10 0.5V 1kHz 0.02626 5.00 4.80 100
HBFN1265N150□E00 15 0.5V 1kHz 0.03081 4.20 4.40 150
HBFN1265N220□E00 22 0.5V 1kHz 0.04108 3.50 3.80 220
HBFN1265N330□E00 33 0.5V 1kHz 0.05278 2.80 3.40 330
HBFN1265N470□E00 47 0.5V 1kHz 0.07514 2.40 2.80 470
HBFN1265N680□E00 68 0.5V 1kHz 0.10231 2.00 2.40 680
HBFN1265N101□E00 100 0.5V 1kHz 0.1599 1.60 1.90 101
HBFN1265N151□E00 150 0.5V 1kHz 0.2730 1.20 1.50 151
HBFN1265N221□E00 220 0.5V 1kHz 0.3549 1.00 1.20 221







HBFN1275 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Irms(A) Marking
(μH )
Max.
Max.
HBFN1275N1R2□E00 1.2 0.5V 1kHz 0.00897 13.0 8.2 1R2
HBFN1275N2R7□E00 2.7 0.5V 1kHz 0.01222 10.0 7.0 2R7
HBFN1275N3R9□E00 3.9 0.5V 1kHz 0.01352 9.0 6.7 3R9
HBFN1275N4R7□E00 4.7 0.5V 1kHz 0.01430 7.8 6.3 4R7
HBFN1275N5R6□E00 5.6 0.5V 1kHz 0.01508 7.8 6.3 5R6
HBFN1275N6R8□E00 6.8 0.5V 1kHz 0.01703 7.2 5.9 6R8
HBFN1275N100□E00 10 0.5V 1kHz 0.02028 5.5 5.4 100
HBFN1275N150□E00 15 0.5V 1kHz 0.02392 4.7 5.0 150
HBFN1275N220□E00 22 0.5V 1kHz 0.03419 4.0 4.0 220
HBFN1275N330□E00 33 0.5V 1kHz 0.05135 3.2 3.4 330
HBFN1275N470□E00 47 0.5V 1kHz 0.06864 2.7 3.0 470
HBFN1275N680□E00 68 0.5V 1kHz 0.10114 2.0 2.4 680
HBFN1275N101□E00 100 0.5V 1kHz 0.1625 1.9 1.9 101
HBFN1275N151□E00 150 0.5V 1kHz 0.2275 1.5 1.6 151
HBFN1275N221□E00 220 0.5V 1kHz 0.3354 1.3 1.3 221
HBFN1275N331□E00 330 0.5V 1kHz 0.4420 0.9 0.7 331
