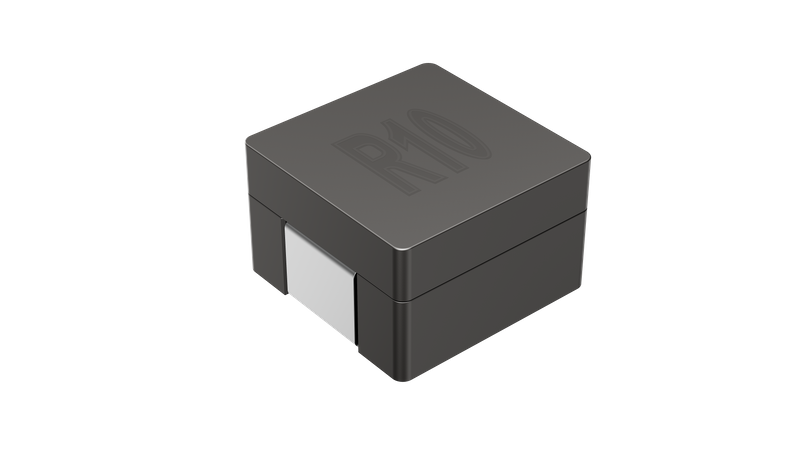

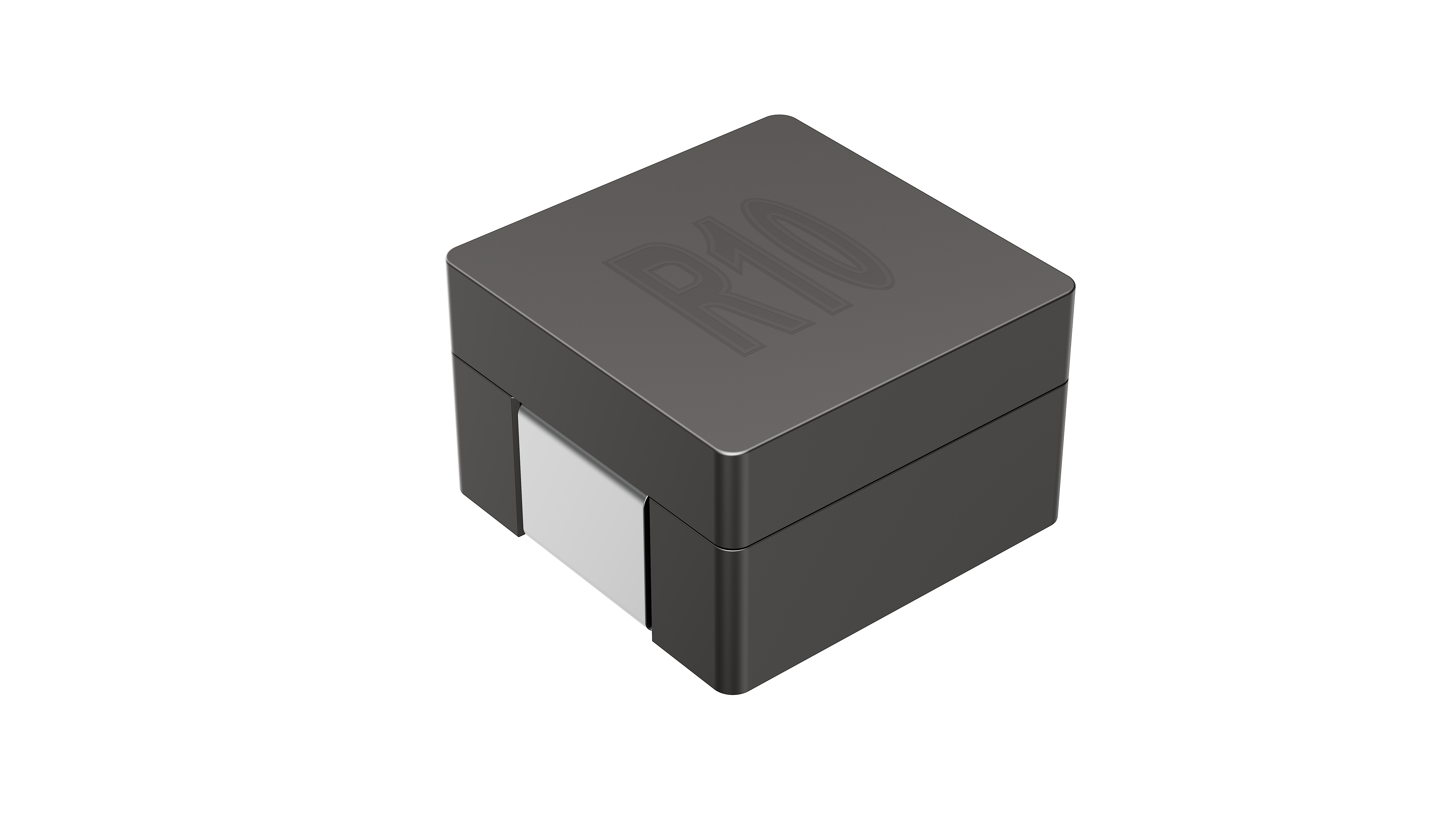

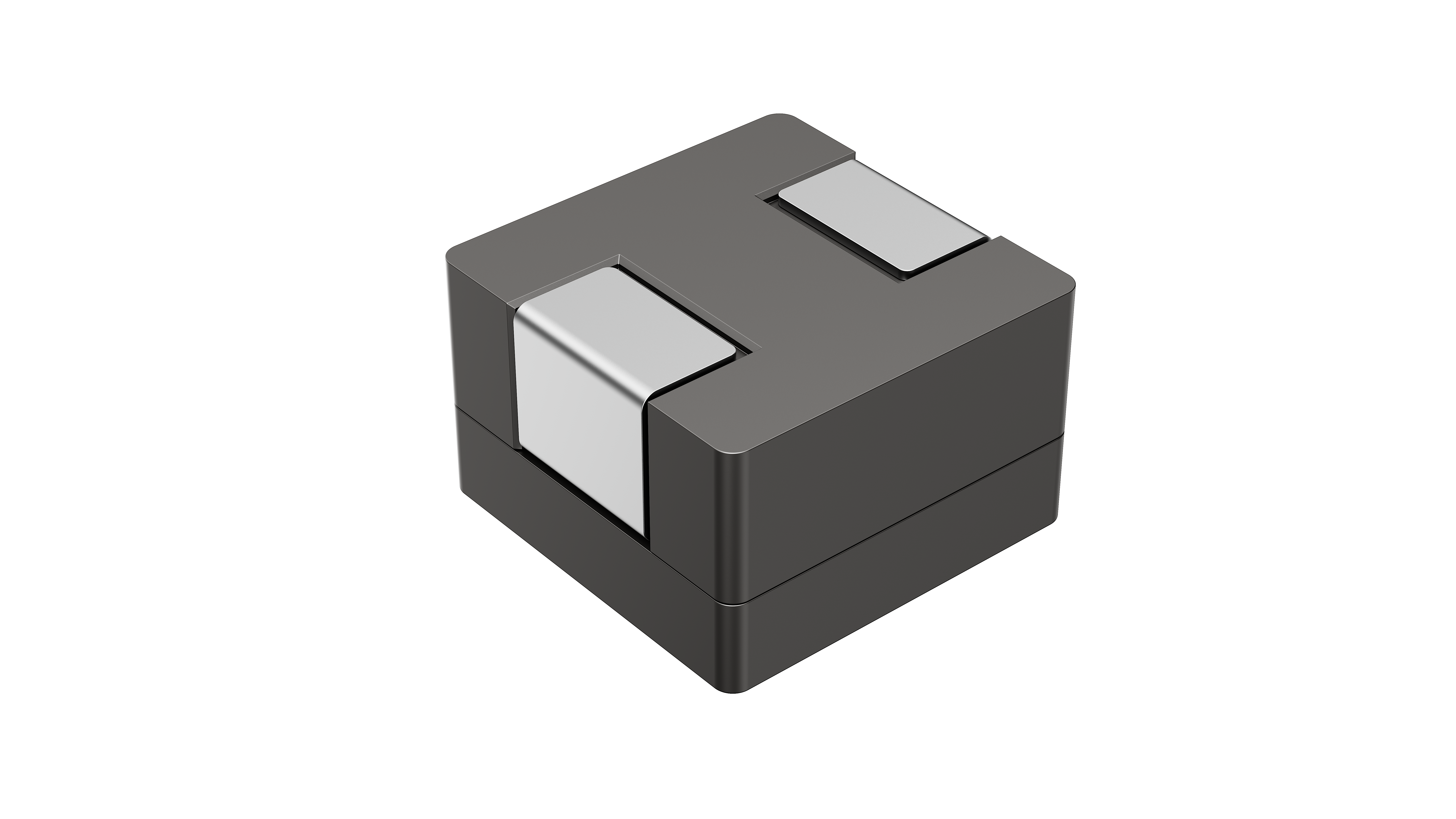

| HBT SERIES | |||
 | Product number | HBT SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
HFS SERIES appearance dimensions In mm |
| TYPE | A | B | C | D | E | a | b | c | |
| 100707 | 11+0 | 7.5+0 | 7.0+0 | 1.6±0.2 | 2.6±0.2 | 11 | 4.3 | 2 |
| HBTN100707 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | ±30% | Typ.(Max) | Typ.(Max) | (±%) | |||
| HBTN100707R15L00 | 0.12 | 100kHz,1V | 0.37 | 60 | 37 | 15 | R15 |
| HBTN100707R17L00 | 0.17 | 100kHz,1V | 0.37 | 50 | 37 | 15 | R17 |
| HBTN100707R22L00 | 0.22 | 100kHz,1V | 0.37 | 40 | 37 | 15 | R22 |
| HBTN100707R33L00 | 0.33 | 100kHz,1V | 0.37 | 28 | 37 | 15 | R33 |
| HBTN100707R40L00 | 0.40 | 100kHz,1V | 0.37 | 21 | 37 | 15 | R40 |
