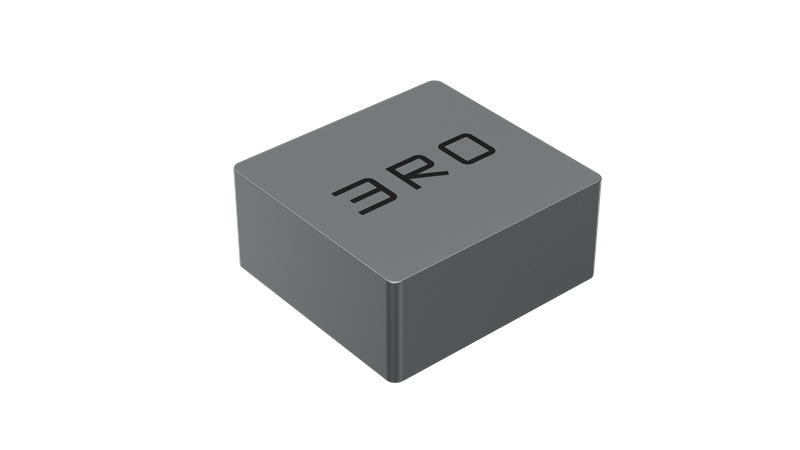

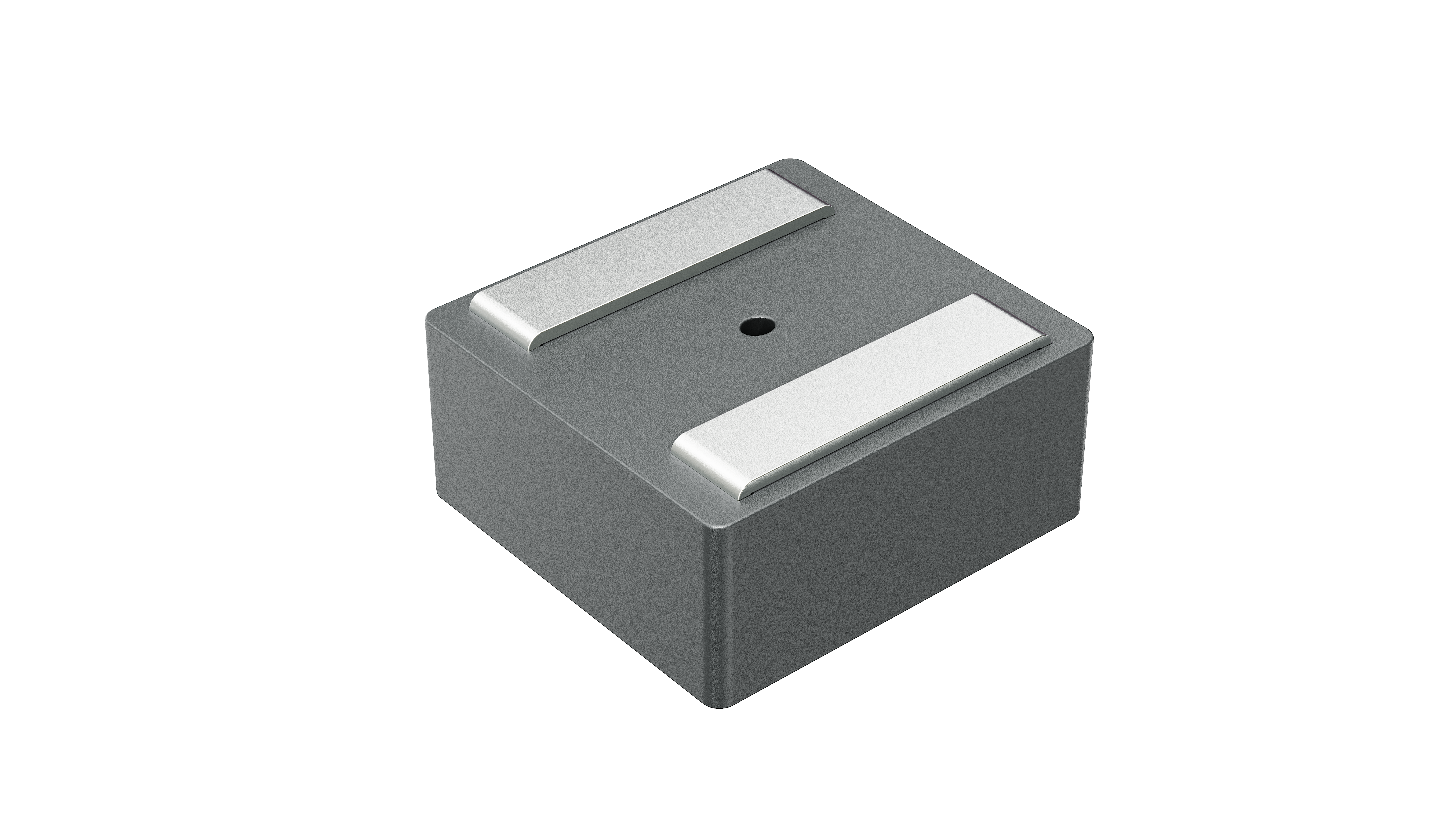

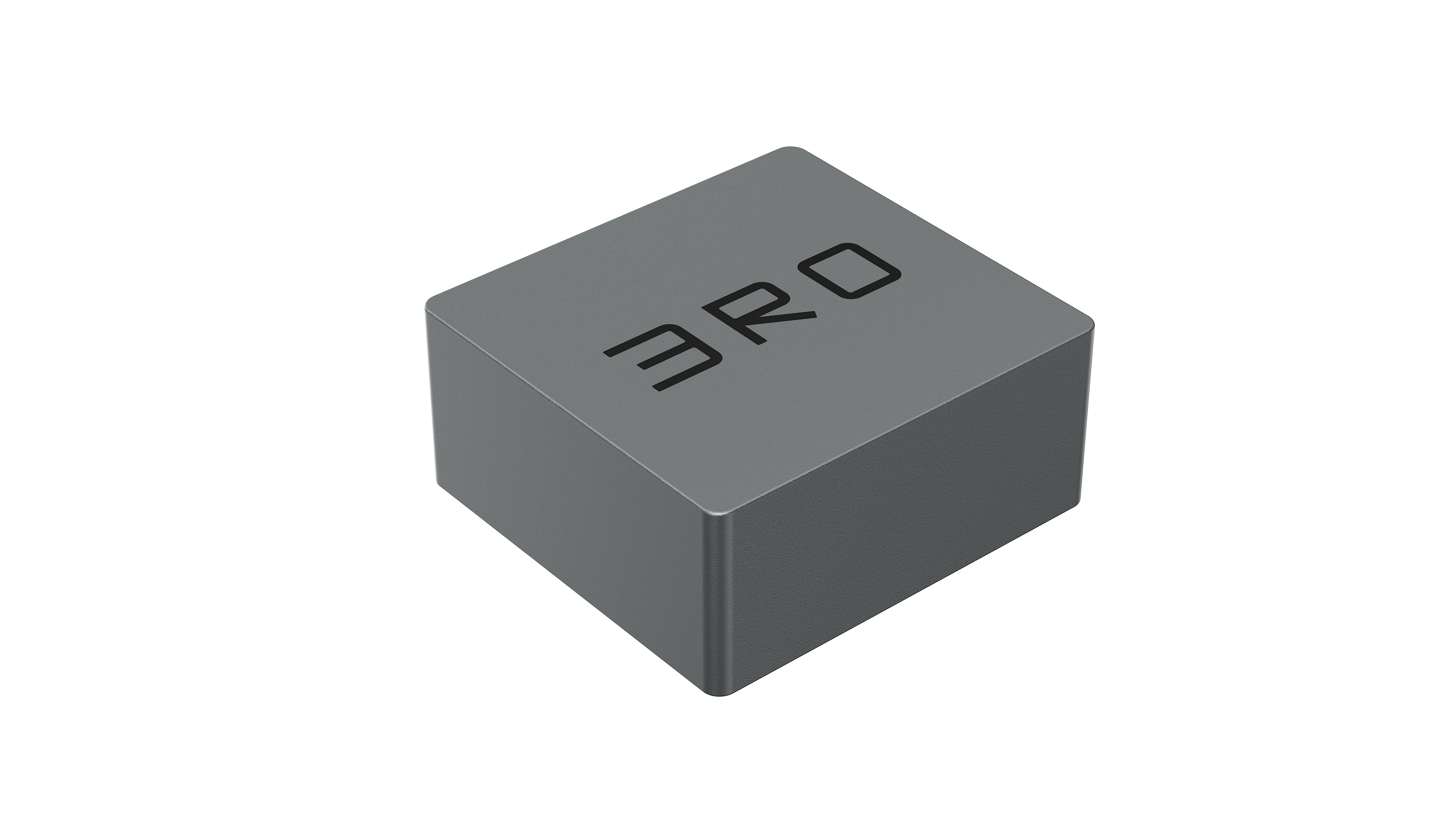

HFB SERIES

Features:
RoHS compliant
Ultra-low resistance, ultra-high current rating
Metal powder cores enable high performance (Isat)
Application areas:
Laptops and PCs
switches and servers
base station
DC/DC converter
new energy vehicles
5G
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Models and features

HFB SERIES

HCMC

 Product number               HFB SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.









HFB SERIES appearance dimensions   In mm

4


TYPE A B C D E F G H L
0402 4.2±0.2 4.2±0.2 2.15max 3.5typ 1.1typ 1.5typ 1.4typ 3.8typ 3.4typ
0403 4.2±0.25 4.2±0.25 3.1max 3.5typ 1.1typ 1.5typ 1.4typ 3.8typ 3.4typ
0502 5.6±0.2 5.5±0.2 2.2max 4.4typ 1.3typ 2.2typ 2.0typ 4.7typ 4.5typ
0503 5.6±0.2 5.5±0.2 3.1max 4.4typ 1.3typ 2.2typ 2.0typ 4.7typ 4.5typ
0505 5.6±0.2 5.5±0.2 5.0max 4.4typ 1.3typ 2.2typ 2.0typ 4.7typ 4.5typ
0603 6.7±0.2 6.5±0.2 3.1max 5.5typ 1.6typ 2.5typ 2.5typ 5.6typ 5.6typ
0605 6.7±0.2 6.5±0.2 5.0max 5.5typ 1.6typ 2.5typ 2.5typ 5.6typ 5.6typ
0606 6.7±0.2 6.5±0.2 6.0max 5.5typ 1.6typ 2.5typ 2.5typ 5.6typ 5.6typ
0703 7.9±0.25 7.7±0.25 3.1max 6.6typ 2.0typ 2.9typ 2.8typ 7.2typ 7.4typ
0707 7.9±0.25 7.7±0.25 7.0max 6.6typ 2.0typ 2.9typ 2.8typ 7.2typ 7.4typ
1006 12.2±0.3 11.3±0.3 6.0max 9.5typ 2.6typ 4.2typ 3.7typ 11.0typ 10.5typ
1010 12.2±0.3 11.3±0.3 10.0max 9.5typ 2.6typ 4.2typ 3.7typ 11.0typ 10.5typ
1508 16.6±0.3 15.6±0.3 8.0max 13.8typ 3.6typ 7.0typ 6.0typ 15.0typ 15.0typ
1510 16.6±0.3 15.6±0.3 10.0max 13.8typ 3.6typ 7.0typ 6.0typ 15.0typ 15.0typ



HFBN0402 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0402AR10MPG00 0.10 100kHz,0.1V 2.42 33.0 18.0 R10
HFBN0402AR22MPG00 0.22 100kHz,0.1V 4.60 18.8 16.8 R22
HFBN0402AR36MPG00 0.36 100kHz,0.1V 6.30 15.0 14.5 R36
HFBN0402AR40MPG00 0.40 100kHz,0.1V 7.73 13.5 14.0 R40
HFBN0402AR47MPG00 0.47 100kHz,0.1V 8.58 13.0 12.5 R47
HFBN0402AR56MPG00 0.56 100kHz,0.1V 9.30 12.6 12.0 R56
HFBN0402AR60MPG00 0.60 100kHz,0.1V 9.52 12.3 11.7 R60
HFBN0402AR72MPG00 0.72 100kHz,0.1V 11.60 10.6 10.5 R72
HFBN0402A1R0MPG00 1.00 100kHz,0.1V 14.60 8.8 9.6 1R0
HFBN0402A1R2MPG00 1.20 100kHz,0.1V 17.90 7.8 9.0 1R2
HFBN0402A1R5MPG00 1.50 100kHz,0.1V 23.50 7.4 7.6 1R5
HFBN0402A1R8MPG00 1.80 100kHz,0.1V 28.00 7.0 7.0 1R8
HFBN0402A2R2MPG00 2.20 100kHz,0.1V 38.70 6.0 5.6 2R2







HFBN0403 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0403AR33MPG00 0.33 100kHz,0.1V 6.80 19.0 15.0 R33
HFBN0403AR47MPG00 0.47 100kHz,0.1V 7.26 17.0 14.0 R47
HFBN0403AR75MPG00 0.75 100kHz,0.1V 10.80 9.0 10.0 R75
HFBN0403A1R0MPG00 1.00 100kHz,0.1V 12.76 8.5 10.0 1R0
HFBN0403A1R8MPG00 1.80 100kHz,0.1V 17.50 6.8 7.5 1R8
HFBN0403A2R2MPG00 2.20 100kHz,0.1V 20.80 7.0 7.2 2R2
HFBN0403A3R3MPG00 3.30 100kHz,0.1V 28.60 5.5 6.6 3R3
HFBN0403A4R7MPG00 4.70 100kHz,0.1V 44.10 4.5 5.1 4R7
HFBN0403A6R8MPG00 6.80 100kHz,0.1V 74.10 3.6 3.9 6R8







HFBN0502 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0502AR15MPG00 0.15 100kHz,0.1V 4.6 27.0 18.8 R15
HFBN0502AR16MPG00 0.16 100kHz,0.1V 4.6 27.0 18.8 R16
HFBN0502AR33MPG00 0.33 100kHz,0.1V 7.0 24.0 14.4 R33
HFBN0502AR47MPG00 0.47 100kHz,0.1V 8.1 20.0 14.1 R47
HFBN0502AR56MPG00 0.56 100kHz,0.1V 9.5 16.0 13.9 R56
HFBN0502AR68MPG00 0.68 100kHz,0.1V 10.2 14.0 13.4 R68
HFBN0502AR80MPG00 0.80 100kHz,0.1V 11.8 13.5 13.0 R80
HFBN0502AR82MPG00 0.82 100kHz,0.1V 12.7 13.0 12.0 R82
HFBN0502A1R0MPG00 1.00 100kHz,0.1V 13.8 12.8 10.5 1R0
HFBN0502A1R2MPG00 1.20 100kHz,0.1V 16.3 12.2 9.4 1R2
HFBN0502A1R5MPG00 1.50 100kHz,0.1V 18.7 11.7 8.8 1R5







HFBN0503 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0503AR15MPG00 0.15 100kHz,0.1V 2.31 32.5 22.2 R15
HFBN0503AR16MPG00 0.16 100kHz,0.1V 2.33 32.0 22.2 R16
HFBN0503AR33MPG00 0.33 100kHz,0.1V 3.52 26.0 19.2 R33
HFBN0503AR47MPG00 0.47 100kHz,0.1V 4.13 24.0 18.4 R47
HFBN0503AR56MPG00 0.56 100kHz,0.1V 4.52 20.2 17.7 R56
HFBN0503AR60MPG00 0.60 100kHz,0.1V 4.52 20.0 17.7 R60
HFBN0503AR80MPG00 0.80 100kHz,0.1V 5.65 18.0 13.1 R80
HFBN0503AR82MPG00 0.82 100kHz,0.1V 5.78 17.6 12.9 R82
HFBN0503A1R0MPG00 1.00 100kHz,0.1V 7.60 14.3 12.2 1R0
HFBN0503A1R2MPG00 1.20 100kHz,0.1V 9.70 13.5 11.0 1R2
HFBN0503A1R5MPG00 1.50 100kHz,0.1V 11.20 12.5 10.5 1R5
HFBN0503A1R8MPG00 1.80 100kHz,0.1V 12.70 11.3 10.1 1R8
HFBN0503A2R2MPG00 2.20 100kHz,0.1V 14.50 9.0 9.7 2R2
HFBN0503A3R3MPG00 3.30 100kHz,0.1V 23.10 8.7 8.1 3R3
HFBN0503A4R7MPG00 4.70 100kHz,0.1V 36.30 7.0 5.9 4R7







HFBN0505 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0505A5R6MPG00 5.60 100kHz,0.1V 24.2 7.2 7.2 5R6
HFBN0505A6R8MPG00 6.80 100kHz,0.1V 28.6 6.6 6.4 6R8
HFBN0505A8R2MPG00 8.20 100kHz,0.1V 32.5 6.1 6.1 8R2
HFBN0505A100MPG00 10.00 100kHz,0.1V 43.0 5.4 5.0 100







HFBN0603 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0603AR18MPG00 0.18 100kHz,0.1V 1.75 39.0 32.0 R18
HFBN0603AR33MPG00 0.33 100kHz,0.1V 2.50 30.0 25.0 R33
HFBN0603AR56MPG00 0.56 100kHz,0.1V 3.31 29.0 22.0 R56
HFBN0603AR68MPG00 0.68 100kHz,0.1V 5.17 25.0 20.0 R68
HFBN0603A1R0MPG00 1.00 100kHz,0.1V 6.05 23.0 18.0 1R0
HFBN0603A1R2MPG00 1.20 100kHz,0.1V 7.40 22.0 16.0 1R2
HFBN0603A1R5MPG00 1.50 100kHz,0.1V 9.13 20.0 15.0 1R5
HFBN0603A1R8MPG00 1.80 100kHz,0.1V 10.20 18.2 14.0 1R8
HFBN0603A2R2MPG00 2.20 100kHz,0.1V 12.20 15.9 10.0 2R2
HFBN0603A3R3MPG00 3.30 100kHz,0.1V 20.80 12.2 8.0 3R3
HFBN0603A4R5MPG00 4.50 100kHz,0.1V 25.30 10.0 7.0 4R5
HFBN0603A4R7MPG00 4.70 100kHz,0.1V 26.00 9.0 6.0 4R7







HFBN0605 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0605AR82MPG00 0.82 100kHz,0.1V 4.18 20.0 21.0 R82
HFBN0605A1R0MPG00 1.00 100kHz,0.1V 4.52 18.0 20.0 1R0
HFBN0605A1R2MPG00 1.20 100kHz,0.1V 5.83 16.0 18.0 1R2
HFBN0605A1R5MPG00 1.50 100kHz,0.1V 6.30 14.5 17.0 1R5
HFBN0605A1R8MPG00 1.80 100kHz,0.1V 7.10 13.5 16.0 1R8
HFBN0605A2R2MPG00 2.20 100kHz,0.1V 8.50 12.0 13.0 2R2
HFBN0605A3R3MPG00 3.30 100kHz,0.1V 12.50 10.0 11.0 3R3
HFBN0605A4R3MPG00 4.30 100kHz,0.1V 16.20 8.5 9.0 4R3
HFBN0605A4R7MPG00 4.70 100kHz,0.1V 18.40 8.0 8.5 4R7
HFBN0605A5R6MPG00 5.60 100kHz,0.1V 22.00 8.3 7.0 5R6
HFBN0605A6R8MPG00 6.80 100kHz,0.1V 25.40 7.0 6.6 6R8
HFBN0605A8R2MPG00 8.20 100kHz,0.1V 31.50 6.8 6.2 8R2







HFBN0606 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0606A4R7MPG00 4.70 100kHz,0.1V 14.40 10.5 11.0 4R7
HFBN0606A5R6MPG00 5.60 100kHz,0.1V 15.90 9.9 10.0 5R6
HFBN0606A6R8MPG00 6.80 100kHz,0.1V 20.80 9.2 9.0 6R8
HFBN0606A8R2MPG00 8.20 100kHz,0.1V 26.40 8.4 8.0 8R2
HFBN0606A100MPG00 10.00 100kHz,0.1V 29.82 7.6 7.0 100
HFBN0606A150MPG00 15.00 100kHz,0.1V 43.75 5.8 6.0 150
HFBN0606A220MPG00 22.00 100kHz,0.1V 60.63 5.6 5.0 220







HFBN0703 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0703A1R0MPG00 1.00 100kHz,0.1V 5.00 28.00 21.8 1R0
HFBN0703A1R5MPG00 1.50 100kHz,0.1V 8.25 23.50 15.3 1R5
HFBN0703A2R2MPG00 2.20 100kHz,0.1V 13.70 17.00 13.0 2R2
HFBN0703A2R7MPG00 2.70 100kHz,0.1V 15.40 13.50 11.4 2R7
HFBN0703A3R3MPG00 3.30 100kHz,0.1V 18.00 13.00 10.0 3R3
HFBN0703A4R7MPG00 4.70 100kHz,0.1V 26.70 12.20 9.0 4R7
HFBN0703A5R6MPG00 5.60 100kHz,0.1V 33.20 11.50 7.3 5R6
HFBN0703A6R8MPG00 6.80 100kHz,0.1V 42.50 11.00 6.8 6R8
HFBN0703A8R2MPG00 8.20 100kHz,0.1V 48.73 9.00 5.9 8R2







HFBN0707 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN0707A3R3MPG00 3.30 100kHz,0.1V 9.42 19.40 15.1 3R3
HFBN0707A4R7MPG00 4.70 100kHz,0.1V 14.26 15.20 13.6 4R7
HFBN0707A6R8MPG00 6.80 100kHz,0.1V 19.60 12.80 9.2 6R8







HFBN1006 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN1006AR18MTG00 0.18 100kHz,0.1V 0.60 120.0 46.0 R18
HFBN1006AR40MTG00 0.40 100kHz,0.1V 0.90 82.0 36.8 R40
HFBN1006AR68MTG00 0.68 100kHz,0.1V 1.60 52.0 33.9 R68
HFBN1006A1R2MTG00 1.20 100kHz,0.1V 2.80 43.0 26.3 1R2
HFBN1006A1R5MTG00 1.50 100kHz,0.1V 3.40 36.0 26.0 1R5
HFBN1006A2R2MTG00 2.20 100kHz,0.1V 5.10 32.0 20.0 2R2
HFBN1006A3R3MTG00 3.30 100kHz,0.1V 8.10 26.0 16.8 3R3
HFBN1006A4R7MTG00 4.70 100kHz,0.1V 10.90 25.0 14.0 4R7







HFBN1010 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN1010A1R0MTG00 1.00 100kHz,0.1V 1.20 50.0 40.0 1R0
HFBN1010A2R2MTG00 2.20 100kHz,0.1V 2.80 34.0 32.0 2R2
HFBN1010A3R3MTG00 3.30 100kHz,0.1V 4.10 27.4 25.0 3R3
HFBN1010A4R7MTG00 4.70 100kHz,0.1V 5.70 25.4 24.0 4R7
HFBN1010A5R6MTG00 5.60 100kHz,0.1V 7.20 23.6 21.2 5R6
HFBN1010A6R8MTG00 6.80 100kHz,0.1V 8.90 21.8 18.5 6R8
HFBN1010A8R2MTG00 8.20 100kHz,0.1V 12.40 18.3 17.1 8R2
HFBN1010A100MTG00 10.00 100kHz,0.1V 13.75 17.5 15.5 100
HFBN1010A150MTG00 15.00 100kHz,0.1V 19.30 15.5 13.8 150







HFBN1508 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN1508A2R0MPG00 2.00 100kHz,0.1V 2.21 52.0 40.0 2R0
HFBN1508A2R2MPG00 2.20 100kHz,0.1V 2.48 49.0 37.0 2R2
HFBN1508A3R0MPG00 3.00 100kHz,0.1V 3.00 41.0 34.5 3R0
HFBN1508A4R2MPG00 4.20 100kHz,0.1V 4.68 33.0 27.0 4R2
HFBN1508A4R7MPG00 4.70 100kHz,0.1V 5.16 32.0 26.5 4R7
HFBN1508A5R3MPG00 5.30 100kHz,0.1V 5.34 31.0 26.0 5R3
HFBN1508A6R2MPG00 6.20 100kHz,0.1V 6.50 31.0 23.0 6R2
HFBN1508A7R2MPG00 7.20 100kHz,0.1V 7.20 29.0 21.0 7R2
HFBN1508A8R2MPG00 8.20 100kHz,0.1V 7.92 25.0 19.0 8R2







HFBN1510 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBN1510A4R7MPG00 4.70 100kHz,0.1V 3.80 39.0 29.0 4R7
HFBN1510A5R6MPG00 5.60 100kHz,0.1V 4.20 37.0 28.0 5R6
HFBN1510A6R8MPG00 6.80 100kHz,0.1V 4.60 36.0 26.0 6R8
HFBN1510A8R2MPG00 8.20 100kHz,0.1V 7.20 30.0 24.0 8R2
HFBN1510A100MPG00 10.00 100kHz,0.1V 8.60 26.5 22.0 100
HFBN1510A150MPG00 15.00 100kHz,0.1V 11.50 23.0 18.0 150
HFBN1510A220MPG00 22.00 100kHz,0.1V 15.80 18.7 14.0 220
HFBN1510A330MPG00 33.00 100kHz,0.1V 20.00 16.7 12.0 330




HFBC0402 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0402AR10MPG00 0.10 100kHz,0.1V 2.42 33.0 18.0 R10
HFBC0402AR22MPG00 0.22 100kHz,0.1V 4.60 18.8 16.8 R22
HFBC0402AR36MPG00 0.36 100kHz,0.1V 6.30 15.0 14.5 R36
HFBC0402AR40MPG00 0.40 100kHz,0.1V 7.73 13.5 14.0 R40
HFBC0402AR47MPG00 0.47 100kHz,0.1V 8.58 13.0 12.5 R47
HFBC0402AR56MPG00 0.56 100kHz,0.1V 9.30 12.6 12.0 R56
HFBC0402AR60MPG00 0.60 100kHz,0.1V 9.52 12.3 11.7 R60
HFBC0402AR72MPG00 0.72 100kHz,0.1V 11.60 10.6 10.5 R72
HFBC0402A1R0MPG00 1.00 100kHz,0.1V 14.60 8.8 9.6 1R0
HFBC0402A1R2MPG00 1.20 100kHz,0.1V 17.90 7.8 9.0 1R2
HFBC0402A1R5MPG00 1.50 100kHz,0.1V 23.50 7.4 7.6 1R5
HFBC0402A1R8MPG00 1.80 100kHz,0.1V 28.00 7.0 7.0 1R8
HFBC0402A2R2MPG00 2.20 100kHz,0.1V 38.70 6.0 5.6 2R2







HFBC0403 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0403AR33MPG00 0.33 100kHz,0.1V 6.80 19.0 15.0 R33
HFBC0403AR47MPG00 0.47 100kHz,0.1V 7.26 17.0 14.0 R47
HFBC0403AR75MPG00 0.75 100kHz,0.1V 10.80 9.0 10.0 R75
HFBC0403A1R0MPG00 1.00 100kHz,0.1V 12.76 8.5 10.0 1R0
HFBC0403A1R8MPG00 1.80 100kHz,0.1V 17.50 6.8 7.5 1R8
HFBC0403A2R2MPG00 2.20 100kHz,0.1V 20.80 7.0 7.2 2R2
HFBC0403A3R3MPG00 3.30 100kHz,0.1V 28.60 5.5 6.6 3R3
HFBC0403A4R7MPG00 4.70 100kHz,0.1V 44.10 4.5 5.1 4R7
HFBC0403A6R8MPG00 6.80 100kHz,0.1V 74.10 3.6 3.9 6R8







HFBC0502 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0502AR15MPG00 0.15 100kHz,0.1V 4.6 27.0 18.8 R15
HFBC0502AR16MPG00 0.16 100kHz,0.1V 4.6 27.0 18.8 R16
HFBC0502AR33MPG00 0.33 100kHz,0.1V 7.0 24.0 14.4 R33
HFBC0502AR47MPG00 0.47 100kHz,0.1V 8.1 20.0 14.1 R47
HFBC0502AR56MPG00 0.56 100kHz,0.1V 9.5 16.0 13.9 R56
HFBC0502AR68MPG00 0.68 100kHz,0.1V 10.2 14.0 13.4 R68
HFBC0502AR80MPG00 0.80 100kHz,0.1V 11.8 13.5 13.0 R80
HFBC0502AR82MPG00 0.82 100kHz,0.1V 12.7 13.0 12.0 R82
HFBC0502A1R0MPG00 1.00 100kHz,0.1V 13.8 12.8 10.5 1R0
HFBC0502A1R2MPG00 1.20 100kHz,0.1V 16.3 12.2 9.4 1R2
HFBC0502A1R5MPG00 1.50 100kHz,0.1V 18.7 11.7 8.8 1R5







HFBC0503 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0503AR15MPG00 0.15 100kHz,0.1V 2.31 32.5 22.2 R15
HFBC0503AR16MPG00 0.16 100kHz,0.1V 2.33 32.0 22.2 R16
HFBC0503AR33MPG00 0.33 100kHz,0.1V 3.52 26.0 19.2 R33
HFBC0503AR47MPG00 0.47 100kHz,0.1V 4.13 24.0 18.4 R47
HFBC0503AR56MPG00 0.56 100kHz,0.1V 4.52 20.2 17.7 R56
HFBC0503AR60MPG00 0.60 100kHz,0.1V 4.52 20.0 17.7 R60
HFBC0503AR80MPG00 0.80 100kHz,0.1V 5.65 18.0 13.1 R80
HFBC0503AR82MPG00 0.82 100kHz,0.1V 5.78 17.6 12.9 R82
HFBC0503A1R0MPG00 1.00 100kHz,0.1V 7.60 14.3 12.2 1R0
HFBC0503A1R2MPG00 1.20 100kHz,0.1V 9.70 13.5 11.0 1R2
HFBC0503A1R5MPG00 1.50 100kHz,0.1V 11.20 12.5 10.5 1R5
HFBC0503A1R8MPG00 1.80 100kHz,0.1V 12.70 11.3 10.1 1R8
HFBC0503A2R2MPG00 2.20 100kHz,0.1V 14.50 9.0 9.7 2R2
HFBC0503A3R3MPG00 3.30 100kHz,0.1V 23.10 8.7 8.1 3R3
HFBC0503A4R7MPG00 4.70 100kHz,0.1V 36.30 7.0 5.9 4R7







HFBC0505 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0505A5R6MPG00 5.60 100kHz,0.1V 24.2 7.2 7.2 5R6
HFBC0505A6R8MPG00 6.80 100kHz,0.1V 28.6 6.6 6.4 6R8
HFBC0505A8R2MPG00 8.20 100kHz,0.1V 32.5 6.1 6.1 8R2
HFBC0505A100MPG00 10.00 100kHz,0.1V 43.0 5.4 5.0 100







HFBC0603 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0603AR18MPG00 0.18 100kHz,0.1V 1.75 39.0 32.0 R18
HFBC0603AR33MPG00 0.33 100kHz,0.1V 2.50 30.0 25.0 R33
HFBC0603AR56MPG00 0.56 100kHz,0.1V 3.31 29.0 22.0 R56
HFBC0603AR68MPG00 0.68 100kHz,0.1V 5.17 25.0 20.0 R68
HFBC0603A1R0MPG00 1.00 100kHz,0.1V 6.05 23.0 18.0 1R0
HFBC0603A1R2MPG00 1.20 100kHz,0.1V 7.40 22.0 16.0 1R2
HFBC0603A1R5MPG00 1.50 100kHz,0.1V 9.13 20.0 15.0 1R5
HFBC0603A1R8MPG00 1.80 100kHz,0.1V 10.20 18.2 14.0 1R8
HFBC0603A2R2MPG00 2.20 100kHz,0.1V 12.20 15.9 10.0 2R2
HFBC0603A3R3MPG00 3.30 100kHz,0.1V 20.80 12.2 8.0 3R3
HFBC0603A4R5MPG00 4.50 100kHz,0.1V 25.30 10.0 7.0 4R5
HFBC0603A4R7MPG00 4.70 100kHz,0.1V 26.00 9.0 6.0 4R7







HFBC0605 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0605AR82MPG00 0.82 100kHz,0.1V 4.18 20.0 21.0 R82
HFBC0605A1R0MPG00 1.00 100kHz,0.1V 4.52 18.0 20.0 1R0
HFBC0605A1R2MPG00 1.20 100kHz,0.1V 5.83 16.0 18.0 1R2
HFBC0605A1R5MPG00 1.50 100kHz,0.1V 6.30 14.5 17.0 1R5
HFBC0605A1R8MPG00 1.80 100kHz,0.1V 7.10 13.5 16.0 1R8
HFBC0605A2R2MPG00 2.20 100kHz,0.1V 8.50 12.0 13.0 2R2
HFBC0605A3R3MPG00 3.30 100kHz,0.1V 12.50 10.0 11.0 3R3
HFBC0605A4R3MPG00 4.30 100kHz,0.1V 16.20 8.5 9.0 4R3
HFBC0605A4R7MPG00 4.70 100kHz,0.1V 18.40 8.0 8.5 4R7
HFBC0605A5R6MPG00 5.60 100kHz,0.1V 22.00 8.3 7.0 5R6
HFBC0605A6R8MPG00 6.80 100kHz,0.1V 25.40 7.0 6.6 6R8
HFBC0605A8R2MPG00 8.20 100kHz,0.1V 31.50 6.8 6.2 8R2







HFBC0606 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0606A4R7MPG00 4.70 100kHz,0.1V 14.40 10.5 11.0 4R7
HFBC0606A5R6MPG00 5.60 100kHz,0.1V 15.90 9.9 10.0 5R6
HFBC0606A6R8MPG00 6.80 100kHz,0.1V 20.80 9.2 9.0 6R8
HFBC0606A8R2MPG00 8.20 100kHz,0.1V 26.40 8.4 8.0 8R2
HFBC0606A100MPG00 10.00 100kHz,0.1V 29.82 7.6 7.0 100
HFBC0606A150MPG00 15.00 100kHz,0.1V 43.75 5.8 6.0 150
HFBC0606A220MPG00 22.00 100kHz,0.1V 60.63 5.6 5.0 220







HFBC0703 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0703A1R0MPG00 1.00 100kHz,0.1V 5.00 28.00 21.8 1R0
HFBC0703A1R5MPG00 1.50 100kHz,0.1V 8.25 23.50 15.3 1R5
HFBC0703A2R2MPG00 2.20 100kHz,0.1V 13.70 17.00 13.0 2R2
HFBC0703A2R7MPG00 2.70 100kHz,0.1V 15.40 13.50 11.4 2R7
HFBC0703A3R3MPG00 3.30 100kHz,0.1V 18.00 13.00 10.0 3R3
HFBC0703A4R7MPG00 4.70 100kHz,0.1V 26.70 12.20 9.0 4R7
HFBC0703A5R6MPG00 5.60 100kHz,0.1V 33.20 11.50 7.3 5R6
HFBC0703A6R8MPG00 6.80 100kHz,0.1V 42.50 11.00 6.8 6R8
HFBC0703A8R2MPG00 8.20 100kHz,0.1V 48.73 9.00 5.9 8R2







HFBC0707 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC0707A3R3MPG00 3.30 100kHz,0.1V 9.42 19.40 15.1 3R3
HFBC0707A4R7MPG00 4.70 100kHz,0.1V 14.26 15.20 13.6 4R7
HFBC0707A6R8MPG00 6.80 100kHz,0.1V 19.60 12.80 9.2 6R8







HFBC1006 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC1006AR18MTG00 0.18 100kHz,0.1V 0.60 120.0 46.0 R18
HFBC1006AR40MTG00 0.40 100kHz,0.1V 0.90 82.0 36.8 R40
HFBC1006AR68MTG00 0.68 100kHz,0.1V 1.60 52.0 33.9 R68
HFBC1006A1R2MTG00 1.20 100kHz,0.1V 2.80 43.0 26.3 1R2
HFBC1006A1R5MTG00 1.50 100kHz,0.1V 3.40 36.0 26.0 1R5
HFBC1006A2R2MTG00 2.20 100kHz,0.1V 5.10 32.0 20.0 2R2
HFBC1006A3R3MTG00 3.30 100kHz,0.1V 8.10 26.0 16.8 3R3
HFBC1006A4R7MTG00 4.70 100kHz,0.1V 10.90 25.0 14.0 4R7







HFBC1010 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC1010A1R0MTG00 1.00 100kHz,0.1V 1.20 50.0 40.0 1R0
HFBC1010A2R2MTG00 2.20 100kHz,0.1V 2.80 34.0 32.0 2R2
HFBC1010A3R3MTG00 3.30 100kHz,0.1V 4.10 27.4 25.0 3R3
HFBC1010A4R7MTG00 4.70 100kHz,0.1V 5.70 25.4 24.0 4R7
HFBC1010A5R6MTG00 5.60 100kHz,0.1V 7.20 23.6 21.2 5R6
HFBC1010A6R8MTG00 6.80 100kHz,0.1V 8.90 21.8 18.5 6R8
HFBC1010A8R2MTG00 8.20 100kHz,0.1V 12.40 18.3 17.1 8R2
HFBC1010A100MTG00 10.00 100kHz,0.1V 13.75 17.5 15.5 100
HFBC1010A150MTG00 15.00 100kHz,0.1V 19.30 15.5 13.8 150







HFBC1508 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC1508A2R0MPG00 2.00 100kHz,0.1V 2.21 52.0 40.0 2R0
HFBC1508A2R2MPG00 2.20 100kHz,0.1V 2.48 49.0 37.0 2R2
HFBC1508A3R0MPG00 3.00 100kHz,0.1V 3.00 41.0 34.5 3R0
HFBC1508A4R2MPG00 4.20 100kHz,0.1V 4.68 33.0 27.0 4R2
HFBC1508A4R7MPG00 4.70 100kHz,0.1V 5.16 32.0 26.5 4R7
HFBC1508A5R3MPG00 5.30 100kHz,0.1V 5.34 31.0 26.0 5R3
HFBC1508A6R2MPG00 6.20 100kHz,0.1V 6.50 31.0 23.0 6R2
HFBC1508A7R2MPG00 7.20 100kHz,0.1V 7.20 29.0 21.0 7R2
HFBC1508A8R2MPG00 8.20 100kHz,0.1V 7.92 25.0 19.0 8R2







HFBC1510 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Marking
(μH)
Max Typ Typ
HFBC1510A4R7MPG00 4.70 100kHz,0.1V 3.80 39.0 29.0 4R7
HFBC1510A5R6MPG00 5.60 100kHz,0.1V 4.20 37.0 28.0 5R6
HFBC1510A6R8MPG00 6.80 100kHz,0.1V 4.60 36.0 26.0 6R8
HFBC1510A8R2MPG00 8.20 100kHz,0.1V 7.20 30.0 24.0 8R2
HFBC1510A100MPG00 10.00 100kHz,0.1V 8.60 26.5 22.0 100
HFBC1510A150MPG00 15.00 100kHz,0.1V 11.50 23.0 18.0 150
HFBC1510A220MPG00 22.00 100kHz,0.1V 15.80 18.7 14.0 220
HFBC1510A330MPG00 33.00 100kHz,0.1V 20.00 16.7 12.0 330


Product Description
physical dimension
Models and features
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
