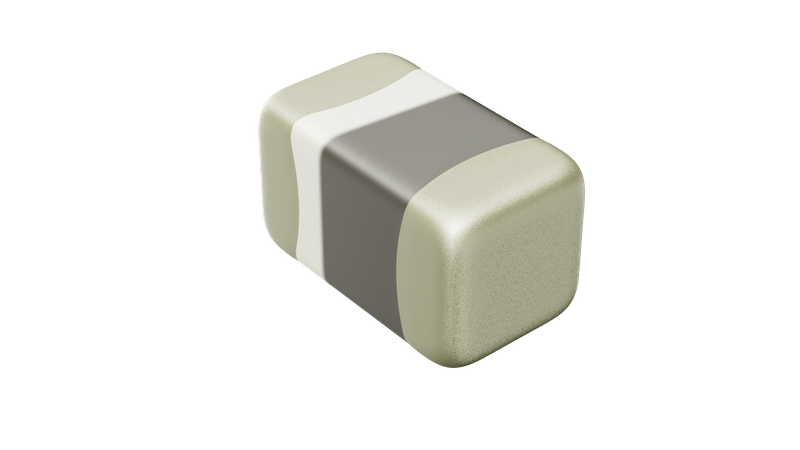

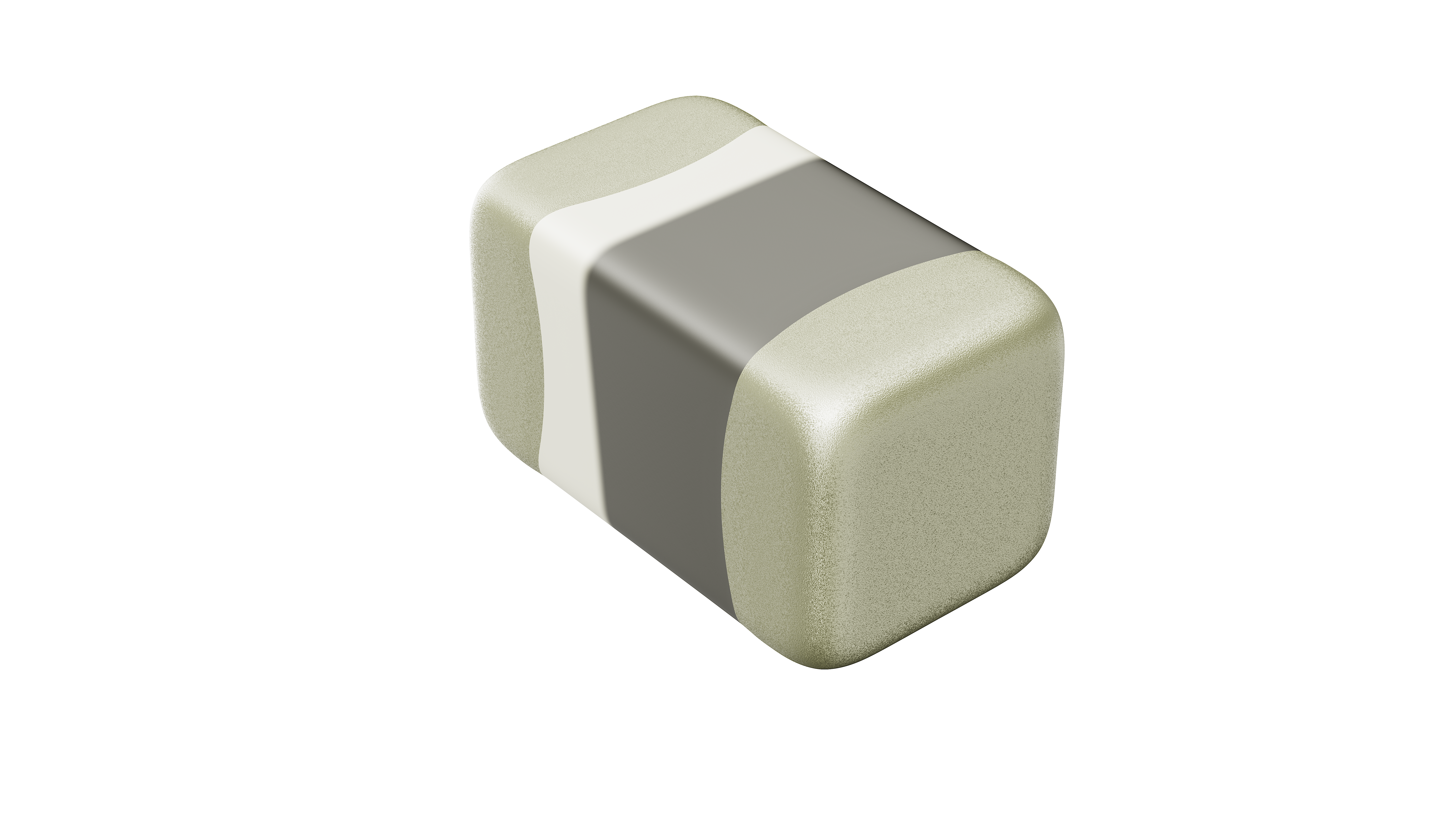

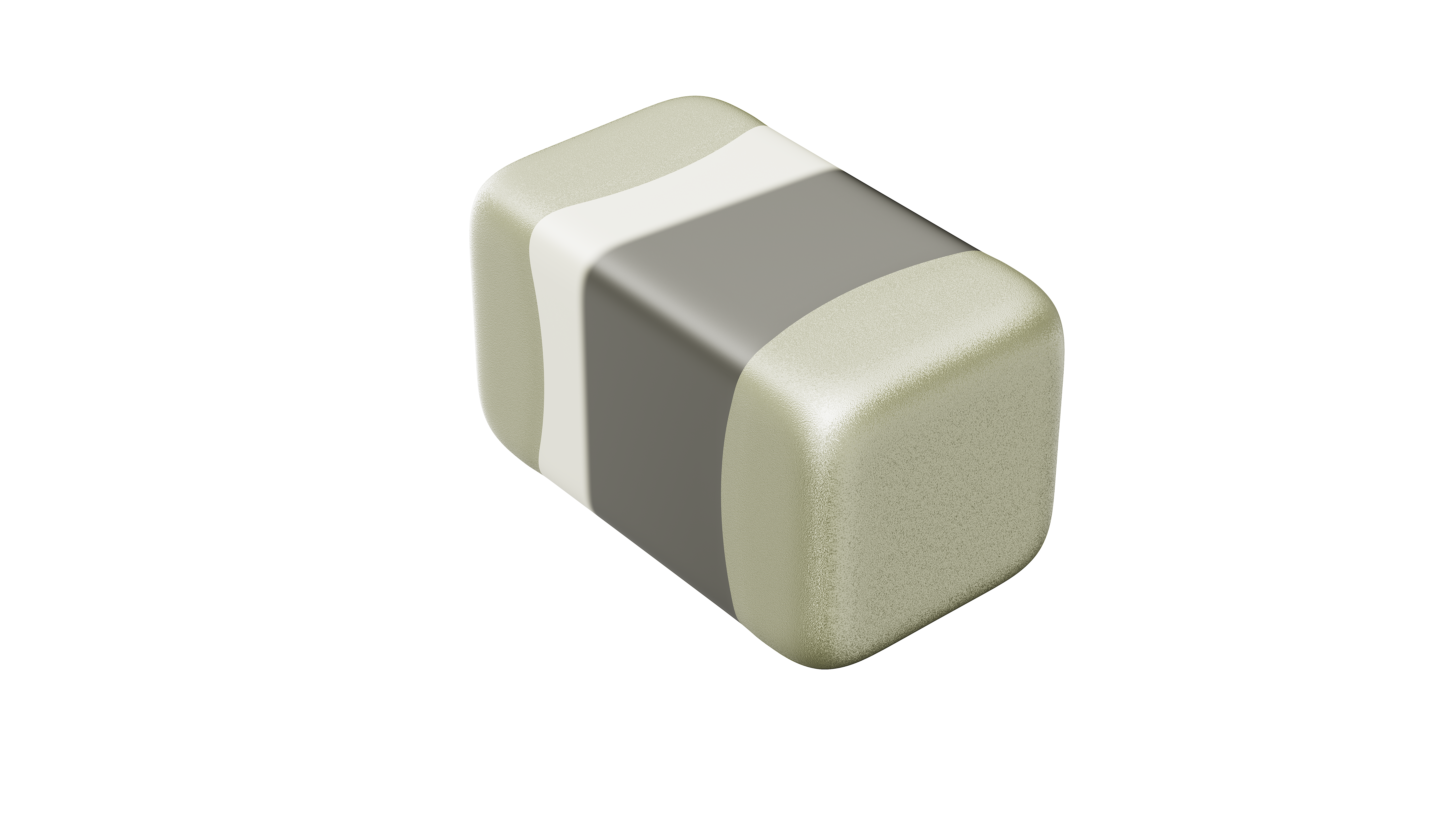

HFC SERIES

application:
RF resonance and impedance matching circuit:
Radio Frequency and Wireless Communications:
Information technology equipment, computers, telecommunications: used in information technology equipment, computers, telecommunications and other fields.
Radar detectors, automotive electronics, cell phones, pagers, PDAs, keyless remote systems:
LC filter configuration
Features:
RoHS compliant:
Excellent SRF characteristics:
1005/1608 compact size:
Inductor values ​​range from 1.0nH to 470nH.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Model and features

HFC SERIES

HCFF

 Product number               HFC SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.








HFC SERIES appearance dimensions

19

TYPE A B C D Shape
060303F02 0.6±0.03 0.3±0.03 0.3±0.03 0.15±0.05 Fig.1
100505F02 1.0±0.15 0.5±0.15 0.5±0.15 0.25±0.10 Fig.1
160808F01 1.6±0.20 0.8±0.20 0.8±0.20 0.3±0.20 Fig.2
201209F01 2.0±0.20 1.2±0.20 0.9±0.20 0.5±0.30 Fig.2


HFCN060303HQ series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Rated Current(mA) Tolerance
(nH) (MHz) Min Max Min Max (±%)
HFCN060303F020N6□00 0.6 500 14 0.06 10000 600 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F020N7□00 0.7 500 14 0.06 10000 550 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F020N8□00 0.8 500 14 0.07 10000 550 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F020N9□00 0.9 500 14 0.07 10000 550 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N0□00 1.0 500 14 0.08 10000 520 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N1□00 1.1 500 14 0.11 10000 440 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N2□00 1.2 500 14 0.12 10000 420 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N3□00 1.3 500 14 0.12 10000 420 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N4□00 1.4 500 14 0.11 10000 440 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N5□00 1.5 500 14 0.12 10000 420 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N6□00 1.6 500 14 0.13 10000 410 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N7□00 1.7 500 14 0.15 10000 380 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F021N8□00 1.8 500 14 0.15 10000 380 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N0□00 2.0 500 14 0.23 10000 300 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N2□00 2.2 500 14 0.25 10000 290 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N4□00 2.4 500 14 0.25 10000 290 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N6□00 2.6 500 14 0.25 9400 290 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N7□00 2.7 500 14 0.25 9200 280 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F022N8□00 2.8 500 14 0.26 8900 280 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F023N0□00 3.0 500 14 0.26 8600 280 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F023N3□00 3.3 500 14 0.30 8100 270 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F023N6□00 3.6 500 14 0.38 7700 240 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F023N9□00 3.9 500 14 0.42 7400 230 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F024N3□00 4.3 500 14 0.44 6800 220 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F024N7□00 4.7 500 14 0.45 6200 220 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F025N1□00 5.1 500 14 0.46 5900 210 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F025N6□00 5.6 500 14 0.46 5500 210 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F026N2□00 6.2 500 14 0.48 5100 210 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F026N8□00 6.8 500 14 0.50 4900 200 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN060303F027N5□00 7.5 500 14 0.50 4700 200 2/3/5/10
HFCN060303F028N2□00 8.2 500 14 0.56 4300 190 2/3/5/10
HFCN060303F029N1□00 9.1 500 14 0.72 4100 170 2/3/5/10
HFCN060303F0210N□00 10 500 14 0.80 3800 160 2/3/5/10
HFCN060303F0212N□00 12 500 14 0.80 3400 160 2/3/5/10
HFCN060303F0215N□00 15 500 14 0.85 2600 160 2/3/5/10
HFCN060303F0218N□00 18 500 14 1.00 2300 140 2/3/5/10
HFCN060303F0222N□00 22 500 14 1.20 1900 130 2/3/5/10
HFCN060303F0227N□00 27 500 14 1.60 1800 120 2/3/5/10
HFCN060303F0233N□00 33 300 12 2.20 1800 110 2/3/5/10
HFCN060303F0236N□00 36 300 12 2.20 1700 110 2/3/5/10
HFCN060303F0239N□00 39 300 12 2.30 1600 100 2/3/5/10
HFCN060303F0243N□00 43 300 12 2.40 1600 100 2/3/5/10
HFCN060303F0247N□00 47 300 12 2.60 1500 100 2/3/5/10
HFCN060303F0256N□00 56 300 12 2.80 1400 80 2/3/5/10
HFCN060303F0268N□00 68 300 12 3.20 1200 80 2/3/5/10
HFCN060303F0275N□00 75 300 11 3.60 1200 70 2/3/5/10
HFCN060303F0282N□00 82 300 11 3.80 1100 70 2/3/5/10








HFCN100505HQ series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Rated Current(mA) Tolerance
(nH) (MHz) Min Max Min Max (±%)
HFCN100505F021N0□00 1.0 100 8 0.06 10000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N1□00 1.1 100 8 0.07 10000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N2□00 1.2 100 8 0.07 10000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N3□00 1.3 100 8 0.07 10000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N5□00 1.5 100 8 0.08 6000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N6□00 1.6 100 8 0.08 6000 1000 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F021N8□00 1.8 100 8 0.08 6000 900 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F022N0□00 2.0 100 8 0.09 6000 900 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F022N2□00 2.2 100 8 0.09 6000 900 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F022N4□00 2.4 100 8 0.10 6000 800 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F022N7□00 2.7 100 8 0.12 6000 800 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F023N0□00 3.0 100 8 0.12 6000 800 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F023N3□00 3.3 100 8 0.13 6000 800 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F023N6□00 3.6 100 8 0.15 4000 700 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F023N9□00 3.9 100 8 0.16 4000 700 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F024N3□00 4.3 100 8 0.16 4000 700 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F024N7□00 4.7 100 8 0.16 4000 700 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F025N1□00 5.1 100 8 0.16 4000 600 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F025N6□00 5.6 100 8 0.20 4000 600 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F026N2□00 6.2 100 8 0.20 3900 600 ±0.1nH/±0.2nH/±0.3nH/±0.5nH
HFCN100505F026N8□00 6.8 100 8 0.20 3900 600 3/5/10
HFCN100505F027N5□00 7.5 100 8 0.24 3700 500 3/5/10
HFCN100505F028N2□00 8.2 100 8 0.24 3600 500 3/5/10
HFCN100505F029N1□00 9.1 100 8 0.26 3400 500 3/5/10
HFCN100505F0210N□00 10 100 8 0.26 3200 500 3/5/10
HFCN100505F0212N□00 12 100 8 0.50 2700 400 3/5/10
HFCN100505F0215N□00 15 100 8 0.50 2300 400 3/5/10
HFCN100505F0218N□00 18 100 8 0.60 2100 350 3/5/10
HFCN100505F0220N□00 20 100 8 0.60 2000 350 3/5/10
HFCN100505F0222N□00 22 100 8 0.60 1900 350 3/5/10
HFCN100505F0227N□00 27 100 8 0.70 1600 300 3/5/10
HFCN100505F0233N□00 33 100 8 0.80 1300 300 3/5/10
HFCN100505F0239N□00 39 100 8 1.00 1200 250 3/5/10
HFCN100505F0243N□00 43 100 8 1.10 1100 250 3/5/10
HFCN100505F0247N□00 47 100 8 1.10 1000 250 3/5/10
HFCN100505F0256N□00 56 100 8 1.20 750 200 3/5/10
HFCN100505F0268N□00 68 100 8 1.40 750 200 3/5/10
HFCN100505F0282N□00 82 100 8 1.60 750 200 3/5/10
HFCN100505F02R10□00 100 100 8 2.00 700 200 3/5/10
HFCN100505F02R12□00 120 100 8 2.50 600 150 3/5/10
HFCN100505F02R15□00 150 100 8 3.00 550 150 3/5/10
HFCN100505F02R18□00 180 100 8 3.50 500 150 3/5/10
HFCN100505F02R22□00 220 100 8 3.70 450 100 3/5/10
HFCN100505F02R27□00 270 100 8 4.50 400 100 3/5/10
HFCN100505F02R33□00 330 50 6 5.00 350 80 3/5/10
HFCN100505F02R36□00 360 50 6 6.00 300 80 3/5/10








HFCN160808H series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Rated Current(mA) Tolerance
(nH) (MHz) Min Max Min Max (±%)
HFCN160808F011N0□00 1.0 100 8 0.05 10000 500 ±0.3nH/±0.5nH
HFCN160808F011N2□00 1.2 100 8 0.05 10000 500 ±0.3nH/±0.5nH
HFCN160808F011N5□00 1.5 100 8 0.10 6000 500 ±0.3nH/±0.5nH
HFCN160808F011N8□00 1.8 100 8 0.10 6000 500 ±0.3nH/±0.5nH
HFCN160808F012N2□00 2.2 100 8 0.10 6000 500 ±0.3nH/±0.5nH
HFCN160808F012N7□00 2.7 100 8 0.12 6000 500 ±0.3nH/±0.5nH
HFCN160808F013N3□00 3.3 100 10 0.15 6000 500 ±0.3nH/±0.5nH
HFCN160808F013N9□00 3.9 100 10 0.16 6000 500 ±0.3nH/±0.5nH
HFCN160808F014N7□00 4.7 100 10 0.20 6000 500 ±0.3nH/±0.5nH
HFCN160808F015N6□00 5.6 100 10 0.25 5000 500 ±0.3nH/±0.5nH
HFCN160808F016N8□00 6.8 100 10 0.30 5000 500 ±0.3nH/±0.5nH
HFCN160808F018N2□00 8.2 100 10 0.35 4500 500 5/10
HFCN160808F0110N□00 10 100 12 0.40 3500 300 5/10
HFCN160808F0112N□00 12 100 12 0.45 3000 300 5/10
HFCN160808F0115N□00 15 100 12 0.50 2300 300 5/10
HFCN160808F0118N□00 18 100 12 0.55 2200 300 5/10
HFCN160808F0122N□00 22 100 12 0.60 2000 300 5/10
HFCN160808F0127N□00 27 100 12 0.65 1700 300 5/10
HFCN160808F0133N□00 33 100 12 0.70 1500 300 5/10
HFCN160808F0139N□00 39 100 12 0.70 1400 300 5/10
HFCN160808F0147N□00 47 100 12 0.70 1200 300 5/10
HFCN160808F0156N□00 56 100 12 0.75 1100 300 5/10
HFCN160808F0168N□00 68 100 12 0.85 900 300 5/10
HFCN160808F0182N□00 82 100 8 1.00 800 300 5/10
HFCN160808F01R10□00 100 100 8 1.20 700 300 5/10
HFCN160808F01R12□00 120 50 8 1.40 600 200 5/10
HFCN160808F01R15□00 150 50 8 1.60 500 200 5/10
HFCN160808F01R18□00 180 50 8 1.90 400 200 5/10
HFCN160808F01R22□00 220 50 8 2.40 350 200 5/10
HFCN160808F01R27□00 270 50 8 2.60 350 150 5/10
HFCN160808F01R33□00 330 50 8 2.80 350 150 5/10
HFCN160808F01R39□00 390 50 8 3.20 300 150 5/10
HFCN160808F01R43□00 430 50 8 3.40 280 150 5/10
HFCN160808F01R47□00 470 50 8 3.60 250 150 5/10








HFCN201209H series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Rated Current(mA) Tolerance
(nH) (MHz) Min Max Min Max (±%)
HFCN201209F011N5□00 1.5 100 10 0.10 6000 500 ±0.3nH/±0.5nH
HFCN201209F011N8□00 1.8 100 10 0.10 6000 500 ±0.3nH/±0.5nH
HFCN201209F012N2□00 2.2 100 10 0.10 6000 500 ±0.3nH/±0.5nH
HFCN201209F012N7□00 2.7 100 12 0.10 5500 500 ±0.3nH/±0.5nH
HFCN201209F013N3□00 3.3 100 12 0.13 5000 500 ±0.3nH/±0.5nH
HFCN201209F013N9□00 2.9 100 12 0.15 4500 500 ±0.3nH/±0.5nH
HFCN201209F014N7□00 4.7 100 12 0.20 4000 500 ±0.3nH/±0.5nH
HFCN201209F015N6□00 5.6 100 15 0.23 3500 500 ±0.3nH/±0.5nH
HFCN201209F016N8□00 6.8 100 15 0.25 3000 500 ±0.3nH/±0.5nH
HFCN201209F018N2□00 8.2 100 15 0.28 2500 500 5/10
HFCN201209F0110N□00 10 100 15 0.30 2200 500 5/10
HFCN201209F0112N□00 12 100 15 0.35 2000 500 5/10
HFCN201209F0115N□00 15 100 15 0.40 1800 500 5/10
HFCN201209F0118N□00 18 100 15 0.45 1600 300 5/10
HFCN201209F0122N□00 22 100 15 0.50 1500 300 5/10
HFCN201209F0127N□00 27 100 15 0.55 1400 300 5/10
HFCN201209F0133N□00 33 100 15 0.60 1300 300 5/10
HFCN201209F0139N□00 39 100 15 0.65 1100 300 5/10
HFCN201209F0147N□00 47 100 18 0.70 1000 300 5/10
HFCN201209F0156N□00 56 100 18 0.75 900 300 5/10
HFCN201209F0168N□00 68 100 18 0.80 850 300 5/10
HFCN201209F0182N□00 82 100 18 0.90 800 300 5/10
HFCN201209F01R10□00 100 100 18 0.90 700 300 5/10
HFCN201209F01R12□00 120 50 13 0.95 600 300 5/10
HFCN201209F01R15□00 150 50 13 1.20 550 300 5/10
HFCN201209F01R18□00 180 50 13 1.30 500 300 5/10
HFCN201209F01R22□00 220 50 12 1.50 400 300 5/10
HFCN201209F01R27□00 270 50 12 1.80 350 300 5/10
HFCN201209F01R33□00 330 50 12 2.00 300 300 5/10
HFCN201209F01R39□00 390 50 10 2.00 250 300 5/10
HFCN201209F01R47□00 470 50 10 2.00 200 300 5/10


Product Description
physical dimension
Model and features
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
