HFL SERIES

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
Appearance size
Model and features
HFL SERIES

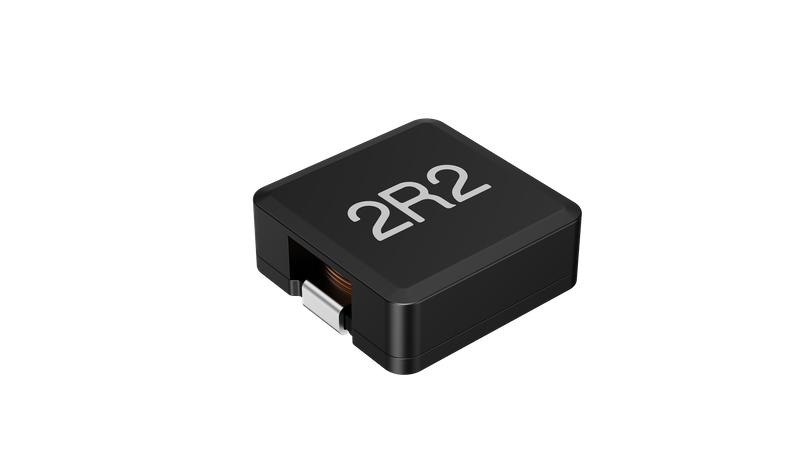

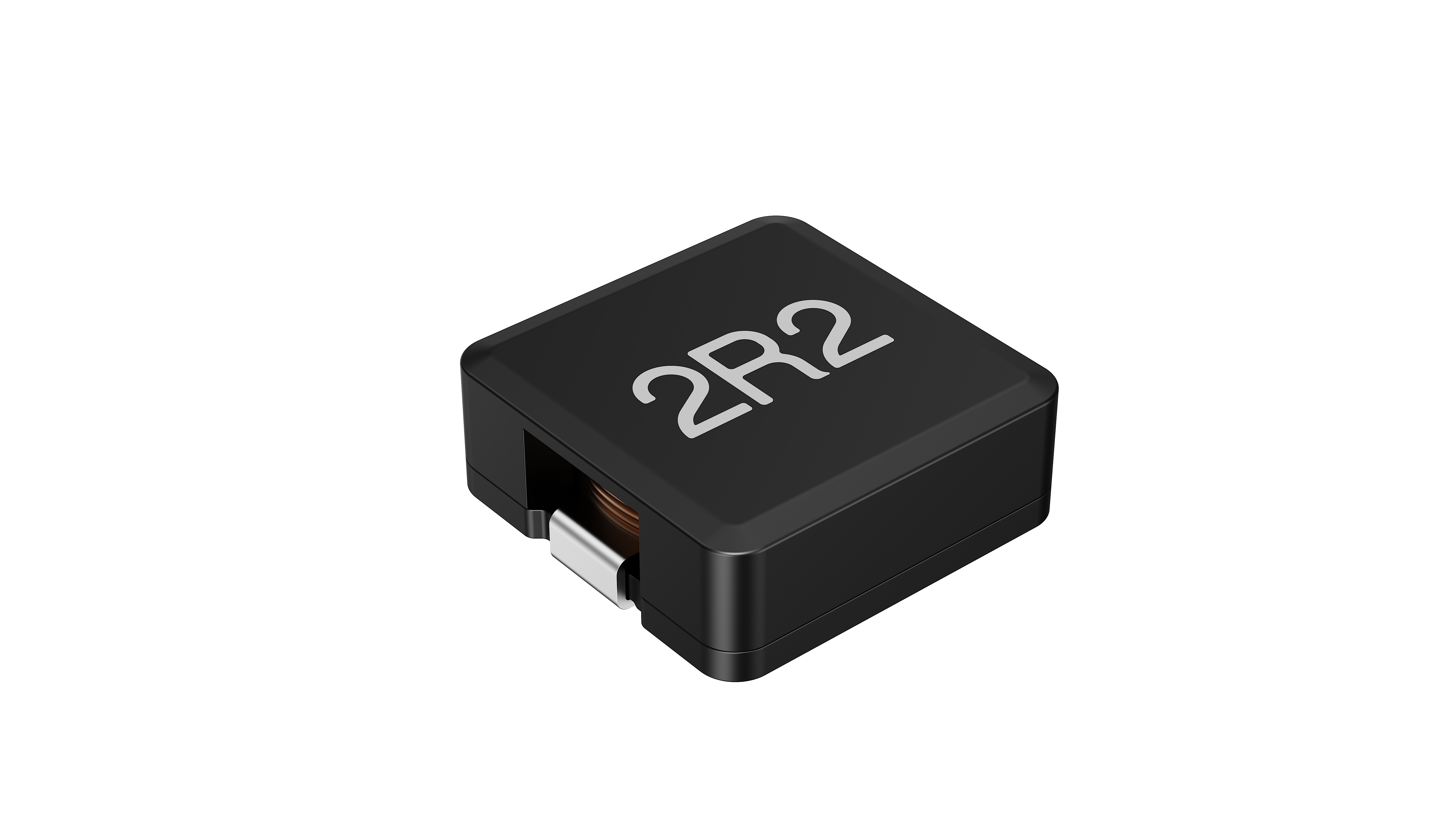

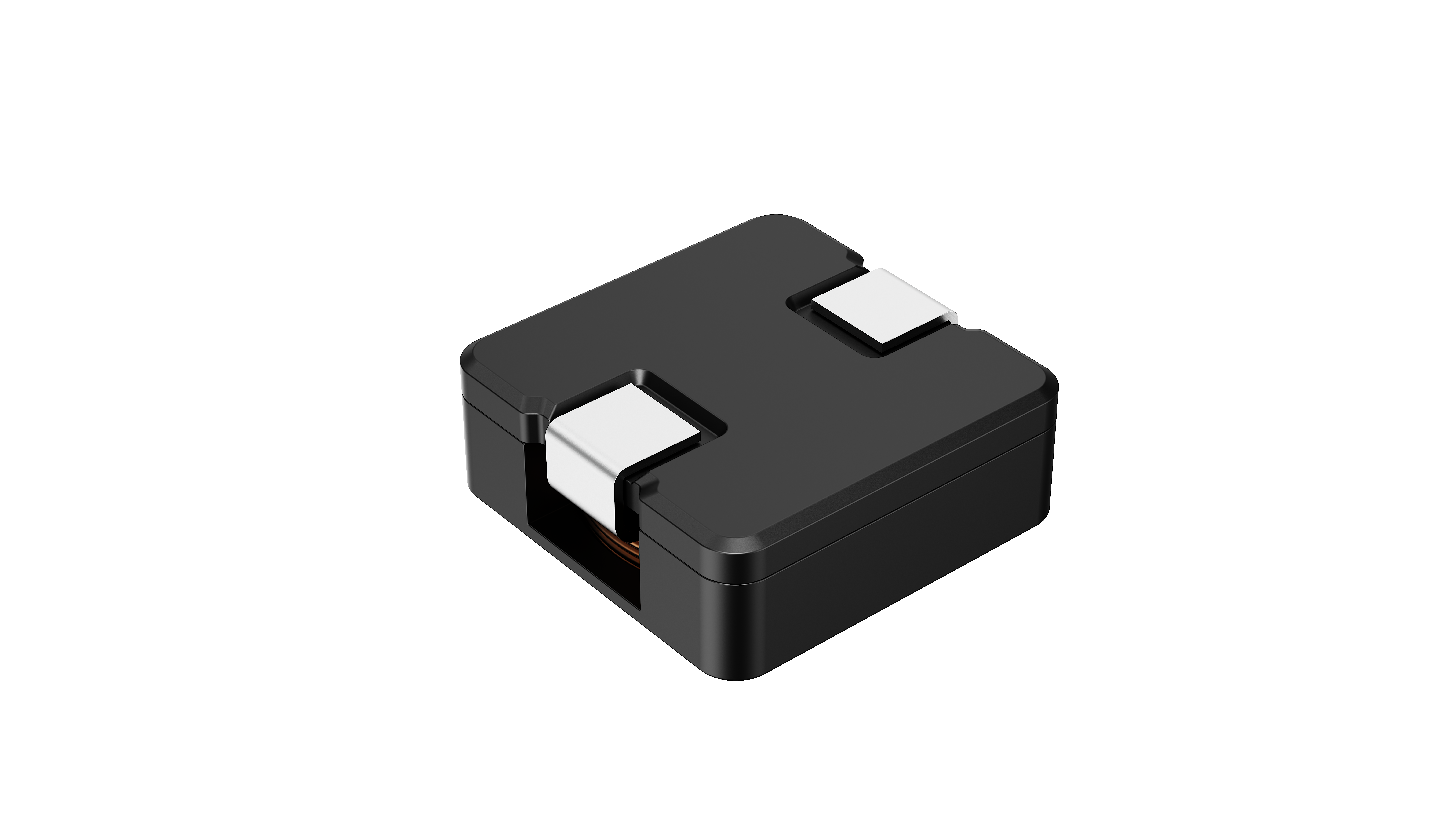

Picture 1 Product number HFL SERIES
manufacturer HUASUN
PID
Supply method Self-operated
product cycle In mass production
RoHs & lead-free situation Lead-free/RoHs compliant
describe Excellent price, good quality, wide range of values, and good reliability.


HFL SERIES

6

TYPE A B C D E H I G
0504 5.3±0.3 5.6±0.3 4.0±0.3 1.0±0.3 1.2±0.5 2.0 2.0 2.2
0603 6.9±0.4 7.0±0.4 3.3max 1.2±0.3 1.8±0.5 2.2 2.4 2.7
0604 6.9±0.4 7.0±0.4 4.0max 1.2±0.3 1.8±0.5 2.2 2.4 2.7
0605 6.9±0.4 7.0±0.4 5.0max 1.2±0.3 1.8±0.5 2.2 2.4 2.7
1003 10.2±0.5 10.5±0.5 3.1max 2.0±0.5 2.0±0.5 4.0 3.8 3.5
1004 10.2±0.5 10.5±0.5 4.2max 2.0±0.5 2.0±0.5 4.0 3.8 3.5
1005 10.2±0.5 10.5±0.5 5.0max 2.0±0.5 2.0±0.5 4.0 3.8 3.5
1203 12.8±0.5 13.0±1.0 3.5max 2.5±0.5 3.0±1.0 5.0 6.0 4.5
1205 12.8±0.5 13.0±1.0 5.0max 2.5±0.5 3.0±1.0 5.0 6.0 4.5
1206 12.8±0.5 13.0±1.0 6.5max 3.0±1.0 3.0±1.0 5.0 6.0 4.5
1809 18.2±0.5 18.3±1.0 9.2max 3.5±1.5 4.5±1.0 6.0 7.3 6.0
2212 22.0±1.0 22.5±1.0 12.0±0.4 3.5±1.5 5.5±1.0 6.0 9.0 7.0


HFLN0504 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN0504R22□00 0.22 100KHz/0.1V 1.38 25 20 20 R22
HFLN0504R33□00 0.33 100KHz/0.1V 1.93 20 18.5 20 R33
HFLN0504R47□00 0.47 100KHz/0.1V 3.03 16 15 20 R47
HFLN0504R68□00 0.68 100KHz/0.1V 4.4 13.5 12.75 20 R68
HFLN05041R0□00 1.0 100KHz/0.1V 5.23 11.5 11.5 20 1R0
HFLN05041R5□00 1.5 100KHz/0.1V 8.97 9 9 20 1R5
HFLN05042R2□00 2.2 100KHz/0.1V 12.43 7.5 7.5 20 2R2
HFLN05043R3□00 3.3 100KHz/0.1V 20.35 5.8 5.75 20 3R3
HFLN05044R7□00 4.7 100KHz/0.1V 26.95 4.7 4.6 20 4R7
HFLN05045R6□00 5.6 100KHz/0.1V 31.35 4.6 4.5 20 5R6








HFLN0603 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN0603R13□00 0.13 100KHz/0.1V 1 48 22 20 R13
HFLN0603R24□00 0.24 100KHz/0.1V 1.98 40 18 20 R24
HFLN0603R52□00 0.52 100KHz/0.1V 4.07 20 14 20 R52
HFLN0603R95□00 0.95 100KHz/0.1V 6.82 13 11 20 R95
HFLN06031R2□00 1.2 100KHz/0.1V 9.46 13 8.5 20 1R2
HFLN06031R5□00 1.5 100KHz/0.1V 13.97 12 7.5 20 1R5
HFLN06032R0□00 2.0 100KHz/0.1V 15.62 9 6.5 20 2R0








HFLN0604 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN0604R22□00 0.22 100KHz/0.1V 1.21 32 21 20 R22
HFLN0604R40□00 0.40 100KHz/0.1V 2.04 25 19 20 R40
HFLN0604R68□00 0.68 100KHz/0.1V 3.41 20 17 20 R68
HFLN06041R0□00 1.0 100KHz/0.1V 5.06 19 15 20 1R0
HFLN06041R5□00 1.5 100KHz/0.1V 7.26 14 11 20 1R5
HFLN06042R2□00 2.2 100KHz/0.1V 12.54 11 7 20 2R2
HFLN06043R3□00 3.3 100KHz/0.1V 18.92 9 6.5 20 3R3
HFLN06044R7□00 4.7 100KHz/0.1V 21.45 7 5.5 20 4R7








HFLN0605 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN0605R24□00 0.24 100KHz/0.1V 1.10 28 20 20 R24
HFLN0605R47□00 0.47 100KHz/0.1V 1.49 20 18 20 R47
HFLN0605R76□00 0.76 100KHz/0.1V 2.48 15 15.5 20 R76
HFLN06051R1□00 1.10 100KHz/0.1V 3.47 13 15 20 1R1
HFLN06051R5□00 1.5 100KHz/0.1V 4.73 11 13 20 1R5
HFLN06052R0□00 2.0 100KHz/0.1V 6.44 9 11.5 20 2R0
HFLN06053R3□00 3.3 100KHz/0.1V 9.90 8 9 20 3R3
HFLN06054R9□00 4.9 100KHz/0.1V 15.95 6.5 6.5 20 4R9
HFLN06056R5□00 6.5 100KHz/0.1V 23.65 6 6 20 6R5
HFLN06057R6□00 7.6 100KHz/0.1V 33.22 4.8 4.2 20 7R6
HFLN06058R5□00 8.5 100KHz/0.1V 35.75 4.5 4 20 8R5
HFLN0605100□00 10 100KHz/0.1V 36.30 4.0 3.5 20 100








HFLN1003 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1003R20□00 0.2 100KHz/0.1V 0.9 50 22 20 R20
HFLN1003R33□00 0.33 100KHz/0.1V 2.39 36 18 20 R33
HFLN1003R56□00 0.56 100KHz/0.1V 2.5 33 18 20 R56
HFLN1003R68□00 0.68 100KHz/0.1V 5.27 21 14 20 R68
HFLN10031R0□00 1 100KHz/0.1V 5.5 20 14 20 1R0
HFLN10031R2□00 1.2 100KHz/0.1V 7.26 15 12 20 1R2
HFLN10031R5□00 1.5 100KHz/0.1V 7.8 14 12 20 1R5
HFLN10032R2□00 2.2 100KHz/0.1V 12.52 12 9 20 2R2








HFLN1004 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1004R15□00 0.15 100KHz/0.1V 0.64 60 25 20 R15
HFLN1004R30□00 0.30 100KHz/0.1V 1.21 35 22 20 R30
HFLN1004R56□00 0.56 100KHz/0.1V 1.77 30 20 20 R56
HFLN10041R0□00 1.00 100KHz/0.1V 3.63 20 16 20 1R0
HFLN10041R5□00 1.50 100KHz/0.1V 5.83 17 14 20 1R5
HFLN10042R2□00 2.20 100KHz/0.1V 8.03 13 11 20 2R2
HFLN10042R8□00 2.80 100KHz/0.1V 11.66 11 9.5 20 2R8
HFLN10044R3□00 4.30 100KHz/0.1V 15.51 8 8 20 4R3








HFLN1005 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1005R16□00 0.16 100KHz/0.1V 0.56 32 21 20 R16
HFLN1005R40□00 0.40 100KHz/0.1V 0.74 28 19 20 R40
HFLN1005R72□00 0.72 100KHz/0.1V 1.43 24 17 20 R72
HFLN10051R2□00 1.20 100KHz/0.1V 1.98 18 15 20 1R2
HFLN10051R8□00 1.80 100KHz/0.1V 3.85 16 14 20 1R8
HFLN10052R4□00 2.40 100KHz/0.1V 5.23 14 11 20 2R4
HFLN10053R3□00 3.30 100KHz/0.1V 6.49 13 10 20 3R3
HFLN10054R2□00 4.20 100KHz/0.1V 7.81 12 9 20 4R2
HFLN10055R5□00 5.50 100KHz/0.1V 11.33 11 8 20 5R5
HFLN10056R5□00 6.50 100KHz/0.1V 13.75 10 7.5 20 6R5
HFLN10057R8□00 7.80 100KHz/0.1V 14.96 9.5 7 20 7R8
HFLN1005100□00 10.00 100KHz/0.1V 17.93 8.5 6.5 20 100
HFLN1005160□00 16.00 100KHz/0.1V 37.95 6.5 5 20 160








HFLN1203 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1203R25□00 0.25 100KHz/0.1V 0.83 60 24 20 R25
HFLN1203R68□00 0.68 100KHz/0.1V 1.74 40 22 20 R68
HFLN12031R2□00 1.20 100KHz/0.1V 3.14 28 17 20 1R2
HFLN12031R8□00 1.80 100KHz/0.1V 6.16 22 14 20 1R8
HFLN12032R2□00 2.20 100KHz/0.1V 6.27 18 14 20 2R2
HFLN12033R3□00 3.30 100KHz/0.1V 8.91 14 12 20 3R3








HFLN1205 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1205R19□00 0.19 100KHz/0.1V 0.55 50 29 20 R19
HFLN1205R47□00 0.47 100KHz/0.1V 0.99 50 26 20 R47
HFLN1205R90□00 0.90 100KHz/0.1V 1.76 28 24 20 R90
HFLN12051R4□00 1.40 100KHz/0.1V 2.64 26 22 20 1R4
HFLN12052R3□00 2.30 100KHz/0.1V 4.07 17 17.5 20 2R3
HFLN12053R2□00 3.20 100KHz/0.1V 5.83 15 16 20 3R2
HFLN12054R8□00 4.80 100KHz/0.1V 11.55 13 11 20 4R8
HFLN12056R0□00 6.00 100KHz/0.1V 14.85 11.5 10 20 6R0
HFLN12058R2□00 8.20 100KHz/0.1V 12.76 11 9.5 20 8R2
HFLN1205100□00 10.00 100KHz/0.1V 15.51 10 8.5 20 100








HFLN1206 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1206R22□00 0.22 100KHz/0.1V 0.39 65 32 20 R22
HFLN1206R47□00 0.47 100KHz/0.1V 0.74 50 30 20 R47
HFLN1206R82□00 0.82 100KHz/0.1V 0.99 35 27 20 R82
HFLN12061R3□00 1.30 100KHz/0.1V 1.98 25 25 20 1R3
HFLN12062R0□00 2.00 100KHz/0.1V 2.86 22 23 20 2R0
HFLN12062R8□00 2.80 100KHz/0.1V 3.63 17.5 20 20 2R8
HFLN12063R7□00 3.70 100KHz/0.1V 5.39 16 17 20 3R7
HFLN12064R7□00 4.70 100KHz/0.1V 8.50 15 13 20 4R7
HFLN12066R0□00 6.00 100KHz/0.1V 9.24 14 13 20 6R0
HFLN12067R3□00 7.30 100KHz/0.1V 6.49 12 12 20 7R3
HFLN12069R2□00 9.20 100KHz/0.1V 8.58 10.5 12 20 9R2
HFLN1206110□00 11.00 100KHz/0.1V 10.00 9.5 11 20 110
HFLN1206130□00 13.00 100KHz/0.1V 23.32 9 10 20 130
HFLN1206150□00 15.00 100KHz/0.1V 16.28 8 9 20 150
HFLN1206220□00 22.00 100KHz/0.1V 27.17 6.5 6 20 220








HFLN1809 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN1809R82□00 0.82 100KHz/0.1V 0.58 65 41.5 20 R82
HFLN18091R3□00 1.30 100KHz/0.1V 1.02 62 34.5 20 1R3
HFLN18091R9□00 1.90 100KHz/0.1V 1.30 52 32.5 20 1R9
HFLN18092R6□00 2.60 100KHz/0.1V 1.71 50 31.5 20 2R6
HFLN18093R5□00 3.50 100KHz/0.1V 3.35 37 22.5 20 3R5
HFLN18094R5□00 4.50 100KHz/0.1V 3.67 37 20.5 20 4R5
HFLN18095R6□00 5.60 100KHz/0.1V 4.00 33 19 20 5R6
HFLN18096R8□00 6.80 100KHz/0.1V 4.43 27 18.5 20 6R8
HFLN1809100□00 10.00 100KHz/0.1V 7.45 21.5 15 20 100
HFLN1809100□10 10.00 100KHz/0.1V 7.67 18.5 16.5 20 100
HFLN1809150□00 15.00 100KHz/0.1V 10.05 14 14 20 150
HFLN1809220□00 22.00 100KHz/0.1V 15.77 10 10 20 220
HFLN1809330□00 33.00 100KHz/0.1V 24.41 9 8.5 20 330
HFLN1809470□00 47.00 100KHz/0.1V 36.72 7 6.8 20 470








HFLN2212 series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH )
Max Typ Typ (±%)
HFLN22123R3□00 3.30 100KHz/0.1V 1.87 45 29 20 3R3
HFLN22126R8□00 6.80 100KHz/0.1V 2.31 31 28.5 20 6R8
HFLN22128R2□00 8.20 100KHz/0.1V 2.97 30 25.5 20 8R2
HFLN2212100□00 10.00 100KHz/0.1V 5.50 26 21 20 100
HFLN2212120□00 12.00 100KHz/0.1V 6.50 25 19 20 120
HFLN2212220□00 22.00 100KHz/0.1V 7.70 18 15 20 220
HFLN2212330□00 33.00 100KHz/0.1V 14.52 15 11.5 20 330
HFLN2212470□00 47.00 100KHz/0.1V 21.12 12 9 20 470
HFLN2212680□00 68.00 100KHz/0.1V 30.03 9.5 7.5 20 680
HFLN2212820□00 82.00 100KHz/0.1V 33.44 8.5 7 20 820
