| Quantity: | |
|---|---|

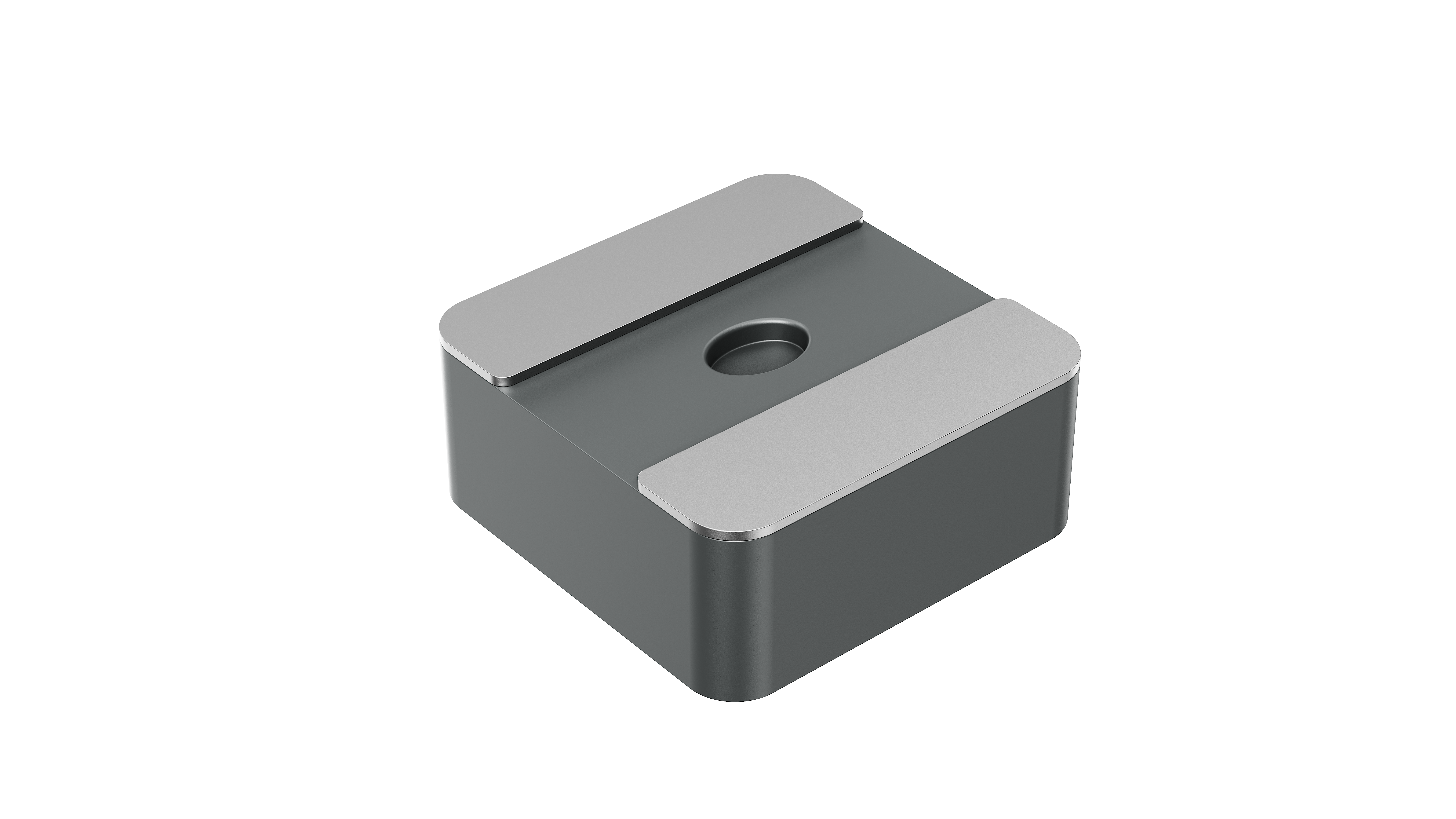

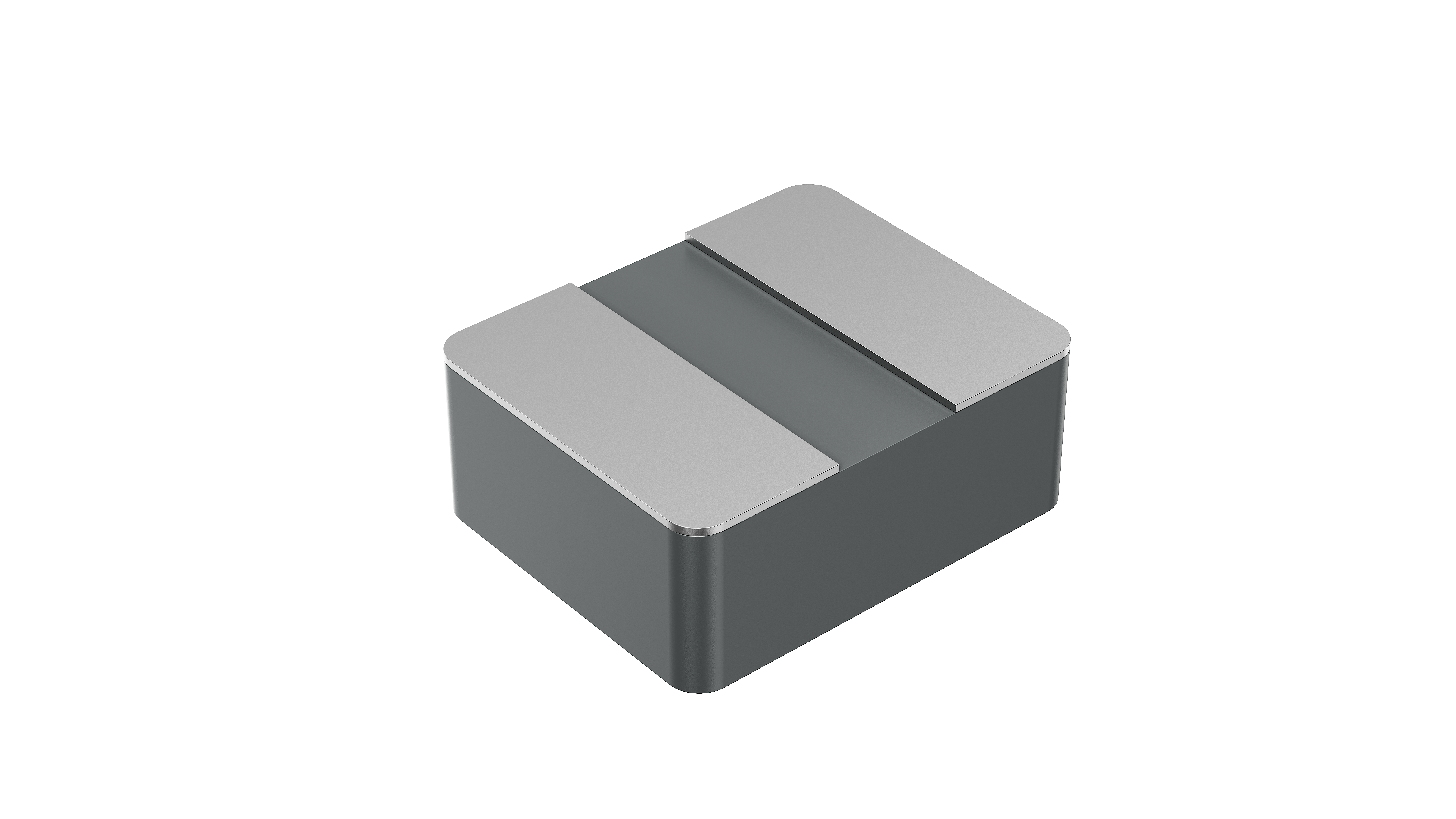

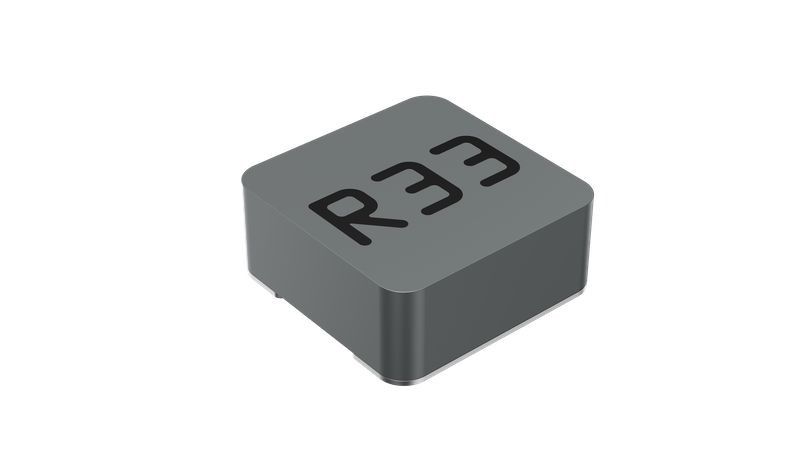

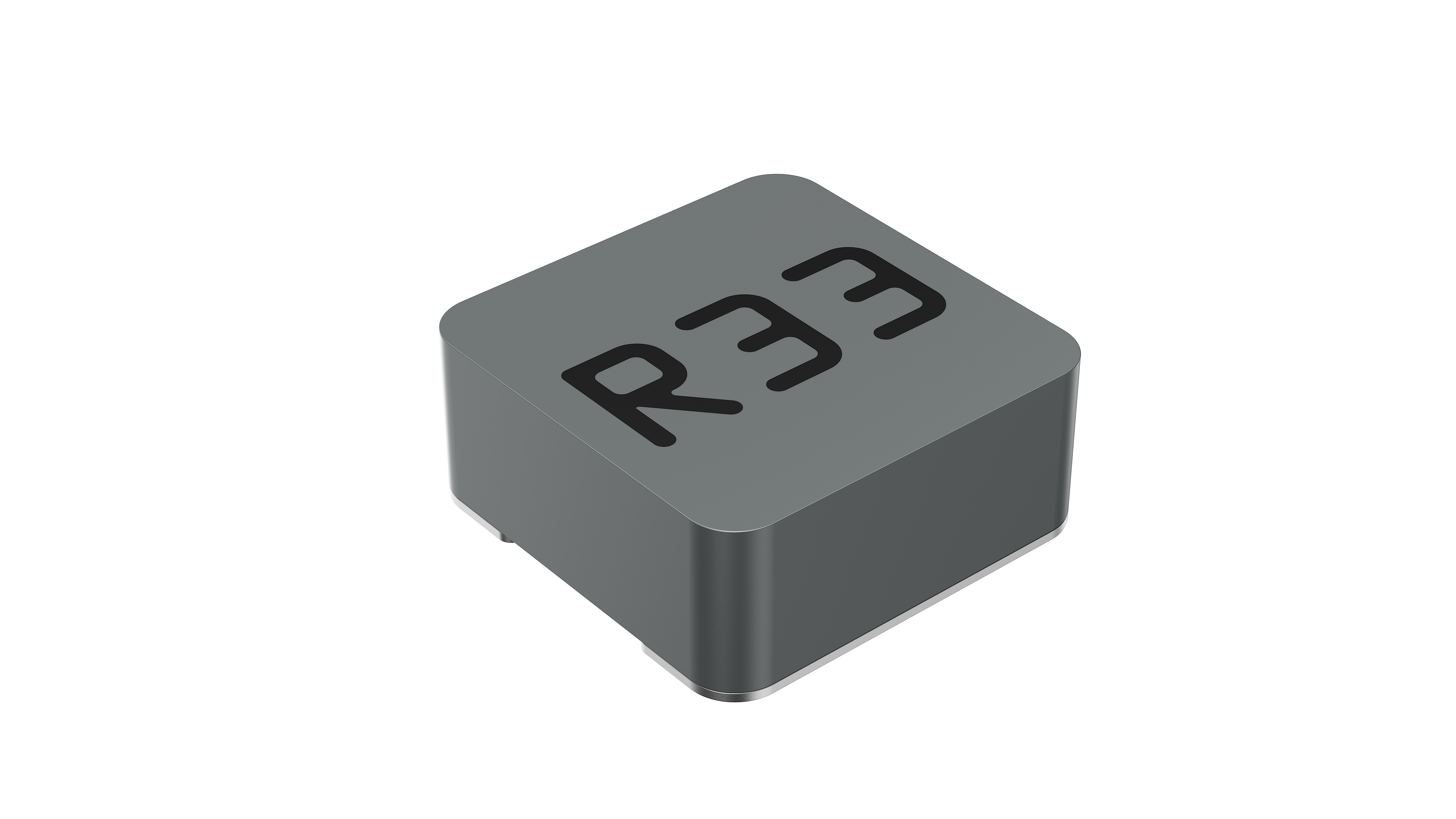

HFS SERIES | |||
| Product number | HFS SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
HFS SERIES appearance dimensions In mm |
| TYPE | A | B | C | D | H | I | J |
| 201610 | 2.0±0.2 | 1.6±0.2 | 1.0max | 0.6Typ | 1.7 | 0.5 | 2.1 |
| 201612 | 2.0±0.2 | 1.6±0.2 | 1.2max | 0.6typ | 1.7 | 0.5 | 2.1 |
| 252010 | 2.5±0.2 | 2.0±0.2 | 1.0max | 0.7typ | 2.1 | 0.6 | 2.6 |
| 252012 | 2.5±0.2 | 2.0±0.2 | 1.2max | 0.7typ | 2.1 | 0.6 | 2.6 |
| 322512 | 3.2±0.2 | 2.5±0.2 | 1.2max | 1.3typ | 2.8 | 1.8 | 3.7 |
| 322520 | 3.2±0.2 | 2.5±0.2 | 2.0max | 1.3typ | 2.8 | 1.8 | 3.7 |
| HFSN201610 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN201610MR24MPG01 | 0.24 | 1MHz,1V | 15.0(18.0) | 7.8(7.0) | 5.8(5.2) | 20 |
| HFSN201610MR24MPG00 | 0.24 | 1MHz,1V | 16.0(20.0) | 7.0(6.5) | 5.6(5.0) | 20 |
| HFSN201610MR33MPG01 | 0.33 | 1MHz,1V | 18.0(21.0) | 7.6(6.8) | 5.5(5.0) | 20 |
| HFSN201610MR33MPG00 | 0.33 | 1MHz,1V | 20.0(25.0) | 6.8(6.3) | 5.3(4.8) | 20 |
| HFSN201610MR47MPG01 | 0.47 | 1MHz,1V | 17.0(22.0) | 6.0(5.5) | 5.4(4.8) | 20 |
| HFSN201610MR47MPG00 | 0.47 | 1MHz,1V | 18.0(25.0) | 5.8(5.3) | 4.5(4.0) | 20 |
| HFSN201610MR68MPG01 | 0.68 | 1MHz,1V | 24.0(30.0) | 5.0(4.6) | 4.8(4.5) | 20 |
| HFSN201610MR68MPG00 | 0.68 | 1MHz,1V | 25.0(32.0) | 4.8(4.2) | 4.5(4.0) | 20 |
| HFSN201610MR82MPG01 | 0.82 | 1MHz,1V | 30.0(37.0) | 4.8(4.3) | 4.6(4.3) | 20 |
| HFSN201610MR82MPG00 | 0.82 | 1MHz,1V | 32.0(40.0) | 4.5(4.0) | 4.3(4.0) | 20 |
| HFSN201610M1R0MPG01 | 1.00 | 1MHz,1V | 30.0(37.0) | 4.6(4.2) | 4.5(4.2) | 20 |
| HFSN201610M1R0MPG00 | 1.00 | 1MHz,1V | 33.0(42.0) | 4.3(3.7) | 4.3(4.0) | 20 |
| HFSN201610M1R5MPG01 | 1.50 | 1MHz,1V | 55.0(60.0) | 3.8(3.5) | 3.4(3.0) | 20 |
| HFSN201610M1R5MPG00 | 1.50 | 1MHz,1V | 60.0(70.0) | 3.5(3.0) | 3.2(2.8) | 20 |
| HFSN201610M2R2MPG01 | 2.20 | 1MHz,1V | 70.0(82.0) | 3.0(2.7) | 2.8(2.5) | 20 |
| HFSN201610M2R2MPG00 | 2.20 | 1MHz,1V | 73.0(85.0) | 2.8(2.3) | 2.6(2.0) | 20 |
| HFSN201610M4R7MPG01 | 4.70 | 1MHz,1V | 190.0(200.0) | 2.0(1.8) | 1.6(1.4) | 20 |
| HFSN201612 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN201612MR47MPG01 | 0.47 | 1MHz,1V | 17.0(21.0) | 6.6(6.0) | 5.6(5.1) | 20 |
| HFSN201612MR47MPG00 | 0.47 | 1MHz,1V | 19.0(25.0) | 6.0(5.4) | 5.3(5.1) | 20 |
| HFSN201612M1R0MPG01 | 1.00 | 1MHz,1V | 28.0(36.0) | 4.8(4.2) | 4.6(4.2) | 20 |
| HFSN201612M1R0MPG00 | 1.00 | 1MHz,1V | 32.0(40.0) | 4.2(3.8) | 4.0(3.8) | 20 |
| HFSN201612M2R2MPG01 | 2.20 | 1MHz,1V | 52.0(70.0) | 3.3(3.0) | 3.1(2.8) | 20 |
| HFSN201612M2R2MPG00 | 2.20 | 1MHz,1V | 65.0(80.0) | 2.8(2.5) | 2.5(2.2) | 20 |
| HFSN252010 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN252010MR24MPG01 | 0.24 | 1MHz,1V | 8.0(10.5) | 8.5(7.5) | 8.0(7.0) | 20 |
| HFSN252010MR24MPG00 | 0.24 | 1MHz,1V | 10.0(13.0) | 8.0(7.3) | 7.5(6.5) | 20 |
| HFSN252010MR33MPG01 | 0.33 | 1MHz,1V | 12.0(15.0) | 7.0(6.4) | 6.4(6.0) | 20 |
| HFSN252010MR33MPG00 | 0.33 | 1MHz,1V | 13.0(16.0) | 6.8(6.2) | 6.0(5.5) | 20 |
| HFSN252010MR47MPG01 | 0.47 | 1MHz,1V | 15.0(19.0) | 6.5(6.0) | 6.0(5.6) | 20 |
| HFSN252010MR47MPG00 | 0.47 | 1MHz,1V | 17.0(22.0) | 6.0(5.6) | 5.8(5.3) | 20 |
| HFSN252010MR68MPG01 | 0.68 | 1MHz,1V | 16.0(21.0) | 6.0(5.5) | 5.8(5.5) | 20 |
| HFSN252010MR68MPG00 | 0.68 | 1MHz,1V | 20.0(26.0) | 5.6(5.2) | 5.3(5.0) | 20 |
| HFSN252010MR82MPG01 | 0.82 | 1MHz,1V | 26.0(30.0) | 5.95(5.45) | 5.7(5.3) | 20 |
| HFSN252010MR82MPG00 | 0.82 | 1MHz,1V | 28.0(35.0) | 5.5(5.0) | 5.3(4.8) | 20 |
| HFSN252010M1R0MPG01 | 1.00 | 1MHz,1V | 26.0(30.0) | 5.9(5.4) | 5.7(5.2) | 20 |
| HFSN252010M1R0MPG00 | 1.00 | 1MHz,1V | 27.0(35.0) | 5.3(4.5) | 5.0(4.5) | 20 |
| HFSN252010M1R5MPG01 | 1.50 | 1MHz,1V | 41.0(47.0) | 4.2(3.8) | 4.0(3.5) | 20 |
| HFSN252010M1R5MPG00 | 1.50 | 1MHz,1V | 43.0(50.0) | 4.0(3.6) | 3.8(3.3) | 20 |
| HFSN252010M2R2MPG01 | 2.20 | 1MHz,1V | 64.0(70.0) | 3.5(3.0) | 2.5(2.1) | 20 |
| HFSN252010M2R2MPG00 | 2.20 | 1MHz,1V | 66.0(75.0) | 3.3(2.7) | 2.5(2.0) | 20 |
| HFSN252010M3R3MPG01 | 3.30 | 1MHz,1V | 85.0(98.0) | 2.6(2.1) | 2.1(1.9) | 20 |
| HFSN252010M3R3MPG00 | 3.30 | 1MHz,1V | 95.0(110.0) | 2.3(1.8) | 2.1(1.6) | 20 |
| HFSN252010M4R7MPG01 | 4.70 | 1MHz,1V | 145.0(160.0) | 2.3(2.0) | 1.9(1.7) | 20 |
| HFSN252010M4R7MPG00 | 4.70 | 1MHz,1V | 150.0(163.0) | 2.2(1.6) | 1.7(1.6) | 20 |
| HFSN252012 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN252012MR33MPG01 | 0.33 | 1MHz,1V | 10.0(15.0) | 8.5(7.8) | 7.0(6.5) | 20 |
| HFSN252012MR33MPG00 | 0.33 | 1MHz,1V | 13.0(18.0) | 7.5(7.0) | 6.5(6.0) | 20 |
| HFSN252012MR47MPG01 | 0.47 | 1MHz,1V | 13(16) | 7.7(6.9) | 6.8(6.2) | 20 |
| HFSN252012MR47MPG00 | 0.47 | 1MHz,1V | 15.0(19.0) | 7.0(6.0) | 6.0(5.8) | 20 |
| HFSN252012MR82MPG01 | 0.82 | 1MHz,1V | 19.0(23.0) | 6.2(5.6) | 6.2(5.4) | 20 |
| HFSN252012MR82MPG00 | 0.82 | 1MHz,1V | 21.0(25.0) | 5.8(5.2) | 5.6(5.0) | 20 |
| HFSN252012M1R0MPG01 | 1.00 | 1MHz,1V | 22(25) | 5.9(5.4) | 5.7(5.2) | 20 |
| HFSN252012M1R0MPG00 | 1.00 | 1MHz,1V | 25.0(30.0) | 5.5(5.0) | 5.3(4.8) | 20 |
| HFSN252012M1R2MPG01 | 1.20 | 1MHz,1V | 34.0(40.0) | 5.3(4.5) | 5.2(4.5) | 20 |
| HFSN252012M1R2MPG00 | 1.20 | 1MHz,1V | 35.0(45.0) | 5.0(4.5) | 5.0(4.3) | 20 |
| HFSN252012M1R5MPG01 | 1.50 | 1MHz,1V | 38.0(45.0) | 4.8(4.2) | 4.0(3.8) | 20 |
| HFSN252012M1R5MPG00 | 1.50 | 1MHz,1V | 40.0(50.0) | 4.3(3.8) | 4.0(3.5) | 20 |
| HFSN252012M2R2MPG01 | 2.20 | 1MHz,1V | 60(72) | 4.0(3.7) | 3.7(3.3) | 20.00 |
| HFSN252012M2R2MPG00 | 2.20 | 1MHz,1V | 65.0(75.0) | 3.6(3.3) | 3.2(3.0) | 20 |
| HFSN252012M4R7MPG01 | 4.70 | 1MHz,1V | 140(150) | 2.5(2.1) | 2.0(1.7) | 20.00 |
| HFSN252012M4R7MPG00 | 4.70 | 1MHz,1V | 120.0(140.0) | 2.2(1.8) | 1.8(1.5) | 20 |
| HFSN322512 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN322512MR22MPG00 | 0.22 | 1MHz,1V | 8.0(9.5) | 11.5(10.0) | 7.8(7.2) | 20 |
| HFSN322512MR47MPG00 | 0.47 | 1MHz,1V | 16(18.5) | 9.0(8.2) | 6.7(6.2) | 20 |
| HFSN322512MR68MPG00 | 0.68 | 1MHz,1V | 20(24) | 8.0(7.2) | 5.8(5.3) | 20 |
| HFSN322512M1R0MPG00 | 1.00 | 1MHz,1V | 26(30) | 7.0(6.2) | 4.8(4.2) | 20 |
| HFSN322512M1R5MPG00 | 1.50 | 1MHz,1V | 39(45) | 5.5(5.0) | 4.5(4.0) | 20 |
| HFSN322512M2R2MPG00 | 2.20 | 1MHz,1V | 62(73) | 4.5(4.0) | 4.0(3.6) | 20 |
| HFSN322512M3R3MPG00 | 3.30 | 1MHz,1V | 80(95) | 3.5(3.1) | 3.0(2.7) | 20 |
| HFSN322512M4R7MPG00 | 4.70 | 1MHz,1V | 105(120) | 3.0(2.5) | 2.5(2.1) | 20 |
| HFSN322512M6R8MPG00 | 6.80 | 1MHz,1V | 170(200) | 2.3(2.0) | 1.6(1.3) | 20 |
| HFSN322520 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSN322520MR33MPG00 | 0.33 | 1MHz,1V | 8.0(9.6) | 11.0(10.0) | 8.5(8.0) | 20 |
| HFSN322520MR47MPG00 | 0.47 | 1MHz,1V | 9.0(10.5) | 10.0(9.0) | 8.0(7.5) | 20 |
| HFSN322520MR68MPG00 | 0.68 | 1MHz,1V | 12.5(14.5) | 8.6(7.5) | 7.0(6.5) | 20 |
| HFSN322520M1R0MPG00 | 1.0 | 1MHz,1V | 18.0(22.0) | 7.5(6.5) | 6.5(6.0) | 20 |
| HFSN322520M1R5MPG00 | 1.5 | 1MHz,1V | 24.5(28.0) | 6.3(5.5) | 5.5(5.0) | 20 |
| HFSN322520M2R2MPG00 | 2.2 | 1MHz,1V | 36.5(44.0) | 5.4(4.8) | 5.0(4.5) | 20 |
| HFSN322520M3R3MPG00 | 3.3 | 1MHz,1V | 54.0(63.0) | 4.5(4.0) | 3.2(2.7) | 20 |
| HFSN322520M4R7MPG00 | 4.7 | 1MHz,1V | 82.0(95.0) | 3.5(3.0) | 2.8(2.4) | 20 |
| HFSC201610 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC201610MR24MPG01 | 0.24 | 1MHz,1V | 15.0(18.0) | 7.8(7.0) | 5.8(5.2) | 20 |
| HFSC201610MR24MPG00 | 0.24 | 1MHz,1V | 16.0(20.0) | 7.0(6.5) | 5.6(5.0) | 20 |
| HFSC201610MR33MPG01 | 0.33 | 1MHz,1V | 18.0(21.0) | 7.6(6.8) | 5.5(5.0) | 20 |
| HFSC201610MR33MPG00 | 0.33 | 1MHz,1V | 20.0(25.0) | 6.8(6.3) | 5.3(4.8) | 20 |
| HFSC201610MR47MPG01 | 0.47 | 1MHz,1V | 17.0(22.0) | 6.0(5.5) | 5.4(4.8) | 20 |
| HFSC201610MR47MPG00 | 0.47 | 1MHz,1V | 18.0(25.0) | 5.8(5.3) | 4.5(4.0) | 20 |
| HFSC201610MR68MPG01 | 0.68 | 1MHz,1V | 24.0(30.0) | 5.0(4.6) | 4.8(4.5) | 20 |
| HFSC201610MR68MPG00 | 0.68 | 1MHz,1V | 25.0(32.0) | 4.8(4.2) | 4.5(4.0) | 20 |
| HFSC201610MR82MPG01 | 0.82 | 1MHz,1V | 30.0(37.0) | 4.8(4.3) | 4.6(4.3) | 20 |
| HFSC201610MR82MPG00 | 0.82 | 1MHz,1V | 32.0(40.0) | 4.5(4.0) | 4.3(4.0) | 20 |
| HFSC201610M1R0MPG01 | 1.00 | 1MHz,1V | 30.0(37.0) | 4.6(4.2) | 4.5(4.2) | 20 |
| HFSC201610M1R0MPG00 | 1.00 | 1MHz,1V | 33.0(42.0) | 4.3(3.7) | 4.3(4.0) | 20 |
| HFSC201610M1R5MPG01 | 1.50 | 1MHz,1V | 55.0(60.0) | 3.8(3.5) | 3.4(3.0) | 20 |
| HFSC201610M1R5MPG00 | 1.50 | 1MHz,1V | 60.0(70.0) | 3.5(3.0) | 3.2(2.8) | 20 |
| HFSC201610M2R2MPG01 | 2.20 | 1MHz,1V | 70.0(82.0) | 3.0(2.7) | 2.8(2.5) | 20 |
| HFSC201610M2R2MPG00 | 2.20 | 1MHz,1V | 73.0(85.0) | 2.8(2.3) | 2.6(2.0) | 20 |
| HFSC201610M4R7MPG01 | 4.70 | 1MHz,1V | 190.0(200.0) | 2.0(1.8) | 1.6(1.4) | 20 |
| HFSC201612 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC201612MR47MPG01 | 0.47 | 1MHz,1V | 17.0(21.0) | 6.6(6.0) | 5.6(5.1) | 20 |
| HFSC201612MR47MPG00 | 0.47 | 1MHz,1V | 19.0(25.0) | 6.0(5.4) | 5.3(5.1) | 20 |
| HFSC201612M1R0MPG01 | 1.00 | 1MHz,1V | 28.0(36.0) | 4.8(4.2) | 4.6(4.2) | 20 |
| HFSC201612M1R0MPG00 | 1.00 | 1MHz,1V | 32.0(40.0) | 4.2(3.8) | 4.0(3.8) | 20 |
| HFSC201612M2R2MPG01 | 2.20 | 1MHz,1V | 52.0(70.0) | 3.3(3.0) | 3.1(2.8) | 20 |
| HFSC201612M2R2MPG00 | 2.20 | 1MHz,1V | 65.0(80.0) | 2.8(2.5) | 2.5(2.2) | 20 |
| HFSC252010 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC252010MR24MPG01 | 0.24 | 1MHz,1V | 8.0(10.5) | 8.5(7.5) | 8.0(7.0) | 20 |
| HFSC252010MR24MPG00 | 0.24 | 1MHz,1V | 10.0(13.0) | 8.0(7.3) | 7.5(6.5) | 20 |
| HFSC252010MR33MPG01 | 0.33 | 1MHz,1V | 12.0(15.0) | 7.0(6.4) | 6.4(6.0) | 20 |
| HFSC252010MR33MPG00 | 0.33 | 1MHz,1V | 13.0(16.0) | 6.8(6.2) | 6.0(5.5) | 20 |
| HFSC252010MR47MPG01 | 0.47 | 1MHz,1V | 15.0(19.0) | 6.5(6.0) | 6.0(5.6) | 20 |
| HFSC252010MR47MPG00 | 0.47 | 1MHz,1V | 17.0(22.0) | 6.0(5.6) | 5.8(5.3) | 20 |
| HFSC252010MR68MPG01 | 0.68 | 1MHz,1V | 16.0(21.0) | 6.0(5.5) | 5.8(5.5) | 20 |
| HFSC252010MR68MPG00 | 0.68 | 1MHz,1V | 20.0(26.0) | 5.6(5.2) | 5.3(5.0) | 20 |
| HFSC252010MR82MPG01 | 0.82 | 1MHz,1V | 26.0(30.0) | 5.95(5.45) | 5.7(5.3) | 20 |
| HFSC252010MR82MPG00 | 0.82 | 1MHz,1V | 28.0(35.0) | 5.5(5.0) | 5.3(4.8) | 20 |
| HFSC252010M1R0MPG01 | 1.00 | 1MHz,1V | 26.0(30.0) | 5.9(5.4) | 5.7(5.2) | 20 |
| HFSC252010M1R0MPG00 | 1.00 | 1MHz,1V | 27.0(35.0) | 5.3(4.5) | 5.0(4.5) | 20 |
| HFSC252010M1R5MPG01 | 1.50 | 1MHz,1V | 41.0(47.0) | 4.2(3.8) | 4.0(3.5) | 20 |
| HFSC252010M1R5MPG00 | 1.50 | 1MHz,1V | 43.0(50.0) | 4.0(3.6) | 3.8(3.3) | 20 |
| HFSC252010M2R2MPG01 | 2.20 | 1MHz,1V | 64.0(70.0) | 3.5(3.0) | 2.5(2.1) | 20 |
| HFSC252010M2R2MPG00 | 2.20 | 1MHz,1V | 66.0(75.0) | 3.3(2.7) | 2.5(2.0) | 20 |
| HFSC252010M3R3MPG01 | 3.30 | 1MHz,1V | 85.0(98.0) | 2.6(2.1) | 2.1(1.9) | 20 |
| HFSC252010M3R3MPG00 | 3.30 | 1MHz,1V | 95.0(110.0) | 2.3(1.8) | 2.1(1.6) | 20 |
| HFSC252010M4R7MPG01 | 4.70 | 1MHz,1V | 145.0(160.0) | 2.3(2.0) | 1.9(1.7) | 20 |
| HFSC252010M4R7MPG00 | 4.70 | 1MHz,1V | 150.0(163.0) | 2.2(1.6) | 1.7(1.6) | 20 |
| HFSC252012 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC252012MR33MPG01 | 0.33 | 1MHz,1V | 10.0(15.0) | 8.5(7.8) | 7.0(6.5) | 20 |
| HFSC252012MR33MPG00 | 0.33 | 1MHz,1V | 13.0(18.0) | 7.5(7.0) | 6.5(6.0) | 20 |
| HFSC252012MR47MPG01 | 0.47 | 1MHz,1V | 13(16) | 7.7(6.9) | 6.8(6.2) | 20 |
| HFSC252012MR47MPG00 | 0.47 | 1MHz,1V | 15.0(19.0) | 7.0(6.0) | 6.0(5.8) | 20 |
| HFSC252012MR82MPG01 | 0.82 | 1MHz,1V | 19.0(23.0) | 6.2(5.6) | 6.2(5.4) | 20 |
| HFSC252012MR82MPG00 | 0.82 | 1MHz,1V | 21.0(25.0) | 5.8(5.2) | 5.6(5.0) | 20 |
| HFSC252012M1R0MPG01 | 1.00 | 1MHz,1V | 22(25) | 5.9(5.4) | 5.7(5.2) | 20 |
| HFSC252012M1R0MPG00 | 1.00 | 1MHz,1V | 25.0(30.0) | 5.5(5.0) | 5.3(4.8) | 20 |
| HFSC252012M1R2MPG01 | 1.20 | 1MHz,1V | 34.0(40.0) | 5.3(4.5) | 5.2(4.5) | 20 |
| HFSC252012M1R2MPG00 | 1.20 | 1MHz,1V | 35.0(45.0) | 5.0(4.5) | 5.0(4.3) | 20 |
| HFSC252012M1R5MPG01 | 1.50 | 1MHz,1V | 38.0(45.0) | 4.8(4.2) | 4.0(3.8) | 20 |
| HFSC252012M1R5MPG00 | 1.50 | 1MHz,1V | 40.0(50.0) | 4.3(3.8) | 4.0(3.5) | 20 |
| HFSC252012M2R2MPG01 | 2.20 | 1MHz,1V | 60(72) | 4.0(3.7) | 3.7(3.3) | 20.00 |
| HFSC252012M2R2MPG00 | 2.20 | 1MHz,1V | 65.0(75.0) | 3.6(3.3) | 3.2(3.0) | 20 |
| HFSC252012M4R7MPG01 | 4.70 | 1MHz,1V | 140(150) | 2.5(2.1) | 2.0(1.7) | 20.00 |
| HFSC252012M4R7MPG00 | 4.70 | 1MHz,1V | 120.0(140.0) | 2.2(1.8) | 1.8(1.5) | 20 |
| HFSC322512 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC322512MR22MPG00 | 0.22 | 1MHz,1V | 8.0(9.5) | 11.5(10.0) | 7.8(7.2) | 20 |
| HFSC322512MR47MPG00 | 0.47 | 1MHz,1V | 16(18.5) | 9.0(8.2) | 6.7(6.2) | 20 |
| HFSC322512MR68MPG00 | 0.68 | 1MHz,1V | 20(24) | 8.0(7.2) | 5.8(5.3) | 20 |
| HFSC322512M1R0MPG00 | 1.00 | 1MHz,1V | 26(30) | 7.0(6.2) | 4.8(4.2) | 20 |
| HFSC322512M1R5MPG00 | 1.50 | 1MHz,1V | 39(45) | 5.5(5.0) | 4.5(4.0) | 20 |
| HFSC322512M2R2MPG00 | 2.20 | 1MHz,1V | 62(73) | 4.5(4.0) | 4.0(3.6) | 20 |
| HFSC322512M3R3MPG00 | 3.30 | 1MHz,1V | 80(95) | 3.5(3.1) | 3.0(2.7) | 20 |
| HFSC322512M4R7MPG00 | 4.70 | 1MHz,1V | 105(120) | 3.0(2.5) | 2.5(2.1) | 20 |
| HFSC322512M6R8MPG00 | 6.80 | 1MHz,1V | 170(200) | 2.3(2.0) | 1.6(1.3) | 20 |
| HFSC322520 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance |
| (μH) | Typ(Max) | Typ(Max) | Typ(Max) | (±%) | ||
| HFSC322520MR33MPG00 | 0.33 | 1MHz,1V | 8.0(9.6) | 11.0(10.0) | 8.5(8.0) | 20 |
| HFSC322520MR47MPG00 | 0.47 | 1MHz,1V | 9.0(10.5) | 10.0(9.0) | 8.0(7.5) | 20 |
| HFSC322520MR68MPG00 | 0.68 | 1MHz,1V | 12.5(14.5) | 8.6(7.5) | 7.0(6.5) | 20 |
| HFSC322520M1R0MPG00 | 1.0 | 1MHz,1V | 18.0(22.0) | 7.5(6.5) | 6.5(6.0) | 20 |
| HFSC322520M1R5MPG00 | 1.5 | 1MHz,1V | 24.5(28.0) | 6.3(5.5) | 5.5(5.0) | 20 |
| HFSC322520M2R2MPG00 | 2.2 | 1MHz,1V | 36.5(44.0) | 5.4(4.8) | 5.0(4.5) | 20 |
| HFSC322520M3R3MPG00 | 3.3 | 1MHz,1V | 54.0(63.0) | 4.5(4.0) | 3.2(2.7) | 20 |
| HFSC322520M4R7MPG00 | 4.7 | 1MHz,1V | 82.0(95.0) | 3.5(3.0) | 2.8(2.4) | 20 |
