HMB SERIES

characteristic

  • This series of products enables high-density packaging with a maximum pitch of 2.54 mm (0.1 inches), takes up less space, and has better electromagnetic interference suppression effects.
  • Offer different types of products with the same appearance.
  • Has excellent physical properties such as terminal strength, bending strength, resistance to soldering heat and solderability.
  • Suitable for flow soldering and reflow soldering.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Model and features

HMB SERIES

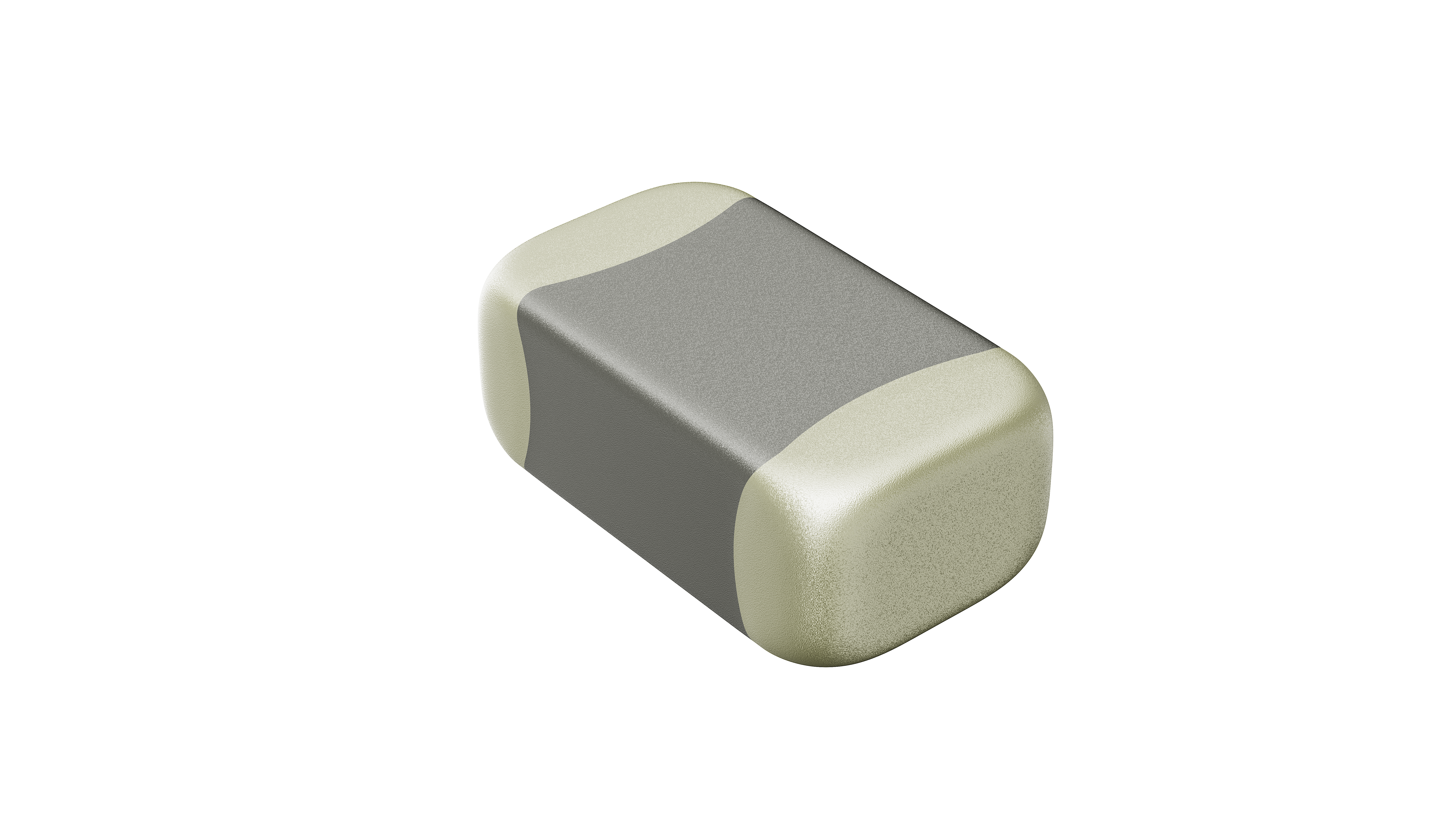

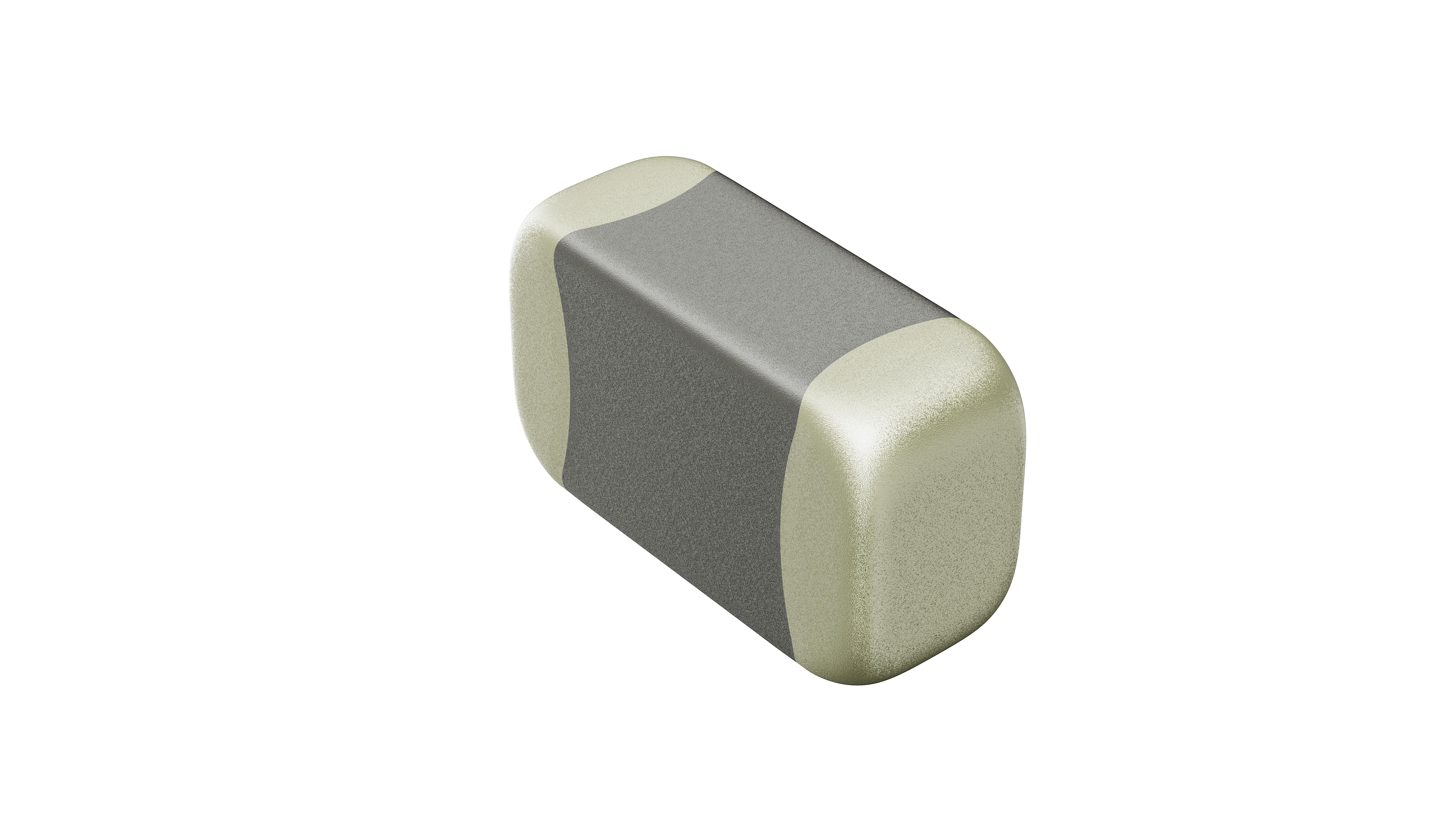

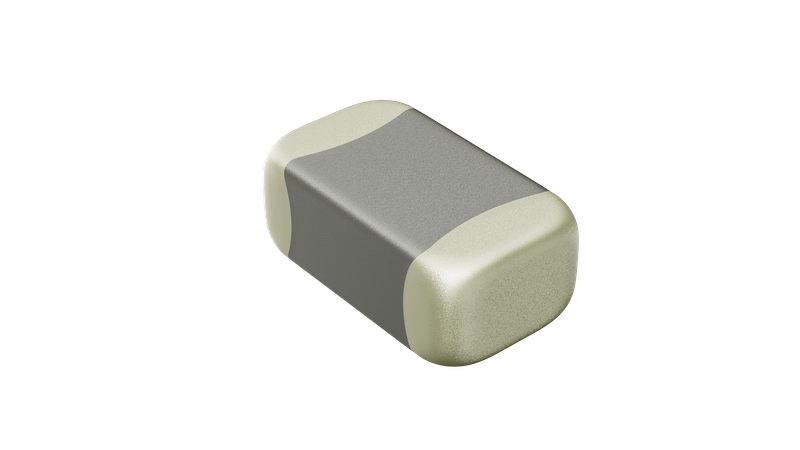

FG product picture

 Product number               HMB SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.








HMB SERIES appearance dimensions   In mm

21

TYPE A B C D
060303 0.6±0.03 0.3±0.03 0.3±0.03 0.15±0.05
100505 1.0±0.15 0.5±0.15 0.5±0.15 0.25±0.1
160808 1.6±0.2 0.8±0.2 0.8±0.2 0.3±0.2
201209 2.0±0.2 1.2±0.2 0.9±0.2 0.5±0.3
321609 3.2±0.2 1.6±0.2 0.9±0.2 0.5±0.3
322513 3.2±0.2 2.5±0.2 1.3±0.2 0.5±0.3
451616 4.5±0.2 1.6±0.2 1.6±0.2 0.5±0.3
453215 4.5±0.2 3.2±0.2 1.5±0.2 0.5±0.3


HMBN060303F06  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN060303F06U100Y00 10 100 0.10 500 5Ω
HMBN060303F06U220Y00 22 100 0.25 300 25
HMBN060303F06U330Y00 33 100 0.30 300 25
HMBN060303F06U600Y00 60 100 0.40 200 25
HMBN060303F06U700Y00 70 100 0.40 200 25
HMBN060303F06U800Y00 80 100 0.40 200 25
HMBN060303F06U121Y00 120 100 0.50 200 25
HMBN060303F06U241Y00 240 100 0.80 200 25
HMBN060303F06U601Y00 600 100 1.50 100 25
HMBN060303F06U102Y00 1000 100 2.50 100 25






HMBN100505F06  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN100505F06U000Y00 0 100 0.10 300 0~15Ω
HMBN100505F06U050Y00 5 100 0.10 300 0~15Ω
HMBN100505F06U070Y00 7 100 0.10 300 0~11Ω
HMBN100505F06U090Y00 9 100 0.10 300 5~13Ω
HMBN100505F06U110Y00 11 100 0.10 300 7~15Ω
HMBN100505F06U150Y00 15 100 0.10 300 9~21Ω
HMBN100505F06U190Y00 19 100 0.10 300 12~25Ω
HMBN100505F06U260Y00 26 100 0.15 300 25
HMBN100505F06U310Y00 31 100 0.20 300 25
HMBN100505F06U360Y00 36 100 0.20 300 25
HMBN100505F06U600Y00 60 100 0.35 200 25
HMBN100505F06U800Y00 80 100 0.40 200 25
HMBN100505F06U121Y00 120 100 0.50 150 25
HMBN100505F06U151Y00 150 100 0.55 150 25
HMBN100505F06U181Y00 180 100 0.60 150 25
HMBN100505F06U221Y00 220 100 0.70 100 25
HMBN100505F06U301Y00 300 100 0.80 100 25
HMBN100505F06U501Y00 500 100 1.10 100 25
HMBN100505F06U601Y00 600 100 1.30 100 25
HMBN100505F06U801Y00 800 100 1.40 50 25
HMBN100505F06U102Y00 1000 100 1.60 25 25






HMBN160808F06  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN160808F06U000Y00 0 100 0.10 800 0~15Ω
HMBN160808F06U050Y00 5 100 0.10 800 0~15Ω
HMBN160808F06U070Y00 7 100 0.10 800 0~11Ω
HMBN160808F06U090Y00 9 100 0.10 800 5~13Ω
HMBN160808F06U110Y00 11 100 0.10 800 7~15Ω
HMBN160808F06U150Y00 15 100 0.10 800 9~21Ω
HMBN160808F06U190Y00 19 100 0.10 800 12~25Ω
HMBN160808F06U260Y00 26 100 0.10 500 25
HMBN160808F06U310Y00 31 100 0.10 500 25
HMBN160808F06U600Y00 60 100 0.20 300 25
HMBN160808F06U700Y00 70 100 0.20 300 25
HMBN160808F06U800Y00 80 100 0.20 300 25
HMBN160808F06U101Y00 100 100 0.20 300 25
HMBN160808F06U121Y00 120 100 0.20 300 25
HMBN160808F06U151Y00 150 100 0.30 300 25
HMBN160808F06U181Y00 180 100 0.30 300 25
HMBN160808F06U221Y00 220 100 0.30 300 25
HMBN160808F06U301Y00 300 100 0.35 200 25
HMBN160808F06U501Y00 500 100 0.50 200 25
HMBN160808F06U601Y00 600 100 0.50 200 25
HMBN160808F06U801Y00 800 100 0.60 200 25
HMBN160808F06U102Y00 1000 100 0.60 200 25
HMBN160808F06U122Y00 1200 100 0.85 100 25
HMBN160808F06U152Y00 1500 100 0.85 50 25
HMBN160808F06U202Y00 2000 100 1.10 50 25
HMBN160808F06U222Y00 2200 100 1.20 50 25
HMBN160808F06U252Y00 2500 100 1.30 50 25






HMBN201209F06  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN201209F06U000Y00 0 100 0.08 900 0~15Ω
HMBN201209F06U050Y00 5 100 0.08 900 0~15Ω
HMBN201209F06U070Y00 7 100 0.08 900 0~11Ω
HMBN201209F06U090Y00 9 100 0.10 900 5~13Ω
HMBN201209F06U110Y00 11 100 0.10 900 7~15Ω
HMBN201209F06U150Y00 15 100 0.10 900 9~21Ω
HMBN201209F06U190Y00 19 100 0.10 900 12~25Ω
HMBN201209F06U260Y00 26 100 0.10 900 25
HMBN201209F06U310Y00 31 100 0.10 900 25
HMBN201209F06U360Y00 36 100 0.10 900 25
HMBN201209F06U600Y00 60 100 0.15 900 25
HMBN201209F06U700Y00 70 100 0.18 500 25
HMBN201209F06U800Y00 80 100 0.18 500 25
HMBN201209F06U101Y00 100 100 0.18 500 25
HMBN201209F06U121Y00 120 100 0.20 500 25
HMBN201209F06U151Y00 150 100 0.20 400 25
HMBN201209F06U181Y00 180 100 0.20 400 25
HMBN201209F06U221Y00 220 100 0.20 400 25
HMBN201209F06U301Y00 300 100 0.25 400 25
HMBN201209F06U501Y00 500 100 0.35 300 25
HMBN201209F06U601Y00 600 100 0.35 300 25
HMBN201209F06U801Y00 800 100 0.40 300 25
HMBN201209F06U102Y00 1000 100 0.40 300 25
HMBN201209F06U122Y00 1200 100 0.60 100 25
HMBN201209F06U152Y00 1500 100 0.70 100 25
HMBN201209F06U182Y00 1800 100 0.90 50 25
HMBN201209F06U202Y00 2000 100 0.90 50 25
HMBN201209F06U222Y00 2200 100 1.00 50 25
HMBN201209F06U252Y00 2500 50 1.20 50 25
HMBN201209F06U272Y00 2700 50 1.40 30 25






HMBN321609F06  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN321609F06U000Y00 0 100 0.10 1000 0~15Ω
HMBN321609F06U050Y00 5 100 0.10 1000 0~15Ω
HMBN321609F06U070Y00 7 100 0.10 1000 0~11Ω
HMBN321609F06U090Y00 9 100 0.10 1000 5~13Ω
HMBN321609F06U110Y00 11 100 0.10 1000 7~15Ω
HMBN321609F06U150Y00 15 100 0.10 1000 9~21Ω
HMBN321609F06U190Y00 19 100 0.10 1000 12~25Ω
HMBN321609F06U260Y00 26 100 0.10 1000 25
HMBN321609F06U310Y00 31 100 0.10 1000 25
HMBN321609F06U600Y00 60 100 0.15 1000 25
HMBN321609F06U700Y00 70 100 0.15 1000 25
HMBN321609F06U800Y00 80 100 0.15 1000 25
HMBN321609F06U101Y00 100 100 0.15 1000 25
HMBN321609F06U121Y00 120 100 0.15 1000 25
HMBN321609F06U151Y00 150 100 0.20 800 25
HMBN321609F06U181Y00 180 100 0.20 800 25
HMBN321609F06U221Y00 220 100 0.20 800 25
HMBN321609F06U301Y00 300 100 0.20 800 25
HMBN321609F06U501Y00 500 100 0.30 600 25
HMBN321609F06U601Y00 600 100 0.30 600 25
HMBN321609F06U801Y00 800 100 0.35 400 25
HMBN321609F06U102Y00 1000 100 0.35 400 25
HMBN321609F06U122Y00 1200 100 0.60 100 25
HMBN321609F06U152Y00 1500 50 0.80 100 25
HMBN321609F06U182Y00 1800 50 0.90 80 25
HMBN321609F06U202Y00 2000 50 1.00 50 25
HMBN321609F06U252Y00 2500 50 1.20 50 25
HMBN321609F06U302Y00 3000 50 1.50 30 25






HMBN060303F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN060303F05U100Y00 10 100 0.05 1000 ±5Ω
HMBN060303F05U800Y00 80 100 0.18 500 25
HMBN060303F05U121Y00 120 100 0.23 450 25
HMBN060303F05U241Y00 240 100 0.38 350 25
HMBN060303F05U601Y00 600 100 0.85 250 25
HMBN060303F05U102Y00 1000 100 1.25 200 25






HMBN100505F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN100505F05U000Y00 0 100 0.04 800 0~15Ω
HMBN100505F05U050Y00 5 100 0.04 800 0~15Ω
HMBN100505F05U070Y00 7 100 0.04 800 0~11Ω
HMBN100505F05U090Y00 9 100 0.04 800 5~13Ω
HMBN100505F05U110Y00 11 100 0.04 800 7~15Ω
HMBN100505F05U150Y00 15 100 0.04 800 9~21Ω
HMBN100505F05U190Y00 19 100 0.06 700 12~25Ω
HMBN100505F05U260Y00 26 100 0.06 700 25
HMBN100505F05U310Y00 31 100 0.08 700 25
HMBN100505F05U360Y00 36 100 0.15 600 25
HMBN100505F05U500Y00 50 100 0.15 600 25
HMBN100505F05U600Y00 60 100 0.15 600 25
HMBN100505F05U700Y00 70 100 0.20 450 25
HMBN100505F05U750Y00 75 100 0.20 450 25
HMBN100505F05U800Y00 80 100 0.20 450 25
HMBN100505F05U101Y00 100 100 0.20 450 25
HMBN100505F05U121Y00 120 100 0.25 450 25
HMBN100505F05U151Y00 150 100 0.25 450 25
HMBN100505F05U181Y00 180 100 0.40 300 25
HMBN100505F05U201Y00 200 100 0.40 300 25
HMBN100505F05U221Y00 220 100 0.40 300 25
HMBN100505F05U301Y00 300 100 0.50 300 25
HMBN100505F05U501Y00 500 100 0.65 200 25
HMBN100505F05U601Y00 600 100 0.70 200 25
HMBN100505F05U801Y00 800 100 0.90 200 25
HMBN100505F05U102Y00 1000 100 1.00 200 25
HMBN100505F05U122Y00 1200 100 1.00 200 25






HMBN160808F05 series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN160808F05U000Y00 0 100 0.08 1000 0~15Ω
HMBN160808F05U050Y00 5 100 0.08 1000 0~15Ω
HMBN160808F05U070Y00 7 100 0.08 1000 0~11Ω
HMBN160808F05U090Y00 9 100 0.08 1000 5~13Ω
HMBN160808F05U110Y00 11 100 0.08 1000 7~15Ω
HMBN160808F05U150Y00 15 100 0.08 1000 9~21Ω
HMBN160808F05U190Y00 19 100 0.08 1000 12~25Ω
HMBN160808F05U260Y00 26 100 0.08 1000 25
HMBN160808F05U300Y00 30 100 0.08 1000 25
HMBN160808F05U310Y00 31 100 0.08 1000 25
HMBN160808F05U500Y00 50 100 0.12 1000 25
HMBN160808F05U600Y00 60 100 0.12 1000 25
HMBN160808F05U700Y00 70 100 0.15 1000 25
HMBN160808F05U800Y00 80 100 0.15 1000 25
HMBN160808F05U101Y00 100 100 0.15 1000 25
HMBN160808F05U121Y00 120 100 0.15 1000 25
HMBN160808F05U151Y00 150 100 0.20 1000 25
HMBN160808F05U181Y00 180 100 0.20 1000 25
HMBN160808F05U221Y00 220 100 0.20 1000 25
HMBN160808F05U301Y00 300 100 0.25 1000 25
HMBN160808F05U501Y00 500 100 0.30 1000 25
HMBN160808F05U601Y00 600 100 0.30 1000 25
HMBN160808F05U801Y00 800 100 0.55 500 25
HMBN160808F05U102Y00 1000 100 0.55 500 25
HMBN160808F05U122Y00 1200 100 0.65 500 25
HMBN160808F05U152Y00 1500 100 0.75 400 25
HMBN160808F05U182Y00 1800 100 0.75 400 25
HMBN160808F05U202Y00 2000 100 0.90 400 25
HMBN160808F05U252Y00 2500 100 0.90 400 25






HMBN201209F05 series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN201209F05U000Y00 0 100 0.03 3000 0~15Ω
HMBN201209F05U050Y00 5 100 0.03 3000 0~15Ω
HMBN201209F05U070Y00 7 100 0.03 3000 0~11Ω
HMBN201209F05U090Y00 9 100 0.03 3000 5~13Ω
HMBN201209F05U110Y00 11 100 0.03 3000 7~15Ω
HMBN201209F05U150Y00 15 100 0.03 3000 9~21Ω
HMBN201209F05U190Y00 19 100 0.03 3000 12~25Ω
HMBN201209F05U300Y00 30 100 0.05 3000 25
HMBN201209F05U310Y00 31 100 0.05 3000 25
HMBN201209F05U360Y00 36 100 0.06 3000 25
HMBN201209F05U600Y00 60 100 0.06 3000 25
HMBN201209F05U700Y00 70 100 0.08 2500 25
HMBN201209F05U800Y00 80 100 0.08 2500 25
HMBN201209F05U101Y00 100 100 0.10 2500 25
HMBN201209F05U121Y00 120 100 0.10 2000 25
HMBN201209F05U151Y00 150 100 0.10 2000 25
HMBN201209F05U181Y00 180 100 0.15 2000 25
HMBN201209F05U201Y00 200 100 0.15 2000 25
HMBN201209F05U221Y00 220 100 0.15 2000 25
HMBN201209F05U301Y00 300 100 0.20 2000 25
HMBN201209F05U501Y00 500 100 0.25 1500 25
HMBN201209F05U601Y00 600 100 0.25 1500 25
HMBN201209F05U801Y00 800 100 0.30 800 25
HMBN201209F05U102Y00 1000 100 0.30 800 25
HMBN201209F05U122Y00 1200 100 0.45 500 25
HMBN201209F05U152Y00 1500 100 0.50 300 25
HMBN201209F05U202Y00 2000 100 0.50 300 25
HMBN201209F05U222Y00 2200 100 0.60 100 25
HMBN201209F05U252Y00 2500 50 0.60 100 25






HMBN321609F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN321609F05U000Y00 0 100 0.04 4000 0~15Ω
HMBN321609F05U050Y00 5 100 0.04 4000 0~15Ω
HMBN321609F05U070Y00 7 100 0.04 4000 0~11Ω
HMBN321609F05U090Y00 9 100 0.05 4000 5~13Ω
HMBN321609F05U110Y00 11 100 0.05 4000 7~15Ω
HMBN321609F05U150Y00 15 100 0.05 3000 9~21Ω
HMBN321609F05U190Y00 19 100 0.05 3000 12~25Ω
HMBN321609F05U260Y00 26 100 0.05 3000 25
HMBN321609F05U280Y00 28 100 0.07 3000 25
HMBN321609F05U300Y00 30 100 0.07 3000 25
HMBN321609F05U310Y00 31 100 0.07 3000 25
HMBN321609F05U500Y00 50 100 0.07 3000 25
HMBN321609F05U600Y00 60 100 0.07 3000 25
HMBN321609F05U700Y00 70 100 0.07 3000 25
HMBN321609F05U800Y00 80 100 0.07 3000 25
HMBN321609F05U101Y00 100 100 0.07 3000 25
HMBN321609F05U121Y00 120 100 0.07 3000 25
HMBN321609F05U151Y00 150 100 0.12 2500 25
HMBN321609F05U181Y00 180 100 0.12 2500 25
HMBN321609F05U221Y00 220 100 0.12 2500 25
HMBN321609F05U301Y00 300 100 0.15 2000 25
HMBN321609F05U501Y00 500 100 0.20 2000 25
HMBN321609F05U601Y00 600 100 0.20 2000 25
HMBN321609F05U801Y00 800 100 0.25 2000 25
HMBN321609F05U102Y00 1000 100 0.25 2000 25
HMBN321609F05U122Y00 1200 100 0.35 1000 25
HMBN321609F05U152Y00 1500 50 0.45 500 25
HMBN321609F05U182Y00 1800 50 0.60 500 25
HMBN321609F05U202Y00 2000 50 0.70 300 25
HMBN321609F05U252Y00 2500 50 0.90 200 25
HMBN321609F05U302Y00 3000 50 0.90 200 25






HMBN322513F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN322513F05U000Y00 0 100 0.05 5000 0~15Ω
HMBN322513F05U050Y00 5 100 0.05 5000 0~15Ω
HMBN322513F05U070Y00 7 100 0.05 5000 0~11Ω
HMBN322513F05U090Y00 9 100 0.05 5000 5~13Ω
HMBN322513F05U110Y00 11 100 0.05 5000 7~15Ω
HMBN322513F05U150Y00 15 100 0.05 5000 9~21Ω
HMBN322513F05U190Y00 19 100 0.05 5000 12~25Ω
HMBN322513F05U260Y00 26 100 0.05 5000 25
HMBN322513F05U310Y00 31 100 0.05 5000 25
HMBN322513F05U600Y00 60 100 0.06 4000 25
HMBN322513F05U700Y00 70 100 0.08 4000 25
HMBN322513F05U800Y00 80 100 0.08 3000 25
HMBN322513F05U900Y00 90 100 0.08 3000 25
HMBN322513F05U121Y00 120 100 0.10 3000 25
HMBN322513F05U151Y00 150 100 0.10 3000 25
HMBN322513F05U221Y00 220 100 0.15 3000 25
HMBN322513F05U301Y00 300 100 0.15 3000 25
HMBN322513F05U501Y00 500 100 0.15 2000 25
HMBN322513F05U601Y00 600 100 0.20 2000 25
HMBN322513F05U801Y00 800 100 0.25 2000 25
HMBN322513F05U102Y00 1000 100 0.30 2000 25






HMBN451616F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN451616F05U190Y00 19 100 0.015 6000 12~25Ω
HMBN451616F05U260Y00 26 100 0.05 3000 25
HMBN451616F05U310Y00 31 100 0.05 3000 25
HMBN451616F05U600Y00 60 100 0.06 3000 25
HMBN451616F05U750Y00 75 100 0.06 3000 25
HMBN451616F05U800Y00 80 100 0.08 3000 25
HMBN451616F05U900Y00 90 100 0.10 3000 25
HMBN451616F05U121Y00 120 100 0.10 3000 25
HMBN451616F05U151Y00 150 100 0.10 3000 25
HMBN451616F05U221Y00 220 100 0.15 2000 25
HMBN451616F05U301Y00 300 100 0.20 2000 25
HMBN451616F05U501Y00 500 100 0.25 1000 25
HMBN451616F05U601Y00 600 100 0.30 1000 25






HMBN453215F05  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN453215F05U300Y00 30 100 0.06 5000 25
HMBN453215F05U310Y00 31 100 0.06 5000 25
HMBN453215F05U380Y00 38 100 0.06 5000 25
HMBN453215F05U400Y00 40 100 0.06 4000 25
HMBN453215F05U500Y00 50 100 0.06 4000 25
HMBN453215F05U600Y00 60 100 0.06 4000 25
HMBN453215F05U700Y00 70 100 0.06 4000 25
HMBN453215F05U800Y00 80 100 0.08 4000 25
HMBN453215F05U900Y00 90 100 0.08 4000 25
HMBN453215F05U101Y00 100 100 0.08 4000 25
HMBN453215F05U121Y00 120 100 0.08 4000 25
HMBN453215F05U151Y00 150 100 0.10 3000 25
HMBN453215F05U181Y00 180 100 0.12 3000 25
HMBN453215F05U201Y00 200 100 0.12 3000 25
HMBN453215F05U221Y00 220 100 0.15 2000 25
HMBN453215F05U301Y00 300 100 0.15 2000 25
HMBN453215F05U401Y00 400 100 0.20 1000 25
HMBN453215F05U501Y00 500 100 0.20 1000 25
HMBN453215F05U601Y00 600 100 0.25 1000 25






HMBN060303F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN060303F04U220Y00 22 100 0.04 1450 25
HMBN060303F04U330Y00 33 100 0.06 1200 25
HMBN060303F04U800Y00 80 100 0.13 800 25
HMBN060303F04U121Y00 120 100 0.16 700 25






HMBN100505F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN100505F04U000Y00 0 100 0.05 1800 0~15Ω
HMBN100505F04U050Y00 5 100 0.05 1800 0~15Ω
HMBN100505F04U070Y00 7 100 0.05 1800 0~11Ω
HMBN100505F04U090Y00 9 100 0.05 1800 5~13Ω
HMBN100505F04U110Y00 11 100 0.05 1800 7~15Ω
HMBN100505F04U150Y00 15 100 0.05 1800 9~21Ω
HMBN100505F04U190Y00 19 100 0.06 1500 12~25Ω
HMBN100505F04U300Y00 30 100 0.08 1300 25
HMBN100505F04U600Y00 60 100 0.10 1000 25
HMBN100505F04U700Y00 70 100 0.15 800 25
HMBN100505F04U800Y00 80 100 0.15 800 25
HMBN100505F04U101Y00 100 100 0.15 800 25
HMBN100505F04U121Y00 120 100 0.15 800 25
HMBN100505F04U151Y00 150 100 0.20 700 25
HMBN100505F04U201Y00 200 100 0.25 700 25
HMBN100505F04U221Y00 220 100 0.30 600 25
HMBN100505F04U301Y00 300 100 0.30 600 25
HMBN100505F04U501Y00 500 100 0.40 500 25
HMBN100505F04U601Y00 600 100 0.50 500 25
HMBN100505F04U801Y00 800 100 0.65 300 25
HMBN100505F04U102Y00 1000 100 0.65 300 25






HMBN160808F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN160808F04U000Y00 0 100 0.02 6000 0~15Ω
HMBN160808F04U050Y00 5 100 0.02 6000 0~15Ω
HMBN160808F04U070Y00 7 100 0.02 6000 0~11Ω
HMBN160808F04U090Y00 9 100 0.02 6000 5~13Ω
HMBN160808F04U110Y00 11 100 0.03 5000 7~15Ω
HMBN160808F04U150Y00 15 100 0.03 5000 9~21Ω
HMBN160808F04U190Y00 19 100 0.03 5000 12~25Ω
HMBN160808F04U260Y00 26 100 0.03 5000 25
HMBN160808F04U300Y00 30 100 0.03 4000 25
HMBN160808F04U500Y00 50 100 0.04 3000 25
HMBN160808F04U600Y00 60 100 0.04 3000 25
HMBN160808F04U700Y00 70 100 0.06 2500 25
HMBN160808F04U800Y00 80 100 0.06 2500 25
HMBN160808F04U101Y00 100 100 0.06 2500 25
HMBN160808F04U121Y00 120 100 0.065 2000 25
HMBN160808F04U151Y00 150 100 0.09 1500 25
HMBN160808F04U181Y00 180 100 0.09 1500 25
HMBN160808F04U221Y00 220 100 0.12 1500 25
HMBN160808F04U301Y00 300 100 0.18 1500 25
HMBN160808F04U501Y00 500 100 0.18 1200 25
HMBN160808F04U601Y00 600 100 0.18 1200 25
HMBN160808F04U801Y00 800 100 0.30 700 25
HMBN160808F04U102Y00 1000 100 0.40 600 25






HMBN201209F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN201209F04U000Y00 0 100 0.01 6000 0~15Ω
HMBN201209F04U050Y00 5 100 0.01 6000 0~15Ω
HMBN201209F04U070Y00 7 100 0.01 6000 0~11Ω
HMBN201209F04U090Y00 9 100 0.01 6000 5~13Ω
HMBN201209F04U110Y00 11 100 0.01 6000 7~15Ω
HMBN201209F04U150Y00 15 100 0.01 6000 9~21Ω
HMBN201209F04U190Y00 19 100 0.01 6000 12~25Ω
HMBN201209F04U300Y00 30 100 0.01 6000 25
HMBN201209F04U310Y00 31 100 0.01 6000 25
HMBN201209F04U500Y00 50 100 0.04 3500 25
HMBN201209F04U600Y00 60 100 0.04 3500 25
HMBN201209F04U700Y00 70 100 0.04 3000 25
HMBN201209F04U800Y00 80 100 0.04 3000 25
HMBN201209F04U101Y00 100 100 0.05 3000 25
HMBN201209F04U121Y00 120 100 0.05 3000 25
HMBN201209F04U151Y00 150 100 0.08 2500 25
HMBN201209F04U181Y00 180 100 0.08 2500 25
HMBN201209F04U221Y00 220 100 0.08 2500 25
HMBN201209F04U301Y00 300 100 0.08 2500 25
HMBN201209F04U501Y00 500 100 0.10 2000 25
HMBN201209F04U601Y00 600 100 0.10 2000 25
HMBN201209F04U102Y00 1000 100 0.12 1500 25






HMBN321609F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN321609F04U000Y00 0 100 0.010 6000 0~15Ω
HMBN321609F04U050Y00 5 100 0.010 6000 0~15Ω
HMBN321609F04U070Y00 7 100 0.010 6000 0~11Ω
HMBN321609F04U090Y00 9 100 0.015 6000 5~13Ω
HMBN321609F04U110Y00 11 100 0.015 6000 7~15Ω
HMBN321609F04U150Y00 15 100 0.015 6000 9~21Ω
HMBN321609F04U190Y00 19 100 0.015 6000 12~25Ω
HMBN321609F04U260Y00 26 100 0.015 6000 25
HMBN321609F04U280Y00 28 100 0.015 6000 25
HMBN321609F04U300Y00 30 100 0.015 6000 25
HMBN321609F04U310Y00 31 100 0.025 4000 25
HMBN321609F04U500Y00 50 100 0.025 4000 25
HMBN321609F04U600Y00 60 100 0.025 4000 25
HMBN321609F04U700Y00 70 100 0.035 4000 25
HMBN321609F04U800Y00 80 100 0.035 4000 25
HMBN321609F04U101Y00 100 100 0.035 4000 25
HMBN321609F04U121Y00 120 100 0.035 4000 25
HMBN321609F04U151Y00 150 100 0.045 3000 25
HMBN321609F04U181Y00 180 100 0.055 3000 25
HMBN321609F04U221Y00 220 100 0.055 3000 25
HMBN321609F04U301Y00 300 100 0.065 2500 25
HMBN321609F04U501Y00 500 100 0.085 2500 25
HMBN321609F04U601Y00 600 100 0.100 2000 25
HMBN321609F04U801Y00 800 100 0.110 2000 25
HMBN321609F04U102Y00 1000 100 0.120 2000 25






HMBN451616F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN451616F04U190Y00 19 100 0.010 6000 12~25Ω
HMBN451616F04U260Y00 26 100 0.015 6000 25
HMBN451616F04U310Y00 31 100 0.015 6000 25
HMBN451616F04U600Y00 60 100 0.015 6000 25
HMBN451616F04U750Y00 75 100 0.020 4000 25
HMBN451616F04U800Y00 80 100 0.025 3000 25






HMBN453215F04  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN453215F04U300Y00 30 100 0.01 6000 25
HMBN453215F04U310Y00 31 100 0.01 6000 25
HMBN453215F04U380Y00 38 100 0.01 6000 25
HMBN453215F04U400Y00 40 100 0.01 6000 25
HMBN453215F04U500Y00 50 100 0.01 6000 25
HMBN453215F04U600Y00 60 100 0.01 6000 25
HMBN453215F04U700Y00 70 100 0.01 6000 25
HMBN453215F04U101Y00 100 100 0.02 6000 25
HMBN453215F04U181Y00 180 100 0.02 6000 25
HMBN453215F04U221Y00 220 100 0.02 6000 25






HMBN160808F03  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN160808F03U600Y00 60 100 0.025 3500 25
HMBN160808F03U800Y00 80 100 0.025 3500 25
HMBN160808F03U101Y00 100 100 0.04 3000 25
HMBN160808F03U121Y00 120 100 0.04 2000 25
HMBN160808F03U181Y00 180 100 0.07 2000 25
HMBN160808F03U221Y00 220 100 0.09 2000 25
HMBN160808F03U301Y00 300 100 0.15 2000 25
HMBN160808F03U501Y00 500 100 0.15 1500 25
HMBN160808F03U601Y00 600 100 0.15 1500 25
HMBN160808F03U801Y00 800 100 0.20 1200 25
HMBN160808F03U102Y00 1000 100 0.30 1000 25






HMBN201209UF03  series  Standard Specifications
Part No. Impedance Test Freq. DCR(Ω) Rated current Tolerance
(Ω) (MHz) Max (mA)Max (±%)
HMBN201209F03U800Y00 80 100 0.025 3500 25
HMBN201209F03U101Y00 100 100 0.025 3500 25
HMBN201209F03U151Y00 150 100 0.05 3000 25
HMBN201209F03U181Y00 180 100 0.05 3000 25
HMBN201209F03U221Y00 220 100 0.05 3000 25
HMBN201209F03U301Y00 300 100 0.05 3000 25
HMBN201209F03U501Y00 500 100 0.09 2500 25
HMBN201209F03U601Y00 600 100 0.09 2500 25
HMBN201209F03U102Y00 1000 100 0.11 2000 25
HMBN201209F03U122Y00 1200 100 0.18 1000 25


Product Description
physical dimension
Model and features

Related Products

HCFU SERIES
HCFU SERIES
HCFM SERIES
HCFM SERIES
HCFC SERIES
HCFC SERIES
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
