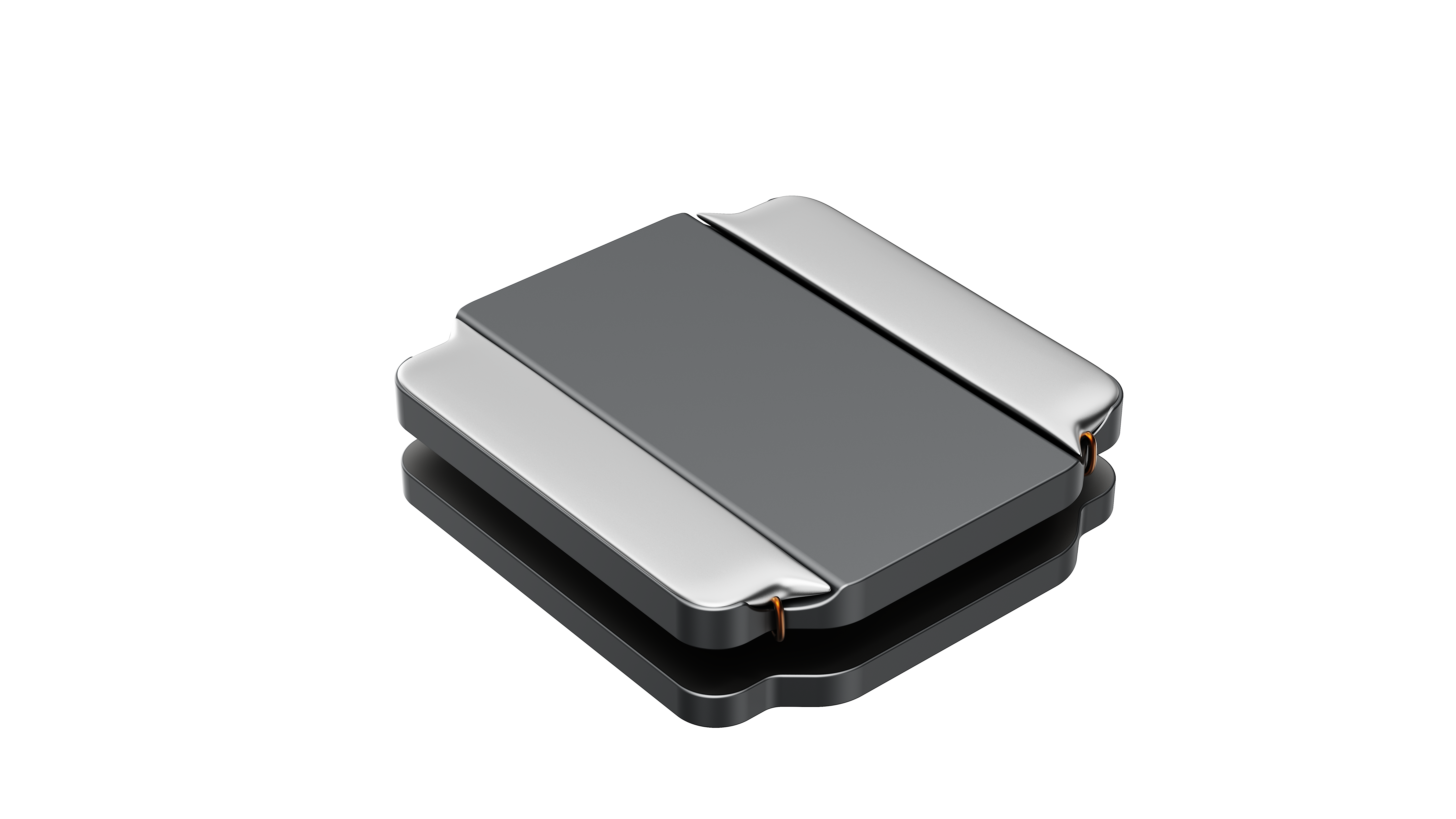

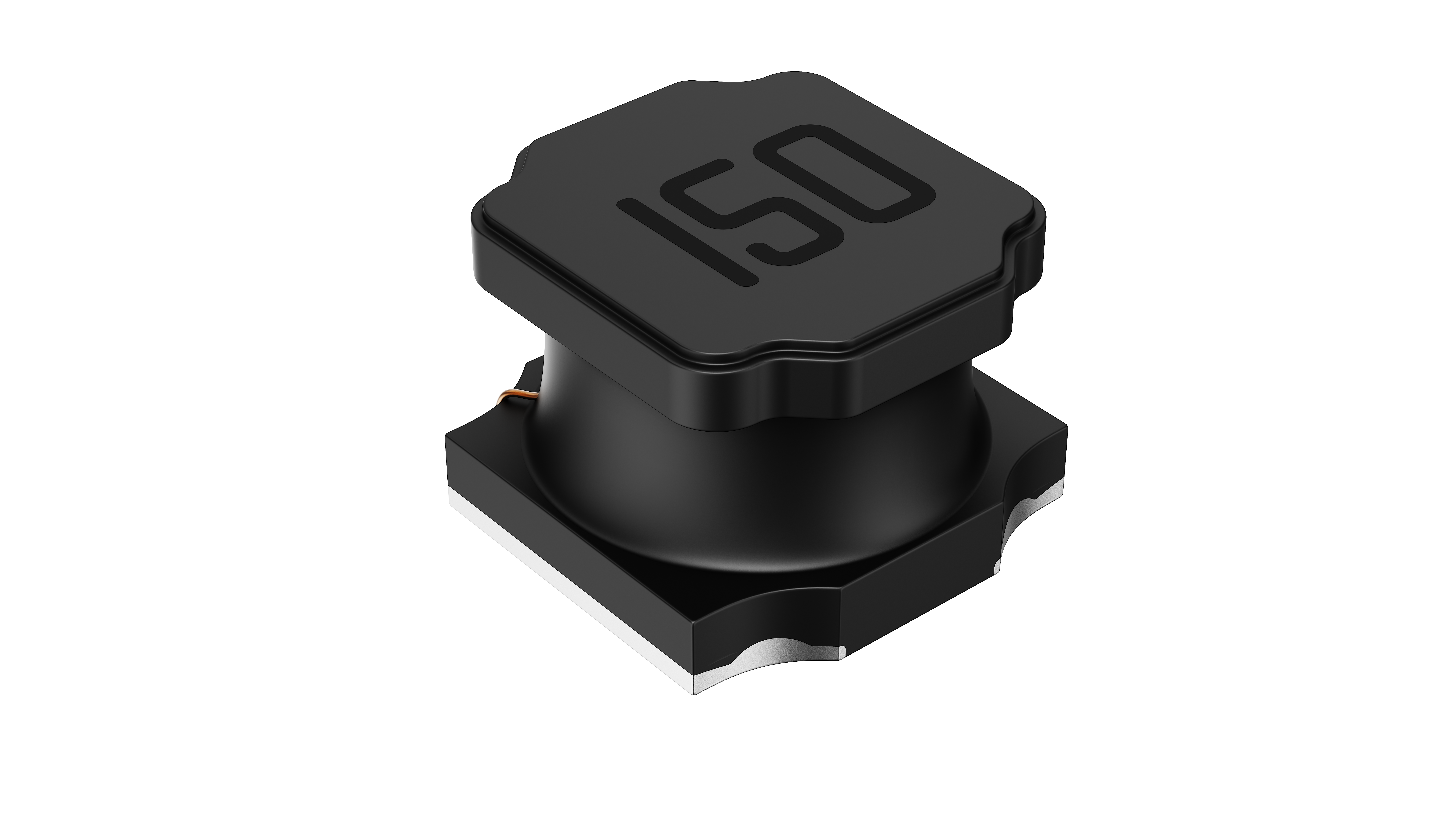

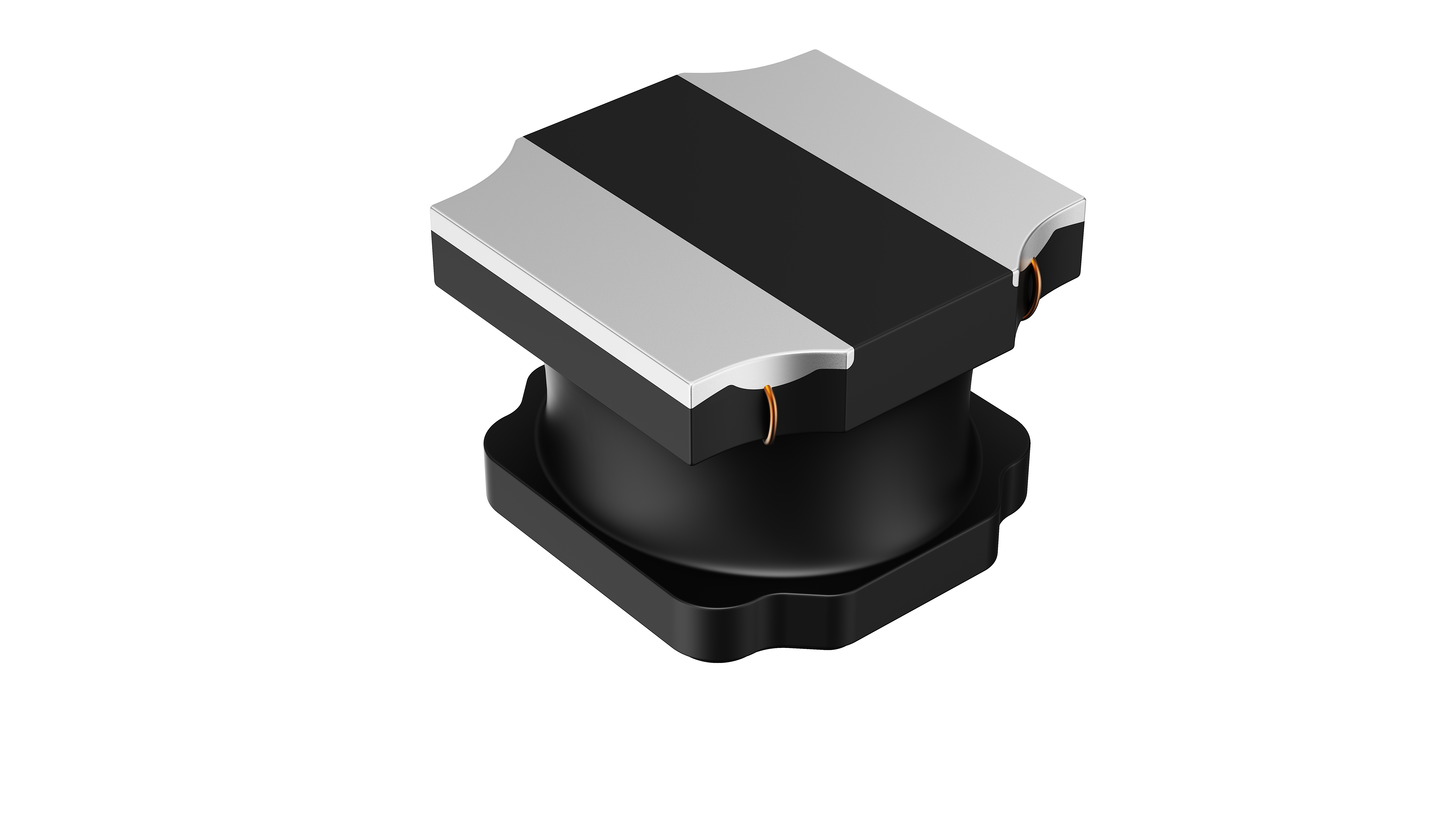

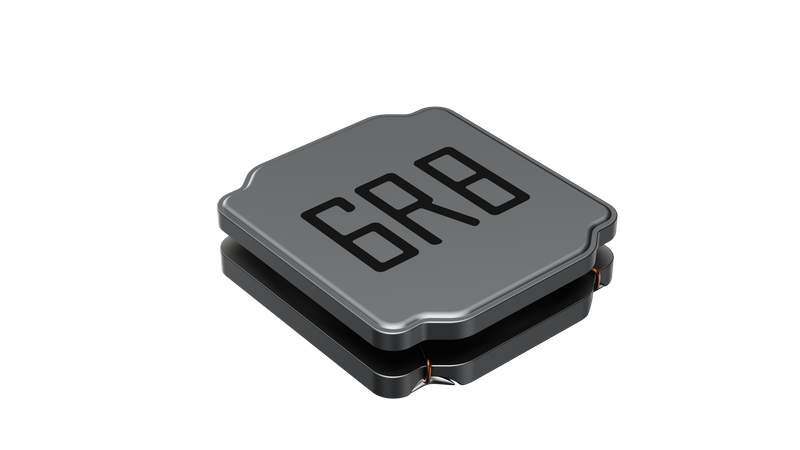

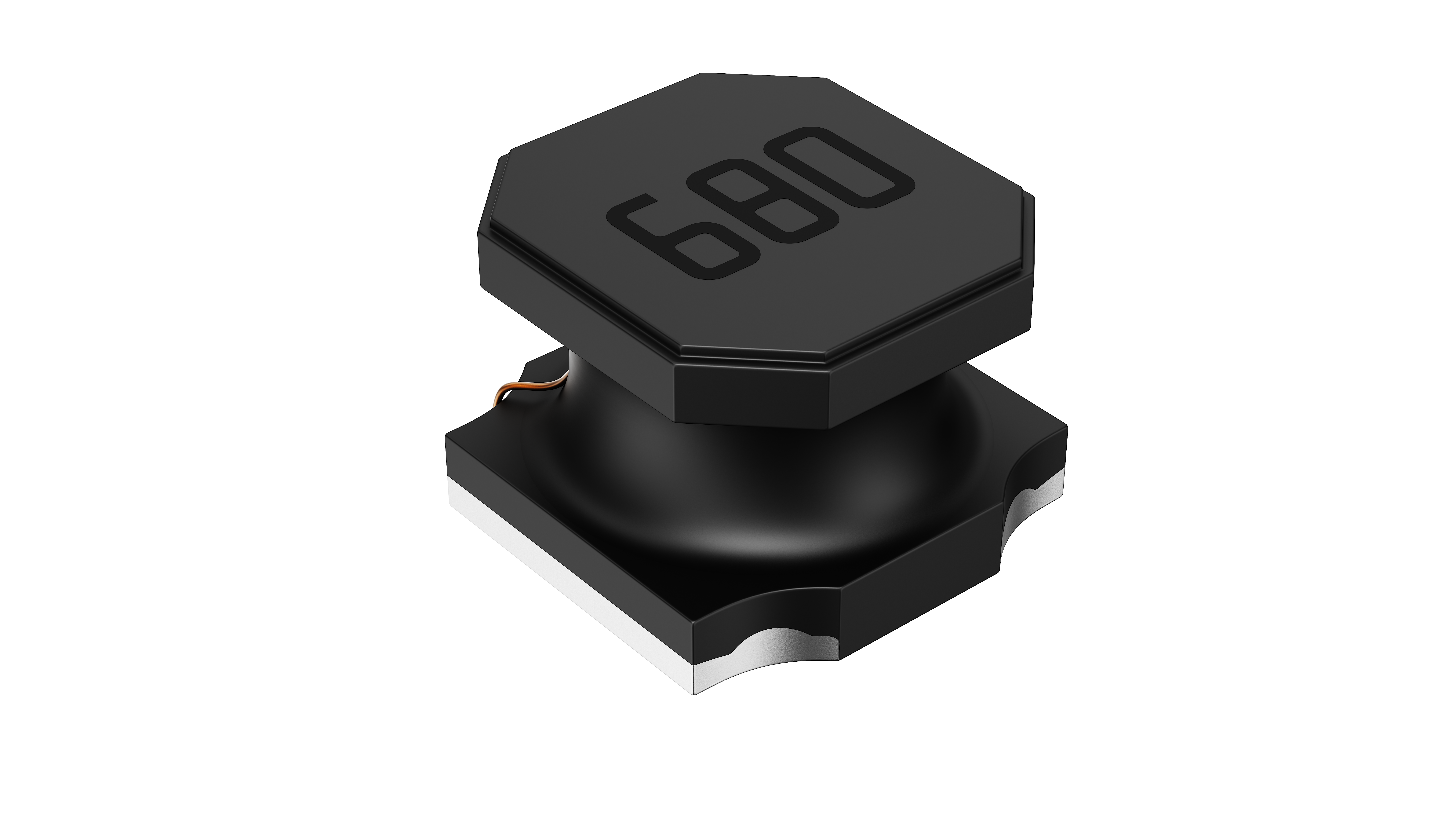

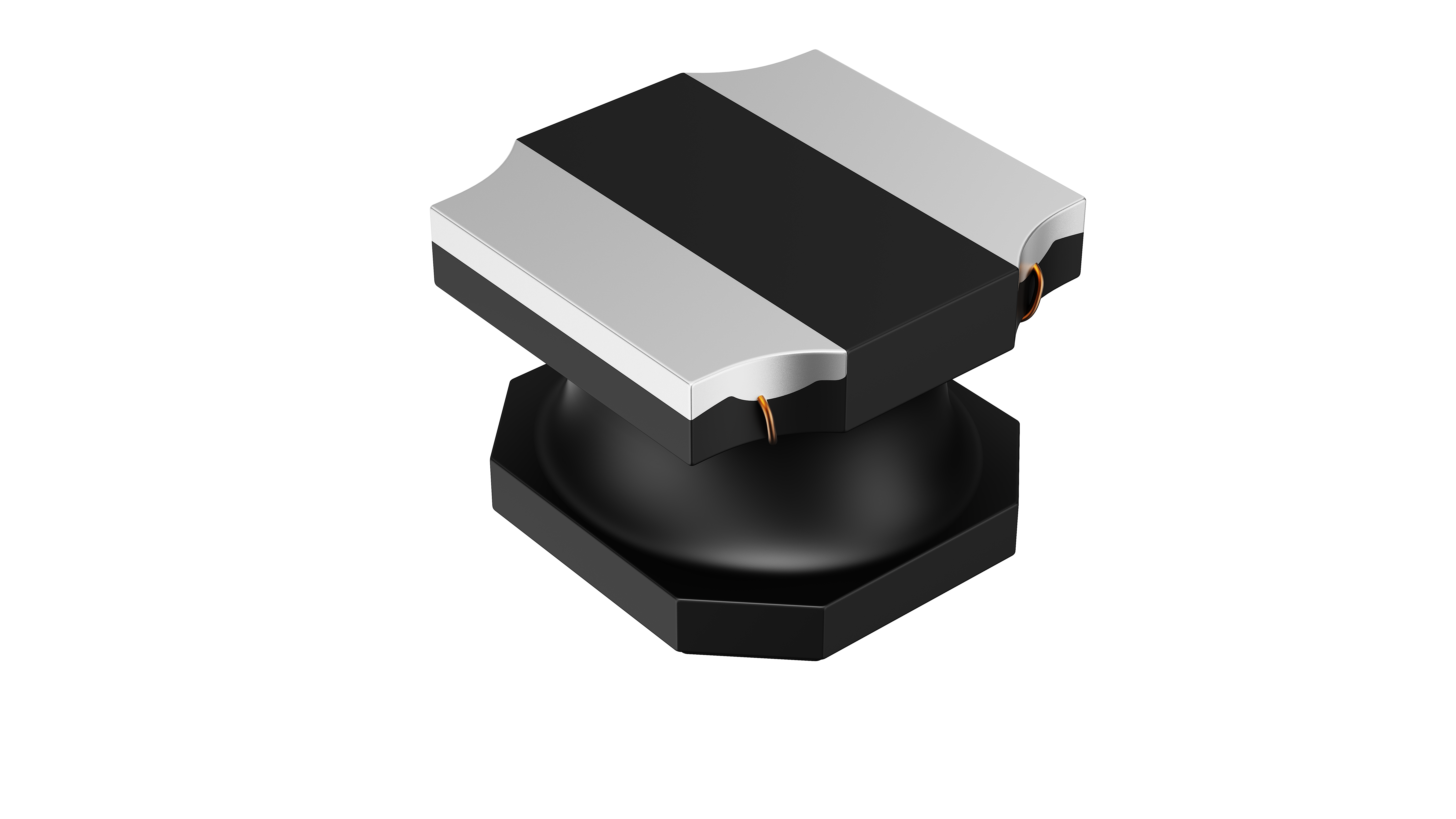

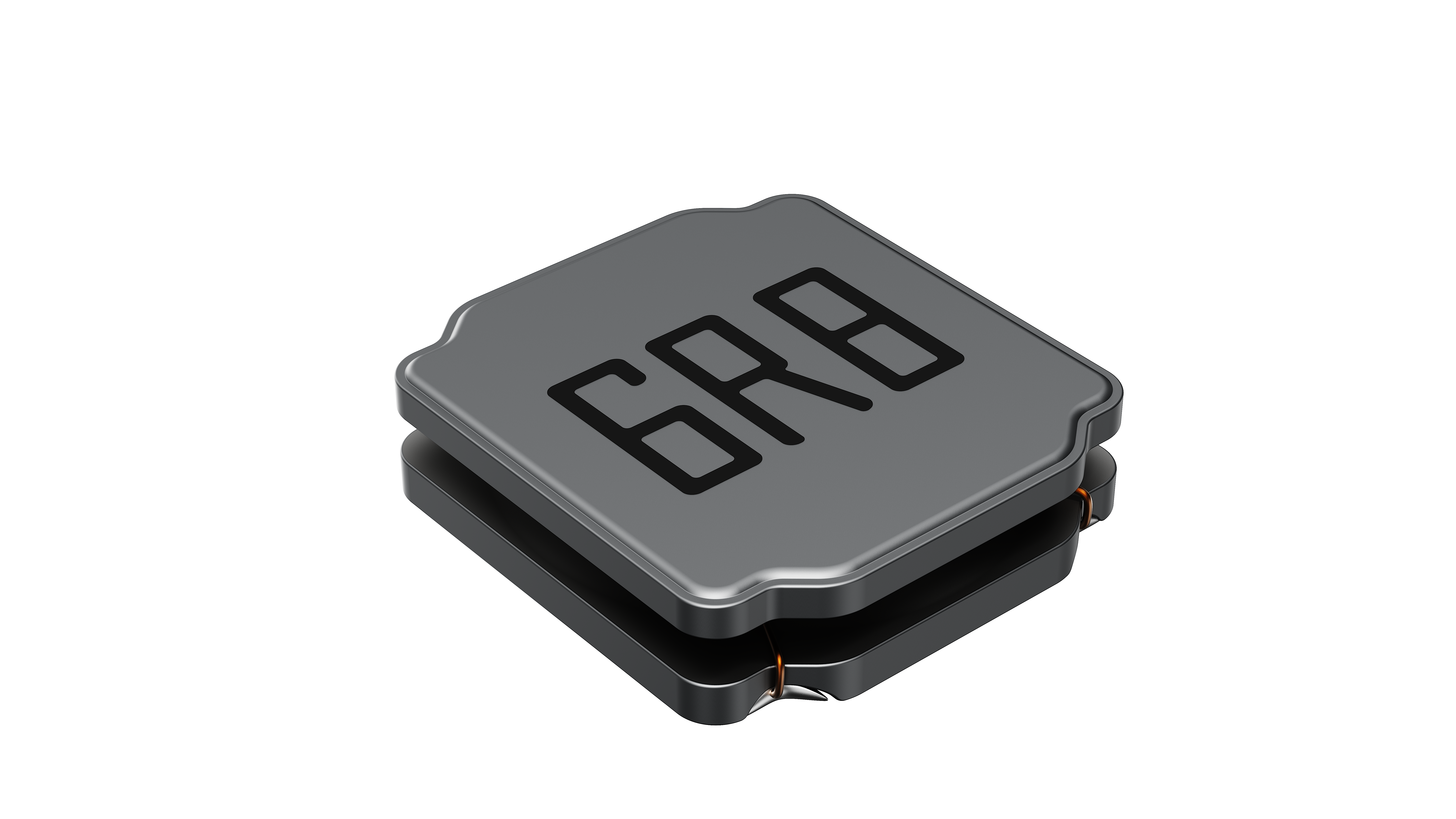

HMG SERIES | |||
| Product number | HMG SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
HMG SERIES appearance dimensions In mm |
TYPE | A | B | C | D | H | I | J |
201610 | 2.0±0.2 | 1.6±0.2 | 1.1max | 0.6±0.2 | 1.6 | 0.8 | 0.8 |
252010 | 2.5±0.3 | 2.0±0.3 | 1.0+0.2-0.3 | 0.8±0.3 | 2.0 | 0.85 | 0.8 |
252012 | 2.5±0.3 | 2.0±0.3 | 1.2+0.2-0.3 | 0.8±0.3 | 2.0 | 0.85 | 0.8 |
3010 | 3.0±0.2 | 3.0±0.2 | 1.0+0.2-0.3 | 0.75 | 2.5 | 1.0 | 1.0 |
3012 | 3.0±0.2 | 3.0±0.2 | 1.2+0.2-0.3 | 0.75 | 2.5 | 1.0 | 1.0 |
3015 | 3.0±0.2 | 3.0±0.2 | 1.5+0.2-0.3 | 0.9 | 2.5 | 1.0 | 1.0 |
4012 | 4.0±0.2 | 4.0±0.2 | 1.2+0.2-0.3 | 1.3 | 3.4 | 1.1 | 1.9 |
4018 | 4.0±0.2 | 4.0±0.2 | 1.8+0.2-0.3 | 1.3 | 3.7 | 1.2 | 1.6 |
4026 | 4.0±0.2 | 4.0±0.2 | 2.6+0.2-0.3 | 1.4 | 3.7 | 1.2 | 1.6 |
4030 | 4.0±0.2 | 4.0±0.2 | 3.0max | 1.0 | 3.7 | 1.2 | 1.6 |
5020 | 5.0±0.2 | 5.0±0.2 | 2.0+0.2-0.3 | 1.80 | 4.00 | 2.00 | 2.10 |
5040 | 5.0±0.2 | 5.0±0.2 | 4.0+0.2-0.3 | 1.60 | 4.00 | 1.80 | 2.10 |
6020 | 6.0±0.2 | 6.0±0.2 | 2.0+0.2-0.3 | 1.60 | 5.70 | 1.80 | 2.90 |
6028 | 6.0±0.2 | 6.0±0.2 | 2.8+0.2-0.3 | 1.80 | 5.70 | 2.00 | 2.90 |
6045 | 6.0±0.2 | 6.0±0.2 | 4.5+0.2-0.3 | 1.80 | 5.70 | 2.00 | 2.90 |
6045-40 | 6.0±0.2 | 6.0±0.2 | 4.5+0.2-0.3 | 1.80 | 5.70 | 2.00 | 2.90 |
8040 | 8.0±0.2 | 8.0±0.2 | 4.0+0.2-0.3 | 2.45 | 7.50 | 2.50 | 3.40 |
| HMGN201610 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN201610S2R24□00 | 0.24 | 1MHz,1V | 40 | 4.10(3.70) | 3.10(2.80) | 20,30 | |
| HMGN201610S2R33□00 | 0.33 | 1MHz,1V | 48 | 3.70(3.00) | 2.90(2.40) | 20,30 | |
| HMGN201610S2R47□00 | 0.47 | 1MHz,1V | 60 | 2.85(2.30) | 2.60(2.30) | 20,30 | |
| HMGN201610S2R68□00 | 0.68 | 1MHz,1V | 76 | 2.45(1.95) | 2.20(2.00) | 20,30 | |
| HMGN201610S21R0□00 | 1.00 | 1MHz,1V | 114 | 1.85(1.65) | 1.60(1.45) | 20,30 | |
| HMGN201610S21R5□00 | 1.50 | 1MHz,1V | 174 | 1.65(1.35) | 1.20(1.10) | 20,30 | |
| HMGN201610S22R2□00 | 2.20 | 1MHz,1V | 265 | 1.45(1.20) | 1.15(1.05) | 20,30 | |
| HMGN201610S23R3□00 | 3.30 | 1MHz,1V | 345 | 1.20(1.00) | 0.95(0.85) | 20,30 | |
| HMGN201610S24R7□00 | 4.70 | 1MHz,1V | 480 | 0.90(0.75) | 0.80(0.70) | 20,30 | |
| HMGN201610S26R8□00 | 6.80 | 1MHz,1V | 800 | 0.85(0.70) | 0.60(0.55) | 20,30 | |
| HMGN201610S28R2□00 | 8.20 | 1MHz,1V | 940 | 0.78(0.68) | 0.60(0.53) | 20,30 | |
| HMGN201610S2100□00 | 10.00 | 1MHz,1V | 1000 | 0.70(0.65) | 0.60(0.50) | 20,30 | |
| HMGN201610S2120□00 | 12.00 | 1MHz,1V | 1430 | 0.70(0.62) | 0.42(0.36) | 20,30 | |
| HMGN201610S2220□00 | 22.00 | 1MHz,1V | 1700 | 0.38(0.32) | 0.36(0.32) | 20,30 | |
| HMGN252010 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Max | Max | (±%) | |||
| HMGN252010S2R47□00 | 0.47 | 1MHz,1V | 56 | 2.50 | 2.35 | 20,30 | |
| HMGN252010S2R68□00 | 0.68 | 1MHz,1V | 74 | 2.20 | 2.0 | 20,30 | |
| HMGN252010S21R0□00 | 1.00 | 1MHz,1V | 108 | 1.85 | 1.65 | 20,30 | |
| HMGN252010S21R5□00 | 1.50 | 1MHz,1V | 182 | 1.80 | 1.3 | 20,30 | |
| HMGN252010S22R2□00 | 2.20 | 1MHz,1V | 209 | 1.2 | 1.2 | 20,30 | |
| HMGN252010S23R3□00 | 3.30 | 1MHz,1V | 328 | 1.05 | 0.9 | 20,30 | |
| HMGN252010S24R7□00 | 4.70 | 1MHz,1V | 563 | 0.95 | 0.7 | 20,30 | |
| HMGN252010S26R8□00 | 6.80 | 1MHz,1V | 896 | 0.78 | 0.59 | 20,30 | |
| HMGN252010S2100□00 | 10.00 | 1MHz,1V | 1092 | 0.65 | 0.5 | 20,30 | |
| HMGN252012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN252012S2R24□00 | 0.24 | 1MHz,1V | 25 | 4.80(4.00) | 4.50(4.10) | 20,30 | |
| HMGN252012S2R33□00 | 0.33 | 1MHz,1V | 33 | 4.70(3.90) | 3.70(3.35) | 20,30 | |
| HMGN252012S2R47□00 | 0.47 | 1MHz,1V | 38 | 4.50(3.80) | 3.30(3.00) | 20,30 | |
| HMGN252012S2R68□00 | 0.68 | 1MHz,1V | 50 | 3.30(3.00) | 2.50(2.30) | 20,30 | |
| HMGN252012S21R0□00 | 1.00 | 1MHz,1V | 63 | 2.50(2.20) | 2.60(2.30) | 20,30 | |
| HMGN252012S21R2□00 | 1.20 | 1MHz,1V | 80 | 2.40(2.10) | 2.20(2.00) | 20,30 | |
| HMGN252012S21R5□00 | 1.50 | 1MHz,1V | 95 | 2.35(2.00) | 2.00(1.80) | 20,30 | |
| HMGN252012S21R8□00 | 1.80 | 1MHz,1V | 110 | 2.20(1.95) | 1.90(1.75) | 20,30 | |
| HMGN252012S22R2□00 | 2.20 | 1MHz,1V | 115 | 1.90(1.75) | 1.85(1.70) | 20,30 | |
| HMGN252012S22R7□00 | 2.70 | 1MHz,1V | 160 | 1.60(1.30) | 1.50(1.40) | 20,30 | |
| HMGN252012S23R3□00 | 3.30 | 1MHz,1V | 170 | 1.35(1.20) | 1.40(1.30) | 20,30 | |
| HMGN252012S24R7□00 | 4.70 | 1MHz,1V | 235 | 1.20(1.10) | 1.20(1.10) | 20,30 | |
| HMGN252012S25R6□00 | 5.60 | 1MHz,1V | 336 | 1.10(1.00) | 1.15(1.00) | 20,30 | |
| HMGN252012S26R8□00 | 6.80 | 1MHz,1V | 370 | 1.00(0.90) | 1.05(0.95) | 20,30 | |
| HMGN252012S2100□00 | 10.00 | 1MHz,1V | 525 | 0.85(0.70) | 0.86(0.78) | 20,30 | |
| HMGN252012S2150□00 | 15.00 | 1MHz,1V | 1000 | 0.70(0.60) | 0.60(0.50) | 20,30 | |
| HMGN252012S2220□00 | 22.00 | 1MHz,1V | 1300 | 0.55(0.45) | 0.55(0.48) | 20,30 | |
| HMGN3010 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ(Max) | Typ(Max) | (±%) | |||
| HMGN3010S41R0□00 | 1.0 | 100kHz,1V | 85 | 2.20(1.40) | 1.80(1.45) | 30 | |
| HMGN3010S41R5□00 | 1.5 | 100kHz,1V | 104 | 1.75(1.27) | 1.60(1.30) | 30 | |
| HMGN3010S42R2□00 | 2.2 | 100kHz,1V | 143 | 1.60(1.15) | 1.42(1.09) | 20,30 | |
| HMGN3010S43R3□00 | 3.3 | 100kHz,1V | 189 | 1.20(0.97) | 1.20(0.96) | 20,30 | |
| HMGN3010S44R7□00 | 4.7 | 100kHz,1V | 293 | 1.10(0.75) | 1.10(0.77) | 20,30 | |
| HMGN3010S46R8□00 | 6.8 | 100kHz,1V | 397 | 0.75(0.65) | 0.96(0.66) | 20,30 | |
| HMGN3010S4100□00 | 10.0 | 100kHz,1V | 520 | 0.72(0.60) | 0.70(0.58) | 20,30 | |
| HMGN3010S4150□00 | 15.0 | 100kHz,1V | 793 | 0.58(0.42) | 0.57(0.47) | 20,30 | |
| HMGN3010S4220□00 | 22.0 | 100kHz,1V | 1176 | 0.48(0.36) | 0.52(0.38) | 20,30 | |
| HMGN3010S4330□00 | 33.0 | 100kHz,1V | 2015 | 0.42(0.29) | 0.55(0.30) | 20,30 | |
| HMGN3010S4470□00 | 47.0 | 100kHz,1V | 2535 | 0.36(0.22) | 0.52(0.26) | 20,30 | |
| HMGN3012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN3012S41R0□00 | 1.0 | 100kHz,1V | 52 | 2.80(1.87) | 2.70(2.20) | 30 | |
| HMGN3012S41R5□00 | 1.5 | 100kHz,1V | 59 | 1.92(1.62) | 2.20(2.01) | 30 | |
| HMGN3012S42R2□00 | 2.2 | 100kHz,1V | 97.5 | 1.90(1.20) | 1.70(1.55) | 20,30 | |
| HMGN3012S43R3□00 | 3.3 | 100kHz,1V | 130 | 1.52(1.05) | 1.40(1.36) | 20,30 | |
| HMGN3012S44R7□00 | 4.7 | 100kHz,1V | 156 | 1.00(0.90) | 1.30(1.24) | 20,30 | |
| HMGN3012S46R8□00 | 6.8 | 100kHz,1V | 247 | 0.92(0.75) | 1.10(0.98) | 20,30 | |
| HMGN3012S4100□00 | 10.0 | 100kHz,1V | 344.5 | 0.88(0.60) | 0.90(0.83) | 20,30 | |
| HMGN3012S4150□00 | 15.0 | 100kHz,1V | 598 | 0.62(0.45) | 0.77(0.71) | 20,30 | |
| HMGN3012S4220□00 | 22.0 | 100kHz,1V | 838.5 | 0.52(0.42) | 0.59(0.53) | 20,30 | |
| HMGN3012S4330□00 | 33.0 | 100kHz,1V | 1138 | 0.46(0.36) | 0.50(0.46) | 20,30 | |
| HMGN3012S4470□00 | 47.0 | 100kHz,1V | 1885 | 0.35(0.27) | 0.40(0.35) | 20,30 | |
| HMGN3012S4680□00 | 68.0 | 100kHz,1V | 2171 | 0.29(0.24) | 0.37(0.33) | 20,30 | |
| HMGN3015 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN3015S41R0□00 | 1.0 | 100kHz,1V | 39 | 2.85(2.20) | 2.50(2.30) | 30 | 1R0 |
| HMGN3015S41R2□00 | 1.2 | 100kHz,1V | 52 | 2.20(1.90) | 2.30(1.95) | 30 | 1R2 |
| HMGN3015S41R5□00 | 1.5 | 100kHz,1V | 65 | 1.82(1.62) | 1.75(1.50) | 30 | 1R5 |
| HMGN3015S41R8□00 | 1.8 | 100kHz,1V | 65 | 1.80(1.60) | 1.50(1.20) | 30 | 1R8 |
| HMGN3015S42R2□00 | 2.2 | 100kHz,1V | 78 | 1.78(1.56) | 1.30(1.15) | 20,30 | 2R2 |
| HMGN3015S43R3□00 | 3.3 | 100kHz,1V | 104 | 1.75(1.28) | 1.28(1.10) | 20,30 | 3R3 |
| HMGN3015S44R7□00 | 4.7 | 100kHz,1V | 162.5 | 1.35(1.20) | 1.20(0.95) | 20,30 | 4R7 |
| HMGN3015S45R1□00 | 5.1 | 100kHz,1V | 172.9 | 1.30(1.10) | 1.15(0.90) | 20,30 | 5R1 |
| HMGN3015S46R8□00 | 6.8 | 100kHz,1V | 260 | 1.10(0.85) | 1.10(0.85) | 20,30 | 6R8 |
| HMGN3015S4100□00 | 10 | 100kHz,1V | 325 | 0.92(0.75) | 0.90(0.77) | 20,30 | 100 |
| HMGN3015S4120□00 | 12 | 100kHz,1V | 416 | 0.90(0.70) | 0.85(0.65) | 20,30 | 120 |
| HMGN3015S4150□00 | 15 | 100kHz,1V | 494 | 0.79(0.66) | 0.78(0.65) | 20,30 | 150 |
| HMGN3015S4180□00 | 18 | 100kHz,1V | 559 | 0.72(0.56) | 0.72(0.58) | 20,30 | 180 |
| HMGN3015S4220□00 | 22 | 100kHz,1V | 598 | 0.60(0.48) | 0.69(0.53) | 20,30 | 220 |
| HMGN3015S4330□00 | 33 | 100kHz,1V | 1066 | 0.52(0.46) | 0.51(0.45) | 20,30 | 330 |
| HMGN3015S4390□00 | 39 | 100kHz,1V | 1294 | 0.50(0.40) | 0.45(0.40) | 20,30 | 390 |
| HMGN3015S4470□00 | 47 | 100kHz,1V | 1625 | 0.45(0.33) | 0.43(0.35) | 20,30 | 470 |
| HMGN3015S4560□00 | 56 | 100kHz,1V | 1664 | 0.42(0.30) | 0.40(0.32) | 20,30 | 560 |
| HMGN3015S4680□00 | 68 | 100kHz,1V | 3510 | 0.37(0.25) | 0.31(0.23) | 20,30 | 680 |
| HMGN3015S4101□00 | 100 | 100kHz,1V | 4043 | 0.28(0.23) | 0.25(0.21) | 20,30 | 101 |
| HMGN 4012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN4012S31R0□00 | 1.0 | 100kHz,1V | 65 | 3.20(2.61) | 2.50(1.65) | 20,30 | 1R0 |
| HMGN4012S32R2□00 | 2.2 | 100kHz,1V | 104 | 2.30(1.76) | 1.90(1.32) | 20,30 | 2R2 |
| HMGN4012S33R3□00 | 3.3 | 100kHz,1V | 143 | 2.10(1.72) | 1.60(1.12) | 20,30 | 3R3 |
| HMGN4012S34R7□00 | 4.7 | 100kHz,1V | 185 | 1.80(1.15) | 1.50(1.05) | 20,30 | 4R7 |
| HMGN4012S35R6□00 | 5.6 | 100kHz,1V | 200 | 1.60(1.00) | 1.30(1.00) | 20,30 | 5R6 |
| HMGN4012S36R8□00 | 6.8 | 100kHz,1V | 257 | 1.40(0.85) | 1.20(0.84) | 20,30 | 6R8 |
| HMGN4012S3100□00 | 10 | 100kHz,1V | 345 | 1.10(0.80) | 1.00(0.77) | 20,30 | 100 |
| HMGN4012S3150□00 | 15 | 100kHz,1V | 442 | 0.80(0.56) | 0.85(0.64) | 20,30 | 150 |
| HMGN4012S3220□00 | 22 | 100kHz,1V | 763 | 0.70(0.46) | 0.75(0.49) | 20,30 | 220 |
| HMGN 4018 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN4018S31R0□00 | 1 | 100kHz,1V | 38.4 | 4.10(3.69) | 2.80(2.52) | 30 | 1R0 |
| HMGN4018S31R5□00 | 1.5 | 100kHz,1V | 48.0 | 3.30(2.97) | 2.60(2.34) | 30 | 1R5 |
| HMGN4018S31R8□00 | 1.8 | 100kHz,1V | 66.0 | 2.80(2.50) | 2.50(2.20) | 30 | 1R8 |
| HMGN4018S32R2□00 | 2.2 | 100kHz,1V | 72.0 | 2.80(2.52) | 2.50(2.25) | 20,30 | 2R2 |
| HMGN4018S32R3□00 | 2.3 | 100kHz,1V | 72.0 | 2.80(2.52) | 2.50(2.25) | 20,30 | 2R3 |
| HMGN4018S33R3□00 | 3.3 | 100kHz,1V | 84.0 | 2.20(1.98) | 2.10(1.89) | 20,30 | 3R3 |
| HMGN4018S33R6□00 | 3.6 | 100kHz,1V | 90.0 | 2.10(1.89) | 1.90(1.71) | 20,30 | 3R6 |
| HMGN4018S33R9□00 | 3.9 | 100kHz,1V | 90.0 | 2.10(1.89) | 1.90(1.71) | 20,30 | 3R9 |
| HMGN4018S34R7□00 | 4.7 | 100kHz,1V | 108.0 | 2.00(1.80) | 1.70(1.53) | 20,30 | 4R7 |
| HMGN4018S36R8□00 | 6.8 | 100kHz,1V | 143.0 | 1.60(1.44) | 1.50(1.35) | 20,30 | 6R8 |
| HMGN4018S3100□00 | 10 | 100kHz,1V | 228.0 | 1.40(1.26) | 1.20(1.08) | 20,30 | 100 |
| HMGN4018S3150□00 | 15 | 100kHz,1V | 300.0 | 1.00(0.90) | 1.00(0.90) | 20,30 | 150 |
| HMGN4018S3220□00 | 22 | 100kHz,1V | 468.0 | 0.90(0.81) | 0.85(0.76) | 20,30 | 220 |
| HMGN4018S3330□00 | 33 | 100kHz,1V | 636.0 | 0.80(0.72) | 0.70(0.63) | 20,30 | 330 |
| HMGN4018S3470□00 | 47 | 100kHz,1V | 864.0 | 0.70(0.63) | 0.56(0.50) | 20,30 | 470 |
| HMGN4026 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN4026S31R2□00 | 1.2 | 100kHz,1V | 36 | 4.30(3.52) | 3.30(2.97) | 30 | 1R2 |
| HMGN4026S33R3□00 | 3.3 | 100kHz,1V | 104 | 3.50(3.00) | 2.50(2.25) | 20,30 | 3R3 |
| HMGN4026S34R7□00 | 4.7 | 100kHz,1V | 120 | 3.20(2.80) | 2.20(1.62) | 20,30 | 4R7 |
| HMGN4026S3220□00 | 22 | 100kHz,1V | 440.4 | 1.53(0.82) | 1.00(0.90) | 20,30 | 220 |
| HMGN4030 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN4030S41R0□00 | 1.0 | 100kHz,1V | 23.4 | 6.20(5.26) | 4.90(4.15) | 30 | 1R0 |
| HMGN4030S41R5□00 | 1.5 | 100kHz,1V | 33.8 | 6.00(4.85) | 3.80(3.40) | 30 | 1R5 |
| HMGN4030S41R8□00 | 1.8 | 100kHz,1V | 43 | 5.20(4.50) | 3.50(3.20) | 30 | 1R8 |
| HMGN4030S42R2□00 | 2.2 | 100kHz,1V | 45 | 4.50(3.80) | 3.30(2.90) | 30 | 2R2 |
| HMGN4030S43R3□00 | 3.3 | 100kHz,1V | 52 | 4.00(3.30) | 2.80(2.40) | 20,30 | 3R3 |
| HMGN4030S44R7□00 | 4.7 | 100kHz,1V | 80 | 3.20(2.80) | 2.50(2.00) | 20,30 | 4R7 |
| HMGN4030S45R6□00 | 5.6 | 100kHz,1V | 85 | 2.90(2.60) | 2.30(1.95) | 20,30 | 5R6 |
| HMGN4030S46R8□00 | 6.8 | 100kHz,1V | 117 | 2.80(2.10) | 1.90(1.60) | 20,30 | 6R8 |
| HMGN4030S4100□00 | 10 | 100kHz,1V | 169 | 2.10(1.65) | 1.80(1.50) | 20,30 | 100 |
| HMGN4030S4150□00 | 15 | 100kHz,1V | 247 | 1.90(1.40) | 1.40(1.10) | 20,30 | 150 |
| HMGN4030S4220□00 | 22 | 100kHz,1V | 290 | 1.60(1.30) | 1.20(1.00) | 20,30 | 220 |
| HMGN4030S4330□00 | 33 | 100kHz,1V | 420 | 1.20(1.10) | 0.98(0.84) | 20,30 | 330 |
| HMGN4030S4470□00 | 47 | 100kHz,1V | 580 | 1.00(0.90) | 0.90(0.70) | 20,30 | 470 |
| HMGN4030S4680□00 | 68 | 100kHz,1V | 910 | 0.83(0.72) | 0.60(0.52) | 20,30 | 680 |
| HMGN4030S4101□00 | 100 | 100kHz,1V | 1690 | 0.70(0.56) | 0.50(0.45) | 20,30 | 101 |
| HMGN4030S4121□00 | 120 | 100kHz,1V | 1755 | 0.62(0.55) | 0.47(0.42) | 20,30 | 121 |
| HMGN4030S4151□00 | 150 | 100kHz,1V | 3000 | 0.56(0.35) | 0.40(0.30) | 20,30 | 151 |
| HMGN4030S4221□00 | 220 | 100kHz,1V | 3250 | 0.45(0.34) | 0.38(0.30) | 20,30 | 221 |
| HMGN5020 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN5020S41R0□00 | 1.0 | 100kHz,1V | 25.2 | 6.50(4.80) | 4.50(3.60) | 30 | 1R0 |
| HMGN5020S41R2□00 | 1.2 | 100kHz,1V | 25.2 | 6.30(4.50) | 4.20(3.42) | 30 | 1R2 |
| HMGN5020S41R5□00 | 1.5 | 100kHz,1V | 31.2 | 5.90(4.10) | 3.80(3.15) | 20,30 | 1R5 |
| HMGN5020S42R2□00 | 2.2 | 100kHz,1V | 42 | 5.00(3.30) | 3.50(2.88) | 20,30 | 2R2 |
| HMGN5020S43R3□00 | 3.3 | 100kHz,1V | 57.6 | 3.20(2.70) | 3.00(2.52) | 20,30 | 3R3 |
| HMGN5020S43R6□00 | 3.6 | 100kHz,1V | 65 | 3.10(2.60) | 2.80(2.30) | 20,30 | 3R6 |
| HMGN5020S44R7□00 | 4.7 | 100kHz,1V | 72 | 2.85(2.25) | 2.50(1.98) | 20,30 | 4R7 |
| HMGN5020S45R6□00 | 5.6 | 100kHz,1V | 98.4 | 2.60(2.10) | 2.20(1.80) | 20,30 | 5R6 |
| HMGN5020S46R8□00 | 6.8 | 100kHz,1V | 108 | 2.50(2.00) | 2.00(1.62) | 20,30 | 6R8 |
| HMGN5020S4100□00 | 10 | 100kHz,1V | 144 | 2.35(1.65) | 1.75(1.44) | 20,30 | 100 |
| HMGN5020S4150□00 | 15 | 100kHz,1V | 228 | 1.76(1.17) | 1.50(1.08) | 20,30 | 150 |
| HMGN5020S4220□00 | 22 | 100kHz,1V | 312 | 1.15(0.90) | 1.10(0.90) | 20,30 | 220 |
| HMGN5020S4330□00 | 33 | 100kHz,1V | 552 | 1.10(0.82) | 0.95(0.67) | 20,30 | 330 |
| HMGN5020S4470□00 | 47 | 100kHz,1V | 696 | 0.92(0.78) | 0.85(0.58) | 20,30 | 470 |
| HMGN5040 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN5040S41R0□00 | 1.0 | 100kHz,1V | 18.2 | 8.20(6.75) | 5.20(4.90) | 30 | 1R0 |
| HMGN5040S41R2□00 | 1.2 | 100kHz,1V | 19.5 | 7.40(6.66) | 4.50(4.05) | 30 | 1R2 |
| HMGN5040S41R5□00 | 1.5 | 100kHz,1V | 20.8 | 7.10(6.39) | 4.80(3.96) | 30 | 1R5 |
| HMGN5040S42R2□00 | 2.2 | 100kHz,1V | 27.3 | 5.70(5.13) | 4.30(3.33) | 20,30 | 2R2 |
| HMGN5040S43R3□00 | 3.3 | 100kHz,1V | 33.8 | 4.80(4.32) | 3.92(3.15) | 20,30 | 3R3 |
| HMGN5040S44R7□00 | 4.7 | 100kHz,1V | 41.6 | 4.22(3.78) | 3.35(2.88) | 20,30 | 4R7 |
| HMGN5040S46R8□00 | 6.8 | 100kHz,1V | 65 | 3.50(2.97) | 2.80(2.16) | 20,30 | 6R8 |
| HMGN5040S4100□00 | 10 | 100kHz,1V | 78 | 2.82(2.52) | 2.45(1.98) | 20,30 | 100 |
| HMGN5040S4150□00 | 15 | 100kHz,1V | 117 | 2.30(2.07) | 2.00(1.62) | 20,30 | 150 |
| HMGN5040S4220□00 | 22 | 100kHz,1V | 175.5 | 1.95(1.62) | 1.63(1.26) | 20,30 | 220 |
| HMGN5040S4270□00 | 27 | 100kHz,1V | 234 | 1.60(1.44) | 1.25(1.08) | 20,30 | 270 |
| HMGN5040S4330□00 | 33 | 100kHz,1V | 247 | 1.55(1.35) | 1.10(0.99) | 20,30 | 330 |
| HMGN5040S4470□00 | 47 | 100kHz,1V | 326 | 1.28(1.08) | 1.05(0.81) | 20,30 | 470 |
| HMGN5040S4101□00 | 100 | 100kHz,1V | 780 | 0.92(0.75) | 0.83(0.70) | 20,30 | 101 |
| HMGN6020 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN6020S41R0□00 | 1.0 | 100kHz,1V | 26 | 6.20(5.58) | 4.40(3.69) | 30 | 1R0 |
| HMGN6020S41R5□00 | 1.5 | 100kHz,1V | 33.8 | 5.80(4.50) | 4.00(3.24) | 30 | 1R5 |
| HMGN6020S42R2□00 | 2.2 | 100kHz,1V | 44.2 | 5.60(4.32) | 3.88(3.15) | 20,30 | 2R2 |
| HMGN6020S43R3□00 | 3.3 | 100kHz,1V | 52 | 4.10(3.20) | 3.30(2.43) | 20,30 | 3R3 |
| HMGN6020S44R7□00 | 4.7 | 100kHz,1V | 75.4 | 3.89(3.00) | 2.55(1.98) | 20,30 | 4R7 |
| HMGN6020S46R8□00 | 6.8 | 100kHz,1V | 110.5 | 3.52(2.20) | 2.35(1.62) | 20,30 | 6R8 |
| HMGN6020S4100□00 | 10 | 100kHz,1V | 162.5 | 2.55(1.80) | 1.83(1.44) | 20,30 | 100 |
| HMGN6020S4150□00 | 15 | 100kHz,1V | 247 | 2.30(1.25) | 1.52(1.17) | 20,30 | 150 |
| HMGN6020S4220□00 | 22 | 100kHz,1V | 270 | 1.51(0.99) | 1.30(0.99) | 20,30 | 220 |
| HMGN6028 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN6028S31R0□00 | 1.0 | 100kHz,1V | 16.9 | 7.60(6.84) | 5.86(4.68) | 30 | 1R0 |
| HMGN6028S31R5□00 | 1.5 | 100kHz,1V | 20.8 | 6.80(5.67) | 5.15(4.32) | 30 | 1R5 |
| HMGN6028S32R2□00 | 2.2 | 100kHz,1V | 26 | 5.40(4.86) | 4.23(3.60) | 20,30 | 2R2 |
| HMGN6028S32R7□00 | 2.7 | 100kHz,1V | 33.8 | 4.90(4.41) | 4.10(3.33) | 20,30 | 2R7 |
| HMGN6028S33R3□00 | 3.3 | 100kHz,1V | 36.4 | 4.30(3.87) | 3.90(3.15) | 20,30 | 3R3 |
| HMGN6028S34R7□00 | 4.7 | 100kHz,1V | 49.4 | 3.70(3.33) | 3.45(2.88) | 20,30 | 4R7 |
| HMGN6028S36R0□00 | 6.0 | 100kHz,1V | 58.5 | 3.50(2.97) | 2.80(2.52) | 20,30 | 6R0 |
| HMGN6028S36R8□00 | 6.8 | 100kHz,1V | 65 | 3.10(2.79) | 2.70(2.43) | 20,30 | 6R8 |
| HMGN6028S3100□00 | 10 | 100kHz,1V | 84.5 | 2.50(2.25) | 2.30(2.07) | 20,30 | 100 |
| HMGN6028S3150□00 | 15 | 100kHz,1V | 123.5 | 2.00(1.80) | 1.80(1.62) | 20,30 | 150 |
| HMGN6028S3220□00 | 22 | 100kHz,1V | 175.5 | 1.60(1.44) | 1.50(1.35) | 20,30 | 220 |
| HMGN6028S3330□00 | 33 | 100kHz,1V | 286 | 1.45(1.17) | 1.40(1.26) | 20,30 | 330 |
| HMGN6028S3470□00 | 47 | 100kHz,1V | 416 | 1.10(0.99) | 1.00(0.90) | 20,30 | 470 |
| HMGN6028S3680□00 | 68 | 100kHz,1V | 546 | 0.98(0.88) | 0.90(0.81) | 20,30 | 680 |
| HMGN6028S3101□00 | 100 | 100kHz,1V | 720 | 0.75(0.60) | 0.80(0.72) | 20,30 | 101 |
| HMGN6045 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN6045S41R0□00 | 1.0 | 100kHz,1V | 15.6 | 12.50(10.98) | 6.50(5.85) | 30 | 1R0 |
| HMGN6045S41R5□00 | 1.5 | 100kHz,1V | 19.5 | 11.40(9.36) | 5.90(5.31) | 30 | 1R5 |
| HMGN6045S41R8□00 | 1.8 | 100kHz,1V | 22.1 | 9.80(8.64) | 5.65(5.04) | 30 | 1R8 |
| HMGN6045S42R2□00 | 2.2 | 100kHz,1V | 23.92 | 9.00(7.92) | 5.15(4.59) | 20,30 | 2R2 |
| HMGN6045S42R3□00 | 2.3 | 100kHz,1V | 24.7 | 8.80(7.92) | 5.00(4.50) | 20,30 | 2R3 |
| HMGN6045S43R0□00 | 3.0 | 100kHz,1V | 28.6 | 7.85(7.02) | 4.60(3.96) | 20,30 | 3R0 |
| HMGN6045S43R3□00 | 3.3 | 100kHz,1V | 31.2 | 7.50(6.75) | 4.32(3.87) | 20,30 | 3R3 |
| HMGN6045S43R6□00 | 3.6 | 100kHz,1V | 31.2 | 7.50(6.75) | 4.32(3.87) | 20,30 | 3R6 |
| HMGN6045S43R9□00 | 3.9 | 100kHz,1V | 33.8 | 7.00(6.30) | 4.00(3.60) | 20,30 | 3R9 |
| HMGN6045S44R5□00 | 4.5 | 100kHz,1V | 40.3 | 6.70(6.03) | 3.90(3.51) | 20,30 | 4R5 |
| HMGN6045S44R7□00 | 4.7 | 100kHz,1V | 40.3 | 6.70(6.03) | 3.90(3.51) | 20,30 | 4R7 |
| HMGN6045S45R1□00 | 5.1 | 100kHz,1V | 42.9 | 6.00(5.40) | 3.70(3.15) | 20,30 | 5R1 |
| HMGN6045S45R6□00 | 5.6 | 100kHz,1V | 52 | 5.50(4.95) | 3.55(2.97) | 20,30 | 5R6 |
| HMGN6045S46R3□00 | 6.3 | 100kHz,1V | 52 | 5.45(4.95) | 3.30(2.97) | 20,30 | 6R3 |
| HMGN6045S46R8□00 | 6.8 | 100kHz,1V | 55.9 | 5.35(4.77) | 3.25(2.88) | 20,30 | 6R8 |
| HMGN6045S4100□00 | 10 | 100kHz,1V | 74.1 | 4.50(4.05) | 2.70(2.43) | 20,30 | 100 |
| HMGN6045S4150□00 | 15 | 100kHz,1V | 104 | 3.45(3.06) | 2.30(1.98) | 20,30 | 150 |
| HMGN6045S4180□00 | 18 | 100kHz,1V | 130 | 3.10(2.79) | 2.00(1.80) | 20,30 | 180 |
| HMGN6045S4220□00 | 22 | 100kHz,1V | 162.5 | 3.00(2.70) | 1.90(1.71) | 20,30 | 220 |
| HMGN6045S4270□00 | 27 | 100kHz,1V | 208 | 2.50(2.25) | 1.50(1.17) | 20,30 | 270 |
| HMGN6045S4330□00 | 33 | 100kHz,1V | 214.5 | 2.35(2.07) | 1.45(1.26) | 20,30 | 330 |
| HMGN6045S4470□00 | 47 | 100kHz,1V | 318.5 | 1.96(1.71) | 1.27(1.08) | 20,30 | 470 |
| HMGN6045S4560□00 | 56 | 100kHz,1V | 403 | 1.72(1.50) | 1.18(0.99) | 20,30 | 560 |
| HMGN6045S4680□00 | 68 | 100kHz,1V | 429 | 1.68(1.44) | 1.10(0.90) | 20,30 | 680 |
| HMGN6045S4101□00 | 100 | 100kHz,1V | 600 | 1.35(1.17) | 0.90(0.72) | 20,30 | 101 |
| HMGN6045S4221□00 | 220 | 100kHz,1V | 1560 | 0.90(0.73) | 0.68(0.55) | 20,30 | 221 |
| HMGN6045S4331□00 | 330 | 100kHz,1V | 2160 | 0.75(0.63) | 0.63(0.50) | 20,30 | 331 |
| HMGN6045S4102□00 | 1000 | 100kHz,1V | 7200 | 0.43(0.36) | 0.22(0.19) | 20,30 | 102 |
| HMGN6045-40series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN6045S42R2□40 | 2.2 | 100kHz,1V | 17 | 7.30(6.12) | 5.50(4.95) | 20,30 | 2R2 |
| HMGN6045S43R3□40 | 3.3 | 100kHz,1V | 24 | 6.00(4.95) | 4.70(4.23) | 20,30 | 3R3 |
| HMGN6045S44R7□40 | 4.7 | 100kHz,1V | 30 | 5.20(4.14) | 4.00(3.60) | 20,30 | 4R7 |
| HMGN6045S46R8□40 | 6.8 | 100kHz,1V | 40 | 4.20(3.60) | 3.50(3.15) | 20,30 | 6R8 |
| HMGN6045S4100□40 | 10 | 100kHz,1V | 50 | 3.50(2.88) | 3.20(2.88) | 20,30 | 100 |
| HMGN6045S4150□40 | 15 | 100kHz,1V | 80 | 2.80(2.34) | 2.50(2.25) | 20,30 | 150 |
| HMGN6045S4220□40 | 22 | 100kHz,1V | 120 | 2.15(1.89) | 2.00(1.80) | 20,30 | 220 |
| HMGN6045S4330□40 | 33 | 100kHz,1V | 170 | 1.70(1.53) | 1.60(1.44) | 20,30 | 330 |
| HMGN6045S4101□40 | 100 | 100kHz,1V | 595 | 0.95(0.85) | 0.92(0.82) | 20,30 | 101 |
| HMGN8040series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGN8040S4R90□00 | 0.9 | 100kHz,1V | 9.1 | 13.80(12.42) | 8.05(7.24) | 30 | R90 |
| HMGN8040S41R0□00 | 1.0 | 100kHz,1V | 9.75 | 13.00(11.70) | 7.95(7.15) | 30 | 1R0 |
| HMGN8040S41R4□00 | 1.4 | 100kHz,1V | 11.7 | 10.80(9.72) | 7.80(7.02) | 30 | 1R4 |
| HMGN8040S41R5□00 | 1.5 | 100kHz,1V | 12.35 | 10.00(9.00) | 7.70(6.93) | 30 | 1R5 |
| HMGN8040S42R0□00 | 2.0 | 100kHz,1V | 14.3 | 9.60(8.64) | 7.40(6.66) | 20,30 | 2R0 |
| HMGN8040S42R2□00 | 2.2 | 100kHz,1V | 14.95 | 9.50(8.28) | 7.20(6.48) | 20,30 | 2R2 |
| HMGN8040S42R5□00 | 2.5 | 100kHz,1V | 16.9 | 8.20(7.38) | 6.30(5.67) | 20,30 | 2R5 |
| HMGN8040S43R3□00 | 3.3 | 100kHz,1V | 19.5 | 7.50(6.75) | 6.00(5.40) | 20,30 | 3R3 |
| HMGN8040S44R7□00 | 4.7 | 100kHz,1V | 23.4 | 6.00(5.40) | 5.50(4.95) | 20,30 | 4R7 |
| HMGN8040S45R6□00 | 5.6 | 100kHz,1V | 29.9 | 5.80(5.13) | 5.20(4.68) | 20,30 | 5R6 |
| HMGN8040S46R8□00 | 6.8 | 100kHz,1V | 32.5 | 5.40(4.86) | 5.10(4.59) | 20,30 | 6R8 |
| HMGN8040S48R2□00 | 8.2 | 100kHz,1V | 41.6 | 5.00(4.10) | 4.80(4.00) | 20,30 | 8R2 |
| HMGN8040S4100□00 | 10 | 100kHz,1V | 49.4 | 4.30(3.87) | 3.80(3.42) | 20,30 | 100 |
| HMGN8040S4120□00 | 12 | 100kHz,1V | 58.5 | 4.00(3.42) | 3.50(3.15) | 20,30 | 120 |
| HMGN8040S4150□00 | 15 | 100kHz,1V | 65 | 3.60(3.24) | 3.20(2.88) | 20,30 | 150 |
| HMGN8040S4180□00 | 18 | 100kHz,1V | 88.4 | 3.10(2.79) | 2.70(2.43) | 20,30 | 180 |
| HMGN8040S4220□00 | 22 | 100kHz,1V | 104 | 2.80(2.52) | 2.60(2.34) | 20,30 | 220 |
| HMGN8040S4330□00 | 33 | 100kHz,1V | 143 | 2.40(2.07) | 2.00(1.80) | 20,30 | 330 |
| HMGN8040S4470□00 | 47 | 100kHz,1V | 208 | 2.00(1.71) | 1.75(1.57) | 20,30 | 470 |
| HMGN8040S4680□00 | 68 | 100kHz,1V | 288 | 1.70(1.53) | 1.45(1.30) | 20,30 | 680 |
| HMGN8040S4101□00 | 100 | 100kHz,1V | 408 | 1.40(1.26) | 1.10(0.99) | 20,30 | 101 |
| HMGN8040S4121□00 | 120 | 100kHz,1V | 552.5 | 1.10(0.99) | 1.00(0.90) | 20,30 | 121 |
| HMGN8040S4151□00 | 150 | 100kHz,1V | 576 | 1.00(0.90) | 0.90(0.81) | 20,30 | 151 |
| HMGN8040S4221□00 | 220 | 100kHz,1V | 804 | 0.94(0.84) | 0.88(0.76) | 20,30 | 221 |
| HMGN8040S4271□00 | 270 | 100kHz,1V | 1170 | 0.83(0.74) | 0.55(0.49) | 20,30 | 271 |
| HMGN8040S4821□00 | 820 | 100kHz,1V | 3640 | 0.40(0.36) | 0.38(0.34) | 20,30 | 821 |
| HMGC3010 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ(Max) | Typ(Max) | (±%) | |||
| HMGC3010S41R0□00 | 1.0 | 100kHz,1V | 85 | 2.20(1.40) | 1.80(1.45) | 30 | |
| HMGC3010S41R5□00 | 1.5 | 100kHz,1V | 104 | 1.75(1.27) | 1.60(1.30) | 30 | |
| HMGC3010S42R2□00 | 2.2 | 100kHz,1V | 143 | 1.60(1.15) | 1.42(1.09) | 20,30 | |
| HMGC3010S43R3□00 | 3.3 | 100kHz,1V | 189 | 1.20(0.97) | 1.20(0.96) | 20,30 | |
| HMGC3010S44R7□00 | 4.7 | 100kHz,1V | 293 | 1.10(0.75) | 1.10(0.77) | 20,30 | |
| HMGC3010S46R8□00 | 6.8 | 100kHz,1V | 397 | 0.75(0.65) | 0.96(0.66) | 20,30 | |
| HMGC3010S4100□00 | 10.0 | 100kHz,1V | 520 | 0.72(0.60) | 0.70(0.58) | 20,30 | |
| HMGC3010S4150□00 | 15.0 | 100kHz,1V | 793 | 0.58(0.42) | 0.57(0.47) | 20,30 | |
| HMGC3010S4220□00 | 22.0 | 100kHz,1V | 1176 | 0.48(0.36) | 0.52(0.38) | 20,30 | |
| HMGC3010S4330□00 | 33.0 | 100kHz,1V | 2015 | 0.42(0.29) | 0.55(0.30) | 20,30 | |
| HMGC3010S4470□00 | 47.0 | 100kHz,1V | 2535 | 0.36(0.22) | 0.52(0.26) | 20,30 | |
| HMGC3012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | No Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC3012S41R0□00 | 1.0 | 100kHz,1V | 52 | 2.80(1.87) | 2.70(2.20) | 30 | |
| HMGC3012S41R5□00 | 1.5 | 100kHz,1V | 59 | 1.92(1.62) | 2.20(2.01) | 30 | |
| HMGC3012S42R2□00 | 2.2 | 100kHz,1V | 97.5 | 1.90(1.20) | 1.70(1.55) | 20,30 | |
| HMGC3012S43R3□00 | 3.3 | 100kHz,1V | 130 | 1.52(1.05) | 1.40(1.36) | 20,30 | |
| HMGC3012S44R7□00 | 4.7 | 100kHz,1V | 156 | 1.00(0.90) | 1.30(1.24) | 20,30 | |
| HMGC3012S46R8□00 | 6.8 | 100kHz,1V | 247 | 0.92(0.75) | 1.10(0.98) | 20,30 | |
| HMGC3012S4100□00 | 10.0 | 100kHz,1V | 344.5 | 0.88(0.60) | 0.90(0.83) | 20,30 | |
| HMGC3012S4150□00 | 15.0 | 100kHz,1V | 598 | 0.62(0.45) | 0.77(0.71) | 20,30 | |
| HMGC3012S4220□00 | 22.0 | 100kHz,1V | 838.5 | 0.52(0.42) | 0.59(0.53) | 20,30 | |
| HMGC3012S4330□00 | 33.0 | 100kHz,1V | 1138 | 0.46(0.36) | 0.50(0.46) | 20,30 | |
| HMGC3012S4470□00 | 47.0 | 100kHz,1V | 1885 | 0.35(0.27) | 0.40(0.35) | 20,30 | |
| HMGC3012S4680□00 | 68.0 | 100kHz,1V | 2171 | 0.29(0.24) | 0.37(0.33) | 20,30 | |
| HMGC3015 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC3015S41R0□00 | 1.0 | 100kHz,1V | 39 | 2.85(2.20) | 2.50(2.30) | 30 | 1R0 |
| HMGC3015S41R2□00 | 1.2 | 100kHz,1V | 52 | 2.20(1.90) | 2.30(1.95) | 30 | 1R2 |
| HMGC3015S41R5□00 | 1.5 | 100kHz,1V | 65 | 1.82(1.62) | 1.75(1.50) | 30 | 1R5 |
| HMGC3015S41R8□00 | 1.8 | 100kHz,1V | 65 | 1.80(1.60) | 1.50(1.20) | 30 | 1R8 |
| HMGC3015S42R2□00 | 2.2 | 100kHz,1V | 78 | 1.78(1.56) | 1.30(1.15) | 20,30 | 2R2 |
| HMGC3015S43R3□00 | 3.3 | 100kHz,1V | 104 | 1.75(1.28) | 1.28(1.10) | 20,30 | 3R3 |
| HMGC3015S44R7□00 | 4.7 | 100kHz,1V | 162.5 | 1.35(1.20) | 1.20(0.95) | 20,30 | 4R7 |
| HMGC3015S45R1□00 | 5.1 | 100kHz,1V | 172.9 | 1.30(1.10) | 1.15(0.90) | 20,30 | 5R1 |
| HMGC3015S46R8□00 | 6.8 | 100kHz,1V | 260 | 1.10(0.85) | 1.10(0.85) | 20,30 | 6R8 |
| HMGC3015S4100□00 | 10 | 100kHz,1V | 325 | 0.92(0.75) | 0.90(0.77) | 20,30 | 100 |
| HMGC3015S4120□00 | 12 | 100kHz,1V | 416 | 0.90(0.70) | 0.85(0.65) | 20,30 | 120 |
| HMGC3015S4150□00 | 15 | 100kHz,1V | 494 | 0.79(0.66) | 0.78(0.65) | 20,30 | 150 |
| HMGC3015S4180□00 | 18 | 100kHz,1V | 559 | 0.72(0.56) | 0.72(0.58) | 20,30 | 180 |
| HMGC3015S4220□00 | 22 | 100kHz,1V | 598 | 0.60(0.48) | 0.69(0.53) | 20,30 | 220 |
| HMGC3015S4330□00 | 33 | 100kHz,1V | 1066 | 0.52(0.46) | 0.51(0.45) | 20,30 | 330 |
| HMGC3015S4390□00 | 39 | 100kHz,1V | 1294 | 0.50(0.40) | 0.45(0.40) | 20,30 | 390 |
| HMGC3015S4470□00 | 47 | 100kHz,1V | 1625 | 0.45(0.33) | 0.43(0.35) | 20,30 | 470 |
| HMGC3015S4560□00 | 56 | 100kHz,1V | 1664 | 0.42(0.30) | 0.40(0.32) | 20,30 | 560 |
| HMGC3015S4680□00 | 68 | 100kHz,1V | 3510 | 0.37(0.25) | 0.31(0.23) | 20,30 | 680 |
| HMGC3015S4101□00 | 100 | 100kHz,1V | 4043 | 0.28(0.23) | 0.25(0.21) | 20,30 | 101 |
| HMGC 4012 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC4012S31R0□00 | 1.0 | 100kHz,1V | 65 | 3.20(2.61) | 2.50(1.65) | 20,30 | 1R0 |
| HMGC4012S32R2□00 | 2.2 | 100kHz,1V | 104 | 2.30(1.76) | 1.90(1.32) | 20,30 | 2R2 |
| HMGC4012S33R3□00 | 3.3 | 100kHz,1V | 143 | 2.10(1.72) | 1.60(1.12) | 20,30 | 3R3 |
| HMGC4012S34R7□00 | 4.7 | 100kHz,1V | 185 | 1.80(1.15) | 1.50(1.05) | 20,30 | 4R7 |
| HMGC4012S35R6□00 | 5.6 | 100kHz,1V | 200 | 1.60(1.00) | 1.30(1.00) | 20,30 | 5R6 |
| HMGC4012S36R8□00 | 6.8 | 100kHz,1V | 257 | 1.40(0.85) | 1.20(0.84) | 20,30 | 6R8 |
| HMGC4012S3100□00 | 10 | 100kHz,1V | 345 | 1.10(0.80) | 1.00(0.77) | 20,30 | 100 |
| HMGC4012S3150□00 | 15 | 100kHz,1V | 442 | 0.80(0.56) | 0.85(0.64) | 20,30 | 150 |
| HMGC4012S3220□00 | 22 | 100kHz,1V | 763 | 0.70(0.46) | 0.75(0.49) | 20,30 | 220 |
| HMGC 4018 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC4018S31R0□00 | 1 | 100kHz,1V | 38.4 | 4.10(3.69) | 2.80(2.52) | 30 | 1R0 |
| HMGC4018S31R5□00 | 1.5 | 100kHz,1V | 48.0 | 3.30(2.97) | 2.60(2.34) | 30 | 1R5 |
| HMGC4018S31R8□00 | 1.8 | 100kHz,1V | 66.0 | 2.80(2.50) | 2.50(2.20) | 30 | 1R8 |
| HMGC4018S32R2□00 | 2.2 | 100kHz,1V | 72.0 | 2.80(2.52) | 2.50(2.25) | 20,30 | 2R2 |
| HMGC4018S32R3□00 | 2.3 | 100kHz,1V | 72.0 | 2.80(2.52) | 2.50(2.25) | 20,30 | 2R3 |
| HMGC4018S33R3□00 | 3.3 | 100kHz,1V | 84.0 | 2.20(1.98) | 2.10(1.89) | 20,30 | 3R3 |
| HMGC4018S33R6□00 | 3.6 | 100kHz,1V | 90.0 | 2.10(1.89) | 1.90(1.71) | 20,30 | 3R6 |
| HMGC4018S33R9□00 | 3.9 | 100kHz,1V | 90.0 | 2.10(1.89) | 1.90(1.71) | 20,30 | 3R9 |
| HMGC4018S34R7□00 | 4.7 | 100kHz,1V | 108.0 | 2.00(1.80) | 1.70(1.53) | 20,30 | 4R7 |
| HMGC4018S36R8□00 | 6.8 | 100kHz,1V | 143.0 | 1.60(1.44) | 1.50(1.35) | 20,30 | 6R8 |
| HMGC4018S3100□00 | 10 | 100kHz,1V | 228.0 | 1.40(1.26) | 1.20(1.08) | 20,30 | 100 |
| HMGC4018S3150□00 | 15 | 100kHz,1V | 300.0 | 1.00(0.90) | 1.00(0.90) | 20,30 | 150 |
| HMGC4018S3220□00 | 22 | 100kHz,1V | 468.0 | 0.90(0.81) | 0.85(0.76) | 20,30 | 220 |
| HMGC4018S3330□00 | 33 | 100kHz,1V | 636.0 | 0.80(0.72) | 0.70(0.63) | 20,30 | 330 |
| HMGC4018S3470□00 | 47 | 100kHz,1V | 864.0 | 0.70(0.63) | 0.56(0.50) | 20,30 | 470 |
| HMGC4026 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC4026S31R2□00 | 1.2 | 100kHz,1V | 36 | 4.30(3.52) | 3.30(2.97) | 30 | 1R2 |
| HMGC4026S33R3□00 | 3.3 | 100kHz,1V | 104 | 3.50(3.00) | 2.50(2.25) | 20,30 | 3R3 |
| HMGC4026S34R7□00 | 4.7 | 100kHz,1V | 120 | 3.20(2.80) | 2.20(1.62) | 20,30 | 4R7 |
| HMGC4026S3220□00 | 22 | 100kHz,1V | 440.4 | 1.53(0.82) | 1.00(0.90) | 20,30 | 220 |
| HMGC4030 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC4030S41R0□00 | 1.0 | 100kHz,1V | 23.4 | 6.20(5.26) | 4.90(4.15) | 30 | 1R0 |
| HMGC4030S41R5□00 | 1.5 | 100kHz,1V | 33.8 | 6.00(4.85) | 3.80(3.40) | 30 | 1R5 |
| HMGC4030S41R8□00 | 1.8 | 100kHz,1V | 43 | 5.20(4.50) | 3.50(3.20) | 30 | 1R8 |
| HMGC4030S42R2□00 | 2.2 | 100kHz,1V | 45 | 4.50(3.80) | 3.30(2.90) | 30 | 2R2 |
| HMGC4030S43R3□00 | 3.3 | 100kHz,1V | 52 | 4.00(3.30) | 2.80(2.40) | 20,30 | 3R3 |
| HMGC4030S44R7□00 | 4.7 | 100kHz,1V | 80 | 3.20(2.80) | 2.50(2.00) | 20,30 | 4R7 |
| HMGC4030S45R6□00 | 5.6 | 100kHz,1V | 85 | 2.90(2.60) | 2.30(1.95) | 20,30 | 5R6 |
| HMGC4030S46R8□00 | 6.8 | 100kHz,1V | 117 | 2.80(2.10) | 1.90(1.60) | 20,30 | 6R8 |
| HMGC4030S4100□00 | 10 | 100kHz,1V | 169 | 2.10(1.65) | 1.80(1.50) | 20,30 | 100 |
| HMGC4030S4150□00 | 15 | 100kHz,1V | 247 | 1.90(1.40) | 1.40(1.10) | 20,30 | 150 |
| HMGC4030S4220□00 | 22 | 100kHz,1V | 290 | 1.60(1.30) | 1.20(1.00) | 20,30 | 220 |
| HMGC4030S4330□00 | 33 | 100kHz,1V | 420 | 1.20(1.10) | 0.98(0.84) | 20,30 | 330 |
| HMGC4030S4470□00 | 47 | 100kHz,1V | 580 | 1.00(0.90) | 0.90(0.70) | 20,30 | 470 |
| HMGC4030S4680□00 | 68 | 100kHz,1V | 910 | 0.83(0.72) | 0.60(0.52) | 20,30 | 680 |
| HMGC4030S4101□00 | 100 | 100kHz,1V | 1690 | 0.70(0.56) | 0.50(0.45) | 20,30 | 101 |
| HMGC4030S4121□00 | 120 | 100kHz,1V | 1755 | 0.62(0.55) | 0.47(0.42) | 20,30 | 121 |
| HMGC4030S4151□00 | 150 | 100kHz,1V | 3000 | 0.56(0.35) | 0.40(0.30) | 20,30 | 151 |
| HMGC4030S4221□00 | 220 | 100kHz,1V | 3250 | 0.45(0.34) | 0.38(0.30) | 20,30 | 221 |
| HMGC5020 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC5020S41R0□00 | 1.0 | 100kHz,1V | 25.2 | 6.50(4.80) | 4.50(3.60) | 30 | 1R0 |
| HMGC5020S41R2□00 | 1.2 | 100kHz,1V | 25.2 | 6.30(4.50) | 4.20(3.42) | 30 | 1R2 |
| HMGC5020S41R5□00 | 1.5 | 100kHz,1V | 31.2 | 5.90(4.10) | 3.80(3.15) | 20,30 | 1R5 |
| HMGC5020S42R2□00 | 2.2 | 100kHz,1V | 42 | 5.00(3.30) | 3.50(2.88) | 20,30 | 2R2 |
| HMGC5020S43R3□00 | 3.3 | 100kHz,1V | 57.6 | 3.20(2.70) | 3.00(2.52) | 20,30 | 3R3 |
| HMGC5020S43R6□00 | 3.6 | 100kHz,1V | 65 | 3.10(2.60) | 2.80(2.30) | 20,30 | 3R6 |
| HMGC5020S44R7□00 | 4.7 | 100kHz,1V | 72 | 2.85(2.25) | 2.50(1.98) | 20,30 | 4R7 |
| HMGC5020S45R6□00 | 5.6 | 100kHz,1V | 98.4 | 2.60(2.10) | 2.20(1.80) | 20,30 | 5R6 |
| HMGC5020S46R8□00 | 6.8 | 100kHz,1V | 108 | 2.50(2.00) | 2.00(1.62) | 20,30 | 6R8 |
| HMGC5020S4100□00 | 10 | 100kHz,1V | 144 | 2.35(1.65) | 1.75(1.44) | 20,30 | 100 |
| HMGC5020S4150□00 | 15 | 100kHz,1V | 228 | 1.76(1.17) | 1.50(1.08) | 20,30 | 150 |
| HMGC5020S4220□00 | 22 | 100kHz,1V | 312 | 1.15(0.90) | 1.10(0.90) | 20,30 | 220 |
| HMGC5020S4330□00 | 33 | 100kHz,1V | 552 | 1.10(0.82) | 0.95(0.67) | 20,30 | 330 |
| HMGC5020S4470□00 | 47 | 100kHz,1V | 696 | 0.92(0.78) | 0.85(0.58) | 20,30 | 470 |
| HMGC5040 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC5040S41R0□00 | 1.0 | 100kHz,1V | 18.2 | 8.20(6.75) | 5.20(4.90) | 30 | 1R0 |
| HMGC5040S41R2□00 | 1.2 | 100kHz,1V | 19.5 | 7.40(6.66) | 4.50(4.05) | 30 | 1R2 |
| HMGC5040S41R5□00 | 1.5 | 100kHz,1V | 20.8 | 7.10(6.39) | 4.80(3.96) | 30 | 1R5 |
| HMGC5040S42R2□00 | 2.2 | 100kHz,1V | 27.3 | 5.70(5.13) | 4.30(3.33) | 20,30 | 2R2 |
| HMGC5040S43R3□00 | 3.3 | 100kHz,1V | 33.8 | 4.80(4.32) | 3.92(3.15) | 20,30 | 3R3 |
| HMGC5040S44R7□00 | 4.7 | 100kHz,1V | 41.6 | 4.22(3.78) | 3.35(2.88) | 20,30 | 4R7 |
| HMGC5040S46R8□00 | 6.8 | 100kHz,1V | 65 | 3.50(2.97) | 2.80(2.16) | 20,30 | 6R8 |
| HMGC5040S4100□00 | 10 | 100kHz,1V | 78 | 2.82(2.52) | 2.45(1.98) | 20,30 | 100 |
| HMGC5040S4150□00 | 15 | 100kHz,1V | 117 | 2.30(2.07) | 2.00(1.62) | 20,30 | 150 |
| HMGC5040S4220□00 | 22 | 100kHz,1V | 175.5 | 1.95(1.62) | 1.63(1.26) | 20,30 | 220 |
| HMGC5040S4270□00 | 27 | 100kHz,1V | 234 | 1.60(1.44) | 1.25(1.08) | 20,30 | 270 |
| HMGC5040S4330□00 | 33 | 100kHz,1V | 247 | 1.55(1.35) | 1.10(0.99) | 20,30 | 330 |
| HMGC5040S4470□00 | 47 | 100kHz,1V | 326 | 1.28(1.08) | 1.05(0.81) | 20,30 | 470 |
| HMGC5040S4101□00 | 100 | 100kHz,1V | 780 | 0.92(0.75) | 0.83(0.70) | 20,30 | 101 |
| HMGC6020 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC6020S41R0□00 | 1.0 | 100kHz,1V | 26 | 6.20(5.58) | 4.40(3.69) | 30 | 1R0 |
| HMGC6020S41R5□00 | 1.5 | 100kHz,1V | 33.8 | 5.80(4.50) | 4.00(3.24) | 30 | 1R5 |
| HMGC6020S42R2□00 | 2.2 | 100kHz,1V | 44.2 | 5.60(4.32) | 3.88(3.15) | 20,30 | 2R2 |
| HMGC6020S43R3□00 | 3.3 | 100kHz,1V | 52 | 4.10(3.20) | 3.30(2.43) | 20,30 | 3R3 |
| HMGC6020S44R7□00 | 4.7 | 100kHz,1V | 75.4 | 3.89(3.00) | 2.55(1.98) | 20,30 | 4R7 |
| HMGC6020S46R8□00 | 6.8 | 100kHz,1V | 110.5 | 3.52(2.20) | 2.35(1.62) | 20,30 | 6R8 |
| HMGC6020S4100□00 | 10 | 100kHz,1V | 162.5 | 2.55(1.80) | 1.83(1.44) | 20,30 | 100 |
| HMGC6020S4150□00 | 15 | 100kHz,1V | 247 | 2.30(1.25) | 1.52(1.17) | 20,30 | 150 |
| HMGC6020S4220□00 | 22 | 100kHz,1V | 270 | 1.51(0.99) | 1.30(0.99) | 20,30 | 220 |
| HMGC6028 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC6028S31R0□00 | 1.0 | 100kHz,1V | 16.9 | 7.60(6.84) | 5.86(4.68) | 30 | 1R0 |
| HMGC6028S31R5□00 | 1.5 | 100kHz,1V | 20.8 | 6.80(5.67) | 5.15(4.32) | 30 | 1R5 |
| HMGC6028S32R2□00 | 2.2 | 100kHz,1V | 26 | 5.40(4.86) | 4.23(3.60) | 20,30 | 2R2 |
| HMGC6028S32R7□00 | 2.7 | 100kHz,1V | 33.8 | 4.90(4.41) | 4.10(3.33) | 20,30 | 2R7 |
| HMGC6028S33R3□00 | 3.3 | 100kHz,1V | 36.4 | 4.30(3.87) | 3.90(3.15) | 20,30 | 3R3 |
| HMGC6028S34R7□00 | 4.7 | 100kHz,1V | 49.4 | 3.70(3.33) | 3.45(2.88) | 20,30 | 4R7 |
| HMGC6028S36R0□00 | 6.0 | 100kHz,1V | 58.5 | 3.50(2.97) | 2.80(2.52) | 20,30 | 6R0 |
| HMGC6028S36R8□00 | 6.8 | 100kHz,1V | 65 | 3.10(2.79) | 2.70(2.43) | 20,30 | 6R8 |
| HMGC6028S3100□00 | 10 | 100kHz,1V | 84.5 | 2.50(2.25) | 2.30(2.07) | 20,30 | 100 |
| HMGC6028S3150□00 | 15 | 100kHz,1V | 123.5 | 2.00(1.80) | 1.80(1.62) | 20,30 | 150 |
| HMGC6028S3220□00 | 22 | 100kHz,1V | 175.5 | 1.60(1.44) | 1.50(1.35) | 20,30 | 220 |
| HMGC6028S3330□00 | 33 | 100kHz,1V | 286 | 1.45(1.17) | 1.40(1.26) | 20,30 | 330 |
| HMGC6028S3470□00 | 47 | 100kHz,1V | 416 | 1.10(0.99) | 1.00(0.90) | 20,30 | 470 |
| HMGC6028S3680□00 | 68 | 100kHz,1V | 546 | 0.98(0.88) | 0.90(0.81) | 20,30 | 680 |
| HMGC6028S3101□00 | 100 | 100kHz,1V | 720 | 0.75(0.60) | 0.80(0.72) | 20,30 | 101 |
| HMGC6045 series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC6045S41R0□00 | 1.0 | 100kHz,1V | 15.6 | 12.50(10.98) | 6.50(5.85) | 30 | 1R0 |
| HMGC6045S41R5□00 | 1.5 | 100kHz,1V | 19.5 | 11.40(9.36) | 5.90(5.31) | 30 | 1R5 |
| HMGC6045S41R8□00 | 1.8 | 100kHz,1V | 22.1 | 9.80(8.64) | 5.65(5.04) | 30 | 1R8 |
| HMGC6045S42R2□00 | 2.2 | 100kHz,1V | 23.92 | 9.00(7.92) | 5.15(4.59) | 20,30 | 2R2 |
| HMGC6045S42R3□00 | 2.3 | 100kHz,1V | 24.7 | 8.80(7.92) | 5.00(4.50) | 20,30 | 2R3 |
| HMGC6045S43R0□00 | 3.0 | 100kHz,1V | 28.6 | 7.85(7.02) | 4.60(3.96) | 20,30 | 3R0 |
| HMGC6045S43R3□00 | 3.3 | 100kHz,1V | 31.2 | 7.50(6.75) | 4.32(3.87) | 20,30 | 3R3 |
| HMGC6045S43R6□00 | 3.6 | 100kHz,1V | 31.2 | 7.50(6.75) | 4.32(3.87) | 20,30 | 3R6 |
| HMGC6045S43R9□00 | 3.9 | 100kHz,1V | 33.8 | 7.00(6.30) | 4.00(3.60) | 20,30 | 3R9 |
| HMGC6045S44R5□00 | 4.5 | 100kHz,1V | 40.3 | 6.70(6.03) | 3.90(3.51) | 20,30 | 4R5 |
| HMGC6045S44R7□00 | 4.7 | 100kHz,1V | 40.3 | 6.70(6.03) | 3.90(3.51) | 20,30 | 4R7 |
| HMGC6045S45R1□00 | 5.1 | 100kHz,1V | 42.9 | 6.00(5.40) | 3.70(3.15) | 20,30 | 5R1 |
| HMGC6045S45R6□00 | 5.6 | 100kHz,1V | 52 | 5.50(4.95) | 3.55(2.97) | 20,30 | 5R6 |
| HMGC6045S46R3□00 | 6.3 | 100kHz,1V | 52 | 5.45(4.95) | 3.30(2.97) | 20,30 | 6R3 |
| HMGC6045S46R8□00 | 6.8 | 100kHz,1V | 55.9 | 5.35(4.77) | 3.25(2.88) | 20,30 | 6R8 |
| HMGC6045S4100□00 | 10 | 100kHz,1V | 74.1 | 4.50(4.05) | 2.70(2.43) | 20,30 | 100 |
| HMGC6045S4150□00 | 15 | 100kHz,1V | 104 | 3.45(3.06) | 2.30(1.98) | 20,30 | 150 |
| HMGC6045S4180□00 | 18 | 100kHz,1V | 130 | 3.10(2.79) | 2.00(1.80) | 20,30 | 180 |
| HMGC6045S4220□00 | 22 | 100kHz,1V | 162.5 | 3.00(2.70) | 1.90(1.71) | 20,30 | 220 |
| HMGC6045S4270□00 | 27 | 100kHz,1V | 208 | 2.50(2.25) | 1.50(1.17) | 20,30 | 270 |
| HMGC6045S4330□00 | 33 | 100kHz,1V | 214.5 | 2.35(2.07) | 1.45(1.26) | 20,30 | 330 |
| HMGC6045S4470□00 | 47 | 100kHz,1V | 318.5 | 1.96(1.71) | 1.27(1.08) | 20,30 | 470 |
| HMGC6045S4560□00 | 56 | 100kHz,1V | 403 | 1.72(1.50) | 1.18(0.99) | 20,30 | 560 |
| HMGC6045S4680□00 | 68 | 100kHz,1V | 429 | 1.68(1.44) | 1.10(0.90) | 20,30 | 680 |
| HMGC6045S4101□00 | 100 | 100kHz,1V | 600 | 1.35(1.17) | 0.90(0.72) | 20,30 | 101 |
| HMGC6045S4221□00 | 220 | 100kHz,1V | 1560 | 0.90(0.73) | 0.68(0.55) | 20,30 | 221 |
| HMGC6045S4331□00 | 330 | 100kHz,1V | 2160 | 0.75(0.63) | 0.63(0.50) | 20,30 | 331 |
| HMGC6045S4102□00 | 1000 | 100kHz,1V | 7200 | 0.43(0.36) | 0.22(0.19) | 20,30 | 102 |
| HMGC6045-40series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC6045S42R2□40 | 2.2 | 100kHz,1V | 17 | 7.30(6.12) | 5.50(4.95) | 20,30 | 2R2 |
| HMGC6045S43R3□40 | 3.3 | 100kHz,1V | 24 | 6.00(4.95) | 4.70(4.23) | 20,30 | 3R3 |
| HMGC6045S44R7□40 | 4.7 | 100kHz,1V | 30 | 5.20(4.14) | 4.00(3.60) | 20,30 | 4R7 |
| HMGC6045S46R8□40 | 6.8 | 100kHz,1V | 40 | 4.20(3.60) | 3.50(3.15) | 20,30 | 6R8 |
| HMGC6045S4100□40 | 10 | 100kHz,1V | 50 | 3.50(2.88) | 3.20(2.88) | 20,30 | 100 |
| HMGC6045S4150□40 | 15 | 100kHz,1V | 80 | 2.80(2.34) | 2.50(2.25) | 20,30 | 150 |
| HMGC6045S4220□40 | 22 | 100kHz,1V | 120 | 2.15(1.89) | 2.00(1.80) | 20,30 | 220 |
| HMGC6045S4330□40 | 33 | 100kHz,1V | 170 | 1.70(1.53) | 1.60(1.44) | 20,30 | 330 |
| HMGC6045S4101□40 | 100 | 100kHz,1V | 595 | 0.95(0.85) | 0.92(0.82) | 20,30 | 101 |
| HMGC8040series Standard Specifications | |||||||
| Part No. | Inductance | Test Freq. | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance | Marking |
| (μH) | Max | Typ.(Max) | Typ.(Max) | (±%) | |||
| HMGC8040S4R90□00 | 0.9 | 100kHz,1V | 9.1 | 13.80(12.42) | 8.05(7.24) | 30 | R90 |
| HMGC8040S41R0□00 | 1.0 | 100kHz,1V | 9.75 | 13.00(11.70) | 7.95(7.15) | 30 | 1R0 |
| HMGC8040S41R4□00 | 1.4 | 100kHz,1V | 11.7 | 10.80(9.72) | 7.80(7.02) | 30 | 1R4 |
| HMGC8040S41R5□00 | 1.5 | 100kHz,1V | 12.35 | 10.00(9.00) | 7.70(6.93) | 30 | 1R5 |
| HMGC8040S42R0□00 | 2.0 | 100kHz,1V | 14.3 | 9.60(8.64) | 7.40(6.66) | 20,30 | 2R0 |
| HMGC8040S42R2□00 | 2.2 | 100kHz,1V | 14.95 | 9.50(8.28) | 7.20(6.48) | 20,30 | 2R2 |
| HMGC8040S42R5□00 | 2.5 | 100kHz,1V | 16.9 | 8.20(7.38) | 6.30(5.67) | 20,30 | 2R5 |
| HMGC8040S43R3□00 | 3.3 | 100kHz,1V | 19.5 | 7.50(6.75) | 6.00(5.40) | 20,30 | 3R3 |
| HMGC8040S44R7□00 | 4.7 | 100kHz,1V | 23.4 | 6.00(5.40) | 5.50(4.95) | 20,30 | 4R7 |
| HMGC8040S45R6□00 | 5.6 | 100kHz,1V | 29.9 | 5.80(5.13) | 5.20(4.68) | 20,30 | 5R6 |
| HMGC8040S46R8□00 | 6.8 | 100kHz,1V | 32.5 | 5.40(4.86) | 5.10(4.59) | 20,30 | 6R8 |
| HMGC8040S48R2□00 | 8.2 | 100kHz,1V | 41.6 | 5.00(4.10) | 4.80(4.00) | 20,30 | 8R2 |
| HMGC8040S4100□00 | 10 | 100kHz,1V | 49.4 | 4.30(3.87) | 3.80(3.42) | 20,30 | 100 |
| HMGC8040S4120□00 | 12 | 100kHz,1V | 58.5 | 4.00(3.42) | 3.50(3.15) | 20,30 | 120 |
| HMGC8040S4150□00 | 15 | 100kHz,1V | 65 | 3.60(3.24) | 3.20(2.88) | 20,30 | 150 |
| HMGC8040S4180□00 | 18 | 100kHz,1V | 88.4 | 3.10(2.79) | 2.70(2.43) | 20,30 | 180 |
| HMGC8040S4220□00 | 22 | 100kHz,1V | 104 | 2.80(2.52) | 2.60(2.34) | 20,30 | 220 |
| HMGC8040S4330□00 | 33 | 100kHz,1V | 143 | 2.40(2.07) | 2.00(1.80) | 20,30 | 330 |
| HMGC8040S4470□00 | 47 | 100kHz,1V | 208 | 2.00(1.71) | 1.75(1.57) | 20,30 | 470 |
| HMGC8040S4680□00 | 68 | 100kHz,1V | 288 | 1.70(1.53) | 1.45(1.30) | 20,30 | 680 |
| HMGC8040S4101□00 | 100 | 100kHz,1V | 408 | 1.40(1.26) | 1.10(0.99) | 20,30 | 101 |
| HMGC8040S4121□00 | 120 | 100kHz,1V | 552.5 | 1.10(0.99) | 1.00(0.90) | 20,30 | 121 |
| HMGC8040S4151□00 | 150 | 100kHz,1V | 576 | 1.00(0.90) | 0.90(0.81) | 20,30 | 151 |
| HMGC8040S4221□00 | 220 | 100kHz,1V | 804 | 0.94(0.84) | 0.88(0.76) | 20,30 | 221 |
| HMGC8040S4271□00 | 270 | 100kHz,1V | 1170 | 0.83(0.74) | 0.55(0.49) | 20,30 | 271 |
| HMGC8040S4821□00 | 820 | 100kHz,1V | 3640 | 0.40(0.36) | 0.38(0.34) | 20,30 | 821 |
