Features:
RoHS compliant

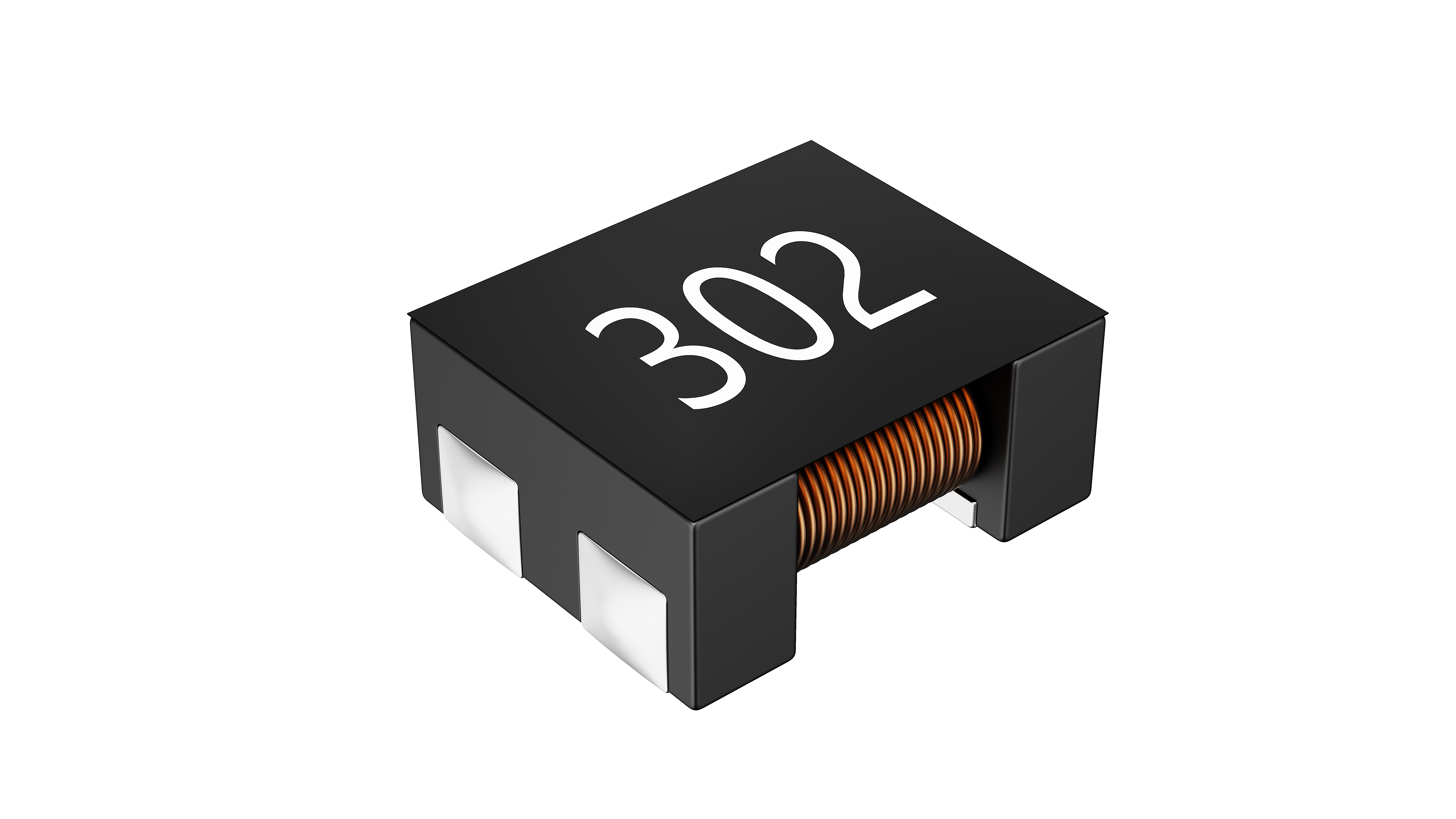

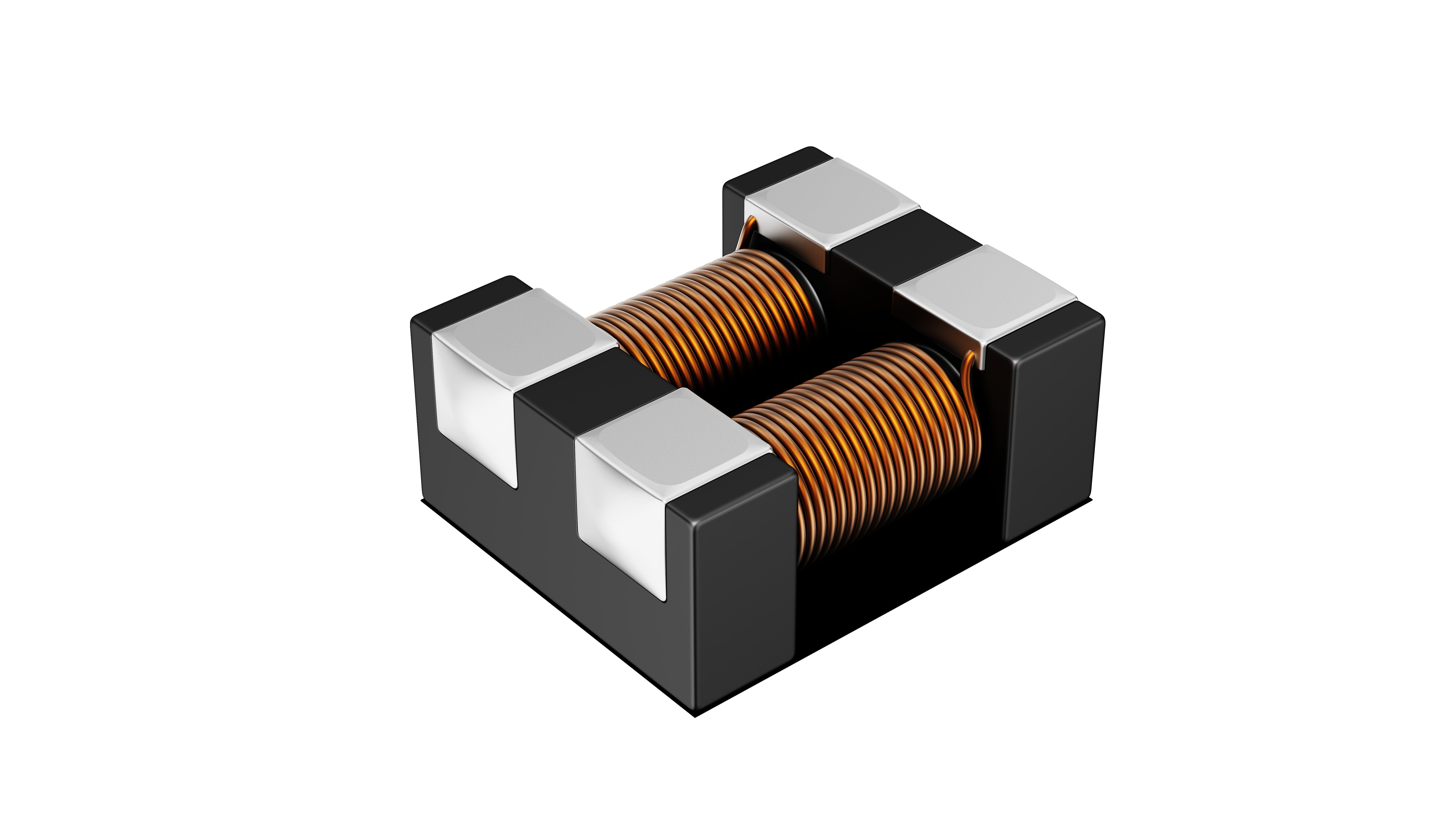

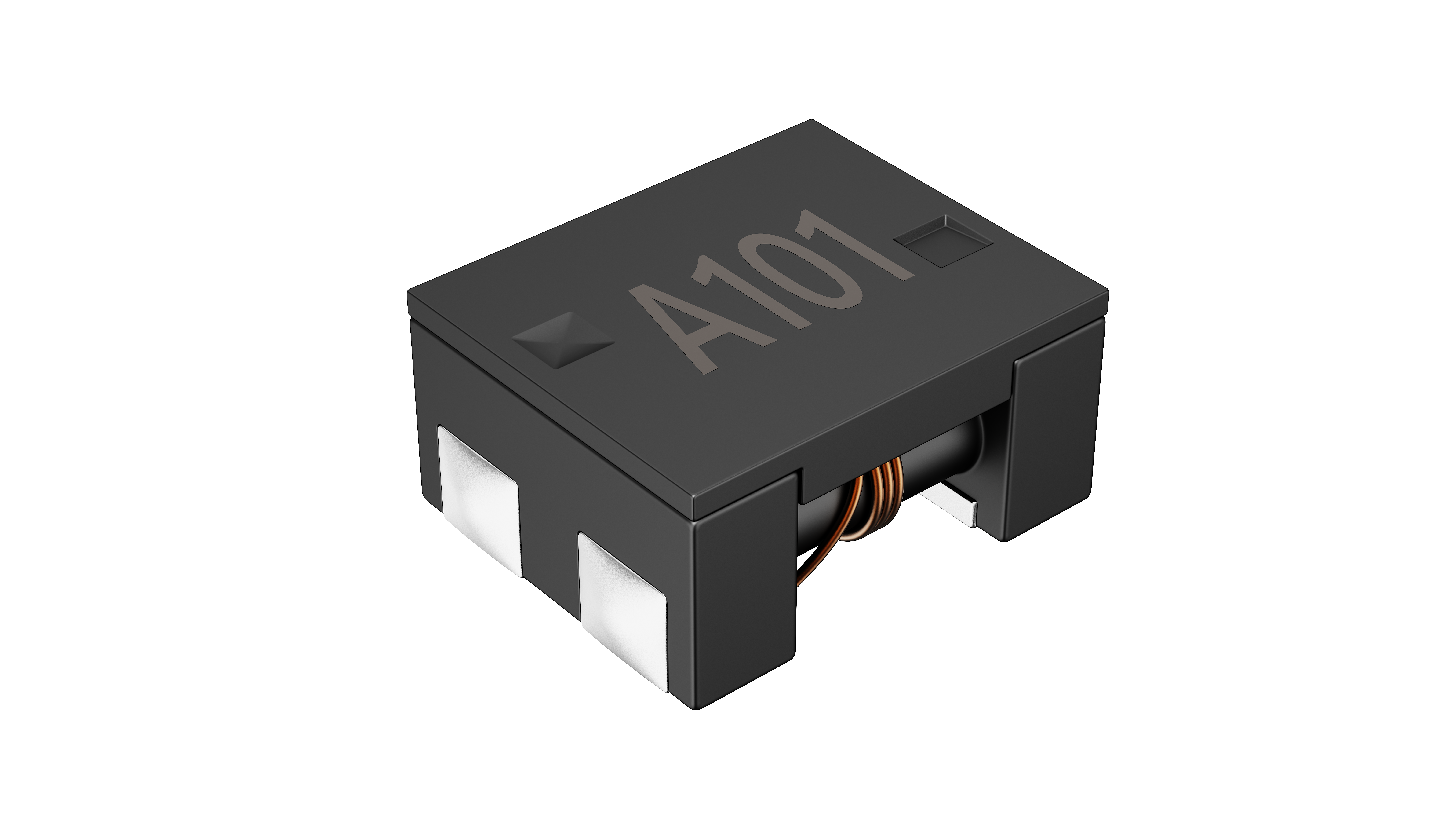

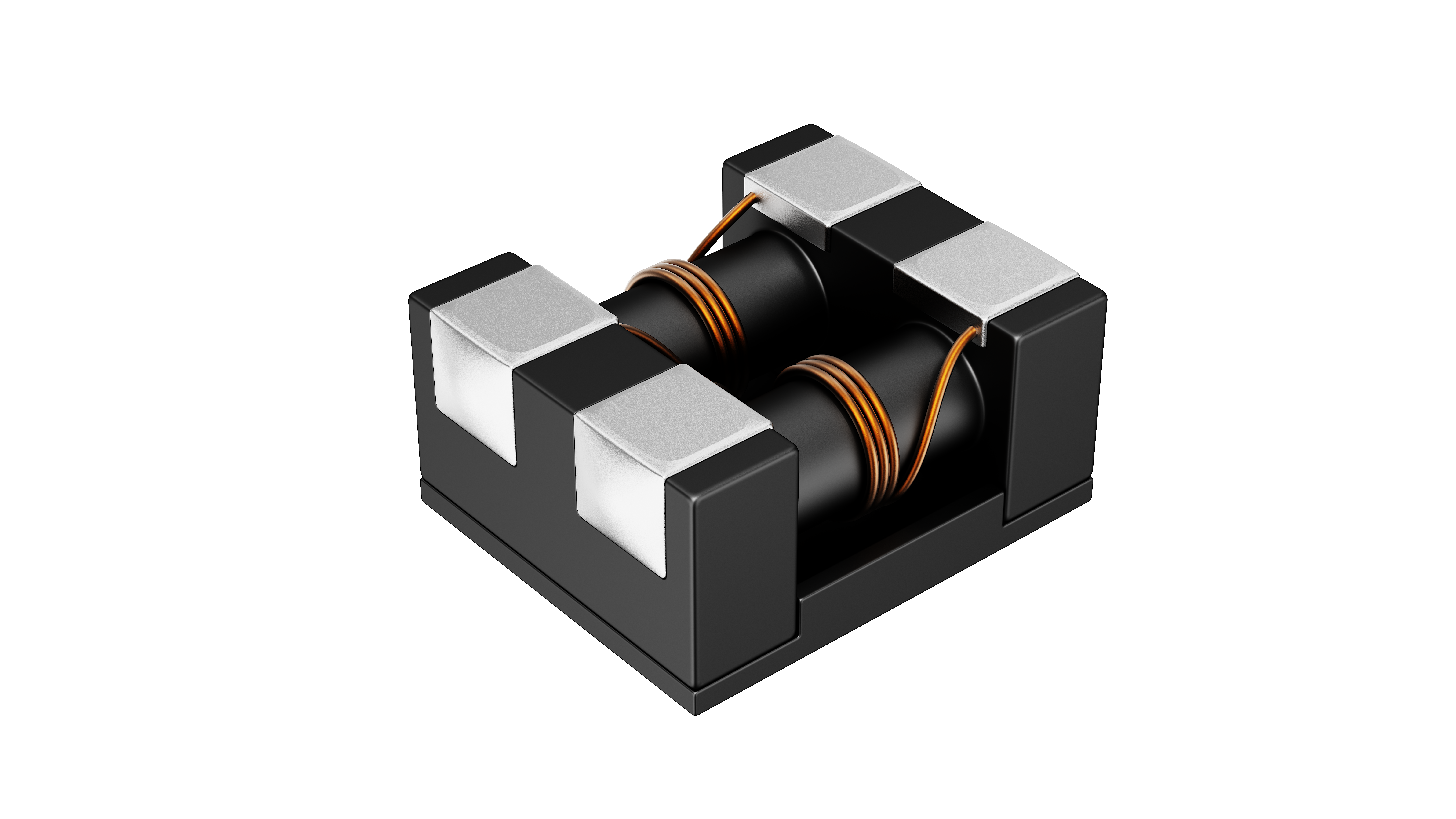

Small surface mount universal mode filter for fully automated assembly
Wide impedance range (30Ω ~ 2200Ω) for noise suppression
Excellent welding performance
Application areas:
USB lines for PCs and peripherals
IEEE 1394 lines for personal computers, digital video cameras (DVC), and set-top boxes (STB)
LVDS and panel circuits for LCD panels, graphics cards, etc.
| Quantity: | |
|---|---|
HMM SERIES | |||
| Product number | HMM SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
HMM SERIES appearance dimensions In mm |
| TYPE | A(mm) | B(mm) | C(mm) | D1(mm) | D2(mm) | E(mm) | L(mm) | H(mm) | G1(mm) | G2(mm) |
| 2012Z | 2.0±0.2 | 1.2±0.2 | 1.2±0.2 | 0.50±0.1 | 0.51±0.1 | 0.15±0.1 | 2.6 | 1.4 | 1.25 | 0.45 |
| 3216Z | 3.2±0.2 | 1.6±0.2 | 2.0±0.2 | 0.65±0.1 | 0.6±0.1 | 0.15±0.1 | 3.5 | 1.7 | 2.3 | 0.5 |
| 3216L | 3.4±0.2 | 1.6±0.2 | 2.0±0.2 | 0.65±0.1 | 0.6±0.1 | 0.15±0.1 | 3.7 | 1.7 | 2.3 | 0.5 |
| 3225Z | 3.2±0.2 | 2.5±0.2 | 2.5max | 0.55±0.1 | 0.95±0.1 | 0.15±0.1 | 4 | 3.5 | 1.6 | 0.6 |
| 3225L | 3.2±0.2 | 2.5±0.2 | 2.5max | 0.55±0.1 | 0.95±0.1 | 0.15±0.1 | 4 | 3.5 | 1.6 | 0.6 |
| 4532Z | 4,.5±0.2 | 3,2±0.2 | 2.8±0.2 | 1.0±0.3 | 1.2±0.3 | 0.15±0.1 | 4.8 | 3.8 | 2.5 | 0.7 |
| 4532L | 4,.5±0.2 | 3,2±0.2 | 2.8±0.2 | 1.0±0.3 | 1.2±0.3 | 0.15±0.1 | 4.8 | 3.8 | 2.5 | 0.7 |
| HMMN2012Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMN2012Z670□D00 | 67 | 100MHz | 0.25 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z900□D00 | 90 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z121□D00 | 120 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z161□D00 | 160 | 100MHz | 0.35 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z181□D00 | 180 | 100MHz | 0.35 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z201□D00 | 200 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z221□D00 | 220 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z261□D00 | 260 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z361□D00 | 360 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z371□D00 | 370 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z391□D00 | 390 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z601□D00 | 600 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z801□D00 | 800 | 100MHz | 0.88 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN2012Z102□D00 | 1000 | 100MHz | 1.30 | 100 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMN3216Z900□D00 | 90 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z121□D00 | 120 | 100MHz | 0.30 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z161□D00 | 160 | 100MHz | 0.40 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z221□D00 | 220 | 100MHz | 0.45 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z261□D00 | 260 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z361□D00 | 360 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z601□D00 | 600 | 100MHz | 0.80 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z102□D00 | 1000 | 100MHz | 1.00 | 200 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216Z222□D00 | 2200 | 100MHz | 1.20 | 200 | 50 | 125 | 10M | 20,25,30 | ||
| HMMN3216L series Standard Specifications | ||||||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | |||
| (μH)min | Max | Max | Max | Max | Min | |||||
| HMMN3216L400UD00 | 40 | 100KHz/0.1V | 1.5 | 300 | 50 | 125 | 10M | |||
| HMMN3216L600UD00 | 60 | 100KHz/0.1V | 1.7 | 200 | 50 | 125 | 10M | |||
| HMMN3216L101UD00 | 100 | 100KHz/0.1V | 3.0 | 120 | 50 | 125 | 10M | |||
| HMMN3225L series Standard Specifications | ||||||||||
| Part Number | Impedance | Inductance -30%/+50% (uH) | Test Frequency (KHz/V) | DCR (Ω) max | Rated Current (mA)max | Rated Volt. (Vdc)max | Withstand Volt. (Vdc) max | IR(Ω) min | ||
| (Ω)min | (Ω)typ | Frequency (MHz) | ||||||||
| HMMN3225L110YD00 | 300 | 550 | 10 | 11 | 100/0.1 | 0.4 | 300 | 80 | 125 | 10M |
| HMMN3225L220YD00 | 500 | 1100 | 10 | 22 | 100/0.1 | 0.5 | 250 | 80 | 125 | 10M |
| HMMN3225L510YD00 | 1000 | 2600 | 10 | 51 | 100/0.1 | 0.7 | 200 | 80 | 125 | 10M |
| HMMN3225L101YD00 | 2000 | 5100 | 10 | 100 | 100/0.1 | 1.5 | 150 | 80 | 125 | 10M |
| HMMN3225Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMN3225Z900YD00 | 90 | 100MHz | 0.05 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMN3225Z601YD00 | 600 | 100MHz | 0.20 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMN3225Z102YD00 | 1000 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 25 | ||

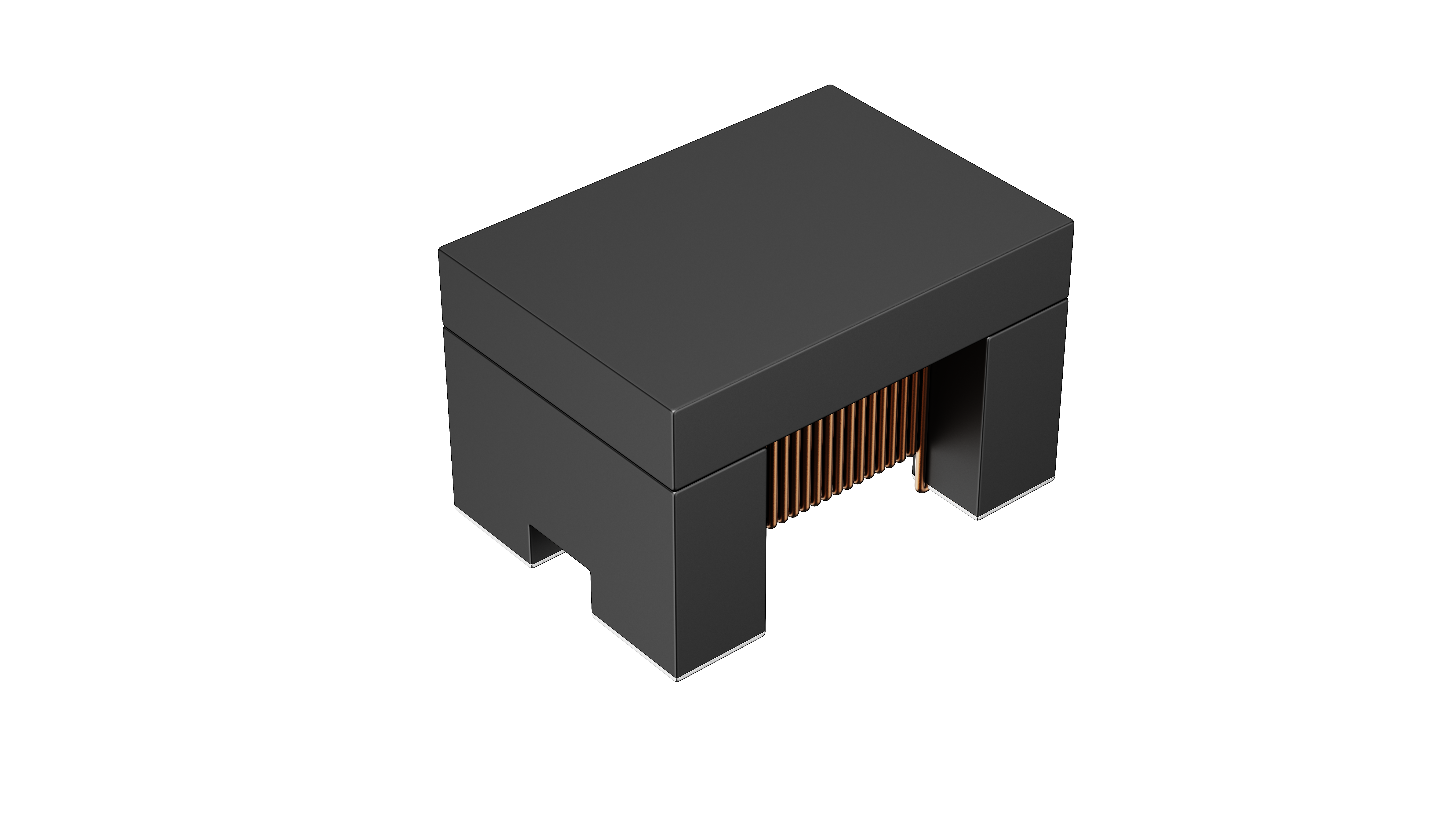

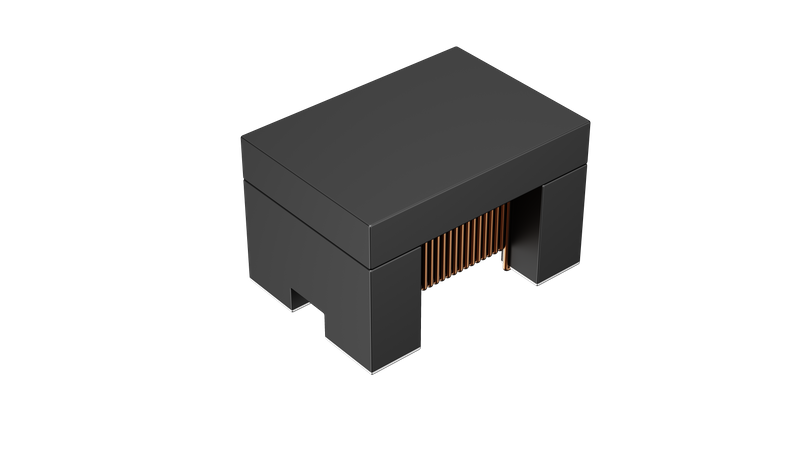

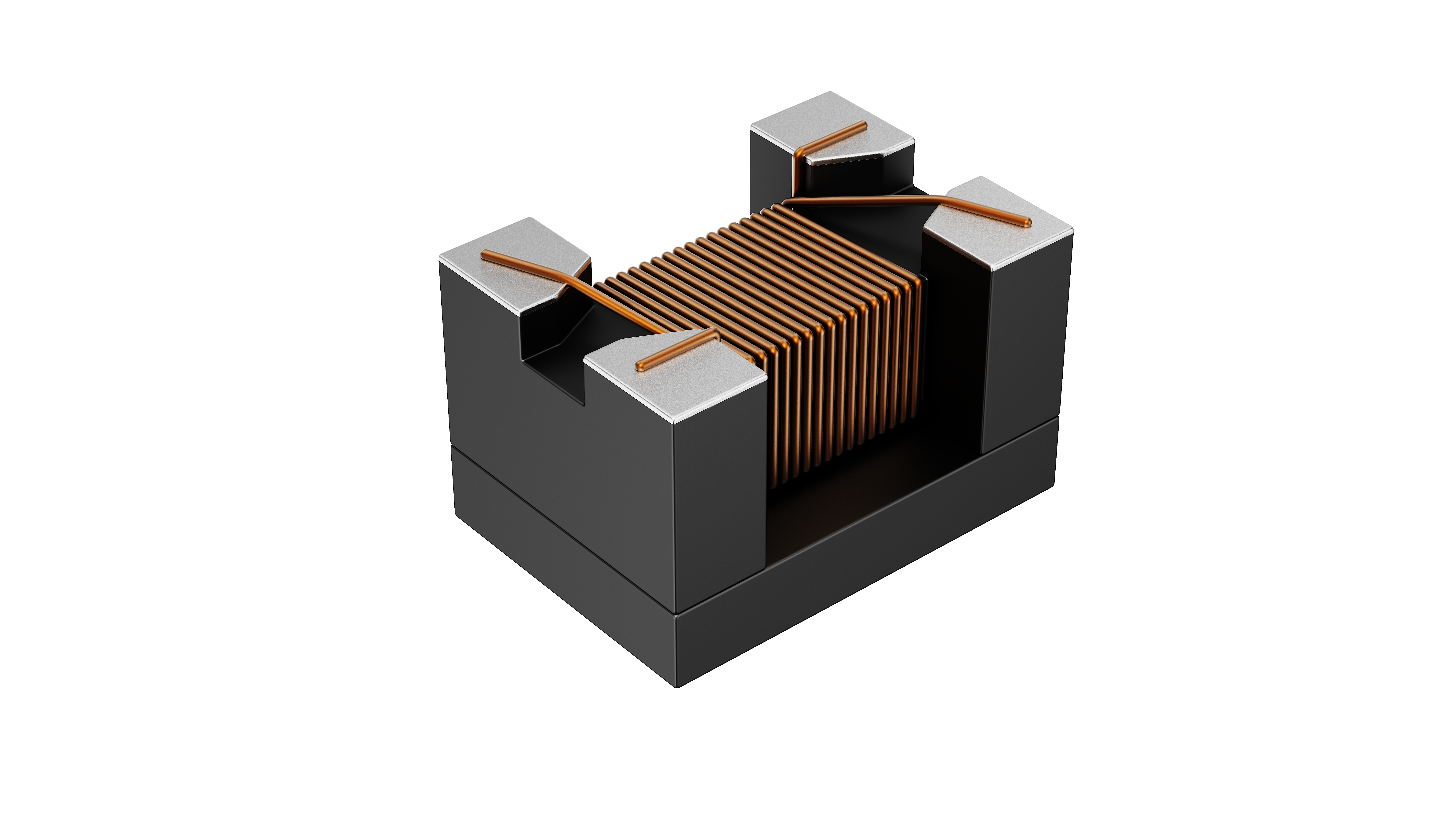

| HMMN4532Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMN4532Z900YD00 | 90 | 100MHz | 0.05 | 2000 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z121YD00 | 120 | 100MHz | 0.07 | 1600 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z331YD00 | 330 | 100MHz | 0.11 | 1100 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z601YD00 | 600 | 100MHz | 0.12 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z801YD00 | 800 | 100MHz | 0.18 | 900 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z102YD00 | 1000 | 100MHz | 0.19 | 800 | 50 | 125 | 10M | 25 | ||
| HMMN4532Z142YD00 | 1400 | 100MHz | 0.20 | 700 | 50 | 125 | 10M | 25 | ||
| HMMN4532L series Standard Specifications | ||||||||||
| Part No. | Inductance(μH) | Impedance (Ω) 10MHz | DC Resistance | Rated Current | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | |||
| 100kHz/0.1V | min | type | (Ω) max | (mA)max | Max | Max | Min | |||
| HMMN4532L110TD00 | 11±30% | 300 | 600 | 0.6 | 250 | 50 | 125 | 10M | ||
| HMMN4532L220TD00 | 22±30% | 500 | 1200 | 1.0 | 200 | 50 | 125 | 10M | ||
| HMMN4532L510TD00 | 51±30% | 1000 | 2800 | 1.0 | 200 | 50 | 125 | 10M | ||
| HMMN4532L680TD00 | 68±30% | 1500 | 3500 | 1.2 | 200 | 50 | 125 | 10M | ||
| HMMN4532L101TD00 | 100±30% | 2000 | 5800 | 2.0 | 200 | 50 | 125 | 10M | ||
| HMMN4532L121TD00 | 120±30% | 2500 | 6500 | 4.0 | 200 | 50 | 125 | 10M | ||
| HMMN4532L161TD00 | 160±30% | 3000 | 7500 | 4.0 | 200 | 50 | 125 | 10M | ||
| HMMN4532L201TD00 | 200±30% | 4000 | 9000 | 4.5 | 100 | 50 | 125 | 10M | ||
| HMMC2012Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMC2012Z670□D00 | 67 | 100MHz | 0.25 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z900□D00 | 90 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z121□D00 | 120 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z161□D00 | 160 | 100MHz | 0.35 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z181□D00 | 180 | 100MHz | 0.35 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z201□D00 | 200 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z221□D00 | 220 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z261□D00 | 260 | 100MHz | 0.40 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z361□D00 | 360 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z371□D00 | 370 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z391□D00 | 390 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z601□D00 | 600 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z801□D00 | 800 | 100MHz | 0.88 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC2012Z102□D00 | 1000 | 100MHz | 1.30 | 100 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMC3216Z900□D00 | 90 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z121□D00 | 120 | 100MHz | 0.30 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z161□D00 | 160 | 100MHz | 0.40 | 350 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z221□D00 | 220 | 100MHz | 0.45 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z261□D00 | 260 | 100MHz | 0.50 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z361□D00 | 360 | 100MHz | 0.60 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z601□D00 | 600 | 100MHz | 0.80 | 300 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z102□D00 | 1000 | 100MHz | 1.00 | 200 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216Z222□D00 | 2200 | 100MHz | 1.20 | 200 | 50 | 125 | 10M | 20,25,30 | ||
| HMMC3216L series Standard Specifications | ||||||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | |||
| (μH)min | Max | Max | Max | Max | Min | |||||
| HMMC3216L400UD00 | 40 | 100KHz/0.1V | 1.5 | 300 | 50 | 125 | 10M | |||
| HMMC3216L600UD00 | 60 | 100KHz/0.1V | 1.7 | 200 | 50 | 125 | 10M | |||
| HMMC3216L101UD00 | 100 | 100KHz/0.1V | 3.0 | 120 | 50 | 125 | 10M | |||
| HMMC3225L series Standard Specifications | ||||||||||
| Part Number | Impedance | Inductance -30%/+50% (uH) | Test Frequency (KHz/V) | DCR (Ω) max | Rated Current (mA)max | Rated Volt. (Vdc)max | Withstand Volt. (Vdc) max | IR(Ω) min | ||
| (Ω)min | (Ω)typ | Frequency (MHz) | ||||||||
| HMMC3225L110YD00 | 300 | 550 | 10 | 11 | 100/0.1 | 0.4 | 300 | 80 | 125 | 10M |
| HMMC3225L220YD00 | 500 | 1100 | 10 | 22 | 100/0.1 | 0.5 | 250 | 80 | 125 | 10M |
| HMMC3225L510YD00 | 1000 | 2600 | 10 | 51 | 100/0.1 | 0.7 | 200 | 80 | 125 | 10M |
| HMMC3225L101YD00 | 2000 | 5100 | 10 | 100 | 100/0.1 | 1.5 | 150 | 80 | 125 | 10M |
| HMMC3225Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMC3225Z900YD00 | 90 | 100MHz | 0.05 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMC3225Z601YD00 | 600 | 100MHz | 0.20 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMC3225Z102YD00 | 1000 | 100MHz | 0.30 | 400 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z series Standard Specifications | ||||||||||
| Part No. | Common mode Impedance | Test Freq. | DCR(Ω) | Rated Current (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | Tolerance | ||
| (Ω) | Max | Max | Max | Max | Min | (±%) | ||||
| HMMC4532Z900YD00 | 90 | 100MHz | 0.05 | 2000 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z121YD00 | 120 | 100MHz | 0.07 | 1600 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z331YD00 | 330 | 100MHz | 0.11 | 1100 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z601YD00 | 600 | 100MHz | 0.12 | 1000 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z801YD00 | 800 | 100MHz | 0.18 | 900 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z102YD00 | 1000 | 100MHz | 0.19 | 800 | 50 | 125 | 10M | 25 | ||
| HMMC4532Z142YD00 | 1400 | 100MHz | 0.20 | 700 | 50 | 125 | 10M | 25 | ||
| HMMC4532L series Standard Specifications | ||||||||||
| Part No. | Inductance(μH) | Impedance (Ω) 10MHz | DC Resistance | Rated Current | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR(Ω) | |||
| 100kHz/0.1V | min | type | (Ω)max | (mA)max | Max | Max | Min | |||
| HMMC4532L110TD00 | 11±30% | 300 | 600 | 0.6 | 250 | 50 | 125 | 10M | ||
| HMMC4532L220TD00 | 22±30% | 500 | 1200 | 1.0 | 200 | 50 | 125 | 10M | ||
| HMMC4532L510TD00 | 51±30% | 1000 | 2800 | 1.0 | 200 | 50 | 125 | 10M | ||
| HMMC4532L680TD00 | 68±30% | 1500 | 3500 | 1.2 | 200 | 50 | 125 | 10M | ||
| HMMC4532L101TD00 | 100±30% | 2000 | 5800 | 2.0 | 200 | 50 | 125 | 10M | ||
| HMMC4532L121TD00 | 120±30% | 2500 | 6500 | 4.0 | 200 | 50 | 125 | 10M | ||
| HMMC4532L161TD00 | 160±30% | 3000 | 7500 | 4.0 | 200 | 50 | 125 | 10M | ||
| HMMC4532L201TD00 | 200±30% | 4000 | 9000 | 4.5 | 100 | 50 | 125 | 10M | ||
