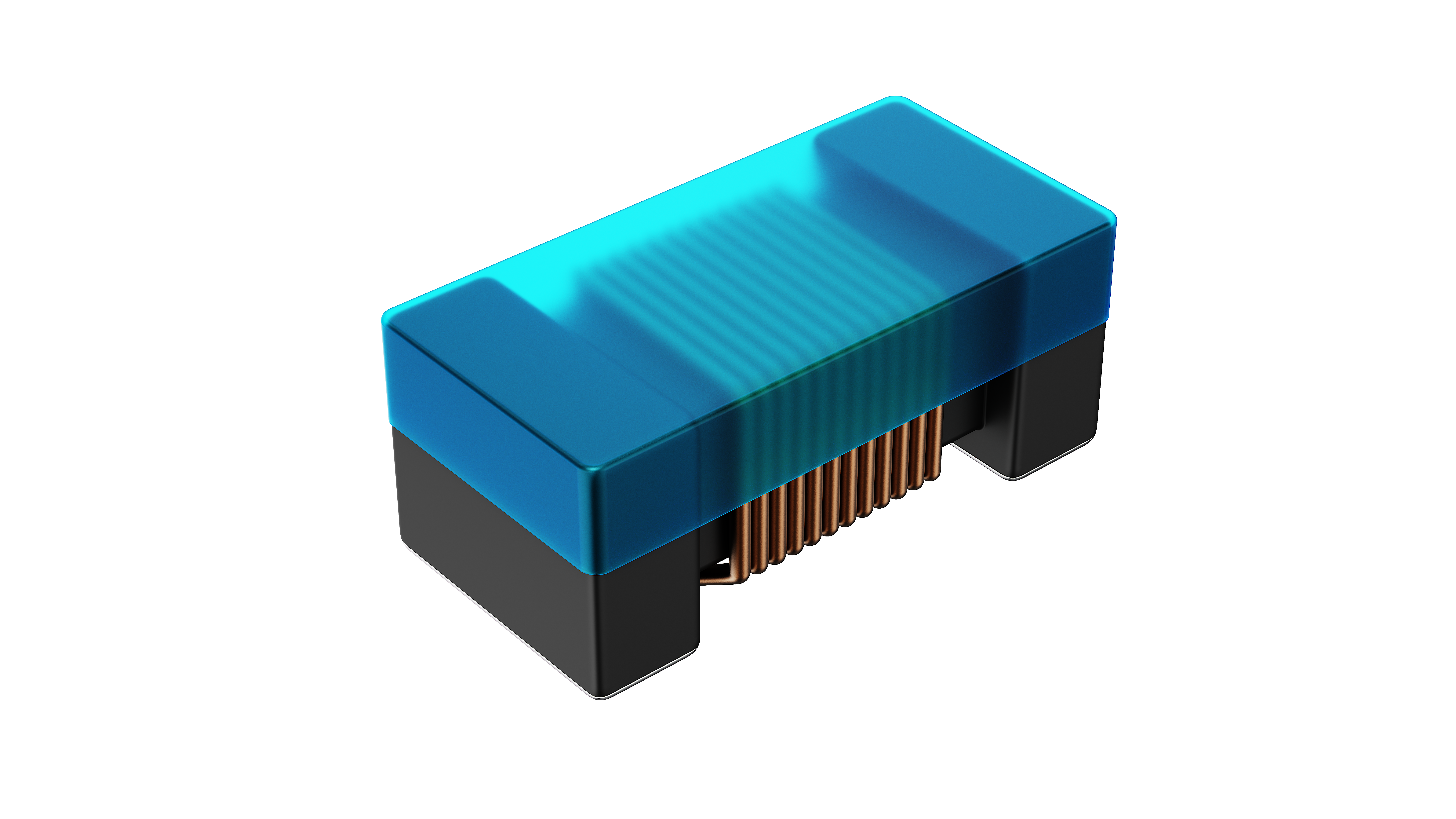

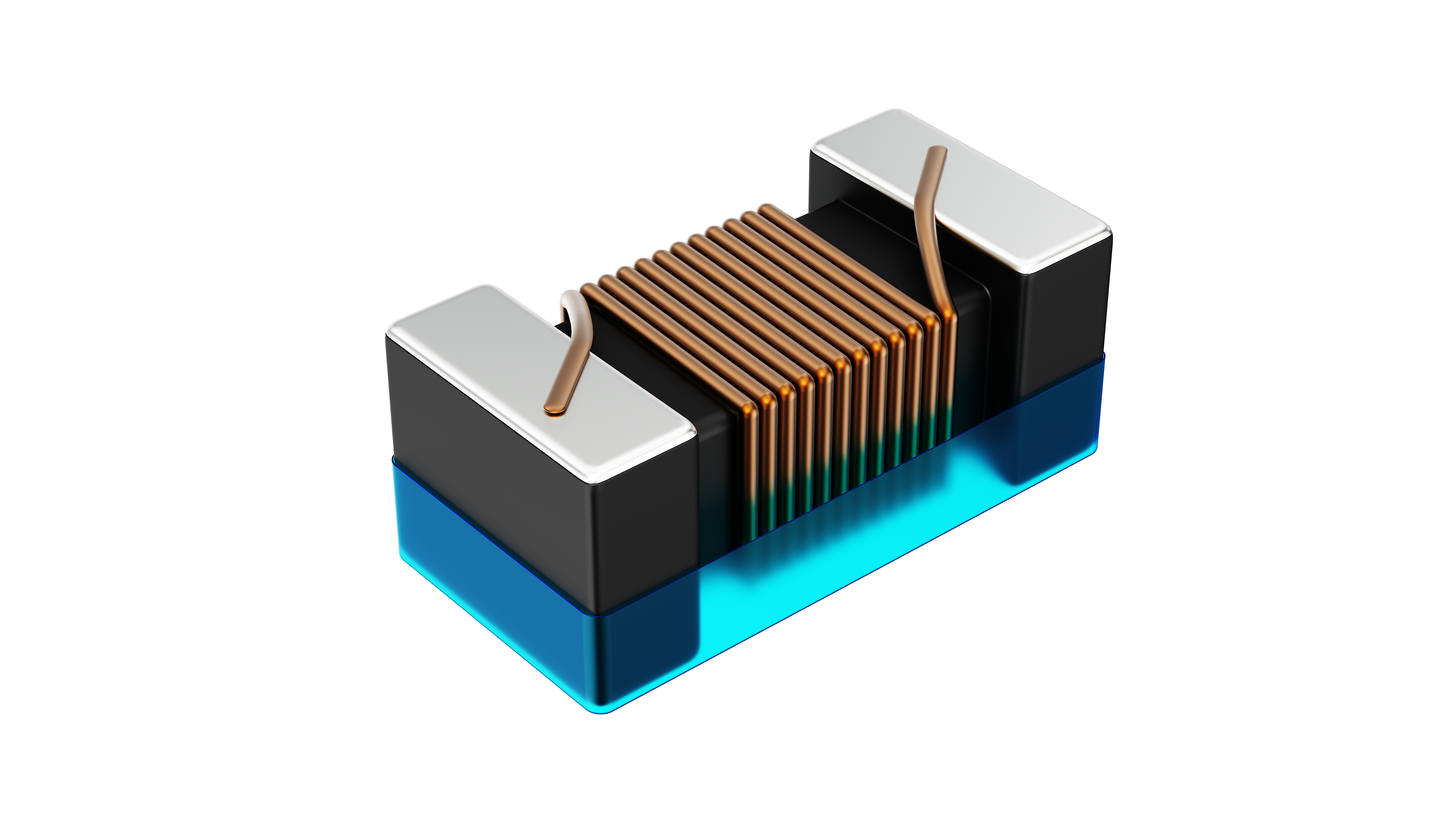

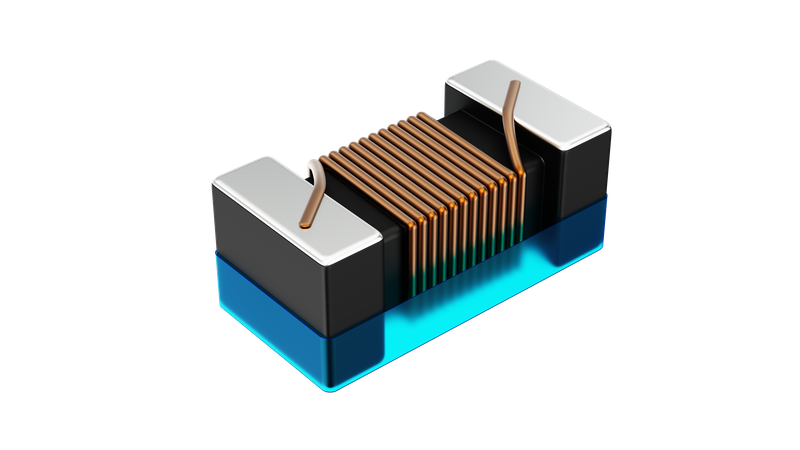

HNW SERIES

Features:
RoHS compliant
Uses ceramic body and wire-wound structure to provide high self-resonant frequencies (SRFs)
Excellent Q-factor even at high frequencies
It has excellent Q value while maintaining the highest self-resonant frequency.
Non-magnetic coil format ensures highest thermal stability, predictability and batch-to-batch consistency

Application areas:
FW (radio front-end) products for mobile phones
GPS receiver
base station
Repeater
Wireless LAN/mouse/keyboard/headphones
remote control
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Models and features

HNW SERIES



HCFW_1

 Product number               HNW SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.








HNW SERIES appearance dimensions   In mm


2

TYPE A B C D E F G H I J
1005 1.19max 0.7max 0.66max 0.25 0.51 0.23 0.56 0.66 0.36 0.46
1608 1.6±0.2 1.12±0.1 0.9±0.2 0.50 0.76 0.33 0.86 1.02 0.64 0.64
1608-01 1.6±0.2 1.12±0.1 0.9±0.2 0.50 0.76 0.33 0.86 1.02 0.64 0.64
2012 2.4max 1.72max 1.52max 0.7 1.27 0.45 1.02 1.02 1.02 0.76
2012-01 2.4max 1.72max 1.52max 0.7 1.27 0.45 1.02 1.02 1.02 0.76
2520 2.92max 2.70max 2.23max 0.7 2.00 0.5 1.35 2.54 1.02 1.27
3225 3.50max 2.90max 2.60max 0.7 2.10 0.5 2.00 2.54 1.02 1.78



HNWN1005 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance


(uH) L/Q Min Max Min Max (±%)


HNWN1005N18N□E00 0.018 0.2V/100MHz/100MHz 10 0.055 2600 1600 5,10


HNWN1005N20N□E00 0.020 0.2V/100MHz/100MHz 10 0.050 2600 1600 5,10


HNWN1005N22N□E00 0.022 0.2V/100MHz/100MHz 10 0.072 2500 1300 5,10


HNWN1005N33N□E00 0.033 0.2V/100MHz/100MHz 10 0.060 2300 1400 5,10


HNWN1005N36N□E00 0.036 0.2V/100MHz/100MHz 10 0.092 2300 1000 5,10


HNWN1005N39N□E00 0.039 0.2V/100MHz/100MHz 10 0.150 2200 830 5,10


HNWN1005N51N□E00 0.051 0.2V/100MHz/100MHz 10 0.070 1930 1100 5,10


HNWN1005N56N□E00 0.056 0.2V/100MHz/100MHz 10 0.125 1900 900 5,10


HNWN1005N70N□E00 0.070 0.2V/100MHz/100MHz 10 0.130 1900 900 5,10


HNWN1005N72N□E00 0.072 0.2V/100MHz/100MHz 10 0.100 1650 900 5,10


HNWN1005N77N□E00 0.077 0.2V/100MHz/100MHz 10 0.190 2000 750 5,10


HNWN1005N78N□E00 0.078 0.2V/100MHz/100MHz 10 0.190 1600 850 5,10


HNWN1005NR10□E00 0.100 0.2V/100MHz/100MHz 8 0.160 1100 1000 5,10


HNWN1005NR14□E00 0.140 0.2V/50MHz/50MHz 11 0.260 1200 540 5,10


HNWN1005NR16□E00 0.160 0.2V/50MHz/50MHz 11 0.330 1150 560 5,10


HNWN1005NR18□E00 0.180 0.2V/50MHz/50MHz 11 0.330 1150 560 5,10


HNWN1005NR20□E00 0.200 0.2V/50MHz/50MHz 11 0.440 1000 400 5,10


HNWN1005NR22□E00 0.220 0.2V/25MHz/25MHz 11 0.500 900 400 5,10


HNWN1005NR25□E00 0.250 0.2V/25MHz/25MHz 11 0.360 900 520 5,10


HNWN1005NR27□E00 0.270 0.2V/25MHz/25MHz 11 0.550 860 360 5,10


HNWN1005NR30□E00 0.300 0.2V/25MHz/25MHz 11 0.410 860 420 5,10


HNWN1005NR33□E00 0.330 0.2V/7.9MHz/7.9MHz 11 0.680 820 350 5,10


HNWN1005NR36□E00 0.360 0.2V/7.9MHz/7.9MHz 11 0.580 810 360 5,10


HNWN1005NR39□E00 0.390 0.2V/7.9MHz/7.9MHz 11 0.890 760 300 5,10


HNWN1005NR42□E00 0.420 0.2V/7.9MHz/7.9MHz 11 1.100 700 340 5,10


HNWN1005NR47□E00 0.470 0.2V/7.9MHz/7.9MHz 11 0.730 650 310 5,10


HNWN1005NR56□E00 0.560 0.2V/7.9MHz/7.9MHz 11 1.100 600 200 5,10


HNWN1005N1R0□E00 1.000 0.2V/7.9MHz/7.9MHz 10 1.700 400 200 5,10


HNWN1005N2R2□E00 2.200 0.2V/7.9MHz/7.9MHz 10 2.800 130 200 5,10


HNWN1005N4R7□E00 4.700 0.2V/7.9MHz/7.9MHz 10 4.000 50 180 5,10













HNWN1608 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color coding

(uH) L/Q Typ Max Min Max (±%)

HNWN1608M47N□P00 0.047 0.2V/7.9MHz/7.9MHz 17 0.075 1700 1500 5,10,20 black

HNWN1608M72N□P00 0.072 0.2V/7.9MHz/7.9MHz 17 0.120 1700 1500 5,10,20 Brown

HNWN1608MR10□P00 0.100 0.2V/7.9MHz/7.9MHz 17 0.130 1650 1500 5,10,20 red

HNWN1608MR12□P00 0.120 0.2V/7.9MHz/7.9MHz 17 0.150 1350 1500 5,10,20 orange

HNWN1608MR15□P00 0.150 0.2V/7.9MHz/7.9MHz 17 0.150 1350 1450 5,10,20 yellow

HNWN1608MR24□P00 0.240 0.2V/7.9MHz/7.9MHz 17 0.190 1050 1300 5,10,20 Violet

HNWN1608MR27□P00 0.270 0.2V/7.9MHz/7.9MHz 17 0.300 1050 1050 5,10,20 gray

HNWN1608MR33□P00 0.330 0.2V/7.9MHz/7.9MHz 17 0.460 850 1200 5,10,20 white

HNWN1608MR39□P00 0.390 0.2V/7.9MHz/7.9MHz 17 0.510 810 1200 5,10,20 black

HNWN1608MR47□P00 0.470 0.2V/7.9MHz/7.9MHz 17 0.620 720 1050 5,10,20 Brown

HNWN1608MR56□P00 0.560 0.2V/7.9MHz/7.9MHz 17 0.440 600 850 5,10,20 red

HNWN1608MR68□P00 0.680 0.2V/7.9MHz/7.9MHz 17 0.520 600 850 5,10,20 orange

HNWN1608MR78□P00 0.780 0.2V/7.9MHz/7.9MHz 17 0.830 460 850 5,10,20 yellow

HNWN1608MR82□P00 0.820 0.2V/7.9MHz/7.9MHz 17 0.690 480 750 5,10,20 green

HNWN1608MR91□P00 0.910 0.2V/7.9MHz/7.9MHz 17 0.760 330 670 5,10,20 black

HNWN1608M1R0□P00 1.000 0.2V/7.9MHz/7.9MHz 18 0.810 310 600 5,10,20 blue

HNWN1608M1R2□P00 1.200 0.2V/7.9MHz/7.9MHz 17 0.870 270 550 5,10,20 Violet

HNWN1608M1R5□P00 1.500 0.2V/7.9MHz/7.9MHz 17 1.060 270 540 5,10,20 gray

HNWN1608M1R8□P00 1.800 0.2V/7.9MHz/7.9MHz 17 1.100 230 520 5,10,20 white

HNWN1608M2R2□P00 2.200 0.2V/7.9MHz/7.9MHz 17 1.200 140 500 5,10,20 black

HNWN1608M2R7□P00 2.700 0.2V/7.9MHz/7.9MHz 17 1.500 105 480 5,10,20 Brown

HNWN1608M3R3□P00 3.300 0.2V/7.9MHz/7.9MHz 17 1.500 84 440 5,10,20 red

HNWN1608M3R9□P00 3.900 0.2V/7.9MHz/7.9MHz 17 1.600 80 430 5,10,20 orange

HNWN1608M4R7□P00 4.700 0.2V/7.9MHz/7.9MHz 18 2.100 69 420 5,10,20 yellow

HNWN1608M5R6□P00 5.600 0.2V/7.9MHz/7.9MHz 18 2.600 65 400 5,10,20 green

HNWN1608M6R8□P00 6.800 0.2V/7.9MHz/7.9MHz 19 3.100 55 400 5,10,20 blue

HNWN1608M7R8□P00 7.800 0.2V/7.9MHz/7.9MHz 17 3.500 47 400 5,10,20 Violet

HNWN1608M8R2□P00 8.200 0.2V/7.9MHz/7.9MHz 17 3.800 42 400 5,10,20 gray

HNWN1608M100□P00 10.000 0.2V/7.9MHz/7.9MHz 19 4.800 40 300 5,10,20 white












HNWN1608-01 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color coding

(μH) L/Q Typ ±30% Typ Typ (±%)

HNWN1608MR27□P01 0.27 0.2V/7.9MHz/7.9MHz 13 0.26 900.00 820 5,10,20 Green

HNWN1608MR47□P01 0.47 0.2V/7.9MHz/7.9MHz 13 0.26 900.00 800 5,10,20 Blue

HNWN1608MR68□P01 0.68 0.2V/7.9MHz/7.9MHz 13 0.27 650.00 800 5,10,20 Violet

HNWN1608MR78□P01 0.78 0.2V/7.9MHz/7.9MHz 16 0.28 410 800 5,10,20 Gray

HNWN1608M1R0□P01 1.00 0.2V/7.9MHz/7.9MHz 16 0.36 400.00 700 5,10,20 Black

HNWN1608M1R2□P01 1.2 0.2V/7.9MHz/7.9MHz 16 0.36 240 700 5,10,20 White

HNWN1608M1R5□P01 1.5 0.2V/7.9MHz/7.9MHz 16 0.4 160 600 5,10,20 Brown

HNWN1608M1R8□P01 1.8 0.2V/7.9MHz/7.9MHz 16 0.43 121 580 5,10,20 Red

HNWN1608M2R2□P01 2.2 0.2V/7.9MHz/7.9MHz 16 0.56 82 600 5,10,20 Orange

HNWN1608M2R7□P01 2.7 0.2V/7.9MHz/7.9MHz 16 0.62 72 500 5,10,20 Yellow

HNWN1608M3R3□P01 3.3 0.2V/7.9MHz/7.9MHz 16 0.7 66 500 5,10,20 Green

HNWN1608M3R9□P01 3.9 0.2V/7.9MHz/7.9MHz 16 0.83 61 460 5,10,20 Blue

HNWN1608M4R7□P01 4.7 0.2V/7.9MHz/7.9MHz 15 0.74 55 470 5,10,20 Violet

HNWN1608M5R6□P01 5.6 0.2V/7.9MHz/7.9MHz 16 1.1 47 380 5,10,20 Gray

HNWN1608M6R8□P01 6.8 0.2V/7.9MHz/7.9MHz 15 1.5 43 340 5,10,20 White

HNWN1608M8R2□P01 8.2 0.2V/7.9MHz/7.9MHz 16 1.68 40 300 5,10,20 Black

HNWN1608M100□P01 10 0.2V/2.5MHz/2.5MHz 15 1.85 35 280 5,10,20 Brown

HNWN1608M120□P01 12 0.2V/2.5MHz/2.5MHz 14 2.28 32 260 5,10,20 Red

HNWN1608M150□P01 15 0.2V/2.5MHz/2.5MHz 15 2.8 29 240 5,10,20 Orange

HNWN1608M180□P01 18 0.2V/2.5MHz/2.5MHz 14 2.9 28 220 5,10,20 Yellow

HNWN1608M220□P01 22 0.2V/2.5MHz/2.5MHz 15 3.61 24 200 5,10,20 Green

HNWN1608M270□P01 27 0.2V/2.5MHz/2.5MHz 14 5.2 20 140 5,10,20 Blue

HNWN1608M330□P01 33 0.2V/2.5MHz/2.5MHz 14 6.6 15 120 5,10,20 Violet

HNWN1608M470□P01 47 0.2V/2.5MHz/2.5MHz 12 11.2 11 110 5,10,20 Gray












HNWN2012 series Standard Specifications
Part No. Inductance Test Freq. Q DCR SRF(MHz) Irms(mA) Tolerance Color coding

(μH) L/Q Typ (Ω)Max Min min (±%)

HNWN2012M78N□P00 0.078 0.2V/7.9MHz/7.9MHz 19 0.06 1440 2000 5,10,20 black

HNWN2012M90N□P00 0.090 0.2V/7.9MHz/7.9MHz 19 0.07 1200 2000 5,10,20 red

HNWN2012MR11□P00 0.110 0.2V/7.9MHz/7.9MHz 19 0.07 1200 2000 5,10,20 Brown

HNWN2012MR47□P00 0.470 0.2V/7.9MHz/7.9MHz 19 0.40 480 800 5,10,20 red

HNWN2012MR56□P00 0.560 0.2V/7.9MHz/7.9MHz 35 0.40 480 800 5,10,20 yellow

HNWN2012MR68□P00 0.680 0.2V/7.9MHz/7.9MHz 20 0.40 480 800 5,10,20 orange

HNWN2012MR91□P00 0.910 0.2V/7.9MHz/7.9MHz 20 0.69 400 700 5,10,20 yellow

HNWN2012M1R0□P00 1.000 0.2V/7.9MHz/7.9MHz 20 0.69 400 700 5,10,20 yellow

HNWN2012M1R2□P00 1.200 0.2V/7.9MHz/7.9MHz 20 0.83 330 700 5,10,20 red

HNWN2012M1R5□P00 1.500 0.2V/7.9MHz/7.9MHz 20 0.83 330 700 5,10,20 green

HNWN2012M1R8□P00 1.800 0.2V/7.9MHz/7.9MHz 20 1.00 300 650 5,10,20 blue

HNWN2012M2R2□P00 2.200 0.2V/7.9MHz/7.9MHz 20 1.10 200 650 5,10,20 Violet

HNWN2012M2R7□P00 2.700 0.2V/7.9MHz/7.9MHz 23 1.25 200 580 5,10,20 gray

HNWN2012M3R3□P00 3.300 0.2V/7.9MHz/7.9MHz 23 1.45 160 540 5,10,20 white

HNWN2012M3R9□P00 3.900 0.2V/7.9MHz/7.9MHz 23 1.50 90 540 5,10,20 black

HNWN2012M4R7□P00 4.700 0.2V/7.9MHz/7.9MHz 20 1.50 70 530 5,10,20 Brown

HNWN2012M5R6□P00 5.600 0.2V/7.9MHz/7.9MHz 20 1.70 65 500 5,10,20 red

HNWN2012M6R8□P00 6.800 0.2V/7.9MHz/7.9MHz 20 1.95 45 470 5,10,20 orange

HNWN2012M8R2□P00 8.200 0.2V/2.5MHz/2.5MHz 16 2.10 45 430 5,10,20 yellow

HNWN2012M100□P00 10.000 0.2V/2.5MHz/2.5MHz 16 2.40 40 400 5,10,20 green

HNWN2012M120□P00 12.000 0.2V/2.5MHz/2.5MHz 16 3.20 38 360 5,10,20 red

HNWN2012M150□P00 15.000 0.2V/2.5MHz/2.5MHz 16 3.55 25 300 5,10,20 blue

HNWN2012M180□P00 18.000 0.2V/2.5MHz/2.5MHz 16 4.90 25 250 5,10,20 orange

HNWN2012M220□P00 22.000 0.2V/2.5MHz/2.5MHz 16 5.45 20 180 5,10,20 Violet

HNWN2012M270□P00 27.000 0.2V/2.5MHz/2.5MHz 16 7.80 19 180 5,10,20 gray

HNWN2012M330□P00 33.000 0.2V/2.5MHz/2.5MHz 16 9.50 16 160 5,10,20 white

HNWN2012M470□P00 47.000 0.2V/2.5MHz/2.5MHz 16 14.50 15 160 5,10,20 Brown












HNWN2012-01 series  Standard Specifications
Part No. Inductance Test Freq. Q SRF(MHz) DCR(Ω) Irms(mA) Tolerance Color coding

(μH) L/Q Typ Typ ±30% Typ (±%)

HNWN2012M1R0□P01 1 0.2v/7.9MHz/7.9MHz 18 100 0.10 800 10,20 Black

HNWN2012M2R2□P01 2.2 0.2v/7.9MHz/7.9MHz 18 70 0.24 550 10,20 Red

HNWN2012M3R3□P01 3.3 0.2v/7.9MHz/7.9MHz 18 55 0.30 450 10,20 Orange

HNWN2012M4R7□P01 4.7 0.2v/7.9MHz/7.9MHz 18 50 0.47 600 10,20 Yellow

HNWN2012M6R8□P01 6.8 0.2v/7.9MHz/7.9MHz 18 60 0.75 290 10,20 Green

HNWN2012M100□P01 10 0.2v/2.5MHz/2.5MHz 18 25 0.90 290 10,20 Blue

HNWN2012M150□P01 15 0.2v/2.5MHz/2.5MHz 18 25 1.60 230 10,20 Violet

HNWN2012M220□P01 22 0.2v/2.5MHz/2.5MHz 18 20 1.76 340 10,20 Gray

HNWN2012M330□P01 33 0.2v/2.5MHz/2.5MHz 17 15 2.60 120 10,20 White

HNWN2012M470□P01 47 0.2v/2.5MHz/2.5MHz 17 11 3.90 95 10,20 Black

HNWN2012M680□P01 68 0.2v/2.5MHz/2.5MHz 17 11 5.50 95 10,20 Brown

HNWN2012M101□P01 100 0.2v/2.5MHz/2.5MHz 12 9 9.000 70 10,20 Red












HNWN2520 series Standard Specifications
Part No. Inductance Test Freq. Q DCR(max) SRF(min) Irms(max) Tolerance Color
(μH) L/Q (min) Ω MHz (mA) (±%) coding
HNWN2520MR56□P00 0.56 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Green Blue Brown
HNWN2520MR68□P00 0.68 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Blue Gray Brown
HNWN2520MR82□P00 0.82 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Gray Red Brown
HNWN2520M1R0□P00 1.00 0.2V/7.9MHz/7.9MHz 18 0.62 230 700 10,20 Brown Black Red
HNWN2520M1R2□P00 1.20 0.2V/7.9MHz/7.9MHz 18 0.68 210 650 10,20 Brown Red Red
HNWN2520M1R5□P00 1.50 0.2V/7.9MHz/7.9MHz 18 0.76 190 630 10,20 Brown Green Red
HNWN2520M1R8□P00 1.80 0.2V/7.9MHz/7.9MHz 18 0.84 170 600 10,20 Brown Gray Red
HNWN2520M2R2□P00 2.20 0.2V/7.9MHz/7.9MHz 18 1.10 150 520 10,20 Red Red Red
HNWN2520M2R7□P00 2.70 0.2V/7.9MHz/7.9MHz 18 1.28 135 490 10,20 Red Violet Red
HNWN2520M3R3□P00 3.30 0.2V/7.9MHz/7.9MHz 18 1.46 120 450 10,20 Orange Orange Red
HNWN2520M3R9□P00 3.90 0.2V/7.9MHz/7.9MHz 18 1.56 105 420 10,20 Orange White Red
HNWN2520M4R7□P00 4.70 0.2V/7.9MHz/7.9MHz 18 2.00 90 400 10,20 Yellow Violet Red
HNWN2520M5R6□P00 5.60 0.2V/7.9MHz/7.9MHz 15 1.80 80 380 10,20 Green Blue Red
HNWN2520M6R8□P00 6.80 0.2V/7.9MHz/7.9MHz 15 2.00 70 360 10,20 Blue Gray Red
HNWN2520M8R2□P00 8.20 0.2V/7.9MHz/7.9MHz 15 2.65 65 330 10,20 Gray Red Red
HNWN2520M100□P00 10.00 0.2V/2.5MHz/2.5MHz 12 2.95 60 300 10,20 Brown Black Orange
HNWN2520M180□P00 18.00 0.2V/2.5MHz/2.5MHz 12 4.00 26 160 10,20 Brown Gray Orange
HNWN2520M220□P00 22.00 0.2V/2.5MHz/2.5MHz 12 6.14 22 270 10,20 Red Red Orange
HNWN2520M300□P00 30.00 0.2V/2.5MHz/2.5MHz 10 6.80 12 200 10,20 Orange Black Orange
HNWN2520M330□P00 33.00 0.2V/2.5MHz/2.5MHz 10 7.00 12 200 10,20 Orange Orange Orange
HNWN2520M390□P00 39.00 0.2V/2.5MHz/2.5MHz 10 10.00 16 170 10,20 Orange White Orange
HNWN2520M470□P00 47.00 0.2V/2.5MHz/2.5MHz 10 10.70 10 160 10,20 Yellow Violet Orange
HNWN2520M560□P00 56.00 0.2V/2.5MHz/2.5MHz 10 12.00 8 170 10,20 Green Blue Orange
HNWN2520M680□P00 68.00 0.2V/2.5MHz/2.5MHz 10 13.50 6 145 10,20 Blue Gray Orange
HNWN2520M820□P00 82.00 0.2V/2.5MHz/2.5MHz 8 20.00 6 100 10,20 Gray Red Orange
HNWN2520M101□P00 100.00 0.2V/1MHz/1MHz 8 20.50 4 120 10,20 Brown Black Yellow











HNWN3225 series Standard Specifications
Part No. Inductance Test Freq Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color
(μH) L/Q min max min max (±%) coding
HNWN3225MR56□P00 0.56 0.2v/25MHz/25MHz 20 0.55 180 450 10,20 Green Blue Brown
HNWN3225M1R5□P00 1.50 0.2v/7.9MHz/7.9MHz 20 0.40 200 450 10,20 Brown Green Red
HNWN3225M1R8□P00 1.80 0.2v/7.9MHz/7.9MHz 20 0.50 195 450 10,20 Brown Gray Red
HNWN3225M2R2□P00 2.20 0.2v/7.9MHz/7.9MHz 20 0.80 175 450 10,20 Red Red Red
HNWN3225M4R7□P00 4.70 0.2v/7.9MHz/7.9MHz 18 1.30 60 350 10,20 Yellow Violet Red
HNWN3225M5R6□P00 5.60 0.2v/2.5MHz/2.5MHz 18 2.00 50 320 10,20 Green Blue Red
HNWN3225M100□P00 10.00 0.2v/2.5MHz/2.5MHz 15 1.00 30 300 10,20 Brown Black Orange
HNWN3225M150□P00 15.00 0.2v/2.5MHz/2.5MHz 15 2.00 22 225 10,20 Brown Green Orange
HNWN3225M180□P00 18.00 0.2v/2.5MHz/2.5MHz 15 2.05 22 215 10,20 Brown Gray Orange
HNWN3225M220□P00 22.00 0.2v/2.5MHz/2.5MHz 15 2.10 20 210 10,20 Red Red Orange
HNWN3225M270□P00 27.00 0.2v/2.5MHz/2.5MHz 15 2.70 18 180 10,20 Red Violet Orange
HNWN3225M330□P00 33.00 0.2v/2.5MHz/2.5MHz 15 2.90 15 160 10,20 Orange Orange Orange
HNWN3225M470□P00 47.00 0.2v/2.5MHz/2.5MHz 15 5.20 10 140 10,20 Yellow Violet Orange
HNWN3225M560□P00 56.00 0.2v/2.5MHz/2.5MHz 8 5.60 8 125 10,20 Green Blue Orange
HNWN3225M680□P00 68.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Blue Gray Orange
HNWN3225M820□P00 82.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Gray Red Orange
HNWN3225M101□P00 100.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Brown Black Yellow
HNWN3225M121□P00 120.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Brown Red Yellow
HNWN3225M151□P00 150.00 0.2v/1MHz/1MHz 10 20.00 4 80 10,20 Brown Green Yellow
HNWN3225M181□P00 180.00 0.2v/1MHz/1MHz 8 14.50 3 70 10,20 Brown Gray Yellow
HNWN3225M201□P00 200.00 0.2v/1MHz/1MHz 8 30.00 3 65 10,20 Red Black Yellow
HNWN3225M221□P00 220.00 0.2v/1MHz/1MHz 8 30.00 3 65 10,20 Red Red Yellow
HNWN3225M331□P00 330.00 0.2v/1MHz/1MHz 8 35.00 2 55 10,20 Orange Orange Yellow
HNWN3225M471□P00 470.00 0.2v/1MHz/1MHz 8 42.00 2 40 10,20 Yellow Violet Yellow
HNWN3225M561□P00 560.00 0.2v/1MHz/1MHz 8 60.00 2 10 10,20 Green Blue Yellow
HNWN3225M621□P00 620.00 0.2v/1MHz/1MHz 8 85.00 2 10 10,20 Blue Red Yellow
HNWN3225M681□P00 680.00 0.2v/1MHz/1MHz 6 90.00 2 10 10,20 Blue Gray Yellow




HNWC1005 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance


(uH) L/Q Min Max Min Max (±%)


HNWC1005N18N□E00 0.018 0.2V/100MHz/100MHz 10 0.055 2600 1600 5,10


HNWC1005N20N□E00 0.020 0.2V/100MHz/100MHz 10 0.050 2600 1600 5,10


HNWC1005N22N□E00 0.022 0.2V/100MHz/100MHz 10 0.072 2500 1300 5,10


HNWC1005N33N□E00 0.033 0.2V/100MHz/100MHz 10 0.060 2300 1400 5,10


HNWC1005N36N□E00 0.036 0.2V/100MHz/100MHz 10 0.092 2300 1000 5,10


HNWC1005N39N□E00 0.039 0.2V/100MHz/100MHz 10 0.150 2200 830 5,10


HNWC1005N51N□E00 0.051 0.2V/100MHz/100MHz 10 0.070 1930 1100 5,10


HNWC1005N56N□E00 0.056 0.2V/100MHz/100MHz 10 0.125 1900 900 5,10


HNWC1005N70N□E00 0.070 0.2V/100MHz/100MHz 10 0.130 1900 900 5,10


HNWC1005N72N□E00 0.072 0.2V/100MHz/100MHz 10 0.100 1650 900 5,10


HNWC1005N77N□E00 0.077 0.2V/100MHz/100MHz 10 0.190 2000 750 5,10


HNWC1005N78N□E00 0.078 0.2V/100MHz/100MHz 10 0.190 1600 850 5,10


HNWC1005NR10□E00 0.100 0.2V/100MHz/100MHz 8 0.160 1100 1000 5,10


HNWC1005NR14□E00 0.140 0.2V/50MHz/50MHz 11 0.260 1200 540 5,10


HNWC1005NR16□E00 0.160 0.2V/50MHz/50MHz 11 0.330 1150 560 5,10


HNWC1005NR18□E00 0.180 0.2V/50MHz/50MHz 11 0.330 1150 560 5,10


HNWC1005NR20□E00 0.200 0.2V/50MHz/50MHz 11 0.440 1000 400 5,10


HNWC1005NR22□E00 0.220 0.2V/25MHz/25MHz 11 0.500 900 400 5,10


HNWC1005NR25□E00 0.250 0.2V/25MHz/25MHz 11 0.360 900 520 5,10


HNWC1005NR27□E00 0.270 0.2V/25MHz/25MHz 11 0.550 860 360 5,10


HNWC1005NR30□E00 0.300 0.2V/25MHz/25MHz 11 0.410 860 420 5,10


HNWC1005NR33□E00 0.330 0.2V/7.9MHz/7.9MHz 11 0.680 820 350 5,10


HNWC1005NR36□E00 0.360 0.2V/7.9MHz/7.9MHz 11 0.580 810 360 5,10


HNWC1005NR39□E00 0.390 0.2V/7.9MHz/7.9MHz 11 0.890 760 300 5,10


HNWC1005NR42□E00 0.420 0.2V/7.9MHz/7.9MHz 11 1.100 700 340 5,10


HNWC1005NR47□E00 0.470 0.2V/7.9MHz/7.9MHz 11 0.730 650 310 5,10


HNWC1005NR56□E00 0.560 0.2V/7.9MHz/7.9MHz 11 1.100 600 200 5,10


HNWC1005N1R0□E00 1.000 0.2V/7.9MHz/7.9MHz 10 1.700 400 200 5,10


HNWC1005N2R2□E00 2.200 0.2V/7.9MHz/7.9MHz 10 2.800 130 200 5,10


HNWC1005N4R7□E00 4.700 0.2V/7.9MHz/7.9MHz 10 4.000 50 180 5,10













HNWC1608 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color coding

(uH) L/Q Typ Max Min Max (±%)

HNWC1608M47N□P00 0.047 0.2V/7.9MHz/7.9MHz 17 0.075 1700 1500 5,10,20 black

HNWC1608M72N□P00 0.072 0.2V/7.9MHz/7.9MHz 17 0.120 1700 1500 5,10,20 Brown

HNWC1608MR10□P00 0.100 0.2V/7.9MHz/7.9MHz 17 0.130 1650 1500 5,10,20 red

HNWC1608MR12□P00 0.120 0.2V/7.9MHz/7.9MHz 17 0.150 1350 1500 5,10,20 orange

HNWC1608MR15□P00 0.150 0.2V/7.9MHz/7.9MHz 17 0.150 1350 1450 5,10,20 yellow

HNWC1608MR24□P00 0.240 0.2V/7.9MHz/7.9MHz 17 0.190 1050 1300 5,10,20 Violet

HNWC1608MR27□P00 0.270 0.2V/7.9MHz/7.9MHz 17 0.300 1050 1050 5,10,20 gray

HNWC1608MR33□P00 0.330 0.2V/7.9MHz/7.9MHz 17 0.460 850 1200 5,10,20 white

HNWC1608MR39□P00 0.390 0.2V/7.9MHz/7.9MHz 17 0.510 810 1200 5,10,20 black

HNWC1608MR47□P00 0.470 0.2V/7.9MHz/7.9MHz 17 0.620 720 1050 5,10,20 Brown

HNWC1608MR56□P00 0.560 0.2V/7.9MHz/7.9MHz 17 0.440 600 850 5,10,20 red

HNWC1608MR68□P00 0.680 0.2V/7.9MHz/7.9MHz 17 0.520 600 850 5,10,20 orange

HNWC1608MR78□P00 0.780 0.2V/7.9MHz/7.9MHz 17 0.830 460 850 5,10,20 yellow

HNWC1608MR82□P00 0.820 0.2V/7.9MHz/7.9MHz 17 0.690 480 750 5,10,20 green

HNWC1608MR91□P00 0.910 0.2V/7.9MHz/7.9MHz 17 0.760 330 670 5,10,20 black

HNWC1608M1R0□P00 1.000 0.2V/7.9MHz/7.9MHz 18 0.810 310 600 5,10,20 blue

HNWC1608M1R2□P00 1.200 0.2V/7.9MHz/7.9MHz 17 0.870 270 550 5,10,20 Violet

HNWC1608M1R5□P00 1.500 0.2V/7.9MHz/7.9MHz 17 1.060 270 540 5,10,20 gray

HNWC1608M1R8□P00 1.800 0.2V/7.9MHz/7.9MHz 17 1.100 230 520 5,10,20 white

HNWC1608M2R2□P00 2.200 0.2V/7.9MHz/7.9MHz 17 1.200 140 500 5,10,20 black

HNWC1608M2R7□P00 2.700 0.2V/7.9MHz/7.9MHz 17 1.500 105 480 5,10,20 Brown

HNWC1608M3R3□P00 3.300 0.2V/7.9MHz/7.9MHz 17 1.500 84 440 5,10,20 red

HNWC1608M3R9□P00 3.900 0.2V/7.9MHz/7.9MHz 17 1.600 80 430 5,10,20 orange

HNWC1608M4R7□P00 4.700 0.2V/7.9MHz/7.9MHz 18 2.100 69 420 5,10,20 yellow

HNWC1608M5R6□P00 5.600 0.2V/7.9MHz/7.9MHz 18 2.600 65 400 5,10,20 green

HNWC1608M6R8□P00 6.800 0.2V/7.9MHz/7.9MHz 19 3.100 55 400 5,10,20 blue

HNWC1608M7R8□P00 7.800 0.2V/7.9MHz/7.9MHz 17 3.500 47 400 5,10,20 Violet

HNWC1608M8R2□P00 8.200 0.2V/7.9MHz/7.9MHz 17 3.800 42 400 5,10,20 gray

HNWC1608M100□P00 10.000 0.2V/7.9MHz/7.9MHz 19 4.800 40 300 5,10,20 white












HNWC1608-01 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color coding

(μH) L/Q Typ ±30% Typ Typ (±%)

HNWC1608MR27□P01 0.27 0.2V/7.9MHz/7.9MHz 13 0.26 900.00 820 5,10,20 Green

HNWC1608MR47□P01 0.47 0.2V/7.9MHz/7.9MHz 13 0.26 900.00 800 5,10,20 Blue

HNWC1608MR68□P01 0.68 0.2V/7.9MHz/7.9MHz 13 0.27 650.00 800 5,10,20 Violet

HNWC1608MR78□P01 0.78 0.2V/7.9MHz/7.9MHz 16 0.28 410 800 5,10,20 Gray

HNWC1608M1R0□P01 1.00 0.2V/7.9MHz/7.9MHz 16 0.36 400.00 700 5,10,20 Black

HNWC1608M1R2□P01 1.2 0.2V/7.9MHz/7.9MHz 16 0.36 240 700 5,10,20 White

HNWC1608M1R5□P01 1.5 0.2V/7.9MHz/7.9MHz 16 0.4 160 600 5,10,20 Brown

HNWC1608M1R8□P01 1.8 0.2V/7.9MHz/7.9MHz 16 0.43 121 580 5,10,20 Red

HNWC1608M2R2□P01 2.2 0.2V/7.9MHz/7.9MHz 16 0.56 82 600 5,10,20 Orange

HNWC1608M2R7□P01 2.7 0.2V/7.9MHz/7.9MHz 16 0.62 72 500 5,10,20 Yellow

HNWC1608M3R3□P01 3.3 0.2V/7.9MHz/7.9MHz 16 0.7 66 500 5,10,20 Green

HNWC1608M3R9□P01 3.9 0.2V/7.9MHz/7.9MHz 16 0.83 61 460 5,10,20 Blue

HNWC1608M4R7□P01 4.7 0.2V/7.9MHz/7.9MHz 15 0.74 55 470 5,10,20 Violet

HNWC1608M5R6□P01 5.6 0.2V/7.9MHz/7.9MHz 16 1.1 47 380 5,10,20 Gray

HNWC1608M6R8□P01 6.8 0.2V/7.9MHz/7.9MHz 15 1.5 43 340 5,10,20 White

HNWC1608M8R2□P01 8.2 0.2V/7.9MHz/7.9MHz 16 1.68 40 300 5,10,20 Black

HNWC1608M100□P01 10 0.2V/2.5MHz/2.5MHz 15 1.85 35 280 5,10,20 Brown

HNWC1608M120□P01 12 0.2V/2.5MHz/2.5MHz 14 2.28 32 260 5,10,20 Red

HNWC1608M150□P01 15 0.2V/2.5MHz/2.5MHz 15 2.8 29 240 5,10,20 Orange

HNWC1608M180□P01 18 0.2V/2.5MHz/2.5MHz 14 2.9 28 220 5,10,20 Yellow

HNWC1608M220□P01 22 0.2V/2.5MHz/2.5MHz 15 3.61 24 200 5,10,20 Green

HNWC1608M270□P01 27 0.2V/2.5MHz/2.5MHz 14 5.2 20 140 5,10,20 Blue

HNWC1608M330□P01 33 0.2V/2.5MHz/2.5MHz 14 6.6 15 120 5,10,20 Violet

HNWC1608M470□P01 47 0.2V/2.5MHz/2.5MHz 12 11.2 11 110 5,10,20 Gray












HNWC2012 series Standard Specifications
Part No. Inductance Test Freq. Q DCR SRF(MHz) Irms(mA) Tolerance Color coding

(μH) L/Q Typ (Ω)Max Min min (±%)

HNWC2012M78N□P00 0.078 0.2V/7.9MHz/7.9MHz 19 0.06 1440 2000 5,10,20 black

HNWC2012M90N□P00 0.090 0.2V/7.9MHz/7.9MHz 19 0.07 1200 2000 5,10,20 red

HNWC2012MR11□P00 0.110 0.2V/7.9MHz/7.9MHz 19 0.07 1200 2000 5,10,20 Brown

HNWC2012MR47□P00 0.470 0.2V/7.9MHz/7.9MHz 19 0.40 480 800 5,10,20 red

HNWC2012MR56□P00 0.560 0.2V/7.9MHz/7.9MHz 35 0.40 480 800 5,10,20 yellow

HNWC2012MR68□P00 0.680 0.2V/7.9MHz/7.9MHz 20 0.40 480 800 5,10,20 orange

HNWC2012MR91□P00 0.910 0.2V/7.9MHz/7.9MHz 20 0.69 400 700 5,10,20 yellow

HNWC2012M1R0□P00 1.000 0.2V/7.9MHz/7.9MHz 20 0.69 400 700 5,10,20 yellow

HNWC2012M1R2□P00 1.200 0.2V/7.9MHz/7.9MHz 20 0.83 330 700 5,10,20 red

HNWC2012M1R5□P00 1.500 0.2V/7.9MHz/7.9MHz 20 0.83 330 700 5,10,20 green

HNWC2012M1R8□P00 1.800 0.2V/7.9MHz/7.9MHz 20 1.00 300 650 5,10,20 blue

HNWC2012M2R2□P00 2.200 0.2V/7.9MHz/7.9MHz 20 1.10 200 650 5,10,20 Violet

HNWC2012M2R7□P00 2.700 0.2V/7.9MHz/7.9MHz 23 1.25 200 580 5,10,20 gray

HNWC2012M3R3□P00 3.300 0.2V/7.9MHz/7.9MHz 23 1.45 160 540 5,10,20 white

HNWC2012M3R9□P00 3.900 0.2V/7.9MHz/7.9MHz 23 1.50 90 540 5,10,20 black

HNWC2012M4R7□P00 4.700 0.2V/7.9MHz/7.9MHz 20 1.50 70 530 5,10,20 Brown

HNWC2012M5R6□P00 5.600 0.2V/7.9MHz/7.9MHz 20 1.70 65 500 5,10,20 red

HNWC2012M6R8□P00 6.800 0.2V/7.9MHz/7.9MHz 20 1.95 45 470 5,10,20 orange

HNWC2012M8R2□P00 8.200 0.2V/2.5MHz/2.5MHz 16 2.10 45 430 5,10,20 yellow

HNWC2012M100□P00 10.000 0.2V/2.5MHz/2.5MHz 16 2.40 40 400 5,10,20 green

HNWC2012M120□P00 12.000 0.2V/2.5MHz/2.5MHz 16 3.20 38 360 5,10,20 red

HNWC2012M150□P00 15.000 0.2V/2.5MHz/2.5MHz 16 3.55 25 300 5,10,20 blue

HNWC2012M180□P00 18.000 0.2V/2.5MHz/2.5MHz 16 4.90 25 250 5,10,20 orange

HNWC2012M220□P00 22.000 0.2V/2.5MHz/2.5MHz 16 5.45 20 180 5,10,20 Violet

HNWC2012M270□P00 27.000 0.2V/2.5MHz/2.5MHz 16 7.80 19 180 5,10,20 gray

HNWC2012M330□P00 33.000 0.2V/2.5MHz/2.5MHz 16 9.50 16 160 5,10,20 white

HNWC2012M470□P00 47.000 0.2V/2.5MHz/2.5MHz 16 14.50 15 160 5,10,20 Brown












HNWC2012-01 series  Standard Specifications
Part No. Inductance Test Freq. Q SRF(MHz) DCR(Ω) Irms(mA) Tolerance Color coding

(μH) L/Q Typ Typ ±30% Typ (±%)

HNWC2012M1R0□P01 1 0.2v/7.9MHz/7.9MHz 18 100 0.10 800 10,20 Black

HNWC2012M2R2□P01 2.2 0.2v/7.9MHz/7.9MHz 18 70 0.24 550 10,20 Red

HNWC2012M3R3□P01 3.3 0.2v/7.9MHz/7.9MHz 18 55 0.30 450 10,20 Orange

HNWC2012M4R7□P01 4.7 0.2v/7.9MHz/7.9MHz 18 50 0.47 600 10,20 Yellow

HNWC2012M6R8□P01 6.8 0.2v/7.9MHz/7.9MHz 18 60 0.75 290 10,20 Green

HNWC2012M100□P01 10 0.2v/2.5MHz/2.5MHz 18 25 0.90 290 10,20 Blue

HNWC2012M150□P01 15 0.2v/2.5MHz/2.5MHz 18 25 1.60 230 10,20 Violet

HNWC2012M220□P01 22 0.2v/2.5MHz/2.5MHz 18 20 1.76 340 10,20 Gray

HNWC2012M330□P01 33 0.2v/2.5MHz/2.5MHz 17 15 2.60 120 10,20 White

HNWC2012M470□P01 47 0.2v/2.5MHz/2.5MHz 17 11 3.90 95 10,20 Black

HNWC2012M680□P01 68 0.2v/2.5MHz/2.5MHz 17 11 5.50 95 10,20 Brown

HNWC2012M101□P01 100 0.2v/2.5MHz/2.5MHz 12 9 9.000 70 10,20 Red












HNWC2520 series Standard Specifications
Part No. Inductance Test Freq. Q DCR(max) SRF(min) Irms(max) Tolerance Color
(μH) L/Q (min) Ω MHz (mA) (±%) coding
HNWC2520MR56□P00 0.56 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Green Blue Brown
HNWC2520MR68□P00 0.68 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Blue Gray Brown
HNWC2520MR82□P00 0.82 0.2V/7.9MHz/7.9MHz 12 0.62 230 700 10,20 Gray Red Brown
HNWC2520M1R0□P00 1.00 0.2V/7.9MHz/7.9MHz 18 0.62 230 700 10,20 Brown Black Red
HNWC2520M1R2□P00 1.20 0.2V/7.9MHz/7.9MHz 18 0.68 210 650 10,20 Brown Red Red
HNWC2520M1R5□P00 1.50 0.2V/7.9MHz/7.9MHz 18 0.76 190 630 10,20 Brown Green Red
HNWC2520M1R8□P00 1.80 0.2V/7.9MHz/7.9MHz 18 0.84 170 600 10,20 Brown Gray Red
HNWC2520M2R2□P00 2.20 0.2V/7.9MHz/7.9MHz 18 1.10 150 520 10,20 Red Red Red
HNWC2520M2R7□P00 2.70 0.2V/7.9MHz/7.9MHz 18 1.28 135 490 10,20 Red Violet Red
HNWC2520M3R3□P00 3.30 0.2V/7.9MHz/7.9MHz 18 1.46 120 450 10,20 Orange Orange Red
HNWC2520M3R9□P00 3.90 0.2V/7.9MHz/7.9MHz 18 1.56 105 420 10,20 Orange White Red
HNWC2520M4R7□P00 4.70 0.2V/7.9MHz/7.9MHz 18 2.00 90 400 10,20 Yellow Violet Red
HNWC2520M5R6□P00 5.60 0.2V/7.9MHz/7.9MHz 15 1.80 80 380 10,20 Green Blue Red
HNWC2520M6R8□P00 6.80 0.2V/7.9MHz/7.9MHz 15 2.00 70 360 10,20 Blue Gray Red
HNWC2520M8R2□P00 8.20 0.2V/7.9MHz/7.9MHz 15 2.65 65 330 10,20 Gray Red Red
HNWC2520M100□P00 10.00 0.2V/2.5MHz/2.5MHz 12 2.95 60 300 10,20 Brown Black Orange
HNWC2520M180□P00 18.00 0.2V/2.5MHz/2.5MHz 12 4.00 26 160 10,20 Brown Gray Orange
HNWC2520M220□P00 22.00 0.2V/2.5MHz/2.5MHz 12 6.14 22 270 10,20 Red Red Orange
HNWC2520M300□P00 30.00 0.2V/2.5MHz/2.5MHz 10 6.80 12 200 10,20 Orange Black Orange
HNWC2520M330□P00 33.00 0.2V/2.5MHz/2.5MHz 10 7.00 12 200 10,20 Orange Orange Orange
HNWC2520M390□P00 39.00 0.2V/2.5MHz/2.5MHz 10 10.00 16 170 10,20 Orange White Orange
HNWC2520M470□P00 47.00 0.2V/2.5MHz/2.5MHz 10 10.70 10 160 10,20 Yellow Violet Orange
HNWC2520M560□P00 56.00 0.2V/2.5MHz/2.5MHz 10 12.00 8 170 10,20 Green Blue Orange
HNWC2520M680□P00 68.00 0.2V/2.5MHz/2.5MHz 10 13.50 6 145 10,20 Blue Gray Orange
HNWC2520M820□P00 82.00 0.2V/2.5MHz/2.5MHz 8 20.00 6 100 10,20 Gray Red Orange
HNWC2520M101□P00 100.00 0.2V/1MHz/1MHz 8 20.50 4 120 10,20 Brown Black Yellow











HNWC3225 series Standard Specifications
Part No. Inductance Test Freq Q DCR(Ω) SRF(MHz) Irms(mA) Tolerance Color
(μH) L/Q min max min max (±%) coding
HNWC3225MR56□P00 0.56 0.2v/25MHz/25MHz 20 0.55 180 450 10,20 Green Blue Brown
HNWC3225M1R5□P00 1.50 0.2v/7.9MHz/7.9MHz 20 0.40 200 450 10,20 Brown Green Red
HNWC3225M1R8□P00 1.80 0.2v/7.9MHz/7.9MHz 20 0.50 195 450 10,20 Brown Gray Red
HNWC3225M2R2□P00 2.20 0.2v/7.9MHz/7.9MHz 20 0.80 175 450 10,20 Red Red Red
HNWC3225M4R7□P00 4.70 0.2v/7.9MHz/7.9MHz 18 1.30 60 350 10,20 Yellow Violet Red
HNWC3225M5R6□P00 5.60 0.2v/2.5MHz/2.5MHz 18 2.00 50 320 10,20 Green Blue Red
HNWC3225M100□P00 10.00 0.2v/2.5MHz/2.5MHz 15 1.00 30 300 10,20 Brown Black Orange
HNWC3225M150□P00 15.00 0.2v/2.5MHz/2.5MHz 15 2.00 22 225 10,20 Brown Green Orange
HNWC3225M180□P00 18.00 0.2v/2.5MHz/2.5MHz 15 2.05 22 215 10,20 Brown Gray Orange
HNWC3225M220□P00 22.00 0.2v/2.5MHz/2.5MHz 15 2.10 20 210 10,20 Red Red Orange
HNWC3225M270□P00 27.00 0.2v/2.5MHz/2.5MHz 15 2.70 18 180 10,20 Red Violet Orange
HNWC3225M330□P00 33.00 0.2v/2.5MHz/2.5MHz 15 2.90 15 160 10,20 Orange Orange Orange
HNWC3225M470□P00 47.00 0.2v/2.5MHz/2.5MHz 15 5.20 10 140 10,20 Yellow Violet Orange
HNWC3225M560□P00 56.00 0.2v/2.5MHz/2.5MHz 8 5.60 8 125 10,20 Green Blue Orange
HNWC3225M680□P00 68.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Blue Gray Orange
HNWC3225M820□P00 82.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Gray Red Orange
HNWC3225M101□P00 100.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Brown Black Yellow
HNWC3225M121□P00 120.00 0.2v/1MHz/1MHz 6 13.00 10 100 10,20 Brown Red Yellow
HNWC3225M151□P00 150.00 0.2v/1MHz/1MHz 10 20.00 4 80 10,20 Brown Green Yellow
HNWC3225M181□P00 180.00 0.2v/1MHz/1MHz 8 14.50 3 70 10,20 Brown Gray Yellow
HNWC3225M201□P00 200.00 0.2v/1MHz/1MHz 8 30.00 3 65 10,20 Red Black Yellow
HNWC3225M221□P00 220.00 0.2v/1MHz/1MHz 8 30.00 3 65 10,20 Red Red Yellow
HNWC3225M331□P00 330.00 0.2v/1MHz/1MHz 8 35.00 2 55 10,20 Orange Orange Yellow
HNWC3225M471□P00 470.00 0.2v/1MHz/1MHz 8 42.00 2 40 10,20 Yellow Violet Yellow
HNWC3225M561□P00 560.00 0.2v/1MHz/1MHz 8 60.00 2 10 10,20 Green Blue Yellow
HNWC3225M621□P00 620.00 0.2v/1MHz/1MHz 8 85.00 2 10 10,20 Blue Red Yellow
HNWC3225M681□P00 680.00 0.2v/1MHz/1MHz 6 90.00 2 10 10,20 Blue Gray Yellow


Product Description
physical dimension
Models and features
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
