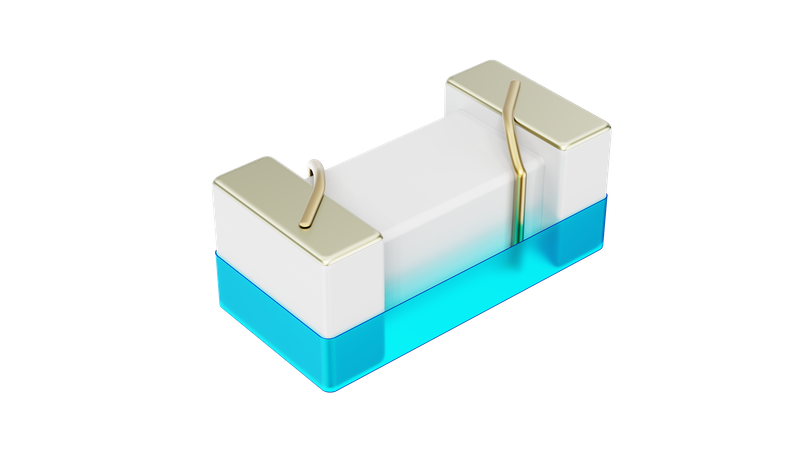

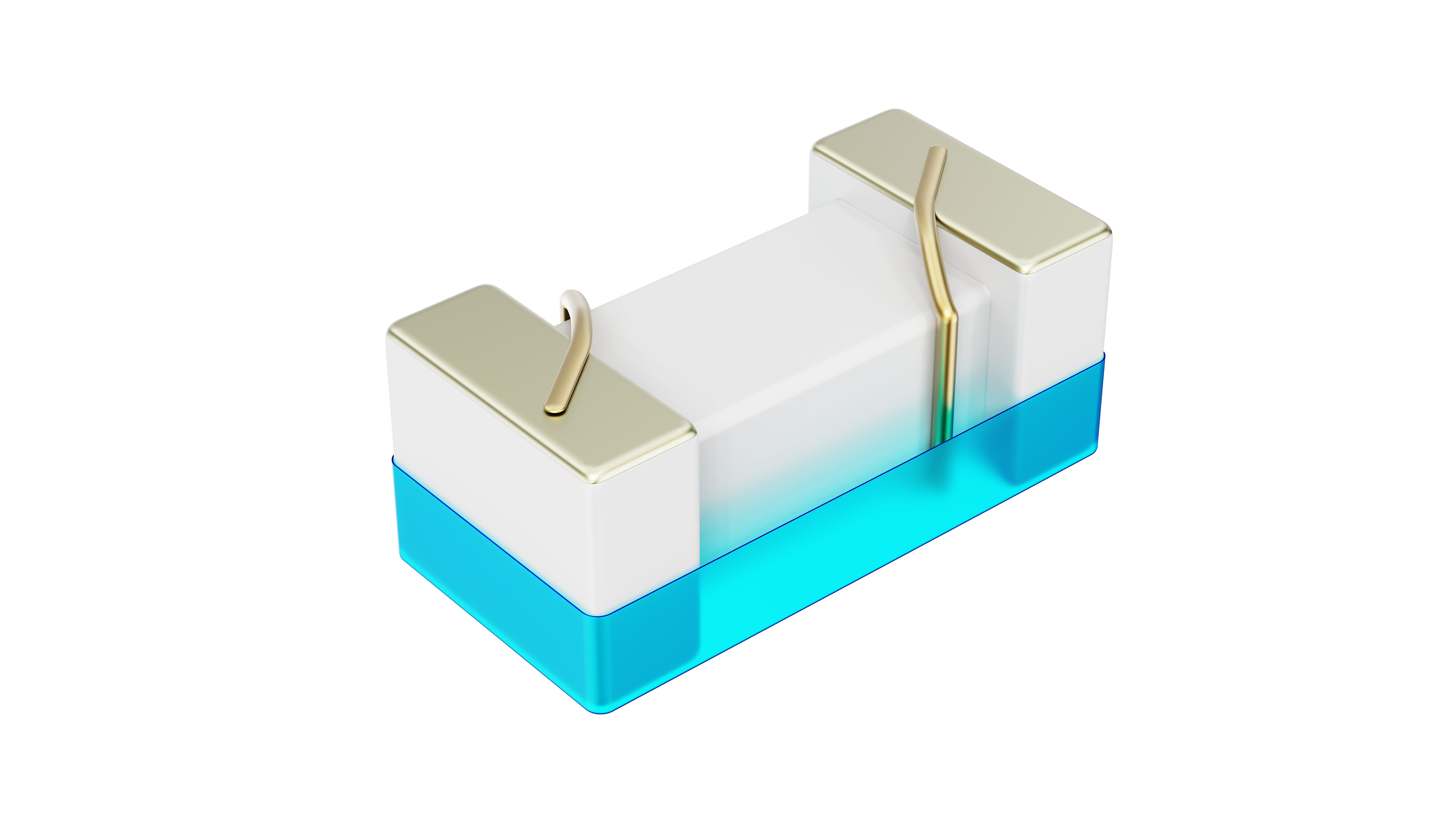

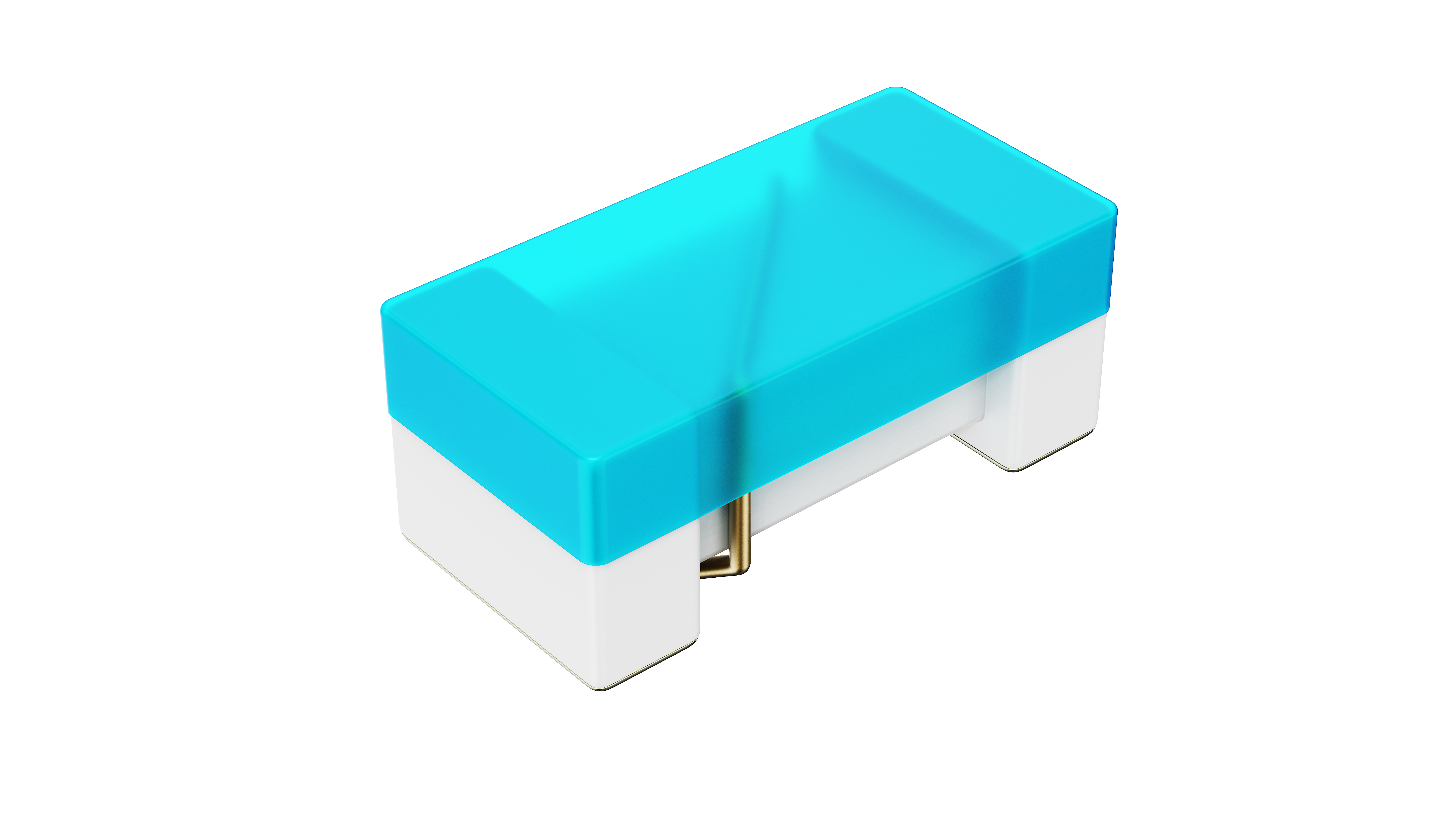

HPW SERIES

Features:
RoHS compliant
Uses ceramic body and wire-wound structure to provide high self-resonant frequencies (SRFs)
Excellent Q-factor even at high frequencies
Has the highest possible self-resonant frequency and excellent Q value
Non-magnetic coil format ensures extremely high thermal stability, predictability and batch-to-batch consistency
The HPW Series is the standard choice for RF designers

Application areas:
Mobile phone RF products
GPS receiver
base station
Repeater
Wireless LAN/mouse/keyboard/headphones
remote control
Security systems and other RF modules

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Model and features

HPW SERIES

HCRF

 Product number               HPW SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.








HPW SERIES appearance dimensions   In mm

1

TYPE A B C D E F G H I J
1005 1.19max 0.7max 0.66max 0.25 0.51 0.23 0.56 0.66 0.36 0.46
1005-20 1.22max 0.8max 0.66max 0.25 0.46 0.20 0.60 0.66 0.36 0.50
1608 1.6±0.2 1.02±0.1 0.82±0.2 0.50 0.76 0.33 0.86 1.02 0.64 0.64
2012 2.35max 1.73max 1.52max 0.70 1.27 0.51 1.02 1.78 1.02 0.76
2520 2.92max 2.7max 2.23max 1.30 1.52 0.51 2.00 2.54 1.02 1.27



HPWN1005 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance(Ω) SRF(GHz) Irms(mA) Tolerance


(nH) L/Q Min Max Min Max (±%)


HPWN1005N1N0□E00 1.0 0.2V/250MHz/250MHz 16 0.045 12.70 1360 10/5/±0.1nH


HPWN1005N1N2□E00 1.2 0.2V/250MHz/250MHz 10 0.140 10.40 640 10/5/±0.1nH


HPWN1005N1N3□E00 1.3 0.2V/250MHz/250MHz 10 0.140 10.40 640 10/±0.1nH


HPWN1005N1N9□E00 1.9 0.2V/250MHz/250MHz 16 0.070 11.30 1040 10/5/±0.1nH


HPWN1005N2N0□E00 2.0 0.2V/250MHz/250MHz 16 0.070 11.10 1040 10/5/±0.1nH


HPWN1005N2N2□E00 2.2 0.2V/250MHz/250MHz 19 0.070 10.80 960 10/5/±0.1nH


HPWN1005N2N4□E00 2.4 0.2V/250MHz/250MHz 15 0.068 10.50 790 10/5/±0.1nH


HPWN1005N2N5□E00 2.5 0.2V/250MHz/250MHz 13 0.150 10.40 640 10/5/±0.1nH


HPWN1005N2N7□E00 2.7 0.2V/250MHz/250MHz 16 0.120 10.40 640 10/5/±0.1nH


HPWN1005N3N3□E00 3.3 0.2V/250MHz/250MHz 19 0.066 7.00 840 10/5/3


HPWN1005N3N6□E00 3.6 0.2V/250MHz/250MHz 19 0.066 6.80 840 10/5/3


HPWN1005N3N9□E00 3.9 0.2V/250MHz/250MHz 19 0.066 6.00 840 10/5/3


HPWN1005N4N3□E00 4.3 0.2V/250MHz/250MHz 18 0.091 6.00 700 10/5/3


HPWN1005N4N7□E00 4.7 0.2V/250MHz/250MHz 15 0.130 4.77 640 10/5/3


HPWN1005N5N1□E00 5.1 0.2V/250MHz/250MHz 20 0.083 4.80 800 10/5/3


HPWN1005N5N6□E00 5.6 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWN1005N5N8□E00 5.8 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWN1005N6N2□E00 6.2 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWN1005N6N8□E00 6.8 0.2V/250MHz/250MHz 20 0.083 4.80 680 10/5/3


HPWN1005N7N3□E00 7.3 0.2V/250MHz/250MHz 20 0.120 4.80 680 10/5/3


HPWN1005N7N5□E00 7.5 0.2V/250MHz/250MHz 22 0.100 4.80 680 10/5/3


HPWN1005N8N2□E00 8.2 0.2V/250MHz/250MHz 22 0.100 4.40 680 10/5/3


HPWN1005N8N7□E00 8.7 0.2V/250MHz/250MHz 18 0.200 4.10 480 10/5/3


HPWN1005N9N0□E00 9.0 0.2V/250MHz/250MHz 22 0.100 4.16 680 10/5/3


HPWN1005N9N1□E00 9.1 0.2V/250MHz/250MHz 22 0.100 4.16 680 10/5/3


HPWN1005N9N5□E00 9.5 0.2V/250MHz/250MHz 18 0.200 4.00 480 10/5/3


HPWN1005N10N□E00 10.0 0.2V/250MHz/250MHz 21 0.200 3.90 480 10/5/3/2


HPWN1005N11N□E00 11.0 0.2V/250MHz/250MHz 24 0.120 3.68 640 10/5/3/2


HPWN1005N12N□E00 12.0 0.2V/250MHz/250MHz 24 0.120 3.60 640 10/5/3/2


HPWN1005N13N□E00 13.0 0.2V/250MHz/250MHz 24 0.210 3.45 440 10/5/3/2


HPWN1005N15N□E00 15.0 0.2V/250MHz/250MHz 24 0.170 3.28 560 10/5/3/2


HPWN1005N16N□E00 16.0 0.2V/250MHz/250MHz 24 0.220 3.10 560 10/5/3/2


HPWN1005N18N□E00 18.0 0.2V/250MHz/250MHz 25 0.230 3.10 420 10/5/3/2


HPWN1005N19N□E00 19.0 0.2V/250MHz/250MHz 24 0.200 3.04 480 10/5/3/2


HPWN1005N20N□E00 20.0 0.2V/250MHz/250MHz 25 0.250 3.00 420 10/5/3/2


HPWN1005N22N□E00 22.0 0.2V/250MHz/250MHz 25 0.300 2.80 400 10/5/3/2


HPWN1005N23N□E00 23.0 0.2V/250MHz/250MHz 22 0.300 2.72 400 10/5/3/2


HPWN1005N24N□E00 24.0 0.2V/250MHz/250MHz 25 0.300 2.70 400 10/5/3/2


HPWN1005N27N□E00 27.0 0.2V/250MHz/250MHz 24 0.300 2.48 400 10/5/3/2


HPWN1005N30N□E00 30.0 0.2V/250MHz/250MHz 25 0.350 2.35 400 10/5/3/2


HPWN1005N33N□E00 33.0 0.2V/250MHz/250MHz 24 0.400 2.35 400 10/5/3/2













HPWN1005 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance(Ω) SRF(GHz) Irms(mA) Tolerance


(nH) L/Q Min Max Min Max (±%)


HPWN1005N36N□E00 36.0 0.2V/250MHz/250MHz 24 0.44 2.32 320 10/5/3/2


HPWN1005N39N□E00 39.0 0.2V/250MHz/250MHz 25 0.55 2.10 200 10/5/3/2


HPWN1005N40N□E00 40.0 0.2V/250MHz/250MHz 24 0.65 2.24 320 10/5/3/2


HPWN1005N43N□E00 43.0 0.2V/250MHz/250MHz 25 0.81 2.03 100 10/5/3/2


HPWN1005N47N□E00 47.0 0.2V/250MHz/250MHz 20 0.83 2.10 150 10/5/3/2


HPWN1005N51N□E00 51.0 0.2V/250MHz/250MHz 25 0.82 1.75 100 10/5/3/2


HPWN1005N56N□E00 56.0 0.2V/250MHz/250MHz 22 0.97 1.76 100 10/5/3/2


HPWN1005N68N□E00 68.0 0.2V/250MHz/250MHz 22 1.12 1.62 100 10/5/3/2


HPWN1005N82N□E00 82.0 0.2V/250MHz/250MHz 20 1.55 1.23 50 10/5/3/2


HPWN1005NR10□E00 100.0 0.2V/250MHz/250MHz 20 2.00 1.16 30 10/5/3/2


HPWN1005NR18□E00 180.0 0.2V/100MHz/100MHz 8 2.70 0.70 50 10/5/3/2


HPWN1005NR22□E00 220.0 0.2V/100MHz/100MHz 8 4.00 0.70 50 10/5/3/2













HPWN1005-20 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance (Ω) SRF(MHz) Irms(mA) Tolerance


(nH) L/Q type max type max (±%)


HPWN1005NR60□E20 600 0.2V/25MHz  /25MHz 12 3.78 440 130 2,3,5


HPWN1005NR68□E20 680 0.2V/25MHz  /25MHz 13 5.15 380 120 2,3,5













HPWN2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWN1608M1N6□E00 1.6 0.2V/250MHz/250MHz 24 0.030 12.50 700 10/5/±0.1nH Red

HPWN1608M1N8□E00 1.8 0.2V/250MHz/250MHz 16 0.045 12.50 700 10/5/±0.1nH Black

HPWN1608M2N2□E00 2.2 0.2V/250MHz/250MHz 13 0.250 12.50 700 10/5/±0.1nH Yellow

HPWN1608M3N3□E00 3.3 0.2V/250MHz/250MHz 35 0.045 5.90 700 10/5/3 Blue

HPWN1608M3N6□E00 3.6 0.2V/250MHz/250MHz 22 0.063 5.90 700 10/5/3/2 Red

HPWN1608M3N9□E00 3.9 0.2V/250MHz/250MHz 22 0.080 6.90 700 10/5/3/2 Brown

HPWN1608M4N3□E00 4.3 0.2V/250MHz/250MHz 22 0.063 5.90 700 10/5/3/2 Orange

HPWN1608M4N7□E00 4.7 0.2V/250MHz/250MHz 20 0.116 5.80 700 10/5/3/2 Violet

HPWN1608M5N1□E00 5.1 0.2V/250MHz/250MHz 20 0.140 5.70 700 10/5/3/2 Green

HPWN1608M5N6□E00 5.6 0.2V/250MHz/250MHz 20 0.170 5.80 700 10/5/3/2 Yellow

HPWN1608M6N3□E00 6.3 0.2V/250MHz/250MHz 20 0.140 5.70 700 10/5/3/2 White

HPWN1608M6N8□E00 6.8 0.2V/250MHz/250MHz 27 0.080 5.80 700 10/5/3/2 Red

HPWN1608M7N5□E00 7.5 0.2V/250MHz/250MHz 28 0.106 4.80 700 10/5/3/2 Brown

HPWN1608M8N2□E00 8.2 0.2V/250MHz/250MHz 28 0.109 4.70 700 10/5/3/2 White

HPWN1608M8N7□E00 8.7 0.2V/250MHz/250MHz 28 0.109 4.60 700 10/5/3/2 Yellow

HPWN1608M9N1□E00 9.1 0.2V/250MHz/250MHz 28 0.120 4.80 700 10/5/3/2 Violet

HPWN1608M9N5□E00 9.5 0.2V/250MHz/250MHz 28 0.135 5.40 700 10/5/3/2 Blue

HPWN1608M10N□E00 10.0 0.2V/250MHz/250MHz 31 0.130 4.80 700 10/5/3/2 Orange

HPWN1608M11N□E00 11.0 0.2V/250MHz/250MHz 33 0.086 4.00 700 10/5/3/2 Gray

HPWN1608M12N□E00 12.0 0.2V/250MHz/250MHz 35 0.130 4.00 700 10/5/3/2 Yellow

HPWN1608M13N□E00 13.0 0.2V/250MHz/250MHz 30 0.160 4.00 700 10/5/3/2 Black

HPWN1608M15N□E00 15.0 0.2V/250MHz/250MHz 35 0.100 4.00 700 10/5/3/2 GRN

HPWN1608M16N□E00 16.0 0.2V/250MHz/250MHz 34 0.104 3.30 700 10/5/3/2 White

HPWN1608M18N□E00 18.0 0.2V/250MHz/250MHz 35 0.170 3.10 700 10/5/3/2 Blue

HPWN1608M20N□E00 20.0 0.2V/250MHz/250MHz 38 0.190 3.00 700 10/5/3/2 Red

HPWN1608M22N□E00 22.0 0.2V/250MHz/250MHz 38 0.190 3.00 700 10/5/3/2 Violet

HPWN1608M23N□E00 23.0 0.2V/250MHz/250MHz 38 0.190 2.85 700 10/5/3/2 Orange

HPWN1608M24N□E00 24.0 0.2V/250MHz/250MHz 27 0.135 2.65 700 10/5/3/2 Black

HPWN1608M27N□E00 27.0 0.2V/250MHz/250MHz 40 0.140 2.80 600 10/5/3/2 Gray

HPWN1608M30N□E00 30.0 0.2V/250MHz/250MHz 37 0.144 2.25 600 10/5/3/2 Brown

HPWN1608M33N□E00 33.0 0.2V/250MHz/250MHz 40 0.220 2.30 600 10/5/3/2 White

HPWN1608M36N□E00 36.0 0.2V/250MHz/250MHz 38 0.250 3.08 600 10/5/3/2 Red

HPWN1608M39N□E00 39.0 0.2V/250MHz/250MHz 40 0.250 2.20 600 10/5/3/2 Black

HPWN1608M43N□E00 43.0 0.2V/250MHz/250MHz 39 0.280 2.00 600 10/5/3/2 Orange

HPWN1608M47N□E00 47.0 0.2V/200MHz/200MHz 38 0.280 2.00 600 10/5/3/2 Brown

HPWN1608M51N□E00 51.0 0.2V/200MHz/200MHz 38 0.310 1.90 600 10/5/3/2 Brown

HPWN1608M56N□E00 56.0 0.2V/200MHz/200MHz 38 0.310 1.90 600 10/5/3/2 Red

HPWN1608M68N□E00 68.0 0.2V/200MHz/200MHz 37 0.340 1.70 600 10/5/3/2 Orange

HPWN1608M72N□E00 72.0 0.2V/150MHz/150MHz 34 0.420 1.70 400 10/5/3/2 Yellow

HPWN1608M82N□E00 82.0 0.2V/150MHz/150MHz 34 0.540 1.70 400 10/5/3/2 Green

HPWN1608M91N□E00 91.0 0.2V/150MHz/150MHz 34 0.580 1.40 400 10/5/3/2 Black












HPWN1608 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWN1608MR10□E00 100.0 0.2V/150MHz/150MHz 34 0.580 1.40 400 10/5/3/2 Blue

HPWN1608MR11□E00 110.0 0.2V/150MHz/150MHz 32 0.610 1.35 300 10/5/3/2 Violet

HPWN1608MR12□E00 120.0 0.2V/150MHz/150MHz 32 0.750 1.30 300 10/5/3/2 Gray

HPWN1608MR15□E00 150.0 0.2V/150MHz/150MHz 28 0.920 0.99 280 10/5/3/2 White

HPWN1608MR16□E00 160.0 0.2V/100MHz/100MHz 25 1.250 0.99 240 10/5/3/2 Yellow

HPWN1608MR18□E00 180.0 0.2V/100MHz/100MHz 25 1.250 0.99 240 10/5/3/2 Black

HPWN1608MR20□E00 200.0 0.2V/100MHz/100MHz 25 1.520 0.90 200 10/5/3/2 Red

HPWN1608MR21□E00 210.0 0.2V/100MHz/100MHz 27 2.060 0.90 200 10/5/3/2 Gray

HPWN1608MR22□E00 220.0 0.2V/100MHz/100MHz 25 2.020 0.90 200 10/5/3/2 Brown

HPWN1608MR24□E00 240.0 0.2V/100MHz/100MHz 25 2.200 0.90 200 10/5/3/2 Green

HPWN1608MR25□E00 250.0 0.2V/100MHz/100MHz 25 3.000 0.82 120 10/5/3/2 Violet

HPWN1608MR27□E00 270.0 0.2V/100MHz/100MHz 24 2.360 0.90 170 10/5/3/2 Red

HPWN1608MR30□E00 300.0 0.2V/100MHz/100MHz 26 4.050 0.90 110 10/5/3/2 Brown

HPWN1608MR33□E00 330.0 0.2V/100MHz/100MHz 25 3.400 0.90 100 10/5/3/2 Orange

HPWN1608MR39□E00 390.0 0.2V/100MHz/100MHz 25 3.600 0.90 100 10/5/3/2 Yellow

HPWN1608MR47□E00 470.0 0.2V/100MHz/100MHz 25 4.200 0.50 100 10/5/3/2 Green

HPWN1608MR56□E00 560.0 0.2V/100MHz/100MHz 23 4.700 0.46 90 10/5/3/2 Blue












HPWN2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWN2012M2N7□P00 2.7 0.2V/250MHz  /1500MHz 50 0.06 7.900 800 10/5/2 Yellow

HPWN2012M2N8□P00 2.8 0.2V/250MHz/1500MHz 80 0.06 7.900 800 10/5/2 Gray

HPWN2012M3N0□P00 3.0 0.2V/250MHz/1500MHz 65 0.06 7.900 800 10/5/2 White

HPWN2012M3N3□P00 3.3 0.2V/250MHz/1500MHz 50 0.08 7.900 600 10/5/2 Black

HPWN2012M5N6□P00 5.6 0.2V/250MHz/1000MHz 65 0.08 5.500 600 10/5/2 Orange

HPWN2012M6N8□P00 6.8 0.2V/250MHz/1000MHz 50 0.11 5.500 600 10/5/2 Brown

HPWN2012M7N5□P00 7.5 0.2V/250MHz/1000MHz 50 0.14 4.500 600 10/5/2 Green

HPWN2012M8N2□P00 8.2 0.2V/250MHz/1000MHz 50 0.12 4.700 600 10/5/2 Red

HPWN2012M10N□P00 10.0 0.2V/250MHz/500MHz 60 0.10 4.200 600 10/5/2 Blue

HPWN2012M12N□P00 12.0 0.2V/250MHz/500MHz 50 0.15 4.000 600 10/5/2 Orange

HPWN2012M15N□P00 15.0 0.2V/250MHz/500MHz 50 0.17 3.400 600 10/5/2 Yellow

HPWN2012M18N□P00 18.0 0.2V/250MHz/500MHz 50 0.20 3.300 600 10/5/2 Green

HPWN2012M22N□P00 22.0 0.2V/250MHz/500MHz 55 0.22 2.600 500 10/5/2 Blue

HPWN2012M24N□P00 24.0 0.2V/250MHz/500MHz 50 0.22 2.000 500 10/5/2 Gray

HPWN2012M27N□P00 27.0 0.2V/250MHz/500MHz 55 0.25 2.500 500 10/5/2 Violet

HPWN2012M33N□P00 33.0 0.2V/250MHz/500MHz 60 0.27 2.050 500 10/5/2 Gray

HPWN2012M36N□P00 36.0 0.2V/250MHz/500MHz 55 0.27 1.700 500 10/5/2 Orange

HPWN2012M39N□P00 39.0 0.2V/250MHz/500MHz 60 0.29 2.000 500 10/5/2 White

HPWN2012M43N□P00 43.0 0.2V/200MHz/500MHz 60 0.34 1.650 500 10/5/2 Yellow

HPWN2012M47N□P00 47.0 0.2V/200MHz/500MHz 60 0.31 1.650 500 10/5/2 Black

HPWN2012M56N□P00 56.0 0.2V/200MHz/500MHz 60 0.34 1.550 500 10/5/2 Brown

HPWN2012M68N□P00 68.0 0.2V/200MHz/500MHz 60 0.38 1.450 500 10/5/2 Red

HPWN2012M82N□P00 82.0 0.2V/150MHz/500MHz 65 0.42 1.300 400 10/5/2 Orange

HPWN2012M84N□P00 84.0 0.2V/150MHz/500MHz 65 0.48 1.300 400 10/5/2 Orange

HPWN2012M91N□P00 91.0 0.2V/150MHz/500MHz 65 0.48 1.200 400 10/5/2 Black

HPWN2012MR10□P00 100.0 0.2V/150MHz/500MHz 65 0.46 1.200 400 10/5/2 Yellow

HPWN2012MR11□P00 110.0 0.2V/150MHz/250MHz 50 0.48 1.000 400 10/5/2 Brown

HPWN2012MR12□P00 120.0 0.2V/150MHz/250MHz 50 0.51 1.100 400 10/5/2 Green

HPWN2012MR15□P00 150.0 0.2V/100MHz/250MHz 50 0.56 0.920 400 10/5/2 Blue

HPWN2012MR18□P00 180.0 0.2V/100MHz/250MHz 50 0.64 0.870 400 10/5/2 Violet

HPWN2012MR20□P00 200.0 0.2V/100MHz/250MHz 50 0.68 0.860 400 10/5/2 Red

HPWN2012MR22□P00 220.0 0.2V/100MHz/250MHz 50 0.70 0.850 400 10/5/2 Gray

HPWN2012MR24□P00 240.0 0.2V/100MHz/250MHz 44 1.00 0.690 350 10/5/2 Red

HPWN2012MR25□P00 250.0 0.2V/100MHz/250MHz 45 1.20 0.660 350 10/5/2 Yellow

HPWN2012MR27□P00 270.0 0.2V/100MHz/250MHz 48 1.00 0.650 350 10/5/2 White

HPWN2012MR30□P00 300.0 0.2V/100MHz/250MHz 25 1.40 0.450 310 10/5/2 Orange

HPWN2012MR33□P00 330.0 0.2V/100MHz/250MHz 48 1.40 0.600 310 10/5/2 Black

HPWN2012MR39□P00 390.0 0.2V/100MHz/250MHz 48 1.50 0.560 290 10/5/2 Brown

HPWN2012MR43□P00 430.0 0.2V/50MHz/100MHz 33 1.76 0.375 250 10/5/2 Green

HPWN2012MR47□P00 470.0 0.2V/50MHz/100MHz 33 1.76 0.450 250 10/5/2 Violet

HPWN2012MR51□P00 510.0 0.2V/25MHz/50MHz 23 1.90 0.340 230 10/5/2 Gray












HPWN2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWN2012MR56□P00 560.0 0.2V/25MHz/50MHz 23 1.90 0.340 230 10/5/2 Orange

HPWN2012MR62□P00 620.0 0.2V/25MHz/50MHz 23 2.20 0.220 210 10/5/2 Yellow

HPWN2012MR68□P00 680.0 0.2V/25MHz/50MHz 23 2.20 0.188 190 10/5/2 Green

HPWN2012MR82□P00 820.0 0.2V/25MHz/50MHz 23 2.35 0.215 180 10/5/2 Blue

HPWN2012M1R0□P00 1000.0 0.2V/25MHz/50MHz 20 2.50 0.100 170 10/5/2 Gray

HPWN2012M1R2□P00 1200.0 0.2V/7.9MHz/25MHz 18 2.50 0.100 170 10/5/2 White

HPWN2012M1R5□P00 1500.0 0.2V/7.9MHz/25MHz 16 2.50 0.100 170 10/5/2 Black

HPWN2012M1R8□P00 1800.0 0.2V/7.9MHz/7.9MHz 16 2.50 0.080 170 10/5/2 Orange

HPWN2012M2R2□P00 2200.0 0.2V/7.9MHz/7.9MHz 16 3.90 0.065 140 10/5/2 Red

HPWN2012M3R3□P00 3300.0 0.2V/7.9MHz/7.9MHz 15 4.40 0.040 90 10/5/2 Red

HPWN2012M4R7□P00 4700.0 0.2V/7.9MHz/7.9MHz 15 6.40 0.040 90 10/5/2 Yellow












HPWN2520 series  Standard Specifications
Part No. Inductance
(nH)		 Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding
L/Q Min Max Min Max (±%) 1st 2nd 3rd
HPWN2520M10N□P00 10 0.2V/50MHz/500MHz 50 0.08 4.100 1000 2,5,10 Brown Black Black
HPWN2520M12N□P00 12 0.2V/50MHz/500MHz 50 0.09 3.300 1000 2,5,10 Brown Red Black
HPWN2520M15N□P00 15 0.2V/50MHz/500MHz 50 0.18 2.500 1000 2,5,10 Brown Green Black
HPWN2520M18N□P00 18 0.2V/50MHz/350MHz 50 0.11 2.500 1000 2,5,10 Brown Gray Black
HPWN2520M22N□P00 22 0.2V/50MHz/350MHz 55 0.12 2.400 1000 2,5,10 Red Red Black
HPWN2520M27N□P00 27 0.2V/50MHz/350MHz 55 0.13 1.600 1000 2,5,10 Red Violet Black
HPWN2520M33N□P00 33 0.2V/50MHz/350MHz 60 0.14 1.600 1000 2,5,10 Orange Orange Black
HPWN2520M39N□P00 39 0.2V/50MHz/350MHz 60 0.15 1.500 1000 2,5,10 Orange White Black
HPWN2520M47N□P00 47 0.2V/50MHz/350MHz 65 0.16 1.500 1000 2,5,10 Yellow Violet Black
HPWN2520M56N□P00 56 0.2V/50MHz/350MHz 65 0.18 1.300 1000 2,5,10 Green Blue Black
HPWN2520M68N□P00 68 0.2V/50MHz/350MHz 65 0.20 1.300 1000 2,5,10 Blue Gray Black
HPWN2520M82N□P00 82 0.2V/50MHz/350MHz 60 0.22 1.000 1000 2,5,10 Gray Red Black
HPWN2520MR10□P00 100 0.2V/25MHz/350MHz 60 0.56 1.000 650 2,5,10 Brown Black Brown
HPWN2520MR12□P00 120 0.2V/25MHz/350MHz 60 0.63 0.950 650 2,5,10 Brown Red Brown
HPWN2520MR15□P00 150 0.2V/25MHz/100MHz 45 0.70 0.850 580 2,5,10 Brown Green Brown
HPWN2520MR18□P00 180 0.2V/25MHz/100MHz 45 0.77 0.750 620 2,5,10 Brown Gray Brown
HPWN2520MR22□P00 220 0.2V/25MHz/100MHz 45 0.84 0.700 500 2,5,10 Red Red Brown
HPWN2520MR27□P00 270 0.2V/25MHz/100MHz 45 0.91 0.600 500 2,5,10 Red Violet Brown
HPWN2520MR33□P00 330 0.2V/25MHz/100MHz 45 1.05 0.570 450 2,5,10 Orange Orange Brown
HPWN2520MR39□P00 390 0.2V/25MHz/100MHz 45 1.12 0.500 470 2,5,10 Orange White Brown
HPWN2520MR47□P00 470 0.2V/25MHz/100MHz 45 1.19 0.450 470 2,5,10 Yellow Violet Brown
HPWN2520MR56□P00 560 0.2V/25MHz/100MHz 45 1.33 0.415 400 2,5,10 Green Blue Brown
HPWN2520MR62□P00 620 0.2V/25MHz/100MHz 45 1.40 0.375 300 2,5,10 Blue Red Brown
HPWN2520MR68□P00 680 0.2V/25MHz/100MHz 45 1.47 0.375 400 2,5,10 Blue Gray Brown
HPWN2520MR75□P00 750 0.2V/25MHz/100MHz 45 1.54 0.360 360 2,5,10 Violet Green Brown
HPWN2520MR82□P00 820 0.2V/25MHz/100MHz 45 1.61 0.350 400 2,5,10 Gray Red Brown
HPWN2520MR91□P00 910 0.2V/25MHz/50MHz 35 1.68 0.320 380 2,5,10 White Brown Brown
HPWN2520M1R0□P00 1000 0.2V/25MHz/50MHz 35 1.75 0.290 370 2,5,10 Brown Black Red
HPWN2520M1R2□P00 1200 0.2V/7.9MHz/50MHz 35 2.00 0.250 310 2,5,10 Brown Red Red
HPWN2520M1R5□P00 1500 0.2V/7.9MHz/50MHz 28 2.23 0.200 330 2,5,10 Brown Green Red
HPWN2520M1R8□P00 1800 0.2V/7.9MHz/50MHz 28 2.60 0.160 300 2,5,10 Brown Gray Red
HPWN2520M2R2□P00 2200 0.2V/7.9MHz/50MHz 28 2.80 0.160 280 2,5,10 Red Red Red
HPWN2520M2R7□P00 2700 0.2V/7.9MHz/25MHz 22 3.20 0.140 290 2,5,10 Red Violet Red
HPWN2520M3R3□P00 3300 0.2V/7.9MHz/25MHz 22 3.40 0.110 290 2,5,10 Orange Orange Red
HPWN2520M3R9□P00 3900 0.2V/7.9MHz/25MHz 20 3.60 0.100 260 2,5,10 Orange White Red
HPWN2520M4R7□P00 4700 0.2V/7.9MHz/7.9MHz 18 4.00 0.032 260 2,5,10 Yellow Violet Red
HPWN2520M5R6□P00 5600 0.2V/7.9MHz/7.9MHz 16 5.70 0.020 240 2,5,10 Green Blue Red
HPWN2520M6R8□P00 6800 0.2V/7.9MHz/7.9MHz 18 7.70 0.040 200 2,5,10 Blue Gray Red
HPWN2520M8R2□P00 8200 0.2V/7.9MHz/7.9MHz 18 10.70 0.025 170 2,5,10 Gray Red Red
HPWN2520M100□P00 10000 0.2V/7.9MHz/7.9MHz 18 12.70 0.025 100 2,5,10 Brown Black Orange




HPWC1005 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance(Ω) SRF(GHz) Irms(mA) Tolerance


(nH) L/Q Min Max Min Max (±%)


HPWC1005N1N0□E00 1.0 0.2V/250MHz/250MHz 16 0.045 12.70 1360 10/5/±0.1nH


HPWC1005N1N2□E00 1.2 0.2V/250MHz/250MHz 10 0.140 10.40 640 10/5/±0.1nH


HPWC1005N1N3□E00 1.3 0.2V/250MHz/250MHz 10 0.140 10.40 640 10/±0.1nH


HPWC1005N1N9□E00 1.9 0.2V/250MHz/250MHz 16 0.070 11.30 1040 10/5/±0.1nH


HPWC1005N2N0□E00 2.0 0.2V/250MHz/250MHz 16 0.070 11.10 1040 10/5/±0.1nH


HPWC1005N2N2□E00 2.2 0.2V/250MHz/250MHz 19 0.070 10.80 960 10/5/±0.1nH


HPWC1005N2N4□E00 2.4 0.2V/250MHz/250MHz 15 0.068 10.50 790 10/5/±0.1nH


HPWC1005N2N5□E00 2.5 0.2V/250MHz/250MHz 13 0.150 10.40 640 10/5/±0.1nH


HPWC1005N2N7□E00 2.7 0.2V/250MHz/250MHz 16 0.120 10.40 640 10/5/±0.1nH


HPWC1005N3N3□E00 3.3 0.2V/250MHz/250MHz 19 0.066 7.00 840 10/5/3


HPWC1005N3N6□E00 3.6 0.2V/250MHz/250MHz 19 0.066 6.80 840 10/5/3


HPWC1005N3N9□E00 3.9 0.2V/250MHz/250MHz 19 0.066 6.00 840 10/5/3


HPWC1005N4N3□E00 4.3 0.2V/250MHz/250MHz 18 0.091 6.00 700 10/5/3


HPWC1005N4N7□E00 4.7 0.2V/250MHz/250MHz 15 0.130 4.77 640 10/5/3


HPWC1005N5N1□E00 5.1 0.2V/250MHz/250MHz 20 0.083 4.80 800 10/5/3


HPWC1005N5N6□E00 5.6 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWC1005N5N8□E00 5.8 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWC1005N6N2□E00 6.2 0.2V/250MHz/250MHz 20 0.083 4.80 760 10/5/3


HPWC1005N6N8□E00 6.8 0.2V/250MHz/250MHz 20 0.083 4.80 680 10/5/3


HPWC1005N7N3□E00 7.3 0.2V/250MHz/250MHz 20 0.120 4.80 680 10/5/3


HPWC1005N7N5□E00 7.5 0.2V/250MHz/250MHz 22 0.100 4.80 680 10/5/3


HPWC1005N8N2□E00 8.2 0.2V/250MHz/250MHz 22 0.100 4.40 680 10/5/3


HPWC1005N8N7□E00 8.7 0.2V/250MHz/250MHz 18 0.200 4.10 480 10/5/3


HPWC1005N9N0□E00 9.0 0.2V/250MHz/250MHz 22 0.100 4.16 680 10/5/3


HPWC1005N9N1□E00 9.1 0.2V/250MHz/250MHz 22 0.100 4.16 680 10/5/3


HPWC1005N9N5□E00 9.5 0.2V/250MHz/250MHz 18 0.200 4.00 480 10/5/3


HPWC1005N10N□E00 10.0 0.2V/250MHz/250MHz 21 0.200 3.90 480 10/5/3/2


HPWC1005N11N□E00 11.0 0.2V/250MHz/250MHz 24 0.120 3.68 640 10/5/3/2


HPWC1005N12N□E00 12.0 0.2V/250MHz/250MHz 24 0.120 3.60 640 10/5/3/2


HPWC1005N13N□E00 13.0 0.2V/250MHz/250MHz 24 0.210 3.45 440 10/5/3/2


HPWC1005N15N□E00 15.0 0.2V/250MHz/250MHz 24 0.170 3.28 560 10/5/3/2


HPWC1005N16N□E00 16.0 0.2V/250MHz/250MHz 24 0.220 3.10 560 10/5/3/2


HPWC1005N18N□E00 18.0 0.2V/250MHz/250MHz 25 0.230 3.10 420 10/5/3/2


HPWC1005N19N□E00 19.0 0.2V/250MHz/250MHz 24 0.200 3.04 480 10/5/3/2


HPWC1005N20N□E00 20.0 0.2V/250MHz/250MHz 25 0.250 3.00 420 10/5/3/2


HPWC1005N22N□E00 22.0 0.2V/250MHz/250MHz 25 0.300 2.80 400 10/5/3/2


HPWC1005N23N□E00 23.0 0.2V/250MHz/250MHz 22 0.300 2.72 400 10/5/3/2


HPWC1005N24N□E00 24.0 0.2V/250MHz/250MHz 25 0.300 2.70 400 10/5/3/2


HPWC1005N27N□E00 27.0 0.2V/250MHz/250MHz 24 0.300 2.48 400 10/5/3/2


HPWC1005N30N□E00 30.0 0.2V/250MHz/250MHz 25 0.350 2.35 400 10/5/3/2


HPWC1005N33N□E00 33.0 0.2V/250MHz/250MHz 24 0.400 2.35 400 10/5/3/2













HPWC1005 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance(Ω) SRF(GHz) Irms(mA) Tolerance


(nH) L/Q Min Max Min Max (±%)


HPWC1005N36N□E00 36.0 0.2V/250MHz/250MHz 24 0.44 2.32 320 10/5/3/2


HPWC1005N39N□E00 39.0 0.2V/250MHz/250MHz 25 0.55 2.10 200 10/5/3/2


HPWC1005N40N□E00 40.0 0.2V/250MHz/250MHz 24 0.65 2.24 320 10/5/3/2


HPWC1005N43N□E00 43.0 0.2V/250MHz/250MHz 25 0.81 2.03 100 10/5/3/2


HPWC1005N47N□E00 47.0 0.2V/250MHz/250MHz 20 0.83 2.10 150 10/5/3/2


HPWC1005N51N□E00 51.0 0.2V/250MHz/250MHz 25 0.82 1.75 100 10/5/3/2


HPWC1005N56N□E00 56.0 0.2V/250MHz/250MHz 22 0.97 1.76 100 10/5/3/2


HPWC1005N68N□E00 68.0 0.2V/250MHz/250MHz 22 1.12 1.62 100 10/5/3/2


HPWC1005N82N□E00 82.0 0.2V/250MHz/250MHz 20 1.55 1.23 50 10/5/3/2


HPWC1005NR10□E00 100.0 0.2V/250MHz/250MHz 20 2.00 1.16 30 10/5/3/2


HPWC1005NR18□E00 180.0 0.2V/100MHz/100MHz 8 2.70 0.70 50 10/5/3/2


HPWC1005NR22□E00 220.0 0.2V/100MHz/100MHz 8 4.00 0.70 50 10/5/3/2













HPWC1005-20 series  Standard Specifications
Part No. Inductance Test Freq. Q Resistance (Ω) SRF(MHz) Irms(mA) Tolerance


(nH) L/Q type max type max (±%)


HPWC1005NR60□E20 600 0.2V/25MHz  /25MHz 12 3.78 440 130 2,3,5


HPWC1005NR68□E20 680 0.2V/25MHz  /25MHz 13 5.15 380 120 2,3,5













HPWC2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWC1608M1N6□E00 1.6 0.2V/250MHz/250MHz 24 0.030 12.50 700 10/5/±0.1nH Red

HPWC1608M1N8□E00 1.8 0.2V/250MHz/250MHz 16 0.045 12.50 700 10/5/±0.1nH Black

HPWC1608M2N2□E00 2.2 0.2V/250MHz/250MHz 13 0.250 12.50 700 10/5/±0.1nH Yellow

HPWC1608M3N3□E00 3.3 0.2V/250MHz/250MHz 35 0.045 5.90 700 10/5/3 Blue

HPWC1608M3N6□E00 3.6 0.2V/250MHz/250MHz 22 0.063 5.90 700 10/5/3/2 Red

HPWC1608M3N9□E00 3.9 0.2V/250MHz/250MHz 22 0.080 6.90 700 10/5/3/2 Brown

HPWC1608M4N3□E00 4.3 0.2V/250MHz/250MHz 22 0.063 5.90 700 10/5/3/2 Orange

HPWC1608M4N7□E00 4.7 0.2V/250MHz/250MHz 20 0.116 5.80 700 10/5/3/2 Violet

HPWC1608M5N1□E00 5.1 0.2V/250MHz/250MHz 20 0.140 5.70 700 10/5/3/2 Green

HPWC1608M5N6□E00 5.6 0.2V/250MHz/250MHz 20 0.170 5.80 700 10/5/3/2 Yellow

HPWC1608M6N3□E00 6.3 0.2V/250MHz/250MHz 20 0.140 5.70 700 10/5/3/2 White

HPWC1608M6N8□E00 6.8 0.2V/250MHz/250MHz 27 0.080 5.80 700 10/5/3/2 Red

HPWC1608M7N5□E00 7.5 0.2V/250MHz/250MHz 28 0.106 4.80 700 10/5/3/2 Brown

HPWC1608M8N2□E00 8.2 0.2V/250MHz/250MHz 28 0.109 4.70 700 10/5/3/2 White

HPWC1608M8N7□E00 8.7 0.2V/250MHz/250MHz 28 0.109 4.60 700 10/5/3/2 Yellow

HPWC1608M9N1□E00 9.1 0.2V/250MHz/250MHz 28 0.120 4.80 700 10/5/3/2 Violet

HPWC1608M9N5□E00 9.5 0.2V/250MHz/250MHz 28 0.135 5.40 700 10/5/3/2 Blue

HPWC1608M10N□E00 10.0 0.2V/250MHz/250MHz 31 0.130 4.80 700 10/5/3/2 Orange

HPWC1608M11N□E00 11.0 0.2V/250MHz/250MHz 33 0.086 4.00 700 10/5/3/2 Gray

HPWC1608M12N□E00 12.0 0.2V/250MHz/250MHz 35 0.130 4.00 700 10/5/3/2 Yellow

HPWC1608M13N□E00 13.0 0.2V/250MHz/250MHz 30 0.160 4.00 700 10/5/3/2 Black

HPWC1608M15N□E00 15.0 0.2V/250MHz/250MHz 35 0.100 4.00 700 10/5/3/2 GRN

HPWC1608M16N□E00 16.0 0.2V/250MHz/250MHz 34 0.104 3.30 700 10/5/3/2 White

HPWC1608M18N□E00 18.0 0.2V/250MHz/250MHz 35 0.170 3.10 700 10/5/3/2 Blue

HPWC1608M20N□E00 20.0 0.2V/250MHz/250MHz 38 0.190 3.00 700 10/5/3/2 Red

HPWC1608M22N□E00 22.0 0.2V/250MHz/250MHz 38 0.190 3.00 700 10/5/3/2 Violet

HPWC1608M23N□E00 23.0 0.2V/250MHz/250MHz 38 0.190 2.85 700 10/5/3/2 Orange

HPWC1608M24N□E00 24.0 0.2V/250MHz/250MHz 27 0.135 2.65 700 10/5/3/2 Black

HPWC1608M27N□E00 27.0 0.2V/250MHz/250MHz 40 0.140 2.80 600 10/5/3/2 Gray

HPWC1608M30N□E00 30.0 0.2V/250MHz/250MHz 37 0.144 2.25 600 10/5/3/2 Brown

HPWC1608M33N□E00 33.0 0.2V/250MHz/250MHz 40 0.220 2.30 600 10/5/3/2 White

HPWC1608M36N□E00 36.0 0.2V/250MHz/250MHz 38 0.250 3.08 600 10/5/3/2 Red

HPWC1608M39N□E00 39.0 0.2V/250MHz/250MHz 40 0.250 2.20 600 10/5/3/2 Black

HPWC1608M43N□E00 43.0 0.2V/250MHz/250MHz 39 0.280 2.00 600 10/5/3/2 Orange

HPWC1608M47N□E00 47.0 0.2V/200MHz/200MHz 38 0.280 2.00 600 10/5/3/2 Brown

HPWC1608M51N□E00 51.0 0.2V/200MHz/200MHz 38 0.310 1.90 600 10/5/3/2 Brown

HPWC1608M56N□E00 56.0 0.2V/200MHz/200MHz 38 0.310 1.90 600 10/5/3/2 Red

HPWC1608M68N□E00 68.0 0.2V/200MHz/200MHz 37 0.340 1.70 600 10/5/3/2 Orange

HPWC1608M72N□E00 72.0 0.2V/150MHz/150MHz 34 0.420 1.70 400 10/5/3/2 Yellow

HPWC1608M82N□E00 82.0 0.2V/150MHz/150MHz 34 0.540 1.70 400 10/5/3/2 Green

HPWC1608M91N□E00 91.0 0.2V/150MHz/150MHz 34 0.580 1.40 400 10/5/3/2 Black












HPWC1608 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWC1608MR10□E00 100.0 0.2V/150MHz/150MHz 34 0.580 1.40 400 10/5/3/2 Blue

HPWC1608MR11□E00 110.0 0.2V/150MHz/150MHz 32 0.610 1.35 300 10/5/3/2 Violet

HPWC1608MR12□E00 120.0 0.2V/150MHz/150MHz 32 0.750 1.30 300 10/5/3/2 Gray

HPWC1608MR15□E00 150.0 0.2V/150MHz/150MHz 28 0.920 0.99 280 10/5/3/2 White

HPWC1608MR16□E00 160.0 0.2V/100MHz/100MHz 25 1.250 0.99 240 10/5/3/2 Yellow

HPWC1608MR18□E00 180.0 0.2V/100MHz/100MHz 25 1.250 0.99 240 10/5/3/2 Black

HPWC1608MR20□E00 200.0 0.2V/100MHz/100MHz 25 1.520 0.90 200 10/5/3/2 Red

HPWC1608MR21□E00 210.0 0.2V/100MHz/100MHz 27 2.060 0.90 200 10/5/3/2 Gray

HPWC1608MR22□E00 220.0 0.2V/100MHz/100MHz 25 2.020 0.90 200 10/5/3/2 Brown

HPWC1608MR24□E00 240.0 0.2V/100MHz/100MHz 25 2.200 0.90 200 10/5/3/2 Green

HPWC1608MR25□E00 250.0 0.2V/100MHz/100MHz 25 3.000 0.82 120 10/5/3/2 Violet

HPWC1608MR27□E00 270.0 0.2V/100MHz/100MHz 24 2.360 0.90 170 10/5/3/2 Red

HPWC1608MR30□E00 300.0 0.2V/100MHz/100MHz 26 4.050 0.90 110 10/5/3/2 Brown

HPWC1608MR33□E00 330.0 0.2V/100MHz/100MHz 25 3.400 0.90 100 10/5/3/2 Orange

HPWC1608MR39□E00 390.0 0.2V/100MHz/100MHz 25 3.600 0.90 100 10/5/3/2 Yellow

HPWC1608MR47□E00 470.0 0.2V/100MHz/100MHz 25 4.200 0.50 100 10/5/3/2 Green

HPWC1608MR56□E00 560.0 0.2V/100MHz/100MHz 23 4.700 0.46 90 10/5/3/2 Blue












HPWC2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWC2012M2N7□P00 2.7 0.2V/250MHz  /1500MHz 50 0.06 7.900 800 10/5/2 Yellow

HPWC2012M2N8□P00 2.8 0.2V/250MHz/1500MHz 80 0.06 7.900 800 10/5/2 Gray

HPWC2012M3N0□P00 3.0 0.2V/250MHz/1500MHz 65 0.06 7.900 800 10/5/2 White

HPWC2012M3N3□P00 3.3 0.2V/250MHz/1500MHz 50 0.08 7.900 600 10/5/2 Black

HPWC2012M5N6□P00 5.6 0.2V/250MHz/1000MHz 65 0.08 5.500 600 10/5/2 Orange

HPWC2012M6N8□P00 6.8 0.2V/250MHz/1000MHz 50 0.11 5.500 600 10/5/2 Brown

HPWC2012M7N5□P00 7.5 0.2V/250MHz/1000MHz 50 0.14 4.500 600 10/5/2 Green

HPWC2012M8N2□P00 8.2 0.2V/250MHz/1000MHz 50 0.12 4.700 600 10/5/2 Red

HPWC2012M10N□P00 10.0 0.2V/250MHz/500MHz 60 0.10 4.200 600 10/5/2 Blue

HPWC2012M12N□P00 12.0 0.2V/250MHz/500MHz 50 0.15 4.000 600 10/5/2 Orange

HPWC2012M15N□P00 15.0 0.2V/250MHz/500MHz 50 0.17 3.400 600 10/5/2 Yellow

HPWC2012M18N□P00 18.0 0.2V/250MHz/500MHz 50 0.20 3.300 600 10/5/2 Green

HPWC2012M22N□P00 22.0 0.2V/250MHz/500MHz 55 0.22 2.600 500 10/5/2 Blue

HPWC2012M24N□P00 24.0 0.2V/250MHz/500MHz 50 0.22 2.000 500 10/5/2 Gray

HPWC2012M27N□P00 27.0 0.2V/250MHz/500MHz 55 0.25 2.500 500 10/5/2 Violet

HPWC2012M33N□P00 33.0 0.2V/250MHz/500MHz 60 0.27 2.050 500 10/5/2 Gray

HPWC2012M36N□P00 36.0 0.2V/250MHz/500MHz 55 0.27 1.700 500 10/5/2 Orange

HPWC2012M39N□P00 39.0 0.2V/250MHz/500MHz 60 0.29 2.000 500 10/5/2 White

HPWC2012M43N□P00 43.0 0.2V/200MHz/500MHz 60 0.34 1.650 500 10/5/2 Yellow

HPWC2012M47N□P00 47.0 0.2V/200MHz/500MHz 60 0.31 1.650 500 10/5/2 Black

HPWC2012M56N□P00 56.0 0.2V/200MHz/500MHz 60 0.34 1.550 500 10/5/2 Brown

HPWC2012M68N□P00 68.0 0.2V/200MHz/500MHz 60 0.38 1.450 500 10/5/2 Red

HPWC2012M82N□P00 82.0 0.2V/150MHz/500MHz 65 0.42 1.300 400 10/5/2 Orange

HPWC2012M84N□P00 84.0 0.2V/150MHz/500MHz 65 0.48 1.300 400 10/5/2 Orange

HPWC2012M91N□P00 91.0 0.2V/150MHz/500MHz 65 0.48 1.200 400 10/5/2 Black

HPWC2012MR10□P00 100.0 0.2V/150MHz/500MHz 65 0.46 1.200 400 10/5/2 Yellow

HPWC2012MR11□P00 110.0 0.2V/150MHz/250MHz 50 0.48 1.000 400 10/5/2 Brown

HPWC2012MR12□P00 120.0 0.2V/150MHz/250MHz 50 0.51 1.100 400 10/5/2 Green

HPWC2012MR15□P00 150.0 0.2V/100MHz/250MHz 50 0.56 0.920 400 10/5/2 Blue

HPWC2012MR18□P00 180.0 0.2V/100MHz/250MHz 50 0.64 0.870 400 10/5/2 Violet

HPWC2012MR20□P00 200.0 0.2V/100MHz/250MHz 50 0.68 0.860 400 10/5/2 Red

HPWC2012MR22□P00 220.0 0.2V/100MHz/250MHz 50 0.70 0.850 400 10/5/2 Gray

HPWC2012MR24□P00 240.0 0.2V/100MHz/250MHz 44 1.00 0.690 350 10/5/2 Red

HPWC2012MR25□P00 250.0 0.2V/100MHz/250MHz 45 1.20 0.660 350 10/5/2 Yellow

HPWC2012MR27□P00 270.0 0.2V/100MHz/250MHz 48 1.00 0.650 350 10/5/2 White

HPWC2012MR30□P00 300.0 0.2V/100MHz/250MHz 25 1.40 0.450 310 10/5/2 Orange

HPWC2012MR33□P00 330.0 0.2V/100MHz/250MHz 48 1.40 0.600 310 10/5/2 Black

HPWC2012MR39□P00 390.0 0.2V/100MHz/250MHz 48 1.50 0.560 290 10/5/2 Brown

HPWC2012MR43□P00 430.0 0.2V/50MHz/100MHz 33 1.76 0.375 250 10/5/2 Green

HPWC2012MR47□P00 470.0 0.2V/50MHz/100MHz 33 1.76 0.450 250 10/5/2 Violet

HPWC2012MR51□P00 510.0 0.2V/25MHz/50MHz 23 1.90 0.340 230 10/5/2 Gray












HPWC2012 series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding

(nH) L/Q Min Max Min Max (±%)

HPWC2012MR56□P00 560.0 0.2V/25MHz/50MHz 23 1.90 0.340 230 10/5/2 Orange

HPWC2012MR62□P00 620.0 0.2V/25MHz/50MHz 23 2.20 0.220 210 10/5/2 Yellow

HPWC2012MR68□P00 680.0 0.2V/25MHz/50MHz 23 2.20 0.188 190 10/5/2 Green

HPWC2012MR82□P00 820.0 0.2V/25MHz/50MHz 23 2.35 0.215 180 10/5/2 Blue

HPWC2012M1R0□P00 1000.0 0.2V/25MHz/50MHz 20 2.50 0.100 170 10/5/2 Gray

HPWC2012M1R2□P00 1200.0 0.2V/7.9MHz/25MHz 18 2.50 0.100 170 10/5/2 White

HPWC2012M1R5□P00 1500.0 0.2V/7.9MHz/25MHz 16 2.50 0.100 170 10/5/2 Black

HPWC2012M1R8□P00 1800.0 0.2V/7.9MHz/7.9MHz 16 2.50 0.080 170 10/5/2 Orange

HPWC2012M2R2□P00 2200.0 0.2V/7.9MHz/7.9MHz 16 3.90 0.065 140 10/5/2 Red

HPWC2012M3R3□P00 3300.0 0.2V/7.9MHz/7.9MHz 15 4.40 0.040 90 10/5/2 Red

HPWC2012M4R7□P00 4700.0 0.2V/7.9MHz/7.9MHz 15 6.40 0.040 90 10/5/2 Yellow












HPWC2520 series  Standard Specifications
Part No. Inductance
(nH)		 Test Freq. Q DCR(Ω) SRF(GHz) Irms(mA) Tolerance Color coding
L/Q Min Max Min Max (±%) 1st 2nd 3rd
HPWC2520M10N□P00 10 0.2V/50MHz/500MHz 50 0.08 4.100 1000 2,5,10 Brown Black Black
HPWC2520M12N□P00 12 0.2V/50MHz/500MHz 50 0.09 3.300 1000 2,5,10 Brown Red Black
HPWC2520M15N□P00 15 0.2V/50MHz/500MHz 50 0.18 2.500 1000 2,5,10 Brown Green Black
HPWC2520M18N□P00 18 0.2V/50MHz/350MHz 50 0.11 2.500 1000 2,5,10 Brown Gray Black
HPWC2520M22N□P00 22 0.2V/50MHz/350MHz 55 0.12 2.400 1000 2,5,10 Red Red Black
HPWC2520M27N□P00 27 0.2V/50MHz/350MHz 55 0.13 1.600 1000 2,5,10 Red Violet Black
HPWC2520M33N□P00 33 0.2V/50MHz/350MHz 60 0.14 1.600 1000 2,5,10 Orange Orange Black
HPWC2520M39N□P00 39 0.2V/50MHz/350MHz 60 0.15 1.500 1000 2,5,10 Orange White Black
HPWC2520M47N□P00 47 0.2V/50MHz/350MHz 65 0.16 1.500 1000 2,5,10 Yellow Violet Black
HPWC2520M56N□P00 56 0.2V/50MHz/350MHz 65 0.18 1.300 1000 2,5,10 Green Blue Black
HPWC2520M68N□P00 68 0.2V/50MHz/350MHz 65 0.20 1.300 1000 2,5,10 Blue Gray Black
HPWC2520M82N□P00 82 0.2V/50MHz/350MHz 60 0.22 1.000 1000 2,5,10 Gray Red Black
HPWC2520MR10□P00 100 0.2V/25MHz/350MHz 60 0.56 1.000 650 2,5,10 Brown Black Brown
HPWC2520MR12□P00 120 0.2V/25MHz/350MHz 60 0.63 0.950 650 2,5,10 Brown Red Brown
HPWC2520MR15□P00 150 0.2V/25MHz/100MHz 45 0.70 0.850 580 2,5,10 Brown Green Brown
HPWC2520MR18□P00 180 0.2V/25MHz/100MHz 45 0.77 0.750 620 2,5,10 Brown Gray Brown
HPWC2520MR22□P00 220 0.2V/25MHz/100MHz 45 0.84 0.700 500 2,5,10 Red Red Brown
HPWC2520MR27□P00 270 0.2V/25MHz/100MHz 45 0.91 0.600 500 2,5,10 Red Violet Brown
HPWC2520MR33□P00 330 0.2V/25MHz/100MHz 45 1.05 0.570 450 2,5,10 Orange Orange Brown
HPWC2520MR39□P00 390 0.2V/25MHz/100MHz 45 1.12 0.500 470 2,5,10 Orange White Brown
HPWC2520MR47□P00 470 0.2V/25MHz/100MHz 45 1.19 0.450 470 2,5,10 Yellow Violet Brown
HPWC2520MR56□P00 560 0.2V/25MHz/100MHz 45 1.33 0.415 400 2,5,10 Green Blue Brown
HPWC2520MR62□P00 620 0.2V/25MHz/100MHz 45 1.40 0.375 300 2,5,10 Blue Red Brown
HPWC2520MR68□P00 680 0.2V/25MHz/100MHz 45 1.47 0.375 400 2,5,10 Blue Gray Brown
HPWC2520MR75□P00 750 0.2V/25MHz/100MHz 45 1.54 0.360 360 2,5,10 Violet Green Brown
HPWC2520MR82□P00 820 0.2V/25MHz/100MHz 45 1.61 0.350 400 2,5,10 Gray Red Brown
HPWC2520MR91□P00 910 0.2V/25MHz/50MHz 35 1.68 0.320 380 2,5,10 White Brown Brown
HPWC2520M1R0□P00 1000 0.2V/25MHz/50MHz 35 1.75 0.290 370 2,5,10 Brown Black Red
HPWC2520M1R2□P00 1200 0.2V/7.9MHz/50MHz 35 2.00 0.250 310 2,5,10 Brown Red Red
HPWC2520M1R5□P00 1500 0.2V/7.9MHz/50MHz 28 2.23 0.200 330 2,5,10 Brown Green Red
HPWC2520M1R8□P00 1800 0.2V/7.9MHz/50MHz 28 2.60 0.160 300 2,5,10 Brown Gray Red
HPWC2520M2R2□P00 2200 0.2V/7.9MHz/50MHz 28 2.80 0.160 280 2,5,10 Red Red Red
HPWC2520M2R7□P00 2700 0.2V/7.9MHz/25MHz 22 3.20 0.140 290 2,5,10 Red Violet Red
HPWC2520M3R3□P00 3300 0.2V/7.9MHz/25MHz 22 3.40 0.110 290 2,5,10 Orange Orange Red
HPWC2520M3R9□P00 3900 0.2V/7.9MHz/25MHz 20 3.60 0.100 260 2,5,10 Orange White Red
HPWC2520M4R7□P00 4700 0.2V/7.9MHz/7.9MHz 18 4.00 0.032 260 2,5,10 Yellow Violet Red
HPWC2520M5R6□P00 5600 0.2V/7.9MHz/7.9MHz 16 5.70 0.020 240 2,5,10 Green Blue Red
HPWC2520M6R8□P00 6800 0.2V/7.9MHz/7.9MHz 18 7.70 0.040 200 2,5,10 Blue Gray Red
HPWC2520M8R2□P00 8200 0.2V/7.9MHz/7.9MHz 18 10.70 0.025 170 2,5,10 Gray Red Red
HPWC2520M100□P00 10000 0.2V/7.9MHz/7.9MHz 18 12.70 0.025 100 2,5,10 Brown Black Orange


Product Description
physical dimension
Model and features
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
