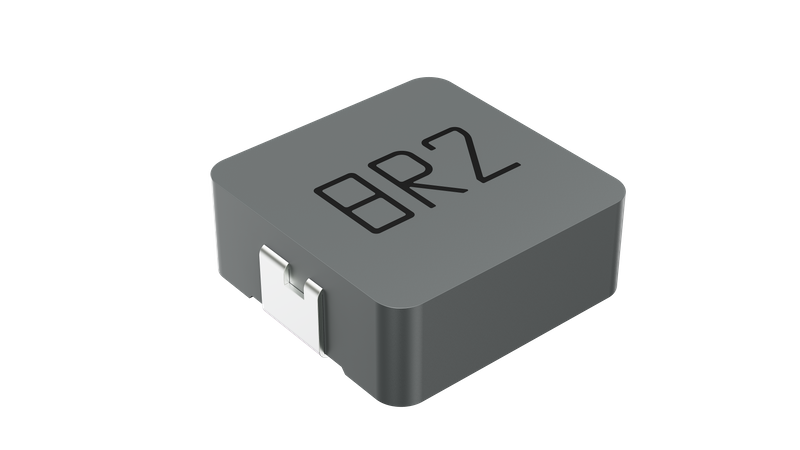

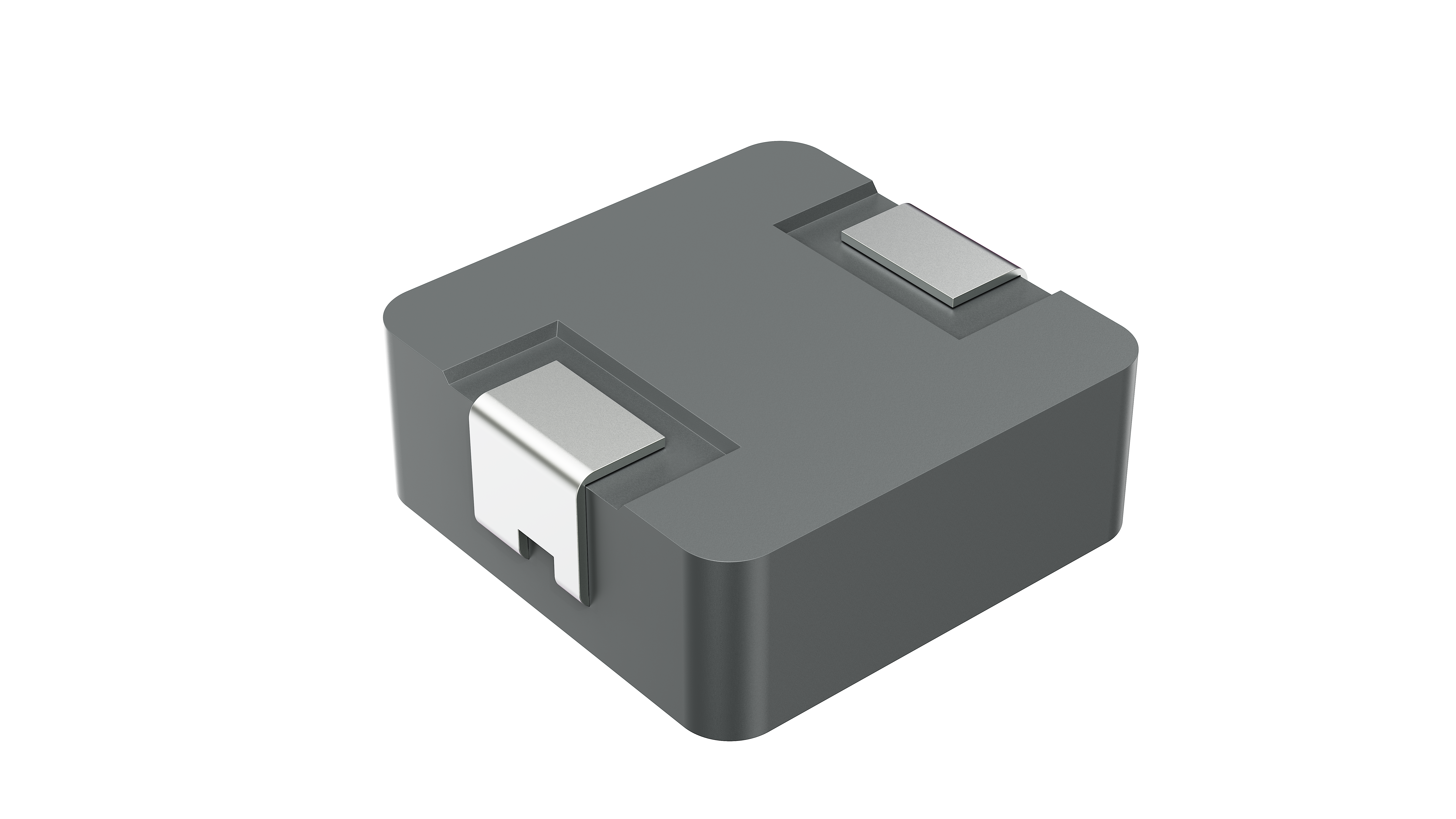

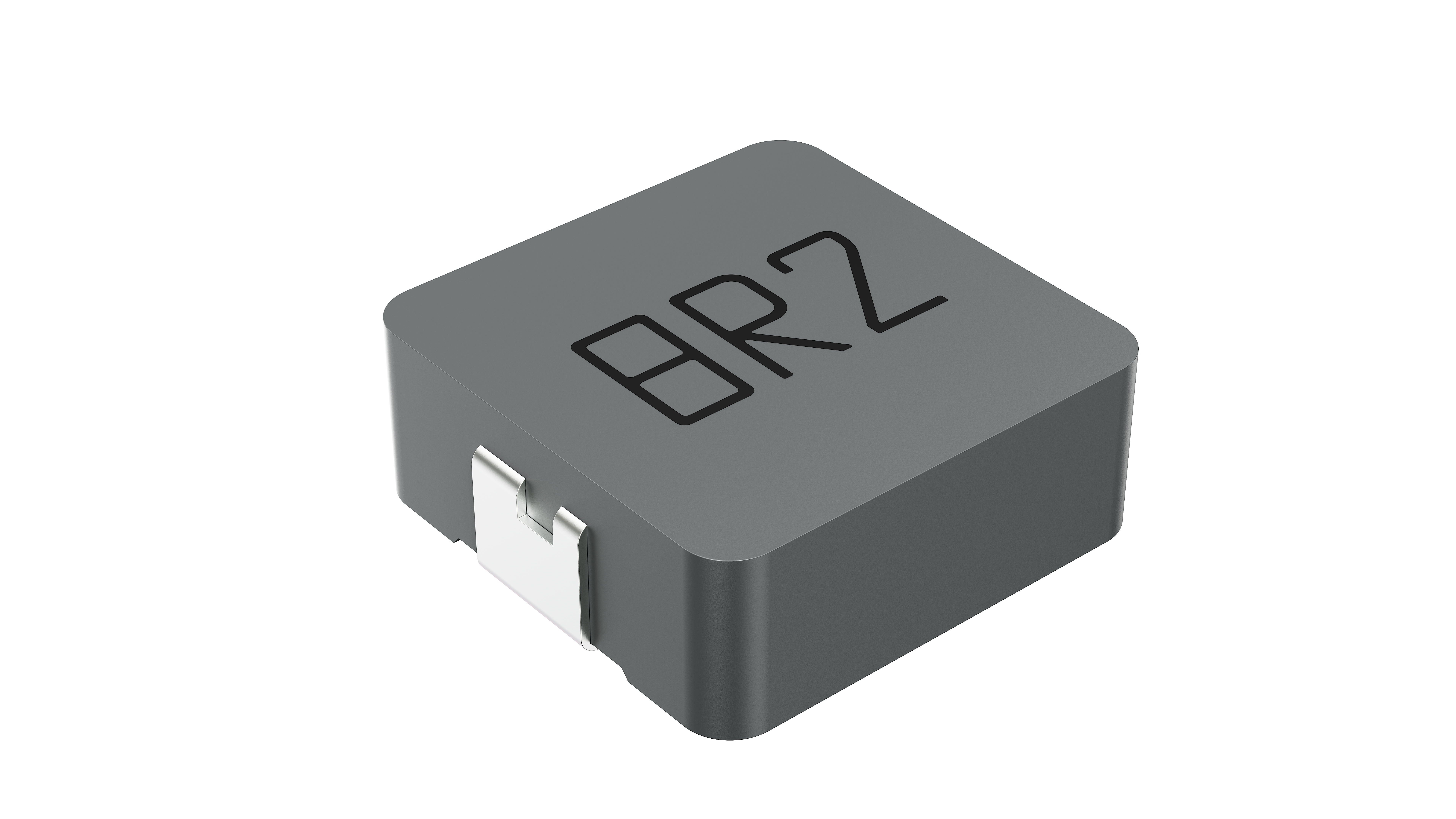

HRB SERIES

Features:
RoHS compliant
Ultra-low resistance, ultra-high current rating
Metal powder cores enable high performance (Isat)
Frequency range: up to 1MHz

Application areas:
Laptops and PCs
switches and servers
base station
DC/DC converter
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Models and features

HRB SERIES



HCUG

 Product number               HRB SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.









HRB SERIES appearance dimensions   In mm

3


TYPE A B C D E
0415A 4.49±0.40 4.06±0.30 1.5max 1.5±0.3 1.1±0.3
0402A 4.49±0.40 4.06±0.30 2.0max 1.5±0.3 1.1±0.3
0515A 5.6±0.3 5.3max 1.5max 2.0±0.3 1.2±0.3
0518A 5.6±0.3 5.3max 1.8max 2.0±0.3 1.2±0.3
0502A 5.6±0.3 5.3max 2.0max 2.0±0.3 1.2±0.3
0503A 5.6±0.3 5.3max 3.0max 2.0±0.3 1.2±0.3
0615A 7.6max 6.6±0.3 1.5max 3.0±0.3 1.6±0.5
0618A 7.6max 6.6±0.3 1.8max 3.0±0.3 1.6±0.5
0602A 7.6max 6.6±0.3 2.0max 3.0±0.3 1.6±0.5
0624A 7.6max 6.6±0.3 2.4max 3.0±0.3 1.6±0.5
0603A 7.6max 6.6±0.3 3.0max 3.0±0.3 1.6±0.5
0604A 7.6max 6.6±0.3 4.0max 3.0±0.3 1.6±0.5
0605A 7.6max 6.6±0.3 5.0max 3.0±0.3 1.6±0.5
0705A 7.6±0.5 7.8±0.5 5.0MAX 5.0±0.3 1.5±0.5
1003A 11.8max 10.5max 3.0max 3.0±0.3 2.0±0.5
1004A 11.8max 10.5max 4.0max 3.0±0.3 2.0±0.5
1005A 11.0±0.5 10.0±0.3 5.0max 3.0±0.3 2.0±0.5
1235A 13.5±1.0 12.8±0.5 3.5max 3.5±0.5 2.5±0.5
1205A 13.5±1.0 12.8±0.5 5.0max 3.5±0.5 2.5±0.5
1265A 13.5±1.0 12.8±0.5 6.5max 3.5±0.5 2.5±0.5
1704A 18.0±1.0 17.0±0.5 4.0max 12.0±0.3 3.3±0.5
1707A 18.0±1.0 17.0±0.5 7.0max 12.0±0.3 3.3±0.5


HRBN0415A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0415AR22□PN00 0.22 100kHz,1V 9.5(11) 11.0 8.0 20,30 R22
HRBN0415AR33□PN00 0.33 100kHz,1V 15(19) 10.0 7.0 20,30 R33
HRBN0415AR47□PN00 0.47 100kHz,1V 17(20) 8.0 6.0 20,30 R47
HRBN0415AR68□PN00 0.68 100kHz,1V 19(22) 7.5 5.0 20,30 R68
HRBN0415A1R0□PN00 1.0 100kHz,1V 38(42) 7.0 4.0 20,30 1R0
HRBN0415A1R5□PN00 1.5 100kHz,1V 48(50) 6.0 3.5 20,30 1R5
HRBN0415A2R2□PN00 2.2 100kHz,1V 69(85) 5.0 3.0 20,30 2R2
HRBN0415A3R3□PN00 3.3 100kHz,1V 120(140) 3.5 2.3 20,30 3R3
HRBN0415A4R7□PN00 4.7 100kHz,1V 130(150) 2.8 2.0 20,30 4R7








HRBN0402A series  Standard Specifications






Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0402AR10□PN00 0.10 100kHz,1V 3.8(4.5) 23.0 12.0 30 R10
HRBN0402AR22□PN00 0.22 100kHz,1V 5.0(7.0) 16.0 11.0 20,30 R22
HRBN0402AR33□PN00 0.33 100kHz,1V 8.2(10.5) 12.0 10.5 20,30 R33
HRBN0402AR36□PN00 0.36 100kHz,1V 8.5(11) 11.0 9.0 20,30 R36
HRBN0402AR47□PN00 0.47 100kHz,1V 11(14) 10.0 7.0 20,30 R47
HRBN0402AR56□PN00 0.56 100kHz,1V 14(18) 9.5 6.5 20,30 R56
HRBN0402AR68□PN00 0.68 100kHz,1V 15(20) 8.0 6.0 20,30 R68
HRBN0402A1R0□PN00 1.00 100kHz,1V 23(27) 7.0 4.5 20,30 1R0
HRBN0402A1R2□PN00 1.20 100kHz,1V 28(33) 6.5 4.0 20,30 1R2
HRBN0402A1R5□PN00 1.50 100kHz,1V 30(36) 6.0 4.0 20,30 1R5
HRBN0402A2R2□PN00 2.20 100kHz,1V 49(58) 5.0 3.0 20,30 2R2
HRBN0402A3R3□PN00 3.30 100kHz,1V 78(87) 4.0 3.0 20,30 3R3
HRBN0402A4R7□PN00 4.70 100kHz,1V 105(140) 3.0 2.2 20,30 4R7
HRBN0402A6R8□PN00 6.80 100kHz,1V 120(175) 2.5 2.0 20,30 6R8
HRBN0402A100□PN00 10.00 100kHz,1V 185(220) 2.0 1.5 20,30 100








HRBN0515A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0515AR22□PN00 0.22 100kHz,1V 7.2(8.5) 16.0 13.0 20,30 R22
HRBN0515AR47□PN00 0.47 100kHz,1V 12(13.8) 12.0 8.0 20,30 R47
HRBN0515AR68□PN00 0.68 100kHz,1V 15(20) 10.0 7.0 20,30 R68
HRBN0515A1R0□PN00 1.0 100kHz,1V 28(33) 8.0 5.0 20,30 1R0
HRBN0515A2R2□PN00 2.2 100kHz,1V 60(70) 5.0 4.0 20,30 2R2
HRBN0515A3R3□PN00 3.3 100kHz,1V 75(90) 4.0 3.0 20,30 3R2
HRBN0515A4R7□PN00 4.7 100kHz,1V 110(135) 3.5 2.5 20,30 4R7








HRBN0518A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0518AR47□PN00 0.47 100kHz,1V 8.2(9.0) 15.0 11.5 20,30 R47
HRBN0518AR68□PN00 0.68 100kHz,1V 11.5(12.5) 11.0 9.5 20,30 R68
HRBN0518A1R0□PN00 1.0 100kHz,1V 15(20) 8.0 6.0 20,30 1R0
HRBN0518A2R2□PN00 2.2 100kHz,1V 42(50) 6.0 4.0 20,30 2R2
HRBN0518A3R3□PN00 3.3 100kHz,1V 58(70) 5.0 3.5 20,30 3R3
HRBN0518A4R7□PN00 4.7 100kHz,1V 105(115) 4.0 3.0 20,30 4R7
HRBN0518A6R8□PN00 6.8 100kHz,1V 120(150) 2.8 2.5 20,30 6R8
HRBN0518A100□PN00 10.0 100kHz,1V 180(200) 2.0 1.5 20,30 100








HRBN0502A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0502AR22□PN00 0.22 100kHz,1V 4.6(6.0) 16.5 13.0 20,30 R22
HRBN0502AR33□PN00 0.33 100kHz,1V 7.4(9.0) 15.0 12.0 20,30 R33
HRBN0502AR47□PN00 0.47 100kHz,1V 7.4(9.0) 12.0 11.5 20,30 R47
HRBN0502A1R0□PN00 1.0 100kHz,1V 15(20) 8.0 6.0 20,30 1R0
HRBN0502A1R5□PN00 1.5 100kHz,1V 22(26) 7.0 5.0 20,30 1R5
HRBN0502A2R2□PN00 2.2 100kHz,1V 42(50) 6.0 4.0 20,30 2R2
HRBN0502A2R7□PN00 2.7 100kHz,1V 58(70) 5.5 3.5 20,30 2R7
HRBN0502A3R3□PN00 3.3 100kHz,1V 58(70) 5.0 3.5 20,30 3R3
HRBN0502A4R7□PN00 4.7 100kHz,1V 85(95) 4.0 3.2 20,30 4R7
HRBN0502A6R8□PN00 6.8 100kHz,1V 120(150) 2.8 2.5 20,30 6R8
HRBN0502A100□PN00 10.0 100kHz,1V 170(200) 2.0 1.8 20,30 100








HRBN0503A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0503AR22□PN00 0.22 100kHz,1V 4.5(5.0) 25.0 14.0 20,30 R22
HRBN0503AR47□PN00 0.47 100kHz,1V 8.0(10.0) 14.0 11.5 20,30 R47
HRBN0503AR68□PN00 0.68 100kHz,1V 9.0(12.0) 12.0 9.0 20,30 R68
HRBN0503A1R0□PN00 1.0 100kHz,1V 12(16) 10.0 7.0 20,30 1R0
HRBN0503A1R5□PN00 1.5 100kHz,1V 15(20) 9.0 6.0 20,30 1R5
HRBN0503A2R2□PN00 2.2 100kHz,1V 28(35) 8.0 5.0 20,30 2R2
HRBN0503A3R3□PN00 3.3 100kHz,1V 38(45) 7.0 4.5 20,30 3R3
HRBN0503A4R7□PN00 4.7 100kHz,1V 52(60) 5.0 4.0 20,30 4R7
HRBN0503A6R8□PN00 6.8 100kHz,1V 62(80) 3.5 3.0 20,30 6R8
HRBN0503A100□PN00 10.0 100kHz,1V 110(130) 3.5 2.8 20,30 100








HRBN0615A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0615AR10□PN00 0.10 100kHz,1V 2.8(3.1) 24.0 19.0 20,30 R10
HRBN0615AR68□PN00 0.68 100kHz,1V 12.5(13.5) 12.0 8.5 20,30 R68
HRBN0615A1R0□PN00 1.0 100kHz,1V 17(21) 7.0 5.5 20,30 1R0
HRBN0615A2R2□PN00 2.2 100kHz,1V 45(50) 6.0 5.0 20,30 2R2
HRBN0615A3R3□PN00 3.3 100kHz,1V 55(70) 5.0 3.0 20,30 3R3
HRBN0615A4R7□PN00 4.7 100kHz,1V 95(110) 4.5 2.8 20,30 4R7
HRBN0615A6R8□PN00 6.8 100kHz,1V 125(135) 3.5 2.5 20,30 6R8








HRBN0618A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0618AR10□PN00 0.10 100kHz,1V 2.1(2.8) 32.0 22.0 20,30 R10
HRBN0618AR22□PN00 0.22 100kHz,1V 3.0(3.5) 25.0 18.0 20,30 R22
HRBN0618AR33□PN00 0.33 100kHz,1V 5.6(6.8) 20.0 17.0 20,30 R33
HRBN0618AR68□PN00 0.68 100kHz,1V 8.7(12) 12.0 9.0 20,30 R68
HRBN0618A1R0□PN00 1.0 100kHz,1V 18(20) 11.0 8.0 20,30 1R0
HRBN0618A1R5□PN00 1.5 100kHz,1V 26(30) 10.0 7.0 20,30 1R5
HRBN0618A2R2□PN00 2.2 100kHz,1V 32(35) 8.0 6.0 20,30 2R2
HRBN0618A3R3□PN00 3.3 100kHz,1V 50(55) 7.0 4.0 20,30 3R3
HRBN0618A4R7□PN00 4.7 100kHz,1V 55(70) 5.0 3.5 20,30 4R7
HRBN0618A6R8□PN00 6.8 100kHz,1V 80(110) 4.0 2.8 20,30 6R8
HRBN0618A100□PN00 10.0 100kHz,1V 115(150) 3.0 2.3 20,30 100








HRBN0602A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0602AR10□PN00 0.10 100kHz,1V 2.1(2.8) 32.0 22.0 20,30 R10
HRBN0602AR22□PN00 0.22 100kHz,1V 3.8(5.2) 25.0 18.0 20,30 R22
HRBN0602AR33□PN00 0.33 100kHz,1V 5.6(6.8) 20.0 17.0 20,30 R33
HRBN0602AR47□PN00 0.47 100kHz,1V 7.2(8.4) 16.0 11.0 20,30 R47
HRBN0602AR68□PN00 0.68 100kHz,1V 9.5(12) 15.0 9.0 20,30 R68
HRBN0602A1R0□PN00 1.0 100kHz,1V 18(20) 13.0 8.0 20,30 1R0
HRBN0602A2R2□PN00 2.2 100kHz,1V 32(35) 9.0 6.0 20,30 2R2
HRBN0602A3R3□PN00 3.3 100kHz,1V 50(55) 7.0 4.0 20,30 3R3
HRBN0602A4R7□PN00 4.7 100kHz,1V 55(70) 5.0 3.5 20,30 4R7
HRBN0602A5R6□PN00 5.6 100kHz,1V 63(80) 4.5 3.0 20,30 5R6
HRBN0602A6R8□PN00 6.8 100kHz,1V 82(110) 4.0 2.8 20,30 6R8
HRBN0602A100□PN00 10.0 100kHz,1V 105(120) 3.0 2.3 20,30 100
HRBN0602A150□PN00 15.0 100kHz,1V 147(170) 2.5 2.0 20,30 150








HRBN0624A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0624AR10□PN00 0.10 100kHz,1V 2.1(2.5) 35.0 22.0 20,30 R10
HRBN0624AR22□PN00 0.22 100kHz,1V 2.9(3.2) 27.0 20.0 20,30 R22
HRBN0624AR33□PN00 0.33 100kHz,1V 3.5(4.5) 24.0 18.0 20,30 R33
HRBN0624AR47□PN00 0.47 100kHz,1V 5.6(6.8) 21.0 15.0 20,30 R47
HRBN0624AR68□PN00 0.68 100kHz,1V 7.0(9.0) 18.0 9.0 20,30 R68
HRBN0624AR82□PN00 0.82 100kHz,1V 7.0(9.0) 18.0 9.0 20,30 R82
HRBN0624A1R0□PN00 1.00 100kHz,1V 11(13) 15.0 9.0 20,30 1R0
HRBN0624A1R5□PN00 1.50 100kHz,1V 16.5(20) 12.0 8.0 20,30 1R5
HRBN0624A2R2□PN00 2.20 100kHz,1V 22(28) 10.0 7.0 20,30 2R2
HRBN0624A3R3□PN00 3.30 100kHz,1V 42(50) 8.0 5.5 20,30 3R3
HRBN0624A4R7□PN00 4.70 100kHz,1V 47(55) 7.0 5.0 20,30 4R7
HRBN0624A6R8□PN00 6.80 100kHz,1V 82(90) 6.0 3.5 20,30 6R8
HRBN0624A100□PN00 10.00 100kHz,1V 89(101) 4.0 3.1 20,30 100
HRBN0624A150□PN00 15.00 100kHz,1V 120(160) 3.3 2.5 20,30 150
HRBN0624A220□PN00 22.00 100kHz,1V 217(230) 2.5 2.0 20,30 220








HRBN0603A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0603AR10□PN00 0.10 100kHz,1V 1.8(2.2) 50.0 25.0 20,30 R10
HRBN0603AR22□PN00 0.22 100kHz,1V 2.5(2.8) 35.0 23.0 20,30 R22
HRBN0603AR33□PN00 0.33 100kHz,1V 3.0(3.5) 25.0 21.0 20,30 R33
HRBN0603AR47□PN00 0.47 100kHz,1V 3.6(4.5) 20.0 17.5 20,30 R47
HRBN0603AR56□PN00 0.56 100kHz,1V 3.7(4.5) 18.0 16.5 20,30 R56
HRBN0603AR68□PN00 0.68 100kHz,1V 5.0(5.5) 17.0 16.0 20,30 R68
HRBN0603A1R0□PN00 1.0 100kHz,1V 7.0(8.0) 15.3 12.0 20,30 1R0
HRBN0603A1R5□PN00 1.5 100kHz,1V 10.5(12) 13.0 9.0 20,30 1R5
HRBN0603A2R2□PN00 2.2 100kHz,1V 13.5(16) 10.2 8.0 20,30 2R2
HRBN0603A3R3□PN00 3.3 100kHz,1V 21(25) 8.0 6.5 20,30 3R3
HRBN0603A4R7□PN00 4.7 100kHz,1V 28(35) 6.6 5.5 20,30 4R7
HRBN0603A5R6□PN00 5.6 100kHz,1V 45(55) 7.0 5.0 20,30 5R6
HRBN0603A6R8□PN00 6.8 100kHz,1V 45(55) 6.1 5.0 20,30 6R8
HRBN0603A8R2□PN00 8.2 100kHz,1V 60(68) 6.0 4.0 20,30 8R2
HRBN0603A100□PN00 10.0 100kHz,1V 60(68) 5.0 4.0 20,30 100
HRBN0603A150□PN00 15.0 100kHz,1V 95(110) 4.5 2.8 20,30 150
HRBN0603A220□PN00 22.0 100kHz,1V 121(167) 3.0 2.5 20,30 220
HRBN0603A330□PN00 33.0 100kHz,1V 218(245) 2.0 1.5 20,30 330








HRBN0604A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0604AR15□PN00 0.15 100kHz,1V 0.65(1.0) 48.0 25.0 20,30 R15
HRBN0604AR22□PN00 0.22 100kHz,1V 2.5(3.0) 35.0 23.0 20,30 R22
HRBN0604AR33□PN00 0.33 100kHz,1V 2.8(3.5) 25.0 21.0 20,30 R33
HRBN0604AR47□PN00 0.47 100kHz,1V 3.5(4.5) 21.0 17.0 20,30 R47
HRBN0604AR56□PN00 0.56 100kHz,1V 4.4(5.5) 18.0 16.0 20,30 R56
HRBN0604AR68□PN00 0.68 100kHz,1V 4.4(5.5) 17.0 14.0 20,30 R68
HRBN0604A1R0□PN00 1.0 100kHz,1V 7.0(8.0) 15.0 10.0 20,30 1R0
HRBN0604A1R5□PN00 1.5 100kHz,1V 7.7(9.0) 13.0 9.0 20,30 1R5
HRBN0604A2R2□PN00 2.2 100kHz,1V 13.5(16) 11.0 8.0 20,30 2R2
HRBN0604A3R3□PN00 3.3 100kHz,1V 14(20) 9.0 6.5 20,30 3R3
HRBN0604A4R7□PN00 4.7 100kHz,1V 22(25) 8.0 6.0 20,30 4R7
HRBN0604A6R8□PN00 6.8 100kHz,1V 35(45) 7.0 5.0 20,30 6R8
HRBN0604A8R2□PN00 8.2 100kHz,1V 46(55) 6.5 4.0 20,30 8R2
HRBN0604A100□PN00 10.0 100kHz,1V 53(65) 6.0 3.5 20,30 100
HRBN0604A150□PN00 15.0 100kHz,1V 70(80) 4.5 3.0 20,30 150
HRBN0604A220□PN00 22.0 100kHz,1V 100(120) 3.5 2.5 20,30 220
HRBN0604A330□PN00 33.0 100kHz,1V 165(200) 3.0 2.0 20,30 330
HRBN0604A470□PN00 47.0 100kHz,1V 230(260) 2.0 1.5 20,30 470








HRBN0605A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0605AR15□PN00 0.15 100kHz,1V 0.65(1.0) 50.0 30.0 20,30 R15
HRBN0605AR22□PN00 0.22 100kHz,1V 1.9(3.0) 43.0 25.0 20,30 R22
HRBN0605AR36□PN00 0.36 100kHz,1V 2.3(3.5) 30.0 22.0 20,30 R36
HRBN0605AR47□PN00 0.47 100kHz,1V 3.2(4.5) 24.0 18.0 20,30 R47
HRBN0605AR82□PN00 0.82 100kHz,1V 5.8(6.5) 20.0 14.0 20,30 R82
HRBN0605A1R0□PN00 1.00 100kHz,1V 7.2(8.0) 17.0 12.0 20,30 1R0
HRBN0605A1R5□PN00 1.5 100kHz,1V 7.7(9.0) 14.0 10.0 20,30 1R5
HRBN0605A2R2□PN00 2.20 100kHz,1V 10.5(12.5) 12.0 9.5 20,30 2R2
HRBN0605A2R7□PN00 2.7 100kHz,1V 16(20) 11.0 8.5 20,30 2R7
HRBN0605A3R3□PN00 3.30 100kHz,1V 16(20) 9.0 8.5 20,30 3R3
HRBN0605A4R7□PN00 4.7 100kHz,1V 22(25) 8.0 6.5 20,30 4R7
HRBN0605A6R8□PN00 6.80 100kHz,1V 30(35.5) 7.5 6.0 20,30 6R8
HRBN0605A100□PN00 10.0 100kHz,1V 53(60) 5.5 4.5 20,30 100
HRBN0605A150□PN00 15.00 100kHz,1V 76(85) 5.0 3.5 20,30 150
HRBN0605A220□PN00 22.0 100kHz,1V 101(130) 4.0 2.5 20,30 220
HRBN0605A330□PN00 33.00 100kHz,1V 158(176.4) 3.0 2.0 20,30 330
HRBN0605A470□PN00 47.0 100kHz,1V 190(225) 2.5 1.8 20,30 470








HRBN0705A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0705A1R0□PN00 1.00 100kHz,1V 4.0(5.0) 20.0 14.0 20,30 1R0
HRBN0705A1R5□PN00 1.50 100kHz,1V 6.5(7.5) 16.0 11.0 20,30 1R5
HRBN0705A2R2□PN00 2.20 100kHz,1V 7.6(8.5) 14.0 10.0 20,30 2R2
HRBN0705A3R3□PN00 3.30 100kHz,1V 14(16) 13.0 8.0 20,30 3R3
HRBN0705A4R7□PN00 4.70 100kHz,1V 19(20.9) 12.5 7.0 20,30 4R7
HRBN0705A6R8□PN00 6.80 100kHz,1V 24.2(28) 10.0 6.0 20,30 6R8
HRBN0705A8R2□PN00 8.20 100kHz,1V 29(32) 9.0 5.5 20,30 6R8
HRBN0705A100□PN00 10.00 100kHz,1V 34.5(38) 6.9 5.2 20,30 100
HRBN0705A150□PN00 15.00 100kHz,1V 60(66) 6.5 3.8 20,30 150
HRBN0705A220□PN00 22.00 100kHz,1V 85(100) 4.5 3.3 20,30 220
HRBN0705A330□PN00 33.00 100kHz,1V 153(170) 4.0 2.5 20,30 330
HRBN0705A470□PN00 47.00 100kHz,1V 160(171.6) 3.0 2.4 20,30 470
HRBN0705A680□PN00 68.00 100kHz,1V 222(255) 2.5 1.8 20,30 680








HRBN1003A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1003AR22□PN00 0.22 100kHz,1V 0.7(1.0) 40.0 30.0 20,30 R22
HRBN1003AR36□PN00 0.36 100kHz,1V 1.4(1.6) 35.0 23.0 20,30 R36
HRBN1003AR47□PN00 0.47 100kHz,1V 1.5(1.7) 24.0 18.0 20,30 R47
HRBN1003AR68□PN00 0.68 100kHz,1V 2.6(3.2) 23.0 17.0 20,30 R68
HRBN1003A1R0□PN00 1.0 100kHz,1V 5.0(7.0) 19.0 13.0 20,30 1R0
HRBN1003A1R5□PN00 1.5 100kHz,1V 7.2(9.0) 18.0 10.0 20,30 1R5
HRBN1003A2R2□PN00 2.2 100kHz,1V 8(10) 16.0 9.0 20,30 2R2
HRBN1003A3R3□PN00 3.3 100kHz,1V 14(20) 12.0 7.0 20,30 3R3
HRBN1003A4R7□PN00 4.7 100kHz,1V 24(28) 11.0 6.0 20,30 4R7
HRBN1003A6R8□PN00 6.8 100kHz,1V 34(45) 8.0 5.0 20,30 6R8
HRBN1003A100□PN00 10.0 100kHz,1V 54(58) 7.5 4.0 20,30 100
HRBN1003A150□PN00 15.0 100kHz,1V 65(75) 5.0 3.5 20,30 150
HRBN1003A220□PN00 22.0 100kHz,1V 75(90) 4.0 2.5 20,30 220








HRBN1004A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1004AR15□PN00 0.15 100kHz,1V 0.5(0.6) 65.0 48.0 20,30 R15
HRBN1004AR22□PN00 0.22 100kHz,1V 0.6(0.8) 55.0 35.0 20,30 R22
HRBN1004AR36□PN00 0.36 100kHz,1V 1.1(1.4) 50.0 30.0 20,30 R36
HRBN1004AR47□PN00 0.47 100kHz,1V 1.4(1.6) 35.0 25.0 20,30 R47
HRBN1004AR56□PN00 0.56 100kHz,1V 1.5(1.7) 30.0 23.0 20,30 R56
HRBN1004AR68□PN00 0.68 100kHz,1V 1.7(2.4) 30.0 20.0 20,30 R68
HRBN1004A1R0□PN00 1.0 100kHz,1V 2.8(3.5) 26.0 20.0 20,30 1R0
HRBN1004A1R5□PN00 1.5 100kHz,1V 4.5(5.8) 22.0 16.0 20,30 1R5
HRBN1004A2R2□PN00 2.2 100kHz,1V 6.5(7.5) 18.0 12.0 20,30 2R2
HRBN1004A3R3□PN00 3.3 100kHz,1V 10.5(11.6) 16.0 11.0 20,30 3R3
HRBN1004A4R7□PN00 4.7 100kHz,1V 13.5(16.5) 15.0 9.0 20,30 4R7
HRBN1004A5R6□PN00 5.6 100kHz,1V 18(22) 12.0 7.0 20,30 5R6
HRBN1004A6R8□PN00 6.8 100kHz,1V 20(25) 11.0 7.0 20,30 6R8
HRBN1004A8R2□PN00 8.2 100kHz,1V 33(36) 9.0 6.0 20,30 8R2
HRBN1004A100□PN00 10.0 100kHz,1V 35(40) 8.5 6.0 20,30 100
HRBN1004A150□PN00 15.0 100kHz,1V 42(45) 7.0 6.0 20,30 150
HRBN1004A220□PN00 22.0 100kHz,1V 62(68) 5.6 5.1 20,30 220
HRBN1004A330□PN00 33.0 100kHz,1V 90(100) 5.0 3.5 20,30 330
HRBN1004A470□PN00 47.0 100kHz,1V 127(145) 4.0 3.3 20,30 470








HRBN1005A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1005AR15□PN00 0.15 100kHz,1V 0.5(0.6) 65.0 48.0 20,30 R15
HRBN1005AR22□PN00 0.22 100kHz,1V 0.5(0.6) 60.0 40.0 20,30 R22
HRBN1005AR36□PN00 0.36 100kHz,1V 0.9(1.1) 55.0 38.0 20,30 R36
HRBN1005AR47□PN00 0.47 100kHz,1V 1.1(1.3) 50.0 36.0 20,30 R47
HRBN1005AR68□PN00 0.68 100kHz,1V 1.6(2.0) 40.0 25.0 20,30 R68
HRBN1005AR82□PN00 0.82 100kHz,1V 2.0(2.5) 34.0 20.0 20,30 R82
HRBN1005A1R0□PN00 1.0 100kHz,1V 2.56(2.8) 30.0 22.0 20,30 1R0
HRBN1005A1R5□PN00 1.5 100kHz,1V 3.9(4.6) 25.0 18.0 20,30 1R5
HRBN1005A2R2□PN00 2.2 100kHz,1V 6.4(6.86) 20.0 17.0 20,30 2R2
HRBN1005A3R3□PN00 3.3 100kHz,1V 10.4(11.56) 16.0 12.0 20,30 3R3
HRBN1005A4R7□PN00 4.7 100kHz,1V 13(16) 15.0 10.0 20,30 4R7
HRBN1005A5R6□PN00 5.6 100kHz,1V 13.5(18) 14.0 9.0 20,30 5R6
HRBN1005A6R8□PN00 6.8 100kHz,1V 17(22) 12.0 8.0 20,30 6R8
HRBN1005A8R2□PN00 8.2 100kHz,1V 22(25) 11.0 7.0 20,30 8R2
HRBN1005A100□PN00 10.0 100kHz,1V 26(30) 10.0 6.0 20,30 100
HRBN1005A150□PN00 15.0 100kHz,1V 39(45) 8.0 5.0 20,30 150
HRBN1005A220□PN00 22.0 100kHz,1V 55(62) 7.0 4.5 20,30 220
HRBN1005A330□PN00 33.0 100kHz,1V 90(95) 6.0 4.0 20,30 330
HRBN1005A470□PN00 47.0 100kHz,1V 127(145) 5.0 3.5 20,30 470
HRBN1005A680□PN00 68.0 100kHz,1V 215(258) 5.0 3.0 20,30 680
HRBN1005A820□PN00 82.0 100kHz,1V 222(280) 4.5 2.0 20,30 820
HRBN1005A101□PN00 100.0 100kHz,1V 222(280) 4.0 2.0 20,30 101








HRBN1235A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1235AR15□PN00 0.15 100kHz,1V 0.7(0.9) 65.0 40.0 20,30 R15
HRBN1235AR22□PN00 0.22 100kHz,1V 0.9(1.2) 60.0 35.0 20,30 R22
HRBN1235AR33□PN00 0.33 100kHz,1V 1.1(1.5) 55.0 32.0 20,30 R33
HRBN1235AR47□PN00 0.47 100kHz,1V 1.1(1.5) 45.0 30.0 20,30 R47
HRBN1235AR68□PN00 0.68 100kHz,1V 2.1(2.5) 40.0 28.0 20,30 R68
HRBN1235A1R0□PN00 1.0 100kHz,1V 3.2(3.5) 28.0 24.0 20,30 1R0
HRBN1235A1R5□PN00 1.5 100kHz,1V 5.1(5.5) 25.0 19.0 20,30 1R5
HRBN1235A2R2□PN00 2.2 100kHz,1V 7.0(8.0) 22.0 16.0 20,30 2R2
HRBN1235A3R3□PN00 3.3 100kHz,1V 10(12) 20.0 12.0 20,30 3R3
HRBN1235A4R7□PN00 4.7 100kHz,1V 16(20) 14.0 10.0 20,30 4R7
HRBN1235A6R8□PN00 6.8 100kHz,1V 19(22) 13.0 9.0 20,30 6R8
HRBN1235A100□PN00 10.0 100kHz,1V 28(35) 10.0 6.0 20,30 100
HRBN1235A150□PN00 15.0 100kHz,1V 70(90) 7.0 4.0 20,30 150
HRBN1235A220□PN00 22.0 100kHz,1V 99(110) 5.5 3.0 20,30 220








HRBN1205A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1205AR22□PN00 0.22 100kHz,1V 0.5(0.7) 60.0 40.0 20,30 R22
HRBN1205AR36□PN00 0.36 100kHz,1V 0.7(0.9) 55.0 38.0 20,30 R36
HRBN1205AR47□PN00 0.47 100kHz,1V 1.0(1.3) 55.0 31.0 20,30 R47
HRBN1205AR68□PN00 0.68 100kHz,1V 1.3(1.5) 50.0 30.0 20,30 R68
HRBN1205AR82□PN00 0.82 100kHz,1V 1.7(2.1) 45.0 29.0 20,30 R82
HRBN1205A1R0□PN00 1.0 100kHz,1V 1.8(2.5) 40.0 28.0 20,30 1R0
HRBN1205A1R5□PN00 1.5 100kHz,1V 2.7(4.1) 35.0 21.0 20,30 1R5
HRBN1205A2R2□PN00 2.2 100kHz,1V 4.5(5.5) 24.0 18.0 20,30 2R2
HRBN1205A3R3□PN00 3.3 100kHz,1V 7.5(9) 22.0 15.0 20,30 3R3
HRBN1205A4R7□PN00 4.7 100kHz,1V 11(12) 18.0 11.0 20,30 4R7
HRBN1205A6R8□PN00 6.8 100kHz,1V 15(18) 17.0 11.0 20,30 6R8
HRBN1205A8R2□PN00 8.2 100kHz,1V 19(23) 16.0 10.0 20,30 8R2
HRBN1205A100□PN00 10.0 100kHz,1V 23(30) 12.0 7.0 20,30 100
HRBN1205A150□PN00 15.0 100kHz,1V 46(50) 10.0 6.0 20,30 150
HRBN1205A220□PN00 22.0 100kHz,1V 60(70) 7.0 4.0 20,30 220
HRBN1205A330□PN00 33.0 100kHz,1V 72(80) 6.0 3.0 20,30 330
HRBN1205A470□PN00 47.0 100kHz,1V 85(100) 5.0 2.5 20,30 470
HRBN1205A560□PN00 56.0 100kHz,1V 154(180) 4.5 2.0 20,30 560
HRBN1205A680□PN00 68.0 100kHz,1V 154(180) 4.0 2.0 20,30 680








HRBN1265A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1265AR22□PN00 0.22 100kHz,1V 0.5(0.7) 70.0 40.0 20,30 R22
HRBN1265AR33□PN00 0.33 100kHz,1V 0.56(0.8) 70.0 38.0 20,30 R33
HRBN1265AR47□PN00 0.47 100kHz,1V 0.85(1.3) 60.0 35.0 20,30 R47
HRBN1265AR68□PN00 0.68 100kHz,1V 1.3(1.5) 51.0 30.0 20,30 R68
HRBN1265A1R0□PN00 1.0 100kHz,1V 1.5(2.0) 50.0 30.0 20,30 1R0
HRBN1265A2R2□PN00 2.2 100kHz,1V 3.5(4.5) 35.0 18.0 20,30 2R2
HRBN1265A3R3□PN00 3.3 100kHz,1V 5.8(7.5) 25.0 17.0 20,30 3R3
HRBN1265A4R7□PN00 4.7 100kHz,1V 6.5(9) 22.0 14.0 20,30 4R7
HRBN1265A5R6□PN00 5.6 100kHz,1V 9.5(12) 19.0 12.0 20,30 5R6
HRBN1265A6R8□PN00 6.8 100kHz,1V 11(14) 18.0 11.5 20,30 6R8
HRBN1265A100□PN00 10.0 100kHz,1V 16(20) 15.5 10.0 20,30 100
HRBN1265A150□PN00 15.0 100kHz,1V 27.5(30) 12.0 7.0 20,30 150
HRBN1265A220□PN00 22.0 100kHz,1V 30(36) 9.0 6.0 20,30 220
HRBN1265A330□PN00 33.0 100kHz,1V 48(55) 8.0 5.0 20,30 330
HRBN1265A470□PN00 47.0 100kHz,1V 67(80) 6.0 4.0 20,30 470
HRBN1265A680□PN00 68.0 100kHz,1V 94(115) 5.0 3.0 20,30 680








HRBN1704A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1704AR33□PN00 0.33 100kHz,1V 1.16(1.28) 60.0 56.0 20,30 R33
HRBN1704A1R5□PN00 1.5 100kHz,1V 4.1(4.5) 32.0 18.0 20,30 1R5
HRBN1704A5R6□PN00 5.6 100kHz,1V 10.4(13.5) 21.00 15.00 20,30 5R6








HRBN1707A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1707AR47□PN00 0.47 100kHz,1V 1.0(1.3) 70.0 35.0 20,30 R47
HRBN1707A1R0□PN00 1.0 100kHz,1V 1.2(1.5) 60.0 28.0 20,30 1R0
HRBN1707A1R5□PN00 1.5 100kHz,1V 1.8(2.5) 50.0 25.0 20,30 1R5
HRBN1707A2R2□PN00 2.2 100kHz,1V 2.0(3.0) 40.0 20.0 20,30 2R2
HRBN1707A3R3□PN00 3.3 100kHz,1V 2.8(3.5) 34.0 19.0 20,30 3R3
HRBN1707A4R7□PN00 4.7 100kHz,1V 4.2(5.0) 28.0 17.5 20,30 4R7
HRBN1707A6R8□PN00 6.8 100kHz,1V 6.5(7.5) 24.0 13.0 20,30 6R8
HRBN1707A8R2□PN00 8.2 100kHz,1V 8.2(10) 22.0 12.5 20,30 8R2
HRBN1707A100□PN00 10 100kHz,1V 9.0(13) 21.0 12.0 20,30 100
HRBN1707A150□PN00 15 100kHz,1V 14.5(18) 18.0 11.0 20,30 150
HRBN1707A220□PN00 22 100kHz,1V 20.5(25) 13.0 10.0 20,30 220
HRBN1707A330□PN00 33 100kHz,1V 30(42) 10.0 7.0 20,30 330
HRBN1707A470□PN00 47 100kHz,1V 41(52) 9.0 6.0 20,30 470
HRBN1707A680□PN00 68 100kHz,1V 50(85) 6.5 5.2 20,30 680








HRBN0402C series  Standard Specifications






Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0402CR10□PG00 0.10 100kHz,1V 3.8(4.5) 35.0 14.0 30 R10
HRBN0402CR22□PG00 0.22 100kHz,1V 5.0(7.0) 24.0 13.0 20,30 R22
HRBN0402CR33□PG00 0.33 100kHz,1V 8.2(10.5) 18.0 10.0 20,30 R33
HRBN0402CR47□PG00 0.47 100kHz,1V 11.0(14.0) 12.0 8.0 20,30 R47
HRBN0402CR56□PG00 0.56 100kHz,1V 14.0(18.0) 10.0 7.0 20,30 R56
HRBN0402CR68□PG00 0.68 100kHz,1V 15.0(20.0) 10.0 7.0 20,30 R68
HRBN0402C1R0□PG00 1.0 100kHz,1V 22.0(27.0) 8.5 5.0 20,30 1R0
HRBN0402C1R5□PG00 1.5 100kHz,1V 32.0(42.0) 7.0 4.5 20,30 1R5
HRBN0402C2R2□PG00 2.2 100kHz,1V 45.0(58.0) 7.0 4.0 20,30 2R2
HRBN0402C3R3□PG00 3.3 100kHz,1V 78.0(87.0) 6.0 3.0 20,30 3R3
HRBN0402C4R7□PG00 4.7 100kHz,1V 105.0(140.0) 4.0 2.2 20,30 4R7
HRBN0402C6R8□PG00 6.8 100kHz,1V 120.0(175.0) 3.0 2.1 20,30 6R8
HRBN0402C8R2□PG00 8.2 100kHz,1V 170.0(200.0) 2.5 1.8 20,30 8R2
HRBN0402C100□PG00 10 100kHz,1V 170.0(200.0) 2.0 1.6 20,30 100
HRBN0402C220□PG00 22 100kHz,1V 540(600) 2.0 1.0 20,30 220








HRBN0518C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0518CR20□PG00 0.20 100kHz,1V 3.6(4.1) 25.0 14.0 20,30 R20
HRBN0518CR22□PG00 0.22 100kHz,1V 4.2(5.0) 22.0 13.0 20,30 R22
HRBN0518CR33□PG00 0.33 100kHz,1V 7.5(8.6) 15.0 11.0 20,30 R33
HRBN0518CR47□PG00 0.47 100kHz,1V 9.8(11.3) 14.0 10.0 20,30 R47
HRBN0518CR56□PG00 0.56 100kHz,1V 11.0(13.0) 13.5 9.5 20,30 R56
HRBN0518CR68□PG00 0.68 100kHz,1V 12.4(14.3) 13.0 9.0 20,30 R68
HRBN0518C1R0□PG00 1.0 100kHz,1V 18.2(21.0) 10.0 6.8 20,30 1R0
HRBN0518C1R5□PG00 1.5 100kHz,1V 26.0(30.0) 9.0 6.0 20,30 1R5
HRBN0518C2R2□PG00 2.2 100kHz,1V 42.0(48.3) 7.5 4.5 20,30 2R2
HRBN0518C3R3□PG00 3.3 100kHz,1V 60.0(69.0) 5.0 3.5 20,30 3R3
HRBN0518C4R7□PG00 4.7 100kHz,1V 85.0(98.0) 4.5 3.0 20,30 4R7
HRBN0518C5R6□PG00 5.6 100kHz,1V 110.0(127.0) 4.0 2.5 20,30 5R6
HRBN0518C6R8□PG00 6.8 100kHz,1V 118.0(137.0) 3.5 2.4 20,30 6R8
HRBN0518C8R2□PG00 8.2 100kHz,1V 143.0(165.0) 3.0 2.3 20,30 8R2
HRBN0518C100□PG00 10.0 100kHz,1V 165.0(190.0) 2.8 2.3 20,30 100
HRBN0518C150□PG00 15.0 100kHz,1V 275.0(318.0) 2.3 1.7 20,30 150








HRBN0502C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0502CR10□PG00 0.10 100kHz,1V 3.6(4.0) 45.0 18.0 30 R10
HRBN0502CR15□PG00 0.15 100kHz,1V 3.8(4.6) 27.0 16.0 30 R15
HRBN0502CR22□PG00 0.22 100kHz,1V 4.0(5.5) 25.0 15.0 20,30 R22
HRBN0502CR24□PG00 0.24 100kHz,1V 6.0(7.0) 23.0 13.0 20,30 R24
HRBN0502CR33□PG00 0.33 100kHz,1V 6.3(7.3) 21.3 12.0 20,30 R33
HRBN0502CR36□PG00 0.36 100kHz,1V 6.8(7.8) 20.0 11.8 20,30 R36
HRBN0502CR47□PG00 0.47 100kHz,1V 8.4(9.5) 18.0 11.5 20,30 R47
HRBN0502CR56□PG00 0.56 100kHz,1V 9.3(11.2) 15.0 10.7 20,30 R56
HRBN0502CR68□PG00 0.68 100kHz,1V 11.0(12.4) 12.8 10.0 20,30 R68
HRBN0502C1R0□PG00 1.0 100kHz,1V 17.5(20.0) 13.7 7.0 20,30 1R0
HRBN0502C1R2□PG00 1.2 100kHz,1V 23.0(28.0) 11.0 6.2 20,30 1R2
HRBN0502C1R5□PG00 1.5 100kHz,1V 26.5(30.5) 9.8 5.5 20,30 1R5
HRBN0502C2R2□PG00 2.2 100kHz,1V 42.0(50.0) 9.0 4.2 20,30 2R2
HRBN0502C3R3□PG00 3.3 100kHz,1V 66.0(76.0) 7.3 3.3 20,30 3R3
HRBN0502C4R7□PG00 4.7 100kHz,1V 103.0(116.0) 5.0 2.8 20,30 4R7
HRBN0502C5R6□PG00 5.6 100kHz,1V 112.0(122.0) 4.0 2.5 20,30 5R6
HRBN0502C6R8□PG00 6.8 100kHz,1V 130.0(150.0) 3.8 2.4 20,30 6R8
HRBN0502C8R2□PG00 8.2 100kHz,1V 148.0(171.0) 3.5 2.3 20,30 8R2
HRBN0502C100□PG00 10.0 100kHz,1V 195.0(220.0) 4.0 2.3 20,30 100








HRBN0503C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0503CR10□PG00 0.10 100kHz,1V 2.5(3.0) 27.0 23.0 30 R10
HRBN0503CR20□PG00 0.20 100kHz,1V 2.6(3.2) 25.0 16.0 30 R20
HRBN0503CR22□PG00 0.22 100kHz,1V 3.7(4.4) 21.0 15.5 20,30 R22
HRBN0503CR33□PG00 0.33 100kHz,1V 4.3(5.0) 18.0 14.0 20,30 R33
HRBN0503CR47□PG00 0.47 100kHz,1V 6.4(7.4) 16.0 12.0 20,30 R47
HRBN0503CR68□PG00 0.68 100kHz,1V 10.0(12.0) 14.0 8.5 20,30 R68
HRBN0503C1R0□PG00 1.0 100kHz,1V 13.0(14.0) 11.0 7.0 20,30 1R0
HRBN0503C1R2□PG00 1.2 100kHz,1V 14.0(16.0) 11.0 6.5 20,30 1R2
HRBN0503C1R5□PG00 1.5 100kHz,1V 16.0(25.0) 10.0 6.0 20,30 1R5
HRBN0503C2R2□PG00 2.2 100kHz,1V 25.0(35.0) 9.0 5.5 20,30 2R2
HRBN0503C3R3□PG00 3.3 100kHz,1V 32.0(38.0) 8.0 5.0 20,30 3R3
HRBN0503C3R6□PG00 3.6 100kHz,1V 46.0(54.0) 7.0 4.9 20,30 3R6
HRBN0503C4R7□PG00 4.7 100kHz,1V 50.0(60.0) 6.0 4.6 20,30 4R7
HRBN0503C5R6□PG00 5.6 100kHz,1V 55.0(63.0) 4.5 4.3 20,30 5R6
HRBN0503C6R8□PG00 6.8 100kHz,1V 68.0(76.2) 4.3 4.0 20,30 6R8
HRBN0503C100□PG00 10.0 100kHz,1V 110.0(128.0) 4.0 2.8 20,30 100
HRBN0503C150□PG00 15.0 100kHz,1V 165.0(220.0) 3.0 2.1 20,30 150
HRBN0503C180□PG00 18.0 100kHz,1V 195.0(230.0) 2.3 2.0 20,30 180
HRBN0503C220□PG00 22.0 100kHz,1V 220.0(250.0) 1.7 1.9 20,30 220
HRBN0503C330□PG00 33.0 100kHz,1V 380.0(440.0) 1.6 1.6 20,30 330








HRBN0618C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0618CR15□PG00 0.15 100kHz,1V 2.2(2.6) 30.0 16.0 30 R15
HRBN0618CR18□PG00 0.18 100kHz,1V 2.5(3.0) 29.0 15.0 30 R18
HRBN0618CR22□PG00 0.22 100kHz,1V 2.5(3.0) 24.0 14.0 20,30 R22
HRBN0618CR33□PG00 0.33 100kHz,1V 4.8(5.8) 19.0 12.0 20,30 R33
HRBN0618CR47□PG00 0.47 100kHz,1V 6.4(7.4) 16.0 10.0 20,30 R47
HRBN0618CR56□PG00 0.56 100kHz,1V 8.5(10.0) 15.0 9.5 20,30 R56
HRBN0618CR68□PG00 0.68 100kHz,1V 9.5(11.0) 15.0 9.0 20,30 R68
HRBN0618CR82□PG00 0.82 100kHz,1V 11.5(14.0) 14.0 7.9 20,30 R82
HRBN0618C1R0□PG00 1.0 100kHz,1V 14.5(17.0) 12.0 6.5 20,30 1R0
HRBN0618C1R2□PG00 1.2 100kHz,1V 20.0(24.0) 11.0 6.0 20,30 1R2
HRBN0618C1R5□PG00 1.5 100kHz,1V 21.0(25.2) 11.0 5.5 20,30 1R5
HRBN0618C2R2□PG00 2.2 100kHz,1V 31.0(35.0) 10.0 5.5 20,30 2R2
HRBN0618C3R3□PG00 3.3 100kHz,1V 40.0(46.0) 8.0 4.5 20,30 3R3
HRBN0618C4R7□PG00 4.7 100kHz,1V 68.0(76.0) 6.0 3.6 20,30 4R7
HRBN0618C5R6□PG00 5.6 100kHz,1V 78.0(86.0) 5.0 3.1 20,30 5R6
HRBN0618C6R8□PG00 6.8 100kHz,1V 93.0(104.0) 4.5 2.6 20,30 6R8
HRBN0618C8R2□PG00 8.2 100kHz,1V 123.0(140.0) 3.8 2.2 20,30 8R2
HRBN0618C100□PG00 10.0 100kHz,1V 143.0(160.0) 3.1 2.0 20,30 100
HRBN0618C150□PG00 15.0 100kHz,1V 240.0(280.0) 2.7 1.7 20,30 150
HRBN0618C220□PG00 22.0 100kHz,1V 300.0(360.0) 2.1 1.5 20,30 220








HRBN0602C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0602CR10□PG00 0.10 100kHz,1V 2.0(2.4) 40.0 21.0 30 R10
HRBN0602CR15□PG00 0.15 100kHz,1V 2.3(2.7) 39.0 18.0 30 R15
HRBN0602CR16□PG00 0.16 100kHz,1V 2.3(2.7) 38.0 18.0 30 R16
HRBN0602CR18□PG00 0.18 100kHz,1V 2.4(2.9) 36.0 18.0 30 R18
HRBN0602CR20□PG00 0.20 100kHz,1V 2.5(3.0) 35.0 18.0 30 R20
HRBN0602CR22□PG00 0.22 100kHz,1V 3.5(4.0) 32.0 15.0 30 R22
HRBN0602CR33□PG00 0.33 100kHz,1V 4.5(5.0) 25.0 14.0 20,30 R33
HRBN0602CR47□PG00 0.47 100kHz,1V 7.1(8.3) 20.0 11.7 20,30 R47
HRBN0602CR56□PG00 0.56 100kHz,1V 7.9(9.3) 18.0 11.0 20,30 R56
HRBN0602CR68□PG00 0.68 100kHz,1V 8.3(10.0) 16.0 10.5 20,30 R68
HRBN0602C1R0□PG00 1.0 100kHz,1V 16.5(20.0) 14.0 8.0 20,30 1R0
HRBN0602C1R2□PG00 1.2 100kHz,1V 19.0(23.0) 13.0 7.5 20,30 1R2
HRBN0602C1R5□PG00 1.5 100kHz,1V 23.0(27.0) 12.0 7.0 20,30 1R5
HRBN0602C2R2□PG00 2.2 100kHz,1V 32.0(37.0) 10.0 6.0 20,30 2R2
HRBN0602C3R3□PG00 3.3 100kHz,1V 43.0(48.0) 8.0 5.0 20,30 3R3
HRBN0602C4R7□PG00 4.7 100kHz,1V 58.0(65.0) 8.0 4.5 20,30 4R7
HRBN0602C5R6□PG00 5.6 100kHz,1V 59.0(68.0) 6.0 4.0 20,30 5R6
HRBN0602C6R8□PG00 6.8 100kHz,1V 63.0(73.0) 5.5 4.0 20,30 6R8
HRBN0602C8R2□PG00 8.2 100kHz,1V 101.0(116.0) 5.0 3.2 20,30 8R2
HRBN0602C100□PG00 10.0 100kHz,1V 134.0(154.0) 4.0 2.8 20,30 100
HRBN0602C150□PG00 15.0 100kHz,1V 190.0(210.0) 3.3 2.1 20,30 150
HRBN0602C220□PG00 22.0 100kHz,1V 236.0(280.0) 2.5 1.5 20,30 220








HRBN0624C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0624CR10□PG00 0.10 100kHz,1V 1.4(1.7) 70.0 30.0 30 R10
HRBN0624CR15□PG00 0.15 100kHz,1V 1.8(2.3) 45.0 30.0 30 R15
HRBN0624CR20□PG00 0.20 100kHz,1V 1.9(2.8) 40.0 23.0 20,30 R20
HRBN0624CR22□PG00 0.22 100kHz,1V 2.0(3.2) 34.0 21.0 20,30 R22
HRBN0624CR33□PG00 0.33 100kHz,1V 3.6(4.4) 30.0 18.0 20,30 R33
HRBN0624CR36□PG00 0.36 100kHz,1V 3.8(4.6) 29.0 17.0 20,30 R36
HRBN0624CR47□PG00 0.47 100kHz,1V 4.8(5.1) 26.0 15.0 20,30 R47
HRBN0624CR56□PG00 0.56 100kHz,1V 5.5(6.5) 24.0 13.0 20,30 R56
HRBN0624CR60□PG00 0.60 100kHz,1V 5.7(6.9) 22.0 13.0 20,30 R60
HRBN0624CR68□PG00 0.68 100kHz,1V 6.4(7.2) 21.0 13.0 20,30 R68
HRBN0624CR82□PG00 0.82 100kHz,1V 8.0(9.5) 17.0 11.0 20,30 R82
HRBN0624C1R0□PG00 1.0 100kHz,1V 10.5(13.5) 16.0 11.0 20,30 1R0
HRBN0624C1R5□PG00 1.5 100kHz,1V 17.0(20.0) 12.0 7.0 20,30 1R5
HRBN0624C2R2□PG00 2.2 100kHz,1V 23.0(28.0) 11.0 6.0 20,30 2R2
HRBN0624C3R3□PG00 3.3 100kHz,1V 34.0(39.0) 10.0 6.0 20,30 3R3
HRBN0624C4R7□PG00 4.7 100kHz,1V 41.0(50.0) 9.0 5.5 20,30 4R7
HRBN0624C5R6□PG00 5.6 100kHz,1V 56.0(62.0) 8.0 5.0 20,30 5R6
HRBN0624C6R8□PG00 6.8 100kHz,1V 65.0(72.0) 7.0 4.0 20,30 6R8
HRBN0624C8R2□PG00 8.2 100kHz,1V 81.0(95.0) 6.0 3.6 20,30 8R2
HRBN0624C100□PG00 10.0 100kHz,1V 92.0(101.0) 5.0 3.2 20,30 100
HRBN0624C150□PG00 15.0 100kHz,1V 120.0(160.0) 3.5 2.5 20,30 150
HRBN0624C220□PG00 22.0 100kHz,1V 222.0(250.0) 3.0 1.8 20,30 220








HRBN0603C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0603CR10□PG00 0.10 100kHz,1V 1.5(1.7) 60.0 32.5 20,30 R10
HRBN0603CR15□PG00 0.15 100kHz,1V 1.7(2.0) 52.0 30.0 20,30 R15
HRBN0603CR20□PG00 0.20 100kHz,1V 2.4(3.0) 41.0 24.0 20,30 R20
HRBN0603CR22□PG00 0.22 100kHz,1V 2.5(2.8) 40.0 23.0 20,30 R22
HRBN0603CR33□PG00 0.33 100kHz,1V 3.5(3.9) 30.0 20.0 20,30 R33
HRBN0603CR47□PG00 0.47 100kHz,1V 4.0(4.2) 26.0 17.5 20,30 R47
HRBN0603CR56□PG00 0.56 100kHz,1V 4.7(5.0) 25.5 16.5 20,30 R56
HRBN0603CR68□PG00 0.68 100kHz,1V 5.0(5.5) 25.0 15.5 20,30 R68
HRBN0603CR75□PG00 0.75 100kHz,1V 5.4(6.2) 24.5 14.0 20,30 R75
HRBN0603CR82□PG00 0.82 100kHz,1V 6.7(8.0) 24.0 13.0 20,30 R82
HRBN0603C1R0□PG00 1.0 100kHz,1V 9.0(10.0) 22.0 11.0 20,30 1R0
HRBN0603C1R2□PG00 1.2 100kHz,1V 10.0(12.0) 20.0 10.0 20,30 1R2
HRBN0603C1R5□PG00 1.5 100kHz,1V 14.0(15.0) 18.0 9.0 20,30 1R5
HRBN0603C2R0□PG00 2.0 100kHz,1V 16.0(18.0) 14.0 8.2 20,30 2R0
HRBN0603C2R2□PG00 2.2 100kHz,1V 18.0(20.0) 14.0 8.0 20,30 2R2
HRBN0603C2R5□PG00 2.5 100kHz,1V 20.0(22.0) 14.0 7.0 20,30 2R5
HRBN0603C3R3□PG00 3.3 100kHz,1V 28.0(30.0) 13.5 6.0 20,30 3R3
HRBN0603C4R7□PG00 4.7 100kHz,1V 37.0(40.0) 10.0 5.5 20,30 4R7
HRBN0603C6R8□PG00 6.8 100kHz,1V 54.0(60.0) 8.0 4.5 20,30 6R8
HRBN0603C8R2□PG00 8.2 100kHz,1V 60.0(68.0) 8.0 4.0 20,30 8R2
HRBN0603C100□PG00 10.0 100kHz,1V 95.0(105.0) 7.0 3.0 20,30 100








HRBN0604C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0604CR12□PG00 0.12 100kHz,1V 0.7(1.0) 64.0 32.0 30 R12
HRBN0604CR15□PG00 0.15 100kHz,1V 0.9(1.2) 55.0 30.0 30 R15
HRBN0604CR22□PG00 0.22 100kHz,1V 1.9(2.1) 34.0 25.0 20,30 R22
HRBN0604CR33□PG00 0.33 100kHz,1V 2.0(2.6) 34.0 25.0 20,30 R33
HRBN0604CR36□PG00 0.36 100kHz,1V 2.7(3.1) 31.0 25.0 20,30 R36
HRBN0604CR47□PG00 0.47 100kHz,1V 3.0(3.4) 28.0 23.0 20,30 R47
HRBN0604CR56□PG00 0.56 100kHz,1V 3.8(4.3) 26.0 20.0 20,30 R56
HRBN0604CR68□PG00 0.68 100kHz,1V 4.1(4.5) 24.0 16.0 20,30 R68
HRBN0604C1R0□PG00 1.0 100kHz,1V 6.8(8.0) 22.0 14.0 20,30 1R0
HRBN0604C1R5□PG00 1.5 100kHz,1V 10.0(12.0) 20.0 12.0 20,30 1R5
HRBN0604C2R2□PG00 2.2 100kHz,1V 11.5(14.0) 14.0 9.0 20,30 2R2
HRBN0604C3R3□PG00 3.3 100kHz,1V 24.0(27.0) 12.0 8.0 20,30 3R3
HRBN0604C4R7□PG00 4.7 100kHz,1V 28.0(32.5) 11.0 6.0 20,30 4R7
HRBN0604C5R6□PG00 5.6 100kHz,1V 33.0(38.0) 9.0 5.0 20,30 5R6
HRBN0604C6R8□PG00 6.8 100kHz,1V 44.0(50.0) 8.5 4.5 20,30 6R8
HRBN0604C8R2□PG00 8.2 100kHz,1V 55.0(64.0) 8.0 4.5 20,30 8R2
HRBN0604C100□PG00 10.0 100kHz,1V 64.0(72.0) 7.0 4.0 20,30 100
HRBN0604C150□PG00 15.0 100kHz,1V 80.0(90.0) 3.5 3.0 20,30 150
HRBN0604C220□PG00 22.0 100kHz,1V 120.0(145.0) 3.5 2.5 20,30 220
HRBN0604C330□PG00 33.0 100kHz,1V 180.0(210.0) 3.2 1.8 20,30 330
HRBN0604C470□PG00 47.0 100kHz,1V 295.0(350.0) 2.5 1.8 20,30 470








HRBN0605C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN0605CR10□PG00 0.10 100kHz,1V 0.7(0.8) 65.0 32.0 30 R10
HRBN0605CR11□PG00 0.11 100kHz,1V 0.7(0.8) 65.0 32.0 30 R11
HRBN0605CR15□PG00 0.15 100kHz,1V 1.3(1.7) 50.0 30.0 30 R15
HRBN0605CR22□PG00 0.22 100kHz,1V 1.6(1.9) 35.0 25.0 20,30 R22
HRBN0605CR33□PG00 0.33 100kHz,1V 2.5(3.0) 32.0 25.0 20,30 R33
HRBN0605CR40□PG00 0.40 100kHz,1V 3.1(3.7) 31.0 23.0 20,30 R40
HRBN0605CR47□PG00 0.47 100kHz,1V 3.5(3.9) 30.0 22.0 20,30 R47
HRBN0605CR56□PG00 0.56 100kHz,1V 3.6(4.2) 27.0 20.0 20,30 R56
HRBN0605CR60□PG00 0.60 100kHz,1V 3.8(4.3) 25.0 19.0 20,30 R60
HRBN0605CR68□PG00 0.68 100kHz,1V 4.0(4.5) 24.0 18.0 20,30 R68
HRBN0605CR82□PG00 0.82 100kHz,1V 4.6(4.9) 22.0 16.5 20,30 R82
HRBN0605C1R0□PG00 1.0 100kHz,1V 6.1(6.5) 20.0 15.0 20,30 1R0
HRBN0605C1R2□PG00 1.2 100kHz,1V 6.7(7.5) 18.0 14.0 20,30 1R2
HRBN0605C1R5□PG00 1.5 100kHz,1V 8.6(9.0) 16.5 12.0 20,30 1R5
HRBN0605C1R8□PG00 1.8 100kHz,1V 9.5(11.0) 15.0 12.0 20,30 1R8
HRBN0605C2R2□PG00 2.2 100kHz,1V 11.2(12.0) 14.0 10.0 20,30 2R2
HRBN0605C3R3□PG00 3.3 100kHz,1V 19.0(20.9) 12.0 8.0 20,30 3R3
HRBN0605C4R7□PG00 4.7 100kHz,1V 28.0(30.8) 10.0 6.5 20,30 4R7
HRBN0605C4R9□PG00 4.9 100kHz,1V 32.0(38.0) 9.5 6.3 20,30 4R9
HRBN0605C5R6□PG00 5.6 100kHz,1V 43.5(49.0) 9.0 6.0 20,30 5R6
HRBN0605C6R8□PG00 6.8 100kHz,1V 46.0(51.5) 8.5 5.5 20,30 6R8
HRBN0605C8R2□PG00 8.2 100kHz,1V 56.0(63.0) 8.0 5.0 20,30 8R2
HRBN0605C100□PG00 10.0 100kHz,1V 60.0(69.0) 7.5 4.0 20,30 100
HRBN0605C120□PG00 12.0 100kHz,1V 68.0(80.0) 6.7 3.8 20,30 120
HRBN0605C150□PG00 15.0 100kHz,1V 81.0(92.0) 6.0 3.5 20,30 150
HRBN0605C220□PG00 22.0 100kHz,1V 140.0(170.0) 5.5 2.5 20,30 220
HRBN0605C330□PG00 33.0 100kHz,1V 173.0(200.0) 3.5 2.0 20,30 330
HRBN0605C420□PG00 42.0 100kHz,1V 212.0(245.0) 2.8 2.0 20,30 420
HRBN0605C470□PG00 47.0 100kHz,1V 190.0(240.0) 2.7 1.9 20,30 470
HRBN0605C560□PG00 56.0 100kHz,1V 342.0(396.0) 2.1 1.6 20,30 560
HRBN0605C680□PG00 68.0 100kHz,1V 386.0(445.0) 2.0 1.2 20,30 680








HRBN1004C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1004CR19□PG00 0.19 100kHz,1V 0.5(0.7) 75.0 40.0 20,30 R19
HRBN1004CR22□PG00 0.22 100kHz,1V 0.5(0.7) 70.0 40.0 20,30 R22
HRBN1004CR36□PG00 0.36 100kHz,1V 1.1(1.3) 60.0 30.0 20,30 R36
HRBN1004CR39□PG00 0.39 100kHz,1V 1.2(1.4) 60.0 30.0 20,30 R39
HRBN1004CR47□PG00 0.47 100kHz,1V 1.2(1.5) 60.0 30.0 20,30 R47
HRBN1004CR56□PG00 0.56 100kHz,1V 1.6(1.8) 40.0 25.0 20,30 R56
HRBN1004C1R0□PG00 1.00 100kHz,1V 2.7(3.3) 36.0 18.0 20,30 1R0
HRBN1004C1R5□PG00 1.50 100kHz,1V 4.6(5.8) 33.0 16.0 20,30 1R5
HRBN1004C2R2□PG00 2.20 100kHz,1V 6.5(7.5) 27.0 12.0 20,30 2R2
HRBN1004C3R3□PG00 3.30 100kHz,1V 10.8(12) 20.0 11.0 20,30 3R3
HRBN1004C4R7□PG00 4.70 100kHz,1V 16(19) 17.0 9.5 20,30 4R7
HRBN1004C6R8□PG00 6.80 100kHz,1V 17.5(23.3) 13.5 8.5 20,30 6R8
HRBN1004C100□PG00 10.00 100kHz,1V 27(30) 12.0 7.5 20,30 100
HRBN1004C150□PG00 15.00 100kHz,1V 43(48) 10.0 6.3 20,30 150
HRBN1004C220□PG00 22.00 100kHz,1V 63(74) 7.0 5.0 20,30 220
HRBN1004C330□PG00 33.00 100kHz,1V 92(112) 5.0 3.5 20,30 330
HRBN1004C470□PG00 47.00 100kHz,1V 130(145) 4.5 3.0 20,30 470
HRBN1004C680□PG00 68.00 100kHz,1V 205(258) 4.0 2.5 20,30 680








HRBN1005C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1005CR22□PG00 0.22 100kHz,1V 0.5(0.6) 70.0 45.0 20,30 R22
HRBN1005CR30□PG00 0.30 100kHz,1V 0.6(0.8) 65.0 38.0 20,30 R30
HRBN1005CR56□PG00 0.56 100kHz,1V 1.3(1.5) 43.0 26.5 20,30 R56
HRBN1005CR90□PG00 0.90 100kHz,1V 2.2(3.0) 32.0 25.0 20,30 R90
HRBN1005C1R0□PG00 1.0 100kHz,1V 2.8(3.5) 30.0 22.0 20,30 1R0
HRBN1005C1R2□PG00 1.2 100kHz,1V 2.9(3.5) 28.0 20.0 20,30 1R2
HRBN1005C1R3□PG00 1.3 100kHz,1V 3.2(3.7) 28.0 20.0 20,30 1R3
HRBN1005C1R5□PG00 1.5 100kHz,1V 3.5(4.1) 27.0 19.0 20,30 1R5
HRBN1005C1R8□PG00 1.8 100kHz,1V 3.7(4.7) 25.5 17.5 20,30 1R8
HRBN1005C2R2□PG00 2.2 100kHz,1V 5.4(6.0) 24.0 16.0 20,30 2R2
HRBN1005C3R3□PG00 3.3 100kHz,1V 9.0(10.4) 22.0 14.0 20,30 3R3
HRBN1005C4R7□PG00 4.7 100kHz,1V 10.0(12.5) 19.0 13.0 20,30 4R7
HRBN1005C5R0□PG00 5.0 100kHz,1V 12.2(15.0) 18.0 12.0 20,30 5R0
HRBN1005C5R6□PG00 5.6 100kHz,1V 14.0(16.8) 16.0 10.0 20,30 5R6
HRBN1005C6R8□PG00 6.8 100kHz,1V 16.5(21.0) 15.0 9.5 20,30 6R8
HRBN1005C8R2□PG00 8.2 100kHz,1V 18.5(24.0) 14.5 9.0 20,30 8R2
HRBN1005C100□PG00 10.0 100kHz,1V 25.0(29.0) 13.5 8.0 20,30 100
HRBN1005C120□PG00 12.0 100kHz,1V 30.0(35.0) 10.0 6.0 20,30 120
HRBN1005C150□PG00 15.0 100kHz,1V 37.0(45.0) 9.5 5.5 20,30 150
HRBN1005C220□PG00 22.0 100kHz,1V 50.0(60.0) 9.0 5.0 20,30 220
HRBN1005C240□PG00 24.0 100kHz,1V 59.0(70.8) 7.7 4.6 20,30 240
HRBN1005C330□PG00 33.0 100kHz,1V 93.0(100.0) 7.5 4.3 20,30 330
HRBN1005C470□PG00 47.0 100kHz,1V 125.0(145.0) 6.5 3.8 20,30 470
HRBN1005C680□PG00 68.0 100kHz,1V 195.0(215.0) 5.0 3.0 20,30 680
HRBN1005C101□PG00 100.0 100kHz,1V 315.0(380.0) 3.0 2.0 20,30 101








HRBN1235C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1235C1R5□PG00 1.5 100kHz,1V 4.8(5.5) 35.0 19.0 20,30 1R5
HRBN1235C1R8□PG00 1.8 100kHz,1V 5.2(7.0) 30.0 17.0 20,30 1R8
HRBN1235C2R2□PG00 2.2 100kHz,1V 6.3(8.0) 29.0 16.0 20,30 2R2
HRBN1235C3R3□PG00 3.3 100kHz,1V 11.0(13.5) 27.0 12.0 20,30 3R3
HRBN1235C4R7□PG00 4.7 100kHz,1V 15.3(18.5) 24.0 10.0 20,30 4R7
HRBN1235C5R6□PG00 5.6 100kHz,1V 18.0(22.0) 19.0 9.5 20,30 5R6
HRBN1235C6R8□PG00 6.8 100kHz,1V 20.0(24.0) 18.0 9.0 20,30 6R8
HRBN1235C8R2□PG00 8.2 100kHz,1V 23.0(28.0) 16.0 8.5 20,30 8R2
HRBN1235C100□PG00 10.0 100kHz,1V 29.0(34.0) 14.0 7.5 20,30 100
HRBN1235C150□PG00 15.0 100kHz,1V 55.0(65.0) 10.0 6.5 20,30 150
HRBN1235C220□PG00 22.0 100kHz,1V 83.0(99.0) 7.0 4.5 20,30 220
HRBN1235C330□PG00 33.0 100kHz,1V 132.0(160.0) 6.0 3.5 20,30 330
HRBN1235C470□PG00 47.0 100kHz,1V 181.0(218.0) 5.5 3.0 20,30 470








HRBN1205C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1205CR15□PG00 0.15 100kHz,1V 0.5(0.6) 110.0 53.0 20,30 R15
HRBN1205CR22□PG00 0.22 100kHz,1V 0.5(0.7) 110.0 52.0 20,30 R22
HRBN1205CR33□PG00 0.33 100kHz,1V 0.8(1.0) 75.0 42.0 20,30 R33
HRBN1205CR36□PG00 0.36 100kHz,1V 0.8(1.0) 70.0 42.0 20,30 R36
HRBN1205CR40□PG00 0.40 100kHz,1V 0.8(1.0) 64.0 41.0 20,30 R40
HRBN1205CR47□PG00 0.47 100kHz,1V 1.1(1.3) 60.0 38.0 20,30 R47
HRBN1205CR56□PG00 0.56 100kHz,1V 1.1(1.3) 55.0 36.0 20,30 R56
HRBN1205CR68□PG00 0.68 100kHz,1V 1.4(1.7) 54.0 34.0 20,30 R68
HRBN1205CR82□PG00 0.82 100kHz,1V 1.7(2.1) 52.0 31.0 20,30 R82
HRBN1205C1R0□PG00 1.0 100kHz,1V 1.8(2.5) 50.0 29.0 20,30 1R0
HRBN1205C1R2□PG00 1.2 100kHz,1V 1.9(2.4) 47.0 28.0 20,30 1R2
HRBN1205C1R5□PG00 1.5 100kHz,1V 2.7(4.1) 48.0 21.0 20,30 1R5
HRBN1205C2R2□PG00 2.2 100kHz,1V 4.5(5.5) 37.0 21.0 20,30 2R2
HRBN1205C3R3□PG00 3.3 100kHz,1V 7.1(8.4) 32.0 15.0 20,30 3R3
HRBN1205C4R7□PG00 4.7 100kHz,1V 11.4(15.0) 27.0 12.0 20,30 4R7
HRBN1205C6R8□PG00 6.8 100kHz,1V 14.5(18.5) 20.0 11.0 20,30 6R8
HRBN1205C8R2□PG00 8.2 100kHz,1V 19.8(22.5) 18.0 9.5 20,30 8R2
HRBN1205C100□PG00 10.0 100kHz,1V 22.0(25.5) 17.0 9.0 20,30 100
HRBN1205C150□PG00 15.0 100kHz,1V 32.0(38.0) 13.0 8.2 20,30 150
HRBN1205C220□PG00 22.0 100kHz,1V 50.0(58.0) 10.0 6.5 20,30 220
HRBN1205C330□PG00 33.0 100kHz,1V 55.0(65.0) 10.0 5.0 20,30 330
HRBN1205C470□PG00 47.0 100kHz,1V 85.0(100.0) 6.0 4.0 20,30 470
HRBN1205C680□PG00 68.0 100kHz,1V 154.0(180.0) 5.0 3.5 20,30 680
HRBN1205C101□PG00 100.0 100kHz,1V 165.0(200.0) 4.5 3.0 20,30 101








HRBN1265C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1265CR15□PG00 0.15 100kHz,1V 0.5(0.6) 118.0 55.0 20,30 R15
HRBN1265CR22□PG00 0.22 100kHz,1V 0.5(0.6) 112.0 53.0 20,30 R22
HRBN1265CR30□PG00 0.30 100kHz,1V 0.6(0.7) 72.0 48.0 20,30 R30
HRBN1265CR33□PG00 0.33 100kHz,1V 0.7(0.8) 68.0 46.0 20,30 R33
HRBN1265CR36□PG00 0.36 100kHz,1V 0.7(0.8) 66.0 45.0 20,30 R36
HRBN1265CR40□PG00 0.40 100kHz,1V 0.8(1.0) 64.0 44.0 20,30 R40
HRBN1265CR47□PG00 0.47 100kHz,1V 0.9(1.2) 63.0 41.0 20,30 R47
HRBN1265CR50□PG00 0.50 100kHz,1V 0.9(1.3) 60.0 40.0 20,30 R50
HRBN1265CR56□PG00 0.56 100kHz,1V 1.1(1.2) 58.0 37.0 20,30 R56
HRBN1265CR68□PG00 0.68 100kHz,1V 1.3(1.5) 55.0 35.0 20,30 R68
HRBN1265CR82□PG00 0.82 100kHz,1V 1.5(1.9) 50.0 33.0 20,30 R82
HRBN1265C1R0□PG00 1.0 100kHz,1V 1.7(2.3) 48.0 30.0 20,30 1R0
HRBN1265C1R2□PG00 1.2 100kHz,1V 1.9(2.4) 47.0 28.0 20,30 1R2
HRBN1265C1R5□PG00 1.5 100kHz,1V 2.5(3.0) 45.0 27.0 20,30 1R5
HRBN1265C1R8□PG00 1.8 100kHz,1V 3.6(4.0) 40.0 24.0 20,30 1R8
HRBN1265C2R2□PG00 2.2 100kHz,1V 3.8(4.2) 37.0 22.0 20,30 2R2
HRBN1265C2R7□PG00 2.7 100kHz,1V 4.3(5.5) 32.0 20.0 20,30 2R7
HRBN1265C3R3□PG00 3.3 100kHz,1V 5.7(6.8) 30.0 18.0 20,30 3R3
HRBN1265C4R7□PG00 4.7 100kHz,1V 7.0(8.4) 28.0 13.5 20,30 4R7
HRBN1265C5R6□PG00 5.6 100kHz,1V 8.5(10.0) 23.0 12.5 20,30 5R6
HRBN1265C6R8□PG00 6.8 100kHz,1V 9.5(11.5) 18.0 11.5 20,30 6R8
HRBN1265C8R2□PG00 8.2 100kHz,1V 12.0(15.5) 16.0 10.5 20,30 8R2
HRBN1265C100□PG00 10.0 100kHz,1V 13.2(16.5) 15.5 10.0 20,30 100
HRBN1265C130□PG00 13.0 100kHz,1V 21.0(24.0) 13.0 9.0 20,30 130
HRBN1265C150□PG00 15.0 100kHz,1V 23.2(28.0) 13.0 9.0 20,30 150
HRBN1265C220□PG00 22.0 100kHz,1V 32.5(37.0) 12.0 9.0 20,30 220
HRBN1265C330□PG00 33.0 100kHz,1V 48.0(58.0) 11.0 8.0 20,30 330
HRBN1265C470□PG00 47.0 100kHz,1V 76.0(90.0) 9.5 6.5 20,30 470
HRBN1265C680□PG00 68.0 100kHz,1V 110.0(130.0) 7.8 4.8 20,30 680
HRBN1265C101□PG00 100.0 100kHz,1V 130.0(165.0) 5.5 4.2 20,30 101








HRBN1707C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBN1707C1R0□PG00 1.00 100kHz,1V 1.3(1.5) 70.0 40.0 20,30 1R0
HRBN1707C1R5□PG00 1.50 100kHz,1V 1.8(2.5) 52.0 35.0 20,30 1R5
HRBN1707C2R2□PG00 2.20 100kHz,1V 2(3) 47.0 30.0 20,30 2R2
HRBN1707C3R3□PG00 3.30 100kHz,1V 2.8(3.5) 45.0 25.0 20,30 3R3
HRBN1707C4R7□PG00 4.70 100kHz,1V 4.2(5) 40.0 22.0 20,30 4R7
HRBN1707C6R8□PG00 6.80 100kHz,1V 6.5(7.5) 35.0 19.0 20,30 6R8
HRBN1707C100□PG00 10.00 100kHz,1V 9(13) 32.0 16.5 20,30 100
HRBN1707C150□PG00 15.00 100kHz,1V 14.5(18) 23.0 13.0 20,30 150
HRBN1707C220□PG00 22.00 100kHz,1V 20.5(25) 18.0 12.0 20,30 220
HRBN1707C330□PG00 33.00 100kHz,1V 30(42) 15.0 10.7 20,30 330
HRBN1707C470□PG00 47.00 100kHz,1V 41(52) 14.0 8.7 20,30 470
HRBN1707C680□PG00 68.0 100kHz,1V 50(85) 10.0 7.0 20,30 680




HRBC0415A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0415AR22□PG00 0.22 100kHz,1V 9.5(11) 11.0 8.0 20,30 R22
HRBC0415AR33□PG00 0.33 100kHz,1V 15(19) 10.0 7.0 20,30 R33
HRBC0415AR47□PG00 0.47 100kHz,1V 17(20) 8.0 6.0 20,30 R47
HRBC0415AR68□PG00 0.68 100kHz,1V 19(22) 7.5 5.0 20,30 R68
HRBC0415A1R0□PG00 1.0 100kHz,1V 38(42) 7.0 4.0 20,30 1R0
HRBC0415A1R5□PG00 1.5 100kHz,1V 48(50) 6.0 3.5 20,30 1R5
HRBC0415A2R2□PG00 2.2 100kHz,1V 69(85) 5.0 3.0 20,30 2R2
HRBC0415A3R3□PG00 3.3 100kHz,1V 120(140) 3.5 2.3 20,30 3R3
HRBC0415A4R7□PG00 4.7 100kHz,1V 130(150) 2.8 2.0 20,30 4R7








HRBC0402A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0402AR10□PG00 0.10 100kHz,1V 3.8(4.5) 23.0 12.0 30 R10
HRBC0402AR22□PG00 0.22 100kHz,1V 5.0(7.0) 16.0 11.0 20,30 R22
HRBC0402AR33□PG00 0.33 100kHz,1V 8.2(10.5) 12.0 10.5 20,30 R33
HRBC0402AR36□PG00 0.36 100kHz,1V 8.5(11) 11.0 9.0 20,30 R36
HRBC0402AR47□PG00 0.47 100kHz,1V 11(14) 10.0 7.0 20,30 R47
HRBC0402AR56□PG00 0.56 100kHz,1V 14(18) 9.5 6.5 20,30 R56
HRBC0402AR68□PG00 0.68 100kHz,1V 15(20) 8.0 6.0 20,30 R68
HRBC0402A1R0□PG00 1.00 100kHz,1V 23(27) 7.0 4.5 20,30 1R0
HRBC0402A1R2□PG00 1.20 100kHz,1V 28(33) 6.5 4.0 20,30 1R2
HRBC0402A1R5□PG00 1.50 100kHz,1V 30(36) 6.0 4.0 20,30 1R5
HRBC0402A2R2□PG00 2.20 100kHz,1V 49(58) 5.0 3.0 20,30 2R2
HRBC0402A3R3□PG00 3.30 100kHz,1V 78(87) 4.0 3.0 20,30 3R3
HRBC0402A4R7□PG00 4.70 100kHz,1V 105(140) 3.0 2.2 20,30 4R7
HRBC0402A6R8□PG00 6.80 100kHz,1V 120(175) 2.5 2.0 20,30 6R8
HRBC0402A100□PG00 10.00 100kHz,1V 185(220) 2.0 1.5 20,30 100








HRBC0515A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0515AR22□PG00 0.22 100kHz,1V 7.2(8.5) 16.0 13.0 20,30 R22
HRBC0515AR47□PG00 0.47 100kHz,1V 12(13.8) 12.0 8.0 20,30 R47
HRBC0515AR68□PG00 0.68 100kHz,1V 15(20) 10.0 7.0 20,30 R68
HRBC0515A1R0□PG00 1.0 100kHz,1V 28(33) 8.0 5.0 20,30 1R0
HRBC0515A2R2□PG00 2.2 100kHz,1V 60(70) 5.0 4.0 20,30 2R2
HRBC0515A3R3□PG00 3.3 100kHz,1V 75(90) 4.0 3.0 20,30 3R2
HRBC0515A4R7□PG00 4.7 100kHz,1V 110(135) 3.5 2.5 20,30 4R7








HRBC0518A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0518AR47□PG00 0.47 100kHz,1V 8.2(9.0) 15.0 11.5 20,30 R47
HRBC0518AR68□PG00 0.68 100kHz,1V 11.5(12.5) 11.0 9.5 20,30 R68
HRBC0518A1R0□PG00 1.0 100kHz,1V 15(20) 8.0 6.0 20,30 1R0
HRBC0518A2R2□PG00 2.2 100kHz,1V 42(50) 6.0 4.0 20,30 2R2
HRBC0518A3R3□PG00 3.3 100kHz,1V 58(70) 5.0 3.5 20,30 3R3
HRBC0518A4R7□PG00 4.7 100kHz,1V 105(115) 4.0 3.0 20,30 4R7
HRBC0518A6R8□PG00 6.8 100kHz,1V 120(150) 2.8 2.5 20,30 6R8
HRBC0518A100□PG00 10.0 100kHz,1V 180(200) 2.0 1.5 20,30 100








HRBC0502A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0502AR22□PG00 0.22 100kHz,1V 4.6(6.0) 16.5 13.0 20,30 R22
HRBC0502AR33□PG00 0.33 100kHz,1V 7.4(9.0) 15.0 12.0 20,30 R33
HRBC0502AR47□PG00 0.47 100kHz,1V 7.4(9.0) 12.0 11.5 20,30 R47
HRBC0502A1R0□PG00 1.0 100kHz,1V 15(20) 8.0 6.0 20,30 1R0
HRBC0502A1R5□PG00 1.5 100kHz,1V 22(26) 7.0 5.0 20,30 1R5
HRBC0502A2R2□PG00 2.2 100kHz,1V 42(50) 6.0 4.0 20,30 2R2
HRBC0502A2R7□PG00 2.7 100kHz,1V 58(70) 5.5 3.5 20,30 2R7
HRBC0502A3R3□PG00 3.3 100kHz,1V 58(70) 5.0 3.5 20,30 3R3
HRBC0502A4R7□PG00 4.7 100kHz,1V 85(95) 4.0 3.2 20,30 4R7
HRBC0502A6R8□PG00 6.8 100kHz,1V 120(150) 2.8 2.5 20,30 6R8
HRBC0502A100□PG00 10.0 100kHz,1V 170(200) 2.0 1.8 20,30 100








HRBC0502A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0503AR22□PG00 0.22 100kHz,1V 4.5(5.0) 25.0 14.0 20,30 R22
HRBC0503AR47□PG00 0.47 100kHz,1V 8.0(10.0) 14.0 11.5 20,30 R47
HRBC0503AR68□PG00 0.68 100kHz,1V 9.0(12.0) 12.0 9.0 20,30 R68
HRBC0503A1R0□PG00 1.0 100kHz,1V 12(16) 10.0 7.0 20,30 1R0
HRBC0503A1R5□PG00 1.5 100kHz,1V 15(20) 9.0 6.0 20,30 1R5
HRBC0503A2R2□PG00 2.2 100kHz,1V 28(35) 8.0 5.0 20,30 2R2
HRBC0503A3R3□PG00 3.3 100kHz,1V 38(45) 7.0 4.5 20,30 3R3
HRBC0503A4R7□PG00 4.7 100kHz,1V 52(60) 5.0 4.0 20,30 4R7
HRBC0503A6R8□PG00 6.8 100kHz,1V 62(80) 3.5 3.0 20,30 6R8
HRBC0503A100□PG00 10.0 100kHz,1V 110(130) 3.5 2.8 20,30 100








HRBC0615A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0615AR10□PG00 0.10 100kHz,1V 2.8(3.1) 24.0 19.0 20,30 R10
HRBC0615AR68□PG00 0.68 100kHz,1V 12.5(13.5) 12.0 8.5 20,30 R68
HRBC0615A1R0□PG00 1.0 100kHz,1V 17(21) 7.0 5.5 20,30 1R0
HRBC0615A2R2□PG00 2.2 100kHz,1V 45(50) 6.0 5.0 20,30 2R2
HRBC0615A3R3□PG00 3.3 100kHz,1V 55(70) 5.0 3.0 20,30 3R3
HRBC0615A4R7□PG00 4.7 100kHz,1V 95(110) 4.5 2.8 20,30 4R7
HRBC0615A6R8□PG00 6.8 100kHz,1V 125(135) 3.5 2.5 20,30 6R8








HRBC0618A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0618AR10□PG00 0.10 100kHz,1V 2.1(2.8) 32.0 22.0 20,30 R10
HRBC0618AR22□PG00 0.22 100kHz,1V 3.0(3.5) 25.0 18.0 20,30 R22
HRBC0618AR33□PG00 0.33 100kHz,1V 5.6(6.8) 20.0 17.0 20,30 R33
HRBC0618AR68□PG00 0.68 100kHz,1V 8.7(12) 12.0 9.0 20,30 R68
HRBC0618A1R0□PG00 1.0 100kHz,1V 18(20) 11.0 8.0 20,30 1R0
HRBC0618A1R5□PG00 1.5 100kHz,1V 26(30) 10.0 7.0 20,30 1R5
HRBC0618A2R2□PG00 2.2 100kHz,1V 32(35) 8.0 6.0 20,30 2R2
HRBC0618A3R3□PG00 3.3 100kHz,1V 50(55) 7.0 4.0 20,30 3R3
HRBC0618A4R7□PG00 4.7 100kHz,1V 55(70) 5.0 3.5 20,30 4R7
HRBC0618A6R8□PG00 6.8 100kHz,1V 80(110) 4.0 2.8 20,30 6R8
HRBC0618A100□PG00 10.0 100kHz,1V 115(150) 3.0 2.3 20,30 100








HRBC0602A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0602AR10□PG00 0.10 100kHz,1V 2.1(2.8) 32.0 22.0 20,30 R10
HRBC0602AR22□PG00 0.22 100kHz,1V 3.8(5.2) 25.0 18.0 20,30 R22
HRBC0602AR33□PG00 0.33 100kHz,1V 5.6(6.8) 20.0 17.0 20,30 R33
HRBC0602AR47□PG00 0.47 100kHz,1V 7.2(8.4) 16.0 11.0 20,30 R47
HRBC0602AR68□PG00 0.68 100kHz,1V 9.5(12) 15.0 9.0 20,30 R68
HRBC0602A1R0□PG00 1.0 100kHz,1V 18(20) 13.0 8.0 20,30 1R0
HRBC0602A2R2□PG00 2.2 100kHz,1V 32(35) 9.0 6.0 20,30 2R2
HRBC0602A3R3□PG00 3.3 100kHz,1V 50(55) 7.0 4.0 20,30 3R3
HRBC0602A4R7□PG00 4.7 100kHz,1V 55(70) 5.0 3.5 20,30 4R7
HRBC0602A5R6□PG00 5.6 100kHz,1V 63(80) 4.5 3.0 20,30 5R6
HRBC0602A6R8□PG00 6.8 100kHz,1V 82(110) 4.0 2.8 20,30 6R8
HRBC0602A100□PG00 10.0 100kHz,1V 105(120) 3.0 2.3 20,30 100
HRBC0602A150□PG00 15.0 100kHz,1V 147(170) 2.5 2.0 20,30 150








HRBC0624A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0624AR10□PG00 0.10 100kHz,1V 2.1(2.5) 35.0 22.0 20,30 R10
HRBC0624AR22□PG00 0.22 100kHz,1V 2.9(3.2) 27.0 20.0 20,30 R22
HRBC0624AR33□PG00 0.33 100kHz,1V 3.5(4.5) 24.0 18.0 20,30 R33
HRBC0624AR47□PG00 0.47 100kHz,1V 5.6(6.8) 21.0 15.0 20,30 R47
HRBC0624AR68□PG00 0.68 100kHz,1V 7.0(9.0) 18.0 9.0 20,30 R68
HRBC0624AR82□PG00 0.82 100kHz,1V 7.0(9.0) 18.0 9.0 20,30 R82
HRBC0624A1R0□PG00 1.00 100kHz,1V 11(13) 15.0 9.0 20,30 1R0
HRBC0624A1R5□PG00 1.50 100kHz,1V 16.5(20) 12.0 8.0 20,30 1R5
HRBC0624A2R2□PG00 2.20 100kHz,1V 22(28) 10.0 7.0 20,30 2R2
HRBC0624A3R3□PG00 3.30 100kHz,1V 42(50) 8.0 5.5 20,30 3R3
HRBC0624A4R7□PG00 4.70 100kHz,1V 47(55) 7.0 5.0 20,30 4R7
HRBC0624A6R8□PG00 6.80 100kHz,1V 82(90) 6.0 3.5 20,30 6R8
HRBC0624A100□PG00 10.00 100kHz,1V 89(101) 4.0 3.1 20,30 100
HRBC0624A150□PG00 15.00 100kHz,1V 120(160) 3.3 2.5 20,30 150
HRBC0624A220□PG00 22.00 100kHz,1V 217(230) 2.5 2.0 20,30 220








HRBC0603A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0603AR10□PG00 0.10 100kHz,1V 1.8(2.2) 50.0 25.0 20,30 R10
HRBC0603AR22□PG00 0.22 100kHz,1V 2.5(2.8) 35.0 23.0 20,30 R22
HRBC0603AR33□PG00 0.33 100kHz,1V 3.0(3.5) 25.0 21.0 20,30 R33
HRBC0603AR47□PG00 0.47 100kHz,1V 3.6(4.5) 20.0 17.5 20,30 R47
HRBC0603AR56□PG00 0.56 100kHz,1V 3.7(4.5) 18.0 16.5 20,30 R56
HRBC0603AR68□PG00 0.68 100kHz,1V 5.0(5.5) 17.0 16.0 20,30 R68
HRBC0603A1R0□PG00 1.0 100kHz,1V 7.0(8.0) 15.3 12.0 20,30 1R0
HRBC0603A1R5□PG00 1.5 100kHz,1V 10.5(12) 13.0 9.0 20,30 1R5
HRBC0603A2R2□PG00 2.2 100kHz,1V 13.5(16) 10.2 8.0 20,30 2R2
HRBC0603A3R3□PG00 3.3 100kHz,1V 21(25) 8.0 6.5 20,30 3R3
HRBC0603A4R7□PG00 4.7 100kHz,1V 28(35) 6.6 5.5 20,30 4R7
HRBC0603A5R6□PG00 5.6 100kHz,1V 45(55) 7.0 5.0 20,30 5R6
HRBC0603A6R8□PG00 6.8 100kHz,1V 45(55) 6.1 5.0 20,30 6R8
HRBC0603A8R2□PG00 8.2 100kHz,1V 60(68) 6.0 4.0 20,30 8R2
HRBC0603A100□PG00 10.0 100kHz,1V 60(68) 5.0 4.0 20,30 100
HRBC0603A150□PG00 15.0 100kHz,1V 95(110) 4.5 2.8 20,30 150
HRBC0603A220□PG00 22.0 100kHz,1V 121(167) 3.0 2.5 20,30 220
HRBC0603A330□PG00 33.0 100kHz,1V 218(245) 2.0 1.5 20,30 330








HRBC0604A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0604AR15□PG00 0.15 100kHz,1V 0.65(1.0) 48.0 25.0 20,30 R15
HRBC0604AR22□PG00 0.22 100kHz,1V 2.5(3.0) 35.0 23.0 20,30 R22
HRBC0604AR33□PG00 0.33 100kHz,1V 2.8(3.5) 25.0 21.0 20,30 R33
HRBC0604AR47□PG00 0.47 100kHz,1V 3.5(4.5) 21.0 17.0 20,30 R47
HRBC0604AR56□PG00 0.56 100kHz,1V 4.4(5.5) 18.0 16.0 20,30 R56
HRBC0604AR68□PG00 0.68 100kHz,1V 4.4(5.5) 17.0 14.0 20,30 R68
HRBC0604A1R0□PG00 1.0 100kHz,1V 7.0(8.0) 15.0 10.0 20,30 1R0
HRBC0604A1R5□PG00 1.5 100kHz,1V 7.7(9.0) 13.0 9.0 20,30 1R5
HRBC0604A2R2□PG00 2.2 100kHz,1V 13.5(16) 11.0 8.0 20,30 2R2
HRBC0604A3R3□PG00 3.3 100kHz,1V 14(20) 9.0 6.5 20,30 3R3
HRBC0604A4R7□PG00 4.7 100kHz,1V 22(25) 8.0 6.0 20,30 4R7
HRBC0604A6R8□PG00 6.8 100kHz,1V 35(45) 7.0 5.0 20,30 6R8
HRBC0604A8R2□PG00 8.2 100kHz,1V 46(55) 6.5 4.0 20,30 8R2
HRBC0604A100□PG00 10.0 100kHz,1V 53(65) 6.0 3.5 20,30 100
HRBC0604A150□PG00 15.0 100kHz,1V 70(80) 4.5 3.0 20,30 150
HRBC0604A220□PG00 22.0 100kHz,1V 100(120) 3.5 2.5 20,30 220
HRBC0604A330□PG00 33.0 100kHz,1V 165(200) 3.0 2.0 20,30 330
HRBC0604A470□PG00 47.0 100kHz,1V 230(260) 2.0 1.5 20,30 470








HRBC0605A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0605AR15□PG00 0.15 100kHz,1V 0.65(1.0) 50.0 30.0 20,30 R15
HRBC0605AR22□PG00 0.22 100kHz,1V 1.9(3.0) 43.0 25.0 20,30 R22
HRBC0605AR36□PG00 0.36 100kHz,1V 2.3(3.5) 30.0 22.0 20,30 R36
HRBC0605AR47□PG00 0.47 100kHz,1V 3.2(4.5) 24.0 18.0 20,30 R47
HRBC0605AR82□PG00 0.82 100kHz,1V 5.8(6.5) 20.0 14.0 20,30 R82
HRBC0605A1R0□PG00 1.00 100kHz,1V 7.2(8.0) 17.0 12.0 20,30 1R0
HRBC0605A1R5□PG00 1.5 100kHz,1V 7.7(9.0) 14.0 10.0 20,30 1R5
HRBC0605A2R2□PG00 2.20 100kHz,1V 10.5(12.5) 12.0 9.5 20,30 2R2
HRBC0605A2R7□PG00 2.7 100kHz,1V 16(20) 11.0 8.5 20,30 2R7
HRBC0605A3R3□PG00 3.30 100kHz,1V 16(20) 9.0 8.5 20,30 3R3
HRBC0605A4R7□PG00 4.7 100kHz,1V 22(25) 8.0 6.5 20,30 4R7
HRBC0605A6R8□PG00 6.80 100kHz,1V 30(35.5) 7.5 6.0 20,30 6R8
HRBC0605A100□PG00 10.0 100kHz,1V 53(60) 5.5 4.5 20,30 100
HRBC0605A150□PG00 15.00 100kHz,1V 76(85) 5.0 3.5 20,30 150
HRBC0605A220□PG00 22.0 100kHz,1V 101(130) 4.0 2.5 20,30 220
HRBC0605A330□PG00 33.00 100kHz,1V 158(176.4) 3.0 2.0 20,30 330
HRBC0605A470□PG00 47.0 100kHz,1V 190(225) 2.5 1.8 20,30 470








HRBC0705A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0705A1R0□PG00 1.00 100kHz,1V 4.0(5.0) 20.0 14.0 20,30 1R0
HRBC0705A1R5□PG00 1.50 100kHz,1V 6.5(7.5) 16.0 11.0 20,30 1R5
HRBC0705A2R2□PG00 2.20 100kHz,1V 7.6(8.5) 14.0 10.0 20,30 2R2
HRBC0705A3R3□PG00 3.30 100kHz,1V 14(16) 13.0 8.0 20,30 3R3
HRBC0705A4R7□PG00 4.70 100kHz,1V 19(20.9) 12.5 7.0 20,30 4R7
HRBC0705A6R8□PG00 6.80 100kHz,1V 24.2(28) 10.0 6.0 20,30 6R8
HRBC0705A8R2□PG00 8.20 100kHz,1V 29(32) 9.0 5.5 20,30 6R8
HRBC0705A100□PG00 10.00 100kHz,1V 34.5(38) 6.9 5.2 20,30 100
HRBC0705A150□PG00 15.00 100kHz,1V 60(66) 6.5 3.8 20,30 150
HRBC0705A220□PG00 22.00 100kHz,1V 85(100) 4.5 3.3 20,30 220
HRBC0705A330□PG00 33.00 100kHz,1V 153(170) 4.0 2.5 20,30 330
HRBC0705A470□PG00 47.00 100kHz,1V 160(171.6) 3.0 2.4 20,30 470
HRBC0705A680□PG00 68.00 100kHz,1V 222(255) 2.5 1.8 20,30 680








HRBC1003A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1003AR22□PG00 0.22 100kHz,1V 0.7(1.0) 40.0 30.0 20,30 R22
HRBC1003AR36□PG00 0.36 100kHz,1V 1.4(1.6) 35.0 23.0 20,30 R36
HRBC1003AR47□PG00 0.47 100kHz,1V 1.5(1.7) 24.0 18.0 20,30 R47
HRBC1003AR68□PG00 0.68 100kHz,1V 2.6(3.2) 23.0 17.0 20,30 R68
HRBC1003A1R0□PG00 1.0 100kHz,1V 5.0(7.0) 19.0 13.0 20,30 1R0
HRBC1003A1R5□PG00 1.5 100kHz,1V 7.2(9.0) 18.0 10.0 20,30 1R5
HRBC1003A2R2□PG00 2.2 100kHz,1V 8(10) 16.0 9.0 20,30 2R2
HRBC1003A3R3□PG00 3.3 100kHz,1V 14(20) 12.0 7.0 20,30 3R3
HRBC1003A4R7□PG00 4.7 100kHz,1V 24(28) 11.0 6.0 20,30 4R7
HRBC1003A6R8□PG00 6.8 100kHz,1V 34(45) 8.0 5.0 20,30 6R8
HRBC1003A100□PG00 10.0 100kHz,1V 54(58) 7.5 4.0 20,30 100
HRBC1003A150□PG00 15.0 100kHz,1V 65(75) 5.0 3.5 20,30 150
HRBC1003A220□PG00 22.0 100kHz,1V 75(90) 4.0 2.5 20,30 220








HRBC1004A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1004AR15□PG00 0.15 100kHz,1V 0.5(0.6) 65.0 48.0 20,30 R15
HRBC1004AR22□PG00 0.22 100kHz,1V 0.6(0.8) 55.0 35.0 20,30 R22
HRBC1004AR36□PG00 0.36 100kHz,1V 1.1(1.4) 50.0 30.0 20,30 R36
HRBC1004AR47□PG00 0.47 100kHz,1V 1.4(1.6) 35.0 25.0 20,30 R47
HRBC1004AR56□PG00 0.56 100kHz,1V 1.5(1.7) 30.0 23.0 20,30 R56
HRBC1004AR68□PG00 0.68 100kHz,1V 1.7(2.4) 30.0 20.0 20,30 R68
HRBC1004A1R0□PG00 1.0 100kHz,1V 2.8(3.5) 26.0 20.0 20,30 1R0
HRBC1004A1R5□PG00 1.5 100kHz,1V 4.5(5.8) 22.0 16.0 20,30 1R5
HRBC1004A2R2□PG00 2.2 100kHz,1V 6.5(7.5) 18.0 12.0 20,30 2R2
HRBC1004A3R3□PG00 3.3 100kHz,1V 10.5(11.6) 16.0 11.0 20,30 3R3
HRBC1004A4R7□PG00 4.7 100kHz,1V 13.5(16.5) 15.0 9.0 20,30 4R7
HRBC1004A5R6□PG00 5.6 100kHz,1V 18(22) 12.0 7.0 20,30 5R6
HRBC1004A6R8□PG00 6.8 100kHz,1V 20(25) 11.0 7.0 20,30 6R8
HRBC1004A8R2□PG00 8.2 100kHz,1V 33(36) 9.0 6.0 20,30 8R2
HRBC1004A100□PG00 10.0 100kHz,1V 35(40) 8.5 6.0 20,30 100
HRBC1004A150□PG00 15.0 100kHz,1V 42(45) 7.0 6.0 20,30 150
HRBC1004A220□PG00 22.0 100kHz,1V 62(68) 5.6 5.1 20,30 220
HRBC1004A330□PG00 33.0 100kHz,1V 90(100) 5.0 3.5 20,30 330
HRBC1004A470□PG00 47.0 100kHz,1V 127(145) 4.0 3.3 20,30 470








HRBC1005A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1005AR15□PG00 0.15 100kHz,1V 0.5(0.6) 65.0 48.0 20,30 R15
HRBC1005AR22□PG00 0.22 100kHz,1V 0.5(0.6) 60.0 40.0 20,30 R22
HRBC1005AR36□PG00 0.36 100kHz,1V 0.9(1.1) 55.0 38.0 20,30 R36
HRBC1005AR47□PG00 0.47 100kHz,1V 1.1(1.3) 50.0 36.0 20,30 R47
HRBC1005AR68□PG00 0.68 100kHz,1V 1.6(2.0) 40.0 25.0 20,30 R68
HRBC1005AR82□PG00 0.82 100kHz,1V 2.0(2.5) 34.0 20.0 20,30 R82
HRBC1005A1R0□PG00 1.0 100kHz,1V 2.56(2.8) 30.0 22.0 20,30 1R0
HRBC1005A1R5□PG00 1.5 100kHz,1V 3.9(4.6) 25.0 18.0 20,30 1R5
HRBC1005A2R2□PG00 2.2 100kHz,1V 6.4(6.86) 20.0 17.0 20,30 2R2
HRBC1005A3R3□PG00 3.3 100kHz,1V 10.4(11.56) 16.0 12.0 20,30 3R3
HRBC1005A4R7□PG00 4.7 100kHz,1V 13(16) 15.0 10.0 20,30 4R7
HRBC1005A5R6□PG00 5.6 100kHz,1V 13.5(18) 14.0 9.0 20,30 5R6
HRBC1005A6R8□PG00 6.8 100kHz,1V 17(22) 12.0 8.0 20,30 6R8
HRBC1005A8R2□PG00 8.2 100kHz,1V 22(25) 11.0 7.0 20,30 8R2
HRBC1005A100□PG00 10.0 100kHz,1V 26(30) 10.0 6.0 20,30 100
HRBC1005A150□PG00 15.0 100kHz,1V 39(45) 8.0 5.0 20,30 150
HRBC1005A220□PG00 22.0 100kHz,1V 55(62) 7.0 4.5 20,30 220
HRBC1005A330□PG00 33.0 100kHz,1V 90(95) 6.0 4.0 20,30 330
HRBC1005A470□PG00 47.0 100kHz,1V 127(145) 5.0 3.5 20,30 470
HRBC1005A680□PG00 68.0 100kHz,1V 215(258) 5.0 3.0 20,30 680
HRBC1005A820□PG00 82.0 100kHz,1V 222(280) 4.5 2.0 20,30 820
HRBC1005A101□PG00 100.0 100kHz,1V 222(280) 4.0 2.0 20,30 101








HRBC1235A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1235AR15□PG00 0.15 100kHz,1V 0.7(0.9) 65.0 40.0 20,30 R15
HRBC1235AR22□PG00 0.22 100kHz,1V 0.9(1.2) 60.0 35.0 20,30 R22
HRBC1235AR33□PG00 0.33 100kHz,1V 1.1(1.5) 55.0 32.0 20,30 R33
HRBC1235AR47□PG00 0.47 100kHz,1V 1.1(1.5) 45.0 30.0 20,30 R47
HRBC1235AR68□PG00 0.68 100kHz,1V 2.1(2.5) 40.0 28.0 20,30 R68
HRBC1235A1R0□PG00 1.0 100kHz,1V 3.2(3.5) 28.0 24.0 20,30 1R0
HRBC1235A1R5□PG00 1.5 100kHz,1V 5.1(5.5) 25.0 19.0 20,30 1R5
HRBC1235A2R2□PG00 2.2 100kHz,1V 7.0(8.0) 22.0 16.0 20,30 2R2
HRBC1235A3R3□PG00 3.3 100kHz,1V 10(12) 20.0 12.0 20,30 3R3
HRBC1235A4R7□PG00 4.7 100kHz,1V 16(20) 14.0 10.0 20,30 4R7
HRBC1235A6R8□PG00 6.8 100kHz,1V 19(22) 13.0 9.0 20,30 6R8
HRBC1235A100□PG00 10.0 100kHz,1V 28(35) 10.0 6.0 20,30 100
HRBC1235A150□PG00 15.0 100kHz,1V 70(90) 7.0 4.0 20,30 150
HRBC1235A220□PG00 22.0 100kHz,1V 99(110) 5.5 3.0 20,30 220








HRBC1205A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1205AR22□PG00 0.22 100kHz,1V 0.5(0.7) 60.0 40.0 20,30 R22
HRBC1205AR36□PG00 0.36 100kHz,1V 0.7(0.9) 55.0 38.0 20,30 R36
HRBC1205AR47□PG00 0.47 100kHz,1V 1.0(1.3) 55.0 31.0 20,30 R47
HRBC1205AR68□PG00 0.68 100kHz,1V 1.3(1.5) 50.0 30.0 20,30 R68
HRBC1205AR82□PG00 0.82 100kHz,1V 1.7(2.1) 45.0 29.0 20,30 R82
HRBC1205A1R0□PG00 1.0 100kHz,1V 1.8(2.5) 40.0 28.0 20,30 1R0
HRBC1205A1R5□PG00 1.5 100kHz,1V 2.7(4.1) 35.0 21.0 20,30 1R5
HRBC1205A2R2□PG00 2.2 100kHz,1V 4.5(5.5) 24.0 18.0 20,30 2R2
HRBC1205A3R3□PG00 3.3 100kHz,1V 7.5(9) 22.0 15.0 20,30 3R3
HRBC1205A4R7□PG00 4.7 100kHz,1V 11(12) 18.0 11.0 20,30 4R7
HRBC1205A6R8□PG00 6.8 100kHz,1V 15(18) 17.0 11.0 20,30 6R8
HRBC1205A8R2□PG00 8.2 100kHz,1V 19(23) 16.0 10.0 20,30 8R2
HRBC1205A100□PG00 10.0 100kHz,1V 23(30) 12.0 7.0 20,30 100
HRBC1205A150□PG00 15.0 100kHz,1V 46(50) 10.0 6.0 20,30 150
HRBC1205A220□PG00 22.0 100kHz,1V 60(70) 7.0 4.0 20,30 220
HRBC1205A330□PG00 33.0 100kHz,1V 72(80) 6.0 3.0 20,30 330
HRBC1205A470□PG00 47.0 100kHz,1V 85(100) 5.0 2.5 20,30 470
HRBC1205A560□PG00 56.0 100kHz,1V 154(180) 4.5 2.0 20,30 560
HRBC1205A680□PG00 68.0 100kHz,1V 154(180) 4.0 2.0 20,30 680








HRBC1265A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1265AR22□PG00 0.22 100kHz,1V 0.5(0.7) 70.0 40.0 20,30 R22
HRBC1265AR33□PG00 0.33 100kHz,1V 0.56(0.8) 70.0 38.0 20,30 R33
HRBC1265AR47□PG00 0.47 100kHz,1V 0.85(1.3) 60.0 35.0 20,30 R47
HRBC1265AR68□PG00 0.68 100kHz,1V 1.3(1.5) 51.0 30.0 20,30 R68
HRBC1265A1R0□PG00 1.0 100kHz,1V 1.5(2.0) 50.0 30.0 20,30 1R0
HRBC1265A2R2□PG00 2.2 100kHz,1V 3.5(4.5) 35.0 18.0 20,30 2R2
HRBC1265A3R3□PG00 3.3 100kHz,1V 5.8(7.5) 25.0 17.0 20,30 3R3
HRBC1265A4R7□PG00 4.7 100kHz,1V 6.5(9) 22.0 14.0 20,30 4R7
HRBC1265A5R6□PG00 5.6 100kHz,1V 9.5(12) 19.0 12.0 20,30 5R6
HRBC1265A6R8□PG00 6.8 100kHz,1V 11(14) 18.0 11.5 20,30 6R8
HRBC1265A100□PG00 10.0 100kHz,1V 16(20) 15.5 10.0 20,30 100
HRBC1265A150□PG00 15.0 100kHz,1V 27.5(30) 12.0 7.0 20,30 150
HRBC1265A220□PG00 22.0 100kHz,1V 30(36) 9.0 6.0 20,30 220
HRBC1265A330□PG00 33.0 100kHz,1V 48(55) 8.0 5.0 20,30 330
HRBC1265A470□PG00 47.0 100kHz,1V 67(80) 6.0 4.0 20,30 470
HRBC1265A680□PG00 68.0 100kHz,1V 94(115) 5.0 3.0 20,30 680








HRBC1704A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1704AR33□PG00 0.33 100kHz,1V 1.16(1.28) 60.0 56.0 20,30 R33
HRBC1704A1R5□PG00 1.5 100kHz,1V 4.1(4.5) 32.0 18.0 20,30 1R5
HRBC1704A5R6□PG00 5.6 100kHz,1V 10.4(13.5) 21.00 15.00 20,30 5R6








HRBC1707A series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1707AR47□PG00 0.47 100kHz,1V 1.0(1.3) 70.0 35.0 20,30 R47
HRBC1707A1R0□PG00 1.0 100kHz,1V 1.2(1.5) 60.0 28.0 20,30 1R0
HRBC1707A1R5□PG00 1.5 100kHz,1V 1.8(2.5) 50.0 25.0 20,30 1R5
HRBC1707A2R2□PG00 2.2 100kHz,1V 2.0(3.0) 40.0 20.0 20,30 2R2
HRBC1707A3R3□PG00 3.3 100kHz,1V 2.8(3.5) 34.0 19.0 20,30 3R3
HRBC1707A4R7□PG00 4.7 100kHz,1V 4.2(5.0) 28.0 17.5 20,30 4R7
HRBC1707A6R8□PG00 6.8 100kHz,1V 6.5(7.5) 24.0 13.0 20,30 6R8
HRBC1707A8R2□PG00 8.2 100kHz,1V 8.2(10) 22.0 12.5 20,30 8R2
HRBC1707A100□PG00 10 100kHz,1V 9.0(13) 21.0 12.0 20,30 100
HRBC1707A150□PG00 15 100kHz,1V 14.5(18) 18.0 11.0 20,30 150
HRBC1707A220□PG00 22 100kHz,1V 20.5(25) 13.0 10.0 20,30 220
HRBC1707A330□PG00 33 100kHz,1V 30(42) 10.0 7.0 20,30 330
HRBC1707A470□PG00 47 100kHz,1V 41(52) 9.0 6.0 20,30 470
HRBC1707A680□PG00 68 100kHz,1V 50(85) 6.5 5.2 20,30 680








HRBC0420C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0402CR10□PG00 0.10 100kHz,1V 3.8(4.5) 35.0 14.0 30 R10
HRBC0402CR22□PG00 0.22 100kHz,1V 5.0(7.0) 24.0 13.0 20,30 R22
HRBC0402CR33□PG00 0.33 100kHz,1V 8.2(10.5) 18.0 10.0 20,30 R33
HRBC0402CR47□PG00 0.47 100kHz,1V 11.0(14.0) 12.0 8.0 20,30 R47
HRBC0402CR56□PG00 0.56 100kHz,1V 14.0(18.0) 10.0 7.0 20,30 R56
HRBC0402CR68□PG00 0.68 100kHz,1V 15.0(20.0) 10.0 7.0 20,30 R68
HRBC0402C1R0□PG00 1.0 100kHz,1V 22.0(27.0) 8.5 5.0 20,30 1R0
HRBC0402C1R5□PG00 1.5 100kHz,1V 32.0(42.0) 7.0 4.5 20,30 1R5
HRBC0402C2R2□PG00 2.2 100kHz,1V 45.0(58.0) 7.0 4.0 20,30 2R2
HRBC0402C3R3□PG00 3.3 100kHz,1V 78.0(87.0) 6.0 3.0 20,30 3R3
HRBC0402C4R7□PG00 4.7 100kHz,1V 105.0(140.0) 4.0 2.2 20,30 4R7
HRBC0402C6R8□PG00 6.8 100kHz,1V 120.0(175.0) 3.0 2.1 20,30 6R8
HRBC0402C8R2□PG00 8.2 100kHz,1V 170.0(200.0) 2.5 1.8 20,30 8R2
HRBC0402C100□PG00 10 100kHz,1V 170.0(200.0) 2.0 1.6 20,30 100
HRBC0402C220□PG00 22 100kHz,1V 540(600) 2.0 1.0 20,30 220








HRBC0518C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0518CR20□PG00 0.20 100kHz,1V 3.6(4.1) 25.0 14.0 20,30 R20
HRBC0518CR22□PG00 0.22 100kHz,1V 4.2(5.0) 22.0 13.0 20,30 R22
HRBC0518CR33□PG00 0.33 100kHz,1V 7.5(8.6) 15.0 11.0 20,30 R33
HRBC0518CR47□PG00 0.47 100kHz,1V 9.8(11.3) 14.0 10.0 20,30 R47
HRBC0518CR56□PG00 0.56 100kHz,1V 11.0(13.0) 13.5 9.5 20,30 R56
HRBC0518CR68□PG00 0.68 100kHz,1V 12.4(14.3) 13.0 9.0 20,30 R68
HRBC0518C1R0□PG00 1.0 100kHz,1V 18.2(21.0) 10.0 6.8 20,30 1R0
HRBC0518C1R5□PG00 1.5 100kHz,1V 26.0(30.0) 9.0 6.0 20,30 1R5
HRBC0518C2R2□PG00 2.2 100kHz,1V 42.0(48.3) 7.5 4.5 20,30 2R2
HRBC0518C3R3□PG00 3.3 100kHz,1V 60.0(69.0) 5.0 3.5 20,30 3R3
HRBC0518C4R7□PG00 4.7 100kHz,1V 85.0(98.0) 4.5 3.0 20,30 4R7
HRBC0518C5R6□PG00 5.6 100kHz,1V 110.0(127.0) 4.0 2.5 20,30 5R6
HRBC0518C6R8□PG00 6.8 100kHz,1V 118.0(137.0) 3.5 2.4 20,30 6R8
HRBC0518C8R2□PG00 8.2 100kHz,1V 143.0(165.0) 3.0 2.3 20,30 8R2
HRBC0518C100□PG00 10.0 100kHz,1V 165.0(190.0) 2.8 2.3 20,30 100
HRBC0518C150□PG00 15.0 100kHz,1V 275.0(318.0) 2.3 1.7 20,30 150








HRBC0502C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0502CR10□PG00 0.10 100kHz,1V 3.6(4.0) 45.0 18.0 30 R10
HRBC0502CR15□PG00 0.15 100kHz,1V 3.8(4.6) 27.0 16.0 30 R15
HRBC0502CR22□PG00 0.22 100kHz,1V 4.0(5.5) 25.0 15.0 20,30 R22
HRBC0502CR24□PG00 0.24 100kHz,1V 6.0(7.0) 23.0 13.0 20,30 R24
HRBC0502CR33□PG00 0.33 100kHz,1V 6.3(7.3) 21.3 12.0 20,30 R33
HRBC0502CR36□PG00 0.36 100kHz,1V 6.8(7.8) 20.0 11.8 20,30 R36
HRBC0502CR47□PG00 0.47 100kHz,1V 8.4(9.5) 18.0 11.5 20,30 R47
HRBC0502CR56□PG00 0.56 100kHz,1V 9.3(11.2) 15.0 10.7 20,30 R56
HRBC0502CR68□PG00 0.68 100kHz,1V 11.0(12.4) 12.8 10.0 20,30 R68
HRBC0502C1R0□PG00 1.0 100kHz,1V 17.5(20.0) 13.7 7.0 20,30 1R0
HRBC0502C1R2□PG00 1.2 100kHz,1V 23.0(28.0) 11.0 6.2 20,30 1R2
HRBC0502C1R5□PG00 1.5 100kHz,1V 26.5(30.5) 9.8 5.5 20,30 1R5
HRBC0502C2R2□PG00 2.2 100kHz,1V 42.0(50.0) 9.0 4.2 20,30 2R2
HRBC0502C3R3□PG00 3.3 100kHz,1V 66.0(76.0) 7.3 3.3 20,30 3R3
HRBC0502C4R7□PG00 4.7 100kHz,1V 103.0(116.0) 5.0 2.8 20,30 4R7
HRBC0502C5R6□PG00 5.6 100kHz,1V 112.0(122.0) 4.0 2.5 20,30 5R6
HRBC0502C6R8□PG00 6.8 100kHz,1V 130.0(150.0) 3.8 2.4 20,30 6R8
HRBC0502C8R2□PG00 8.2 100kHz,1V 148.0(171.0) 3.5 2.3 20,30 8R2
HRBC0502C100□PG00 10.0 100kHz,1V 195.0(220.0) 4.0 2.3 20,30 100








HRBC0503C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0503CR10□PG00 0.10 100kHz,1V 2.5(3.0) 27.0 23.0 30 R10
HRBC0503CR20□PG00 0.20 100kHz,1V 2.6(3.2) 25.0 16.0 30 R20
HRBC0503CR22□PG00 0.22 100kHz,1V 3.7(4.4) 21.0 15.5 20,30 R22
HRBC0503CR33□PG00 0.33 100kHz,1V 4.3(5.0) 18.0 14.0 20,30 R33
HRBC0503CR47□PG00 0.47 100kHz,1V 6.4(7.4) 16.0 12.0 20,30 R47
HRBC0503CR68□PG00 0.68 100kHz,1V 10.0(12.0) 14.0 8.5 20,30 R68
HRBC0503C1R0□PG00 1.0 100kHz,1V 13.0(14.0) 11.0 7.0 20,30 1R0
HRBC0503C1R2□PG00 1.2 100kHz,1V 14.0(16.0) 11.0 6.5 20,30 1R2
HRBC0503C1R5□PG00 1.5 100kHz,1V 16.0(25.0) 10.0 6.0 20,30 1R5
HRBC0503C2R2□PG00 2.2 100kHz,1V 25.0(35.0) 9.0 5.5 20,30 2R2
HRBC0503C3R3□PG00 3.3 100kHz,1V 32.0(38.0) 8.0 5.0 20,30 3R3
HRBC0503C3R6□PG00 3.6 100kHz,1V 46.0(54.0) 7.0 4.9 20,30 3R6
HRBC0503C4R7□PG00 4.7 100kHz,1V 50.0(60.0) 6.0 4.6 20,30 4R7
HRBC0503C5R6□PG00 5.6 100kHz,1V 55.0(63.0) 4.5 4.3 20,30 5R6
HRBC0503C6R8□PG00 6.8 100kHz,1V 68.0(76.2) 4.3 4.0 20,30 6R8
HRBC0503C100□PG00 10.0 100kHz,1V 110.0(128.0) 4.0 2.8 20,30 100
HRBC0503C150□PG00 15.0 100kHz,1V 165.0(220.0) 3.0 2.1 20,30 150
HRBC0503C180□PG00 18.0 100kHz,1V 195.0(230.0) 2.3 2.0 20,30 180
HRBC0503C220□PG00 22.0 100kHz,1V 220.0(250.0) 1.7 1.9 20,30 220
HRBC0503C330□PG00 33.0 100kHz,1V 380.0(440.0) 1.6 1.6 20,30 330








HRBC0618C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0618CR15□PG00 0.15 100kHz,1V 2.2(2.6) 30.0 16.0 30 R15
HRBC0618CR18□PG00 0.18 100kHz,1V 2.5(3.0) 29.0 15.0 30 R18
HRBC0618CR22□PG00 0.22 100kHz,1V 2.5(3.0) 24.0 14.0 20,30 R22
HRBC0618CR33□PG00 0.33 100kHz,1V 4.8(5.8) 19.0 12.0 20,30 R33
HRBC0618CR47□PG00 0.47 100kHz,1V 6.4(7.4) 16.0 10.0 20,30 R47
HRBC0618CR56□PG00 0.56 100kHz,1V 8.5(10.0) 15.0 9.5 20,30 R56
HRBC0618CR68□PG00 0.68 100kHz,1V 9.5(11.0) 15.0 9.0 20,30 R68
HRBC0618CR82□PG00 0.82 100kHz,1V 11.5(14.0) 14.0 7.9 20,30 R82
HRBC0618C1R0□PG00 1.0 100kHz,1V 14.5(17.0) 12.0 6.5 20,30 1R0
HRBC0618C1R2□PG00 1.2 100kHz,1V 20.0(24.0) 11.0 6.0 20,30 1R2
HRBC0618C1R5□PG00 1.5 100kHz,1V 21.0(25.2) 11.0 5.5 20,30 1R5
HRBC0618C2R2□PG00 2.2 100kHz,1V 31.0(35.0) 10.0 5.5 20,30 2R2
HRBC0618C3R3□PG00 3.3 100kHz,1V 40.0(46.0) 8.0 4.5 20,30 3R3
HRBC0618C4R7□PG00 4.7 100kHz,1V 68.0(76.0) 6.0 3.6 20,30 4R7
HRBC0618C5R6□PG00 5.6 100kHz,1V 78.0(86.0) 5.0 3.1 20,30 5R6
HRBC0618C6R8□PG00 6.8 100kHz,1V 93.0(104.0) 4.5 2.6 20,30 6R8
HRBC0618C8R2□PG00 8.2 100kHz,1V 123.0(140.0) 3.8 2.2 20,30 8R2
HRBC0618C100□PG00 10.0 100kHz,1V 143.0(160.0) 3.1 2.0 20,30 100
HRBC0618C150□PG00 15.0 100kHz,1V 240.0(280.0) 2.7 1.7 20,30 150
HRBC0618C220□PG00 22.0 100kHz,1V 300.0(360.0) 2.1 1.5 20,30 220








HRBC0602C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0602CR10□PG00 0.10 100kHz,1V 2.0(2.4) 40.0 21.0 30 R10
HRBC0602CR15□PG00 0.15 100kHz,1V 2.3(2.7) 39.0 18.0 30 R15
HRBC0602CR16□PG00 0.16 100kHz,1V 2.3(2.7) 38.0 18.0 30 R16
HRBC0602CR18□PG00 0.18 100kHz,1V 2.4(2.9) 36.0 18.0 30 R18
HRBC0602CR20□PG00 0.20 100kHz,1V 2.5(3.0) 35.0 18.0 30 R20
HRBC0602CR22□PG00 0.22 100kHz,1V 3.5(4.0) 32.0 15.0 30 R22
HRBC0602CR33□PG00 0.33 100kHz,1V 4.5(5.0) 25.0 14.0 20,30 R33
HRBC0602CR47□PG00 0.47 100kHz,1V 7.1(8.3) 20.0 11.7 20,30 R47
HRBC0602CR56□PG00 0.56 100kHz,1V 7.9(9.3) 18.0 11.0 20,30 R56
HRBC0602CR68□PG00 0.68 100kHz,1V 8.3(10.0) 16.0 10.5 20,30 R68
HRBC0602C1R0□PG00 1.0 100kHz,1V 16.5(20.0) 14.0 8.0 20,30 1R0
HRBC0602C1R2□PG00 1.2 100kHz,1V 19.0(23.0) 13.0 7.5 20,30 1R2
HRBC0602C1R5□PG00 1.5 100kHz,1V 23.0(27.0) 12.0 7.0 20,30 1R5
HRBC0602C2R2□PG00 2.2 100kHz,1V 32.0(37.0) 10.0 6.0 20,30 2R2
HRBC0602C3R3□PG00 3.3 100kHz,1V 43.0(48.0) 8.0 5.0 20,30 3R3
HRBC0602C4R7□PG00 4.7 100kHz,1V 58.0(65.0) 8.0 4.5 20,30 4R7
HRBC0602C5R6□PG00 5.6 100kHz,1V 59.0(68.0) 6.0 4.0 20,30 5R6
HRBC0602C6R8□PG00 6.8 100kHz,1V 63.0(73.0) 5.5 4.0 20,30 6R8
HRBC0602C8R2□PG00 8.2 100kHz,1V 101.0(116.0) 5.0 3.2 20,30 8R2
HRBC0602C100□PG00 10.0 100kHz,1V 134.0(154.0) 4.0 2.8 20,30 100
HRBC0602C150□PG00 15.0 100kHz,1V 190.0(210.0) 3.3 2.1 20,30 150
HRBC0602C220□PG00 22.0 100kHz,1V 236.0(280.0) 2.5 1.5 20,30 220








HRBC0624C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0624CR10□PG00 0.10 100kHz,1V 1.4(1.7) 70.0 30.0 30 R10
HRBC0624CR15□PG00 0.15 100kHz,1V 1.8(2.3) 45.0 30.0 30 R15
HRBC0624CR20□PG00 0.20 100kHz,1V 1.9(2.8) 40.0 23.0 20,30 R20
HRBC0624CR22□PG00 0.22 100kHz,1V 2.0(3.2) 34.0 21.0 20,30 R22
HRBC0624CR33□PG00 0.33 100kHz,1V 3.6(4.4) 30.0 18.0 20,30 R33
HRBC0624CR36□PG00 0.36 100kHz,1V 3.8(4.6) 29.0 17.0 20,30 R36
HRBC0624CR47□PG00 0.47 100kHz,1V 4.8(5.1) 26.0 15.0 20,30 R47
HRBC0624CR56□PG00 0.56 100kHz,1V 5.5(6.5) 24.0 13.0 20,30 R56
HRBC0624CR60□PG00 0.60 100kHz,1V 5.7(6.9) 22.0 13.0 20,30 R60
HRBC0624CR68□PG00 0.68 100kHz,1V 6.4(7.2) 21.0 13.0 20,30 R68
HRBC0624CR82□PG00 0.82 100kHz,1V 8.0(9.5) 17.0 11.0 20,30 R82
HRBC0624C1R0□PG00 1.0 100kHz,1V 10.5(13.5) 16.0 11.0 20,30 1R0
HRBC0624C1R5□PG00 1.5 100kHz,1V 17.0(20.0) 12.0 7.0 20,30 1R5
HRBC0624C2R2□PG00 2.2 100kHz,1V 23.0(28.0) 11.0 6.0 20,30 2R2
HRBC0624C3R3□PG00 3.3 100kHz,1V 34.0(39.0) 10.0 6.0 20,30 3R3
HRBC0624C4R7□PG00 4.7 100kHz,1V 41.0(50.0) 9.0 5.5 20,30 4R7
HRBC0624C5R6□PG00 5.6 100kHz,1V 56.0(62.0) 8.0 5.0 20,30 5R6
HRBC0624C6R8□PG00 6.8 100kHz,1V 65.0(72.0) 7.0 4.0 20,30 6R8
HRBC0624C8R2□PG00 8.2 100kHz,1V 81.0(95.0) 6.0 3.6 20,30 8R2
HRBC0624C100□PG00 10.0 100kHz,1V 92.0(101.0) 5.0 3.2 20,30 100
HRBC0624C150□PG00 15.0 100kHz,1V 120.0(160.0) 3.5 2.5 20,30 150
HRBC0624C220□PG00 22.0 100kHz,1V 222.0(250.0) 3.0 1.8 20,30 220








HRBC0603C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0603CR10□PG00 0.10 100kHz,1V 1.5(1.7) 60.0 32.5 20,30 R10
HRBC0603CR15□PG00 0.15 100kHz,1V 1.7(2.0) 52.0 30.0 20,30 R15
HRBC0603CR20□PG00 0.20 100kHz,1V 2.4(3.0) 41.0 24.0 20,30 R20
HRBC0603CR22□PG00 0.22 100kHz,1V 2.5(2.8) 40.0 23.0 20,30 R22
HRBC0603CR33□PG00 0.33 100kHz,1V 3.5(3.9) 30.0 20.0 20,30 R33
HRBC0603CR47□PG00 0.47 100kHz,1V 4.0(4.2) 26.0 17.5 20,30 R47
HRBC0603CR56□PG00 0.56 100kHz,1V 4.7(5.0) 25.5 16.5 20,30 R56
HRBC0603CR68□PG00 0.68 100kHz,1V 5.0(5.5) 25.0 15.5 20,30 R68
HRBC0603CR75□PG00 0.75 100kHz,1V 5.4(6.2) 24.5 14.0 20,30 R75
HRBC0603CR82□PG00 0.82 100kHz,1V 6.7(8.0) 24.0 13.0 20,30 R82
HRBC0603C1R0□PG00 1.0 100kHz,1V 9.0(10.0) 22.0 11.0 20,30 1R0
HRBC0603C1R2□PG00 1.2 100kHz,1V 10.0(12.0) 20.0 10.0 20,30 1R2
HRBC0603C1R5□PG00 1.5 100kHz,1V 14.0(15.0) 18.0 9.0 20,30 1R5
HRBC0603C2R0□PG00 2.0 100kHz,1V 16.0(18.0) 14.0 8.2 20,30 2R0
HRBC0603C2R2□PG00 2.2 100kHz,1V 18.0(20.0) 14.0 8.0 20,30 2R2
HRBC0603C2R5□PG00 2.5 100kHz,1V 20.0(22.0) 14.0 7.0 20,30 2R5
HRBC0603C3R3□PG00 3.3 100kHz,1V 28.0(30.0) 13.5 6.0 20,30 3R3
HRBC0603C4R7□PG00 4.7 100kHz,1V 37.0(40.0) 10.0 5.5 20,30 4R7
HRBC0603C6R8□PG00 6.8 100kHz,1V 54.0(60.0) 8.0 4.5 20,30 6R8
HRBC0603C8R2□PG00 8.2 100kHz,1V 60.0(68.0) 8.0 4.0 20,30 8R2
HRBC0603C100□PG00 10.0 100kHz,1V 95.0(105.0) 7.0 3.0 20,30 100








HRBC0604C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0604CR12□PG00 0.12 100kHz,1V 0.7(1.0) 64.0 32.0 30 R12
HRBC0604CR15□PG00 0.15 100kHz,1V 0.9(1.2) 55.0 30.0 30 R15
HRBC0604CR22□PG00 0.22 100kHz,1V 1.9(2.1) 34.0 25.0 20,30 R22
HRBC0604CR33□PG00 0.33 100kHz,1V 2.0(2.6) 34.0 25.0 20,30 R33
HRBC0604CR36□PG00 0.36 100kHz,1V 2.7(3.1) 31.0 25.0 20,30 R36
HRBC0604CR47□PG00 0.47 100kHz,1V 3.0(3.4) 28.0 23.0 20,30 R47
HRBC0604CR56□PG00 0.56 100kHz,1V 3.8(4.3) 26.0 20.0 20,30 R56
HRBC0604CR68□PG00 0.68 100kHz,1V 4.1(4.5) 24.0 16.0 20,30 R68
HRBC0604C1R0□PG00 1.0 100kHz,1V 6.8(8.0) 22.0 14.0 20,30 1R0
HRBC0604C1R5□PG00 1.5 100kHz,1V 10.0(12.0) 20.0 12.0 20,30 1R5
HRBC0604C2R2□PG00 2.2 100kHz,1V 11.5(14.0) 14.0 9.0 20,30 2R2
HRBC0604C3R3□PG00 3.3 100kHz,1V 24.0(27.0) 12.0 8.0 20,30 3R3
HRBC0604C4R7□PG00 4.7 100kHz,1V 28.0(32.5) 11.0 6.0 20,30 4R7
HRBC0604C5R6□PG00 5.6 100kHz,1V 33.0(38.0) 9.0 5.0 20,30 5R6
HRBC0604C6R8□PG00 6.8 100kHz,1V 44.0(50.0) 8.5 4.5 20,30 6R8
HRBC0604C8R2□PG00 8.2 100kHz,1V 55.0(64.0) 8.0 4.5 20,30 8R2
HRBC0604C100□PG00 10.0 100kHz,1V 64.0(72.0) 7.0 4.0 20,30 100
HRBC0604C150□PG00 15.0 100kHz,1V 80.0(90.0) 3.5 3.0 20,30 150
HRBC0604C220□PG00 22.0 100kHz,1V 120.0(145.0) 3.5 2.5 20,30 220
HRBC0604C330□PG00 33.0 100kHz,1V 180.0(210.0) 3.2 1.8 20,30 330
HRBC0604C470□PG00 47.0 100kHz,1V 295.0(350.0) 2.5 1.8 20,30 470








HRBC0605C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC0605CR10□PG00 0.10 100kHz,1V 0.7(0.8) 65.0 32.0 30 R10
HRBC0605CR11□PG00 0.11 100kHz,1V 0.7(0.8) 65.0 32.0 30 R11
HRBC0605CR15□PG00 0.15 100kHz,1V 1.3(1.7) 50.0 30.0 30 R15
HRBC0605CR22□PG00 0.22 100kHz,1V 1.6(1.9) 35.0 25.0 20,30 R22
HRBC0605CR33□PG00 0.33 100kHz,1V 2.5(3.0) 32.0 25.0 20,30 R33
HRBC0605CR40□PG00 0.40 100kHz,1V 3.1(3.7) 31.0 23.0 20,30 R40
HRBC0605CR47□PG00 0.47 100kHz,1V 3.5(3.9) 30.0 22.0 20,30 R47
HRBC0605CR56□PG00 0.56 100kHz,1V 3.6(4.2) 27.0 20.0 20,30 R56
HRBC0605CR60□PG00 0.60 100kHz,1V 3.8(4.3) 25.0 19.0 20,30 R60
HRBC0605CR68□PG00 0.68 100kHz,1V 4.0(4.5) 24.0 18.0 20,30 R68
HRBC0605CR82□PG00 0.82 100kHz,1V 4.6(4.9) 22.0 16.5 20,30 R82
HRBC0605C1R0□PG00 1.0 100kHz,1V 6.1(6.5) 20.0 15.0 20,30 1R0
HRBC0605C1R2□PG00 1.2 100kHz,1V 6.7(7.5) 18.0 14.0 20,30 1R2
HRBC0605C1R5□PG00 1.5 100kHz,1V 8.6(9.0) 16.5 12.0 20,30 1R5
HRBC0605C1R8□PG00 1.8 100kHz,1V 9.5(11.0) 15.0 12.0 20,30 1R8
HRBC0605C2R2□PG00 2.2 100kHz,1V 11.2(12.0) 14.0 10.0 20,30 2R2
HRBC0605C3R3□PG00 3.3 100kHz,1V 19.0(20.9) 12.0 8.0 20,30 3R3
HRBC0605C4R7□PG00 4.7 100kHz,1V 28.0(30.8) 10.0 6.5 20,30 4R7
HRBC0605C4R9□PG00 4.9 100kHz,1V 32.0(38.0) 9.5 6.3 20,30 4R9
HRBC0605C5R6□PG00 5.6 100kHz,1V 43.5(49.0) 9.0 6.0 20,30 5R6
HRBC0605C6R8□PG00 6.8 100kHz,1V 46.0(51.5) 8.5 5.5 20,30 6R8
HRBC0605C8R2□PG00 8.2 100kHz,1V 56.0(63.0) 8.0 5.0 20,30 8R2
HRBC0605C100□PG00 10.0 100kHz,1V 60.0(69.0) 7.5 4.0 20,30 100
HRBC0605C120□PG00 12.0 100kHz,1V 68.0(80.0) 6.7 3.8 20,30 120
HRBC0605C150□PG00 15.0 100kHz,1V 81.0(92.0) 6.0 3.5 20,30 150
HRBC0605C220□PG00 22.0 100kHz,1V 140.0(170.0) 5.5 2.5 20,30 220
HRBC0605C330□PG00 33.0 100kHz,1V 173.0(200.0) 3.5 2.0 20,30 330
HRBC0605C420□PG00 42.0 100kHz,1V 212.0(245.0) 2.8 2.0 20,30 420
HRBC0605C470□PG00 47.0 100kHz,1V 190.0(240.0) 2.7 1.9 20,30 470
HRBC0605C560□PG00 56.0 100kHz,1V 342.0(396.0) 2.1 1.6 20,30 560
HRBC0605C680□PG00 68.0 100kHz,1V 386.0(445.0) 2.0 1.2 20,30 680








HRBC1004C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1004CR19□PG00 0.19 100kHz,1V 0.5(0.7) 75.0 40.0 20,30 R19
HRBC1004CR22□PG00 0.22 100kHz,1V 0.5(0.7) 70.0 40.0 20,30 R22
HRBC1004CR36□PG00 0.36 100kHz,1V 1.1(1.3) 60.0 30.0 20,30 R36
HRBC1004CR39□PG00 0.39 100kHz,1V 1.2(1.4) 60.0 30.0 20,30 R39
HRBC1004CR47□PG00 0.47 100kHz,1V 1.2(1.5) 60.0 30.0 20,30 R47
HRBC1004CR56□PG00 0.56 100kHz,1V 1.6(1.8) 40.0 25.0 20,30 R56
HRBC1004C1R0□PG00 1.00 100kHz,1V 2.7(3.3) 36.0 18.0 20,30 1R0
HRBC1004C1R5□PG00 1.50 100kHz,1V 4.6(5.8) 33.0 16.0 20,30 1R5
HRBC1004C2R2□PG00 2.20 100kHz,1V 6.5(7.5) 27.0 12.0 20,30 2R2
HRBC1004C3R3□PG00 3.30 100kHz,1V 10.8(12) 20.0 11.0 20,30 3R3
HRBC1004C4R7□PG00 4.70 100kHz,1V 16(19) 17.0 9.5 20,30 4R7
HRBC1004C6R8□PG00 6.80 100kHz,1V 17.5(23.3) 13.5 8.5 20,30 6R8
HRBC1004C100□PG00 10.00 100kHz,1V 27(30) 12.0 7.5 20,30 100
HRBC1004C150□PG00 15.00 100kHz,1V 43(48) 10.0 6.3 20,30 150
HRBC1004C220□PG00 22.00 100kHz,1V 63(74) 7.0 5.0 20,30 220
HRBC1004C330□PG00 33.00 100kHz,1V 92(112) 5.0 3.5 20,30 330
HRBC1004C470□PG00 47.00 100kHz,1V 130(145) 4.5 3.0 20,30 470
HRBC1004C680□PG00 68.00 100kHz,1V 205(258) 4.0 2.5 20,30 680








HRBC1005C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1005CR22□PG00 0.22 100kHz,1V 0.5(0.6) 70.0 45.0 20,30 R22
HRBC1005CR30□PG00 0.30 100kHz,1V 0.6(0.8) 65.0 38.0 20,30 R30
HRBC1005CR56□PG00 0.56 100kHz,1V 1.3(1.5) 43.0 26.5 20,30 R56
HRBC1005CR90□PG00 0.90 100kHz,1V 2.2(3.0) 32.0 25.0 20,30 R90
HRBC1005C1R0□PG00 1.0 100kHz,1V 2.8(3.5) 30.0 22.0 20,30 1R0
HRBC1005C1R2□PG00 1.2 100kHz,1V 2.9(3.5) 28.0 20.0 20,30 1R2
HRBC1005C1R3□PG00 1.3 100kHz,1V 3.2(3.7) 28.0 20.0 20,30 1R3
HRBC1005C1R5□PG00 1.5 100kHz,1V 3.5(4.1) 27.0 19.0 20,30 1R5
HRBC1005C1R8□PG00 1.8 100kHz,1V 3.7(4.7) 25.5 17.5 20,30 1R8
HRBC1005C2R2□PG00 2.2 100kHz,1V 5.4(6.0) 24.0 16.0 20,30 2R2
HRBC1005C3R3□PG00 3.3 100kHz,1V 9.0(10.4) 22.0 14.0 20,30 3R3
HRBC1005C4R7□PG00 4.7 100kHz,1V 10.0(12.5) 19.0 13.0 20,30 4R7
HRBC1005C5R0□PG00 5.0 100kHz,1V 12.2(15.0) 18.0 12.0 20,30 5R0
HRBC1005C5R6□PG00 5.6 100kHz,1V 14.0(16.8) 16.0 10.0 20,30 5R6
HRBC1005C6R8□PG00 6.8 100kHz,1V 16.5(21.0) 15.0 9.5 20,30 6R8
HRBC1005C8R2□PG00 8.2 100kHz,1V 18.5(24.0) 14.5 9.0 20,30 8R2
HRBC1005C100□PG00 10.0 100kHz,1V 25.0(29.0) 13.5 8.0 20,30 100
HRBC1005C120□PG00 12.0 100kHz,1V 30.0(35.0) 10.0 6.0 20,30 120
HRBC1005C150□PG00 15.0 100kHz,1V 37.0(45.0) 9.5 5.5 20,30 150
HRBC1005C220□PG00 22.0 100kHz,1V 50.0(60.0) 9.0 5.0 20,30 220
HRBC1005C240□PG00 24.0 100kHz,1V 59.0(70.8) 7.7 4.6 20,30 240
HRBC1005C330□PG00 33.0 100kHz,1V 93.0(100.0) 7.5 4.3 20,30 330
HRBC1005C470□PG00 47.0 100kHz,1V 125.0(145.0) 6.5 3.8 20,30 470
HRBC1005C680□PG00 68.0 100kHz,1V 195.0(215.0) 5.0 3.0 20,30 680
HRBC1005C101□PG00 100.0 100kHz,1V 315.0(380.0) 3.0 2.0 20,30 101








HRBC1235C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1235C1R5□PG00 1.5 100kHz,1V 4.8(5.5) 35.0 19.0 20,30 1R5
HRBC1235C1R8□PG00 1.8 100kHz,1V 5.2(7.0) 30.0 17.0 20,30 1R8
HRBC1235C2R2□PG00 2.2 100kHz,1V 6.3(8.0) 29.0 16.0 20,30 2R2
HRBC1235C3R3□PG00 3.3 100kHz,1V 11.0(13.5) 27.0 12.0 20,30 3R3
HRBC1235C4R7□PG00 4.7 100kHz,1V 15.3(18.5) 24.0 10.0 20,30 4R7
HRBC1235C5R6□PG00 5.6 100kHz,1V 18.0(22.0) 19.0 9.5 20,30 5R6
HRBC1235C6R8□PG00 6.8 100kHz,1V 20.0(24.0) 18.0 9.0 20,30 6R8
HRBC1235C8R2□PG00 8.2 100kHz,1V 23.0(28.0) 16.0 8.5 20,30 8R2
HRBC1235C100□PG00 10.0 100kHz,1V 29.0(34.0) 14.0 7.5 20,30 100
HRBC1235C150□PG00 15.0 100kHz,1V 55.0(65.0) 10.0 6.5 20,30 150
HRBC1235C220□PG00 22.0 100kHz,1V 83.0(99.0) 7.0 4.5 20,30 220
HRBC1235C330□PG00 33.0 100kHz,1V 132.0(160.0) 6.0 3.5 20,30 330
HRBC1235C470□PG00 47.0 100kHz,1V 181.0(218.0) 5.5 3.0 20,30 470








HRBC1205C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1205CR15□PG00 0.15 100kHz,1V 0.5(0.6) 110.0 53.0 20,30 R15
HRBC1205CR22□PG00 0.22 100kHz,1V 0.5(0.7) 110.0 52.0 20,30 R22
HRBC1205CR33□PG00 0.33 100kHz,1V 0.8(1.0) 75.0 42.0 20,30 R33
HRBC1205CR36□PG00 0.36 100kHz,1V 0.8(1.0) 70.0 42.0 20,30 R36
HRBC1205CR40□PG00 0.40 100kHz,1V 0.8(1.0) 64.0 41.0 20,30 R40
HRBC1205CR47□PG00 0.47 100kHz,1V 1.1(1.3) 60.0 38.0 20,30 R47
HRBC1205CR56□PG00 0.56 100kHz,1V 1.1(1.3) 55.0 36.0 20,30 R56
HRBC1205CR68□PG00 0.68 100kHz,1V 1.4(1.7) 54.0 34.0 20,30 R68
HRBC1205CR82□PG00 0.82 100kHz,1V 1.7(2.1) 52.0 31.0 20,30 R82
HRBC1205C1R0□PG00 1.0 100kHz,1V 1.8(2.5) 50.0 29.0 20,30 1R0
HRBC1205C1R2□PG00 1.2 100kHz,1V 1.9(2.4) 47.0 28.0 20,30 1R2
HRBC1205C1R5□PG00 1.5 100kHz,1V 2.7(4.1) 48.0 21.0 20,30 1R5
HRBC1205C2R2□PG00 2.2 100kHz,1V 4.5(5.5) 37.0 21.0 20,30 2R2
HRBC1205C3R3□PG00 3.3 100kHz,1V 7.1(8.4) 32.0 15.0 20,30 3R3
HRBC1205C4R7□PG00 4.7 100kHz,1V 11.4(15.0) 27.0 12.0 20,30 4R7
HRBC1205C6R8□PG00 6.8 100kHz,1V 14.5(18.5) 20.0 11.0 20,30 6R8
HRBC1205C8R2□PG00 8.2 100kHz,1V 19.8(22.5) 18.0 9.5 20,30 8R2
HRBC1205C100□PG00 10.0 100kHz,1V 22.0(25.5) 17.0 9.0 20,30 100
HRBC1205C150□PG00 15.0 100kHz,1V 32.0(38.0) 13.0 8.2 20,30 150
HRBC1205C220□PG00 22.0 100kHz,1V 50.0(58.0) 10.0 6.5 20,30 220
HRBC1205C330□PG00 33.0 100kHz,1V 55.0(65.0) 10.0 5.0 20,30 330
HRBC1205C470□PG00 47.0 100kHz,1V 85.0(100.0) 6.0 4.0 20,30 470
HRBC1205C680□PG00 68.0 100kHz,1V 154.0(180.0) 5.0 3.5 20,30 680
HRBC1205C101□PG00 100.0 100kHz,1V 165.0(200.0) 4.5 3.0 20,30 101








HRBC1265C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1265CR15□PG00 0.15 100kHz,1V 0.5(0.6) 118.0 55.0 20,30 R15
HRBC1265CR22□PG00 0.22 100kHz,1V 0.5(0.6) 112.0 53.0 20,30 R22
HRBC1265CR30□PG00 0.30 100kHz,1V 0.6(0.7) 72.0 48.0 20,30 R30
HRBC1265CR33□PG00 0.33 100kHz,1V 0.7(0.8) 68.0 46.0 20,30 R33
HRBC1265CR36□PG00 0.36 100kHz,1V 0.7(0.8) 66.0 45.0 20,30 R36
HRBC1265CR40□PG00 0.40 100kHz,1V 0.8(1.0) 64.0 44.0 20,30 R40
HRBC1265CR47□PG00 0.47 100kHz,1V 0.9(1.2) 63.0 41.0 20,30 R47
HRBC1265CR50□PG00 0.50 100kHz,1V 0.9(1.3) 60.0 40.0 20,30 R50
HRBC1265CR56□PG00 0.56 100kHz,1V 1.1(1.2) 58.0 37.0 20,30 R56
HRBC1265CR68□PG00 0.68 100kHz,1V 1.3(1.5) 55.0 35.0 20,30 R68
HRBC1265CR82□PG00 0.82 100kHz,1V 1.5(1.9) 50.0 33.0 20,30 R82
HRBC1265C1R0□PG00 1.0 100kHz,1V 1.7(2.3) 48.0 30.0 20,30 1R0
HRBC1265C1R2□PG00 1.2 100kHz,1V 1.9(2.4) 47.0 28.0 20,30 1R2
HRBC1265C1R5□PG00 1.5 100kHz,1V 2.5(3.0) 45.0 27.0 20,30 1R5
HRBC1265C1R8□PG00 1.8 100kHz,1V 3.6(4.0) 40.0 24.0 20,30 1R8
HRBC1265C2R2□PG00 2.2 100kHz,1V 3.8(4.2) 37.0 22.0 20,30 2R2
HRBC1265C2R7□PG00 2.7 100kHz,1V 4.3(5.5) 32.0 20.0 20,30 2R7
HRBC1265C3R3□PG00 3.3 100kHz,1V 5.7(6.8) 30.0 18.0 20,30 3R3
HRBC1265C4R7□PG00 4.7 100kHz,1V 7.0(8.4) 28.0 13.5 20,30 4R7
HRBC1265C5R6□PG00 5.6 100kHz,1V 8.5(10.0) 23.0 12.5 20,30 5R6
HRBC1265C6R8□PG00 6.8 100kHz,1V 9.5(11.5) 18.0 11.5 20,30 6R8
HRBC1265C8R2□PG00 8.2 100kHz,1V 12.0(15.5) 16.0 10.5 20,30 8R2
HRBC1265C100□PG00 10.0 100kHz,1V 13.2(16.5) 15.5 10.0 20,30 100
HRBC1265C130□PG00 13.0 100kHz,1V 21.0(24.0) 13.0 9.0 20,30 130
HRBC1265C150□PG00 15.0 100kHz,1V 23.2(28.0) 13.0 9.0 20,30 150
HRBC1265C220□PG00 22.0 100kHz,1V 32.5(37.0) 12.0 9.0 20,30 220
HRBC1265C330□PG00 33.0 100kHz,1V 48.0(58.0) 11.0 8.0 20,30 330
HRBC1265C470□PG00 47.0 100kHz,1V 76.0(90.0) 9.5 6.5 20,30 470
HRBC1265C680□PG00 68.0 100kHz,1V 110.0(130.0) 7.8 4.8 20,30 680
HRBC1265C101□PG00 100.0 100kHz,1V 130.0(165.0) 5.5 4.2 20,30 101








HRBC1707C series  Standard Specifications
Part No. Inductance Test Freq. DCR(mΩ) Isat(A) Irms(A) Tolerance Marking
(μH)
Typ(Max) Typ Typ (±%)
HRBC1707C1R0□PG00 1.00 100kHz,1V 1.3(1.5) 70.0 40.0 20,30 1R0
HRBC1707C1R5□PG00 1.50 100kHz,1V 1.8(2.5) 52.0 35.0 20,30 1R5
HRBC1707C2R2□PG00 2.20 100kHz,1V 2(3) 47.0 30.0 20,30 2R2
HRBC1707C3R3□PG00 3.30 100kHz,1V 2.8(3.5) 45.0 25.0 20,30 3R3
HRBC1707C4R7□PG00 4.70 100kHz,1V 4.2(5) 40.0 22.0 20,30 4R7
HRBC1707C6R8□PG00 6.80 100kHz,1V 6.5(7.5) 35.0 19.0 20,30 6R8
HRBC1707C100□PG00 10.00 100kHz,1V 9(13) 32.0 16.5 20,30 100
HRBC1707C150□PG00 15.00 100kHz,1V 14.5(18) 23.0 13.0 20,30 150
HRBC1707C220□PG00 22.00 100kHz,1V 20.5(25) 18.0 12.0 20,30 220
HRBC1707C330□PG00 33.00 100kHz,1V 30(42) 15.0 10.7 20,30 330
HRBC1707C470□PG00 47.00 100kHz,1V 41(52) 14.0 8.7 20,30 470
HRBC1707C680□PG00 68.0 100kHz,1V 50(85) 10.0 7.0 20,30 680


Product Description
physical dimension
Models and features
HUNAN HUASUN M&E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact person: Wang Ping
Address: Huachen Science and Technology Park, Luojiu, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2024 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
