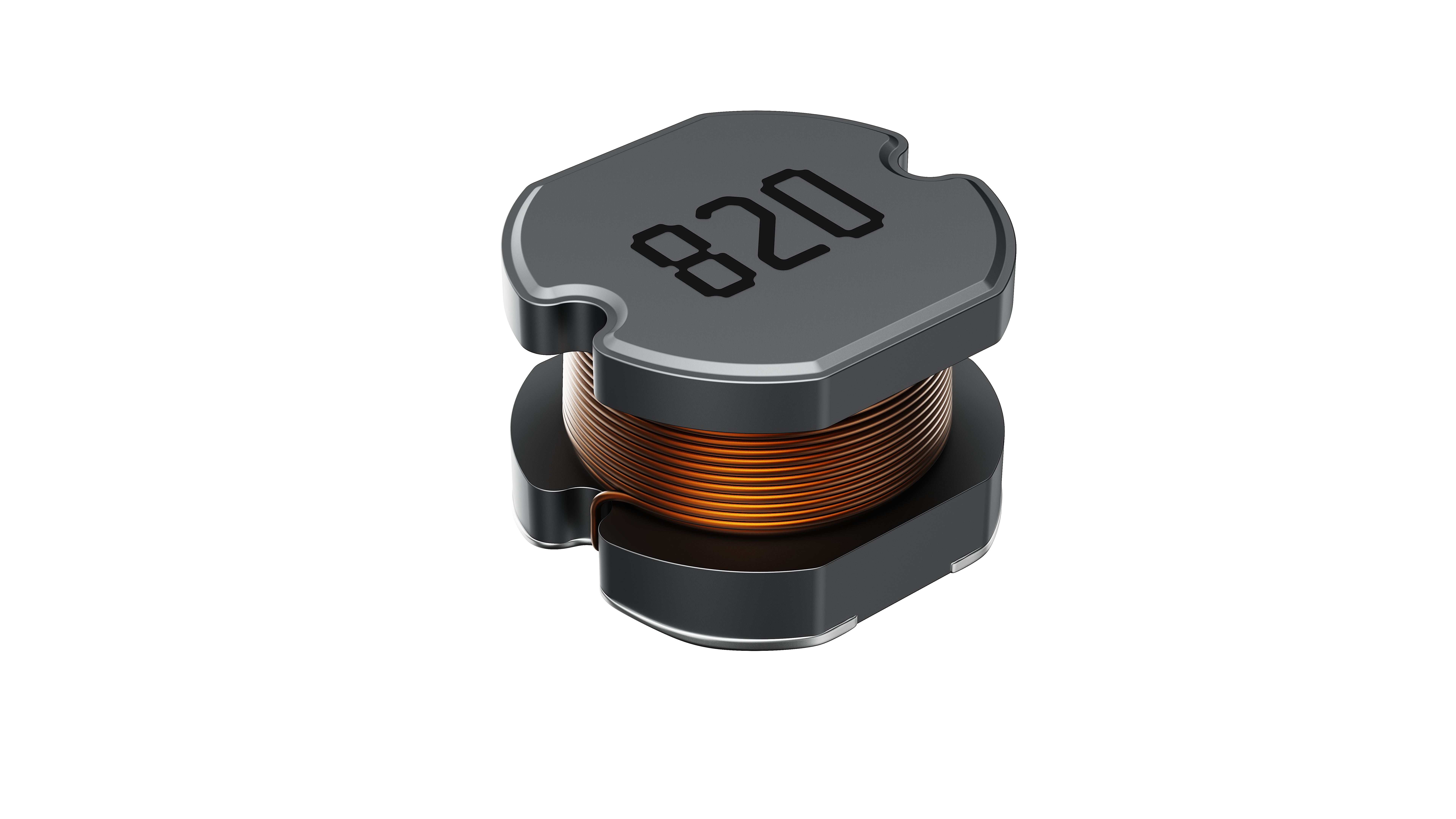

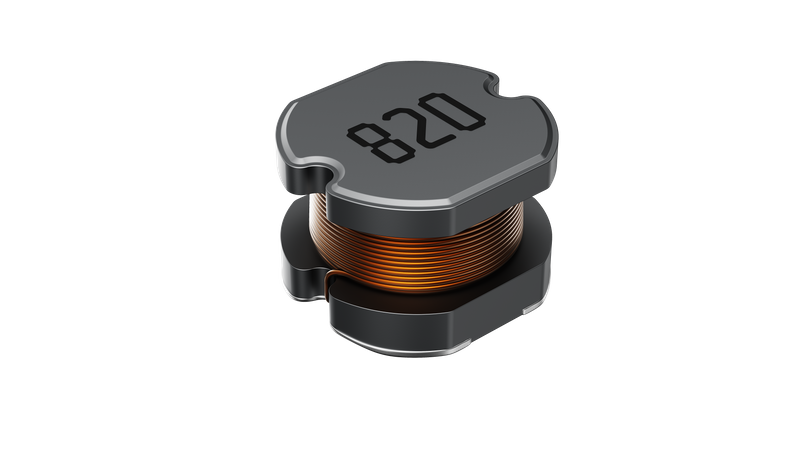

HVM SERIES | |||
| Product number | HVM SERIES | |
| manufacturer | HUASUN | ||
| PID | |||
| Supply method | Self-operated | ||
| product cycle | In mass production | ||
| RoHs & lead-free situation | Lead-free/RoHs compliant | ||
| describe | Excellent price, good quality, wide range of values, and good reliability. | ||
| |||
HVM SERIES appearance dimensions In mm |
| TYPE | A | B | C | D | TYPE | A | B | C | D | |
| 0302 | 3.3±0.3 | 3.0±0.3 | 2.1±0.3 | 1.0 | 0705 | 7.8±0.3 | 7.0±0.3 | 5.0±0.3 | 2.5 | |
| 0403 | 4.5±0.3 | 4.0±0.3 | 3.2±0.3 | 1.2 | 1004 | 10±0.3 | 9.0±0.3 | 4.0±0.5 | 3.3 | |
| 0503 | 5.8±0.3 | 5.2±0.3 | 3.0±0.3 | 2.0 | 1005 | 10±0.3 | 9.0±0.4 | 5.4±0.5 | 3.3 | |
| 0504 | 5.8±0.3 | 5.2±0.3 | 4.5±0.4 | 2.0 | 1006 | 10±0.3 | 9.0±0.4 | 6.5±0.5 | 3.3 | |
| 0703 | 7.8±0.3 | 7.0±0.3 | 3.5±0.3 | 2.5 |
| HVMN 0302 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN0302R82□00 | 0.82 | 7.96MHz,1V | 0.06 | 3.80 | 30 | R82 |
| HVMN03021R0□00 | 1.0 | 7.96MHz,1V | 0.07 | 3.20 | 20,30 | 1R0 |
| HVMN03021R4□00 | 1.4 | 7.96MHz,1V | 0.09 | 2.45 | 20,30 | 1R4 |
| HVMN03021R5□00 | 1.5 | 7.96MHz,1V | 0.11 | 2.40 | 20,30 | 1R5 |
| HVMN03021R8□00 | 1.8 | 7.96MHz,1V | 0.11 | 2.10 | 20,30 | 1R8 |
| HVMN03022R2□00 | 2.2 | 7.96MHz,1V | 0.13 | 1.90 | 20,30 | 2R2 |
| HVMN03022R7□00 | 2.7 | 7.96MHz,1V | 0.14 | 1.70 | 20,30 | 2R7 |
| HVMN03023R3□00 | 3.3 | 7.96MHz,1V | 0.17 | 1.60 | 20,30 | 3R3 |
| HVMN03023R9□00 | 3.9 | 7.96MHz,1V | 0.19 | 1.50 | 20,30 | 3R9 |
| HVMN03024R7□00 | 4.7 | 7.96MHz,1V | 0.21 | 1.30 | 20,30 | 4R7 |
| HVMN03025R6□00 | 5.6 | 7.96MHz,1V | 0.22 | 1.18 | 20,30 | 5R6 |
| HVMN03026R8□00 | 6.8 | 7.96MHz,1V | 0.25 | 1.10 | 20,30 | 6R8 |
| HVMN03027R0□00 | 7.0 | 7.96MHz,1V | 0.28 | 0.98 | 20,30 | 7R0 |
| HVMN03028R2□00 | 8.2 | 7.96MHz,1V | 0.28 | 0.86 | 20,30 | 8R2 |
| HVMN0302100□00 | 10 | 2.52MHz,1V | 0.32 | 0.80 | 20,30 | 100 |
| HVMN0302120□00 | 12 | 2.52MHz,1V | 0.35 | 0.73 | 20,30 | 120 |
| HVMN0302150□00 | 15 | 2.52MHz,1V | 0.40 | 0.68 | 10,20 | 150 |
| HVMN0302180□00 | 18 | 2.52MHz,1V | 0.48 | 0.60 | 10,20 | 180 |
| HVMN0302220□00 | 22 | 2.52MHz,1V | 0.60 | 0.56 | 10,20 | 220 |
| HVMN0302270□00 | 27 | 2.52MHz,1V | 0.65 | 0.53 | 10,20 | 270 |
| HVMN0302330□00 | 33 | 2.52MHz,1V | 0.80 | 0.52 | 10,20 | 330 |
| HVMN0302390□00 | 39 | 2.52MHz,1V | 0.90 | 0.46 | 10,20 | 390 |
| HVMN0302470□00 | 47 | 2.52MHz,1V | 1.19 | 0.41 | 10,20 | 470 |
| HVMN0302500□00 | 50 | 2.52MHz,1V | 1.22 | 0.39 | 10,20 | 500 |
| HVMN0302560□00 | 56 | 2.52MHz,1V | 1.27 | 0.36 | 10,20 | 560 |
| HVMN0302680□00 | 68 | 2.52MHz,1V | 1.73 | 0.34 | 10,20 | 680 |
| HVMN0302750□00 | 75 | 2.52MHz,1V | 1.90 | 0.33 | 10,20 | 750 |
| HVMN0302820□00 | 82 | 2.52MHz,1V | 1.99 | 0.30 | 10,20 | 820 |
| HVMN0302101□00 | 100 | 1kHz,1V | 2.52 | 0.28 | 10,20 | 101 |
| HVMN0302121□00 | 120 | 1kHz,1V | 2.90 | 0.23 | 10,20 | 121 |
| HVMN0302151□00 | 150 | 1kHz,1V | 3.36 | 0.21 | 10,20 | 151 |
| HVMN0302181□00 | 180 | 1kHz,1V | 5.10 | 0.19 | 10,20 | 181 |
| HVMN0302221□00 | 220 | 1kHz,1V | 5.80 | 0.18 | 10,20 | 221 |
| HVMN0302271□00 | 270 | 1kHz,1V | 7.80 | 0.15 | 10,20 | 271 |
| HVMN 0403 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN0403R15□00 | 0.15 | 7.96MHz,1V | 0.0085 | 10.20 | 30 | R15 |
| HVMN04031R0□00 | 1.0 | 7.96MHz,1V | 0.033 | 5.00 | 20,30 | 1R0 |
| HVMN04031R2□00 | 1.2 | 7.96MHz,1V | 0.035 | 4.60 | 20,30 | 1R2 |
| HVMN04031R4□00 | 1.4 | 7.96MHz,1V | 0.038 | 4.20 | 20,30 | 1R4 |
| HVMN04031R5□00 | 1.5 | 7.96MHz,1V | 0.038 | 3.80 | 20,30 | 1R5 |
| HVMN04031R8□00 | 1.8 | 7.96MHz,1V | 0.042 | 3.50 | 20,30 | 1R8 |
| HVMN04032R2□00 | 2.2 | 7.96MHz,1V | 0.047 | 3.20 | 20,30 | 2R2 |
| HVMN04032R7□00 | 2.7 | 7.96MHz,1V | 0.052 | 3.00 | 20,30 | 2R7 |
| HVMN04033R0□00 | 3.0 | 7.96MHz,1V | 0.058 | 2.90 | 20,30 | 3R0 |
| HVMN04033R3□00 | 3.3 | 7.96MHz,1V | 0.058 | 2.80 | 20,30 | 3R3 |
| HVMN04033R9□00 | 3.9 | 7.96MHz,1V | 0.076 | 2.50 | 20,30 | 3R9 |
| HVMN04034R7□00 | 4.7 | 7.96MHz,1V | 0.094 | 2.00 | 20,30 | 4R7 |
| HVMN04035R6□00 | 5.6 | 7.96MHz,1V | 0.101 | 1.90 | 20,30 | 5R6 |
| HVMN04036R2□00 | 6.2 | 7.96MHz,1V | 0.110 | 1.70 | 20,30 | 6R2 |
| HVMN04036R8□00 | 6.8 | 7.96MHz,1V | 0.117 | 1.50 | 20,30 | 6R8 |
| HVMN04038R2□00 | 8.2 | 7.96MHz,1V | 0.132 | 1.35 | 20,30 | 8R2 |
| HVMN0403100□00 | 10 | 2.52MHz,1V | 0.182 | 1.22 | 10,20 | 100 |
| HVMN0403120□00 | 12 | 2.52MHz,1V | 0.210 | 1.17 | 10,20 | 120 |
| HVMN0403150□00 | 15 | 2.52MHz,1V | 0.235 | 1.08 | 10,20 | 150 |
| HVMN0403180□00 | 18 | 2.52MHz,1V | 0.338 | 0.96 | 10,20 | 180 |
| HVMN0403220□00 | 22 | 2.52MHz,1V | 0.378 | 0.92 | 10,20 | 220 |
| HVMN0403270□00 | 27 | 2.52MHz,1V | 0.522 | 0.90 | 10,20 | 270 |
| HVMN0403330□00 | 33 | 2.52MHz,1V | 0.540 | 0.85 | 10,20 | 330 |
| HVMN0403390□00 | 39 | 2.52MHz,1V | 0.587 | 0.82 | 10,20 | 390 |
| HVMN0403470□00 | 47 | 2.52MHz,1V | 0.844 | 0.76 | 10,20 | 470 |
| HVMN0403560□00 | 56 | 2.52MHz,1V | 0.937 | 0.67 | 10,20 | 560 |
| HVMN0403680□00 | 68 | 2.52MHz,1V | 1.117 | 0.53 | 10,20 | 680 |
| HVMN0403101□00 | 100 | 1kHz,1V | 2.00 | 0.48 | 10,20 | 101 |
| HVMN0403121□00 | 120 | 1kHz,1V | 1.80 | 0.43 | 10,20 | 121 |
| HVMN0403151□00 | 150 | 1kHz,1V | 2.80 | 0.35 | 10,20 | 151 |
| HVMN0403181□00 | 180 | 1kHz,1V | 3.20 | 0.33 | 10,20 | 181 |
| HVMN0403221□00 | 220 | 1kHz,1V | 4.00 | 0.27 | 10,20 | 221 |
| HVMN0403331□00 | 330 | 1kHz,1V | 5.85 | 0.20 | 10,20 | 331 |
| HVMN 0503 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN05031R0□00 | 1.0 | 7.96MHz,1V | 0.03 | 6.90 | 20,30 | 1R0 |
| HVMN05031R2□00 | 1.2 | 7.96MHz,1V | 0.03 | 5.80 | 20,30 | 1R2 |
| HVMN05031R5□00 | 1.5 | 7.96MHz,1V | 0.03 | 5.10 | 20,30 | 1R5 |
| HVMN05031R8□00 | 1.8 | 7.96MHz,1V | 0.03 | 5.00 | 20,30 | 1R8 |
| HVMN05032R0□00 | 2.0 | 7.96MHz,1V | 0.03 | 4.90 | 20,30 | 2R0 |
| HVMN05032R2□00 | 2.2 | 7.96MHz,1V | 0.03 | 4.70 | 20,30 | 2R2 |
| HVMN05032R7□00 | 2.7 | 7.96MHz,1V | 0.04 | 4.00 | 20,30 | 2R7 |
| HVMN05033R3□00 | 3.3 | 7.96MHz,1V | 0.05 | 3.60 | 20,30 | 3R3 |
| HVMN05033R9□00 | 3.9 | 7.96MHz,1V | 0.06 | 3.20 | 20,30 | 3R9 |
| HVMN05034R7□00 | 4.7 | 7.96MHz,1V | 0.07 | 3.00 | 20,30 | 4R7 |
| HVMN05035R6□00 | 5.6 | 7.96MHz,1V | 0.08 | 2.60 | 20,30 | 5R6 |
| HVMN05036R8□00 | 6.8 | 7.96MHz,1V | 0.09 | 2.40 | 20,30 | 6R8 |
| HVMN05038R2□00 | 8.2 | 7.96MHz,1V | 0.10 | 2.20 | 20,30 | 8R2 |
| HVMN0503100□00 | 10 | 2.52MHz,1V | 0.12 | 2.00 | 10,20 | 100 |
| HVMN0503120□00 | 12 | 2.52MHz,1V | 0.13 | 1.85 | 10,20 | 120 |
| HVMN0503150□00 | 15 | 2.52MHz,1V | 0.15 | 1.80 | 10,20 | 150 |
| HVMN0503180□00 | 18 | 2.52MHz,1V | 0.22 | 1.68 | 10,20 | 180 |
| HVMN0503220□00 | 22 | 2.52MHz,1V | 0.22 | 1.53 | 10,20 | 220 |
| HVMN0503270□00 | 27 | 2.52MHz,1V | 0.26 | 1.45 | 10,20 | 270 |
| HVMN0503330□00 | 33 | 2.52MHz,1V | 0.33 | 1.22 | 10,20 | 330 |
| HVMN0503390□00 | 39 | 2.52MHz,1V | 0.42 | 1.06 | 10,20 | 390 |
| HVMN0503470□00 | 47 | 2.52MHz,1V | 0.50 | 0.98 | 10,20 | 470 |
| HVMN0503560□00 | 56 | 2.52MHz,1V | 0.55 | 0.83 | 10,20 | 560 |
| HVMN0503680□00 | 68 | 2.52MHz,1V | 0.65 | 0.78 | 10,20 | 680 |
| HVMN0503820□00 | 82 | 2.52MHz,1V | 0.80 | 0.66 | 10,20 | 820 |
| HVMN0503101□00 | 100 | 1kHz,1V | 0.90 | 0.64 | 10,20 | 101 |
| HVMN0503121□00 | 120 | 1kHz,1V | 1.00 | 0.58 | 10,20 | 121 |
| HVMN0503151□00 | 150 | 1kHz,1V | 1.30 | 0.49 | 10,20 | 151 |
| HVMN0503181□00 | 180 | 1kHz,1V | 1.50 | 0.45 | 10,20 | 181 |
| HVMN0503221□00 | 220 | 1kHz,1V | 2.00 | 0.41 | 10,20 | 221 |
| HVMN0503271□00 | 270 | 1kHz,1V | 2.50 | 0.36 | 10,20 | 271 |
| HVMN0503331□00 | 330 | 1kHz,1V | 3.20 | 0.32 | 10,20 | 331 |
| HVMN0503391□00 | 390 | 1kHz,1V | 3.50 | 0.27 | 10,20 | 391 |
| HVMN0503471□00 | 470 | 1kHz,1V | 4.20 | 0.25 | 10,20 | 471 |
| HVMN0503561□00 | 560 | 1kHz,1V | 4.50 | 0.20 | 10,20 | 561 |
| HVMN0503681□00 | 680 | 1kHz,1V | 6.50 | 0.18 | 10,20 | 681 |
| HVMN0503821□00 | 820 | 1kHz,1V | 7.50 | 0.16 | 10,20 | 821 |
| HVMN0503102□00 | 1000 | 1kHz,1V | 8.00 | 0.15 | 10,20 | 102 |
| HVMN 0504 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN05041R8□00 | 1.8 | 7.96MHz,1V | 0.0200 | 5.80 | 20,30 | 1R8 |
| HVMN05042R2□00 | 2.2 | 7.96MHz,1V | 0.0230 | 3.60 | 20,30 | 2R2 |
| HVMN05043R3□00 | 3.3 | 7.96MHz,1V | 0.0314 | 3.00 | 20,30 | 3R3 |
| HVMN05043R5□00 | 3.5 | 7.96MHz,1V | 0.0300 | 2.80 | 20,30 | 3R5 |
| HVMN05044R7□00 | 4.7 | 7.96MHz,1V | 0.0372 | 2.70 | 20,30 | 4R7 |
| HVMN05046R8□00 | 6.8 | 7.96MHz,1V | 0.0570 | 2.20 | 20,30 | 6R8 |
| HVMN05048R2□00 | 8.2 | 7.96MHz,1V | 0.0594 | 2.10 | 20,30 | 8R2 |
| HVMN0504100□00 | 10 | 2.52MHz,1V | 0.10 | 1.80 | 10,20 | 100 |
| HVMN0504120□00 | 12 | 2.52MHz,1V | 0.12 | 1.50 | 10,20 | 120 |
| HVMN0504150□00 | 15 | 2.52MHz,1V | 0.14 | 1.40 | 10,20 | 150 |
| HVMN0504180□00 | 18 | 2.52MHz,1V | 0.15 | 1.30 | 10,20 | 180 |
| HVMN0504220□00 | 22 | 2.52MHz,1V | 0.18 | 1.15 | 10,20 | 220 |
| HVMN0504270□00 | 27 | 2.52MHz,1V | 0.20 | 1.00 | 10,20 | 270 |
| HVMN0504330□00 | 33 | 2.52MHz,1V | 0.23 | 0.91 | 10,20 | 330 |
| HVMN0504390□00 | 39 | 2.52MHz,1V | 0.32 | 0.85 | 10,20 | 390 |
| HVMN0504470□00 | 47 | 2.52MHz,1V | 0.37 | 0.76 | 10,20 | 470 |
| HVMN0504560□00 | 56 | 2.52MHz,1V | 0.42 | 0.71 | 10,20 | 560 |
| HVMN0504680□00 | 68 | 2.52MHz,1V | 0.46 | 0.64 | 10,20 | 680 |
| HVMN0504820□00 | 82 | 2.52MHz,1V | 0.60 | 0.60 | 10,20 | 820 |
| HVMN0504101□00 | 100 | 1kHz,1V | 0.70 | 0.55 | 10,20 | 101 |
| HVMN0504121□00 | 120 | 1kHz,1V | 0.93 | 0.52 | 10,20 | 121 |
| HVMN0504151□00 | 150 | 1kHz,1V | 1.10 | 0.43 | 10,20 | 151 |
| HVMN0504181□00 | 180 | 1kHz,1V | 1.38 | 0.40 | 10,20 | 181 |
| HVMN0504221□00 | 220 | 1kHz,1V | 1.57 | 0.37 | 10,20 | 221 |
| HVMN0504271□00 | 270 | 1kHz,1V | 1.85 | 0.31 | 10,20 | 271 |
| HVMN0504331□00 | 330 | 1kHz,1V | 2.00 | 0.30 | 10,20 | 331 |
| HVMN0504391□00 | 390 | 1kHz,1V | 2.60 | 0.28 | 10,20 | 391 |
| HVMN0504471□00 | 470 | 1kHz,1V | 3.00 | 0.20 | 10,20 | 471 |
| HVMN0504561□00 | 560 | 1kHz,1V | 4.19 | 0.15 | 10,20 | 561 |
| HVMN0504681□00 | 680 | 1kHz,1V | 4.44 | 0.10 | 10,20 | 681 |
| HVMN0504821□00 | 820 | 1kHz,1V | 5.12 | 0.08 | 10,20 | 821 |
| HVMN0504102□00 | 1000 | 1kHz,1V | 10.00 | 0.06 | 10,20 | 102 |
| HVMN 0703 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN07032R2□00 | 2.2 | 7.96MHz,1V | 0.03 | 4.30 | 20,30 | 2R2 |
| HVMN07034R7□00 | 4.7 | 2.52MHz,1V | 0.04 | 3.00 | 20,30 | 4R7 |
| HVMN0703100□00 | 10 | 2.52MHz,1V | 0.08 | 2.20 | 10,20 | 100 |
| HVMN0703120□00 | 12 | 2.52MHz,1V | 0.09 | 1.43 | 10,20 | 120 |
| HVMN0703150□00 | 15 | 2.52MHz,1V | 0.10 | 1.28 | 10,20 | 150 |
| HVMN0703180□00 | 18 | 2.52MHz,1V | 0.11 | 1.19 | 10,20 | 180 |
| HVMN0703220□00 | 22 | 2.52MHz,1V | 0.13 | 1.13 | 10,20 | 220 |
| HVMN0703270□00 | 27 | 2.52MHz,1V | 0.15 | 1.00 | 10,20 | 270 |
| HVMN0703330□00 | 33 | 2.52MHz,1V | 0.17 | 0.92 | 10,20 | 330 |
| HVMN0703390□00 | 39 | 2.52MHz,1V | 0.22 | 0.81 | 10,20 | 390 |
| HVMN0703470□00 | 47 | 2.52MHz,1V | 0.25 | 0.73 | 10,20 | 470 |
| HVMN0703560□00 | 56 | 2.52MHz,1V | 0.28 | 0.68 | 10,20 | 560 |
| HVMN0703680□00 | 68 | 2.52MHz,1V | 0.33 | 0.62 | 10,20 | 680 |
| HVMN0703820□00 | 82 | 2.52MHz,1V | 0.41 | 0.55 | 10,20 | 820 |
| HVMN0703101□00 | 100 | 1kHz,1V | 0.48 | 0.52 | 10,20 | 101 |
| HVMN0703121□00 | 120 | 1kHz,1V | 0.54 | 0.50 | 10,20 | 121 |
| HVMN0703151□00 | 150 | 1kHz,1V | 0.75 | 0.43 | 10,20 | 151 |
| HVMN0703181□00 | 180 | 1kHz,1V | 1.02 | 0.39 | 10,20 | 181 |
| HVMN0703221□00 | 220 | 1kHz,1V | 1.20 | 0.33 | 10,20 | 221 |
| HVMN0703271□00 | 270 | 1kHz,1V | 1.31 | 0.30 | 10,20 | 271 |
| HVMN0703331□00 | 330 | 1kHz,1V | 1.50 | 0.29 | 10,20 | 331 |
| HVMN0703561□00 | 560 | 1kHz,1V | 2.50 | 0.15 | 10,20 | 561 |
| HVMN 0705 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN07051R4□00 | 1.4 | 7.96MHz,1V | 0.012 | 6.50 | 20,30 | 1R4 |
| HVMN07051R5□00 | 1.5 | 7.96MHz,1V | 0.014 | 6.20 | 20,30 | 1R5 |
| HVMN07051R8□00 | 1.8 | 7.96MHz,1V | 0.018 | 5.30 | 20,30 | 1R8 |
| HVMN07052R2□00 | 2.2 | 7.96MHz,1V | 0.020 | 4.80 | 20,30 | 2R2 |
| HVMN07052R7□00 | 2.7 | 7.96MHz,1V | 0.021 | 4.50 | 20,30 | 2R7 |
| HVMN07053R0□00 | 3.0 | 7.96MHz,1V | 0.025 | 4.30 | 20,30 | 3R0 |
| HVMN07053R3□00 | 3.3 | 7.96MHz,1V | 0.030 | 4.10 | 20,30 | 3R3 |
| HVMN07053R6□00 | 3.6 | 7.96MHz,1V | 0.032 | 4.00 | 20,30 | 3R6 |
| HVMN07053R9□00 | 3.9 | 7.96MHz,1V | 0.035 | 3.80 | 20,30 | 3R9 |
| HVMN07054R7□00 | 4.7 | 7.96MHz,1V | 0.038 | 3.60 | 20,30 | 4R7 |
| HVMN07055R6□00 | 5.6 | 7.96MHz,1V | 0.039 | 3.50 | 20,30 | 5R6 |
| HVMN07056R8□00 | 6.8 | 7.96MHz,1V | 0.04 | 3.20 | 20,30 | 6R8 |
| HVMN07058R2□00 | 8.2 | 7.96MHz,1V | 0.05 | 2.90 | 20,30 | 8R2 |
| HVMN0705100□00 | 10 | 2.52MHz,1V | 0.07 | 2.50 | 10,20 | 100 |
| HVMN0705120□00 | 12 | 2.52MHz,1V | 0.08 | 2.10 | 10,20 | 120 |
| HVMN0705150□00 | 15 | 2.52MHz,1V | 0.09 | 1.92 | 10,20 | 150 |
| HVMN0705180□00 | 18 | 2.52MHz,1V | 0.10 | 1.70 | 10,20 | 180 |
| HVMN0705220□00 | 22 | 2.52MHz,1V | 0.11 | 1.55 | 10,20 | 220 |
| HVMN0705270□00 | 27 | 2.52MHz,1V | 0.12 | 1.36 | 10,20 | 270 |
| HVMN0705330□00 | 33 | 2.52MHz,1V | 0.13 | 1.27 | 10,20 | 330 |
| HVMN0705390□00 | 39 | 2.52MHz,1V | 0.16 | 1.16 | 10,20 | 390 |
| HVMN0705470□00 | 47 | 2.52MHz,1V | 0.18 | 1.12 | 10,20 | 470 |
| HVMN0705560□00 | 56 | 2.52MHz,1V | 0.24 | 0.98 | 10,20 | 560 |
| HVMN0705680□00 | 68 | 2.52MHz,1V | 0.28 | 0.88 | 10,20 | 680 |
| HVMN0705820□00 | 82 | 2.52MHz,1V | 0.37 | 0.80 | 10,20 | 820 |
| HVMN0705101□00 | 100 | 1kHz,1V | 0.43 | 0.76 | 10,20 | 101 |
| HVMN0705121□00 | 120 | 1kHz,1V | 0.47 | 0.69 | 10,20 | 121 |
| HVMN0705151□00 | 150 | 1kHz,1V | 0.64 | 0.61 | 10,20 | 151 |
| HVMN0705181□00 | 180 | 1kHz,1V | 0.71 | 0.54 | 10,20 | 181 |
| HVMN0705221□00 | 220 | 1kHz,1V | 0.96 | 0.50 | 10,20 | 221 |
| HVMN0705271□00 | 270 | 1kHz,1V | 1.11 | 0.45 | 10,20 | 271 |
| HVMN0705331□00 | 330 | 1kHz,1V | 1.26 | 0.42 | 10,20 | 331 |
| HVMN0705391□00 | 390 | 1kHz,1V | 1.77 | 0.38 | 10,20 | 391 |
| HVMN0705471□00 | 470 | 1kHz,1V | 1.96 | 0.36 | 10,20 | 471 |
| HVMN0705561□00 | 560 | 1kHz,1V | 2.41 | 0.33 | 10,20 | 561 |
| HVMN0705681□00 | 680 | 1kHz,1V | 2.50 | 0.30 | 10,20 | 681 |
| HVMN0705102□00 | 1000 | 1kHz,1V | 2.80 | 0.21 | 10,20 | 102 |
| HVMN 1004 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN10043R8□00 | 3.8 | 7.96MHz,1V | 0.022 | 4.86 | 20,30 | 3R8 |
| HVMN1004100□00 | 10 | 2.52MHz,1V | 0.05 | 2.95 | 10,20 | 100 |
| HVMN1004120□00 | 12 | 2.52MHz,1V | 0.06 | 2.55 | 10,20 | 120 |
| HVMN1004150□00 | 15 | 2.52MHz,1V | 0.07 | 2.10 | 10,20 | 150 |
| HVMN1004180□00 | 18 | 2.52MHz,1V | 0.08 | 2.00 | 10,20 | 180 |
| HVMN1004220□00 | 22 | 2.52MHz,1V | 0.09 | 1.88 | 10,20 | 220 |
| HVMN1004270□00 | 27 | 2.52MHz,1V | 0.10 | 1.79 | 10,20 | 270 |
| HVMN1004330□00 | 33 | 2.52MHz,1V | 0.12 | 1.73 | 10,20 | 330 |
| HVMN1004390□00 | 39 | 2.52MHz,1V | 0.15 | 1.56 | 10,20 | 390 |
| HVMN1004470□00 | 47 | 2.52MHz,1V | 0.17 | 1.24 | 10,20 | 470 |
| HVMN1004560□00 | 56 | 2.52MHz,1V | 0.20 | 1.10 | 10,20 | 560 |
| HVMN1004680□00 | 68 | 2.52MHz,1V | 0.22 | 1.00 | 10,20 | 680 |
| HVMN1004820□00 | 82 | 2.52MHz,1V | 0.30 | 0.88 | 10,20 | 820 |
| HVMN1004101□00 | 100 | 1kHz,1V | 0.34 | 0.78 | 10,20 | 101 |
| HVMN1004121□00 | 120 | 1kHz,1V | 0.40 | 0.73 | 10,20 | 121 |
| HVMN1004151□00 | 150 | 1kHz,1V | 0.54 | 0.65 | 10,20 | 151 |
| HVMN1004181□00 | 180 | 1kHz,1V | 0.62 | 0.60 | 10,20 | 181 |
| HVMN1004221□00 | 220 | 1kHz,1V | 0.72 | 0.56 | 10,20 | 221 |
| HVMN1004271□00 | 270 | 1kHz,1V | 0.95 | 0.49 | 10,20 | 271 |
| HVMN1004331□00 | 330 | 1kHz,1V | 1.10 | 0.43 | 10,20 | 331 |
| HVMN1004391□00 | 390 | 1kHz,1V | 1.24 | 0.40 | 10,20 | 391 |
| HVMN1004471□00 | 470 | 1kHz,1V | 1.53 | 0.37 | 10,20 | 471 |
| HVMN1004561□00 | 560 | 1kHz,1V | 1.90 | 0.34 | 10,20 | 561 |
| HVMN 1005 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN10053R3□00 | 3.3 | 7.96MHz,1V | 0.028 | 6.20 | 20,30 | 3R3 |
| HVMN10054R7□00 | 4.7 | 7.96MHz,1V | 0.030 | 5.60 | 20,30 | 4R7 |
| HVMN10055R6□00 | 5.6 | 7.96MHz,1V | 0.037 | 5.30 | 20,30 | 5R6 |
| HVMN10056R8□00 | 6.8 | 7.96MHz,1V | 0.04 | 5.10 | 20,30 | 6R8 |
| HVMN10058R2□00 | 8.2 | 7.96MHz,1V | 0.05 | 4.30 | 20,30 | 8R2 |
| HVMN1005100□00 | 10 | 2.52MHz,1V | 0.06 | 3.50 | 10,20 | 100 |
| HVMN1005120□00 | 12 | 2.52MHz,1V | 0.07 | 3.10 | 10,20 | 120 |
| HVMN1005150□00 | 15 | 2.52MHz,1V | 0.08 | 2.96 | 10,20 | 150 |
| HVMN1005180□00 | 18 | 2.52MHz,1V | 0.09 | 2.63 | 10,20 | 180 |
| HVMN1005220□00 | 22 | 2.52MHz,1V | 0.10 | 2.15 | 10,20 | 220 |
| HVMN1005270□00 | 27 | 2.52MHz,1V | 0.11 | 1.97 | 10,20 | 270 |
| HVMN1005330□00 | 33 | 2.52MHz,1V | 0.12 | 1.66 | 10,20 | 330 |
| HVMN1005390□00 | 39 | 2.52MHz,1V | 0.14 | 1.52 | 10,20 | 390 |
| HVMN1005470□00 | 47 | 2.52MHz,1V | 0.17 | 1.39 | 10,20 | 470 |
| HVMN1005560□00 | 56 | 2.52MHz,1V | 0.19 | 1.28 | 10,20 | 560 |
| HVMN1005680□00 | 68 | 2.52MHz,1V | 0.22 | 1.20 | 10,20 | 680 |
| HVMN1005820□00 | 82 | 2.52MHz,1V | 0.25 | 1.16 | 10,20 | 820 |
| HVMN1005101□00 | 100 | 1kHz,1V | 0.35 | 1.05 | 10,20 | 101 |
| HVMN1005121□00 | 120 | 1kHz,1V | 0.40 | 0.94 | 10,20 | 121 |
| HVMN1005151□00 | 150 | 1kHz,1V | 0.47 | 0.85 | 10,20 | 151 |
| HVMN1005181□00 | 180 | 1kHz,1V | 0.63 | 0.81 | 10,20 | 181 |
| HVMN1005221□00 | 220 | 1kHz,1V | 0.73 | 0.76 | 10,20 | 221 |
| HVMN1005271□00 | 270 | 1kHz,1V | 0.97 | 0.62 | 10,20 | 271 |
| HVMN1005331□00 | 330 | 1kHz,1V | 1.15 | 0.57 | 10,20 | 331 |
| HVMN1005391□00 | 390 | 1kHz,1V | 1.30 | 0.53 | 10,20 | 391 |
| HVMN1005471□00 | 470 | 1kHz,1V | 1.48 | 0.50 | 10,20 | 471 |
| HVMN1005561□00 | 560 | 1kHz,1V | 1.90 | 0.46 | 10,20 | 561 |
| HVMN1005681□00 | 680 | 1kHz,1V | 2.25 | 0.39 | 10,20 | 681 |
| HVMN1005821□00 | 820 | 1kHz,1V | 2.55 | 0.33 | 10,20 | 821 |
| HVMN1005102□00 | 1000 | 1kHz,1V | 3.10 | 0.25 | 10,20 | 102 |
| HVMN 1006 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMN1006471□00 | 470 | 1kHz,1V | 1.421 | 0.82 | 10,20 | 471 |
| HVMN1006102□00 | 1000 | 1kHz,1V | 2.9 | 0.60 | 10,20 | 102 |
| HVMN1006122□00 | 1200 | 1kHz,1V | 3.5 | 0.50 | 10,20 | 122 |
| HVMN1006152□00 | 1500 | 1kHz,1V | 3.8 | 0.45 | 10,20 | 152 |
| HVMN1006202□00 | 2000 | 1kHz,1V | 6.6 | 0.40 | 10,20 | 202 |
| HVMN1006222□00 | 2200 | 1kHz,1V | 6.8 | 0.40 | 10,20 | 222 |
| HVMN1006602□00 | 6000 | 1kHz,1V | 14.0 | 0.27 | 10,20 | 602 |
| HVMN1006822□00 | 8200 | 1kHz,1V | 50.0 | 0.20 | 10,20 | 822 |
| HVMC 0302 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC0302R82□00 | 0.82 | 7.96MHz,1V | 0.06 | 3.80 | 30 | R82 |
| HVMC03021R0□00 | 1.0 | 7.96MHz,1V | 0.07 | 3.20 | 20,30 | 1R0 |
| HVMC03021R4□00 | 1.4 | 7.96MHz,1V | 0.09 | 2.45 | 20,30 | 1R4 |
| HVMC03021R5□00 | 1.5 | 7.96MHz,1V | 0.11 | 2.40 | 20,30 | 1R5 |
| HVMC03021R8□00 | 1.8 | 7.96MHz,1V | 0.11 | 2.10 | 20,30 | 1R8 |
| HVMC03022R2□00 | 2.2 | 7.96MHz,1V | 0.13 | 1.90 | 20,30 | 2R2 |
| HVMC03022R7□00 | 2.7 | 7.96MHz,1V | 0.14 | 1.70 | 20,30 | 2R7 |
| HVMC03023R3□00 | 3.3 | 7.96MHz,1V | 0.17 | 1.60 | 20,30 | 3R3 |
| HVMC03023R9□00 | 3.9 | 7.96MHz,1V | 0.19 | 1.50 | 20,30 | 3R9 |
| HVMC03024R7□00 | 4.7 | 7.96MHz,1V | 0.21 | 1.30 | 20,30 | 4R7 |
| HVMC03025R6□00 | 5.6 | 7.96MHz,1V | 0.22 | 1.18 | 20,30 | 5R6 |
| HVMC03026R8□00 | 6.8 | 7.96MHz,1V | 0.25 | 1.10 | 20,30 | 6R8 |
| HVMC03027R0□00 | 7.0 | 7.96MHz,1V | 0.28 | 0.98 | 20,30 | 7R0 |
| HVMC03028R2□00 | 8.2 | 7.96MHz,1V | 0.28 | 0.86 | 20,30 | 8R2 |
| HVMC0302100□00 | 10 | 2.52MHz,1V | 0.32 | 0.80 | 20,30 | 100 |
| HVMC0302120□00 | 12 | 2.52MHz,1V | 0.35 | 0.73 | 20,30 | 120 |
| HVMC0302150□00 | 15 | 2.52MHz,1V | 0.40 | 0.68 | 10,20 | 150 |
| HVMC0302180□00 | 18 | 2.52MHz,1V | 0.48 | 0.60 | 10,20 | 180 |
| HVMC0302220□00 | 22 | 2.52MHz,1V | 0.60 | 0.56 | 10,20 | 220 |
| HVMC0302270□00 | 27 | 2.52MHz,1V | 0.65 | 0.53 | 10,20 | 270 |
| HVMC0302330□00 | 33 | 2.52MHz,1V | 0.80 | 0.52 | 10,20 | 330 |
| HVMC0302390□00 | 39 | 2.52MHz,1V | 0.90 | 0.46 | 10,20 | 390 |
| HVMC0302470□00 | 47 | 2.52MHz,1V | 1.19 | 0.41 | 10,20 | 470 |
| HVMC0302500□00 | 50 | 2.52MHz,1V | 1.22 | 0.39 | 10,20 | 500 |
| HVMC0302560□00 | 56 | 2.52MHz,1V | 1.27 | 0.36 | 10,20 | 560 |
| HVMC0302680□00 | 68 | 2.52MHz,1V | 1.73 | 0.34 | 10,20 | 680 |
| HVMC0302750□00 | 75 | 2.52MHz,1V | 1.90 | 0.33 | 10,20 | 750 |
| HVMC0302820□00 | 82 | 2.52MHz,1V | 1.99 | 0.30 | 10,20 | 820 |
| HVMC0302101□00 | 100 | 1kHz,1V | 2.52 | 0.28 | 10,20 | 101 |
| HVMC0302121□00 | 120 | 1kHz,1V | 2.90 | 0.23 | 10,20 | 121 |
| HVMC0302151□00 | 150 | 1kHz,1V | 3.36 | 0.21 | 10,20 | 151 |
| HVMC0302181□00 | 180 | 1kHz,1V | 5.10 | 0.19 | 10,20 | 181 |
| HVMC0302221□00 | 220 | 1kHz,1V | 5.80 | 0.18 | 10,20 | 221 |
| HVMC0302271□00 | 270 | 1kHz,1V | 7.80 | 0.15 | 10,20 | 271 |
| HVMC 0403 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC0403R15□00 | 0.15 | 7.96MHz,1V | 0.0085 | 10.20 | 30 | R15 |
| HVMC04031R0□00 | 1.0 | 7.96MHz,1V | 0.033 | 5.00 | 20,30 | 1R0 |
| HVMC04031R2□00 | 1.2 | 7.96MHz,1V | 0.035 | 4.60 | 20,30 | 1R2 |
| HVMC04031R4□00 | 1.4 | 7.96MHz,1V | 0.038 | 4.20 | 20,30 | 1R4 |
| HVMC04031R5□00 | 1.5 | 7.96MHz,1V | 0.038 | 3.80 | 20,30 | 1R5 |
| HVMC04031R8□00 | 1.8 | 7.96MHz,1V | 0.042 | 3.50 | 20,30 | 1R8 |
| HVMC04032R2□00 | 2.2 | 7.96MHz,1V | 0.047 | 3.20 | 20,30 | 2R2 |
| HVMC04032R7□00 | 2.7 | 7.96MHz,1V | 0.052 | 3.00 | 20,30 | 2R7 |
| HVMC04033R0□00 | 3.0 | 7.96MHz,1V | 0.058 | 2.90 | 20,30 | 3R0 |
| HVMC04033R3□00 | 3.3 | 7.96MHz,1V | 0.058 | 2.80 | 20,30 | 3R3 |
| HVMC04033R9□00 | 3.9 | 7.96MHz,1V | 0.076 | 2.50 | 20,30 | 3R9 |
| HVMC04034R7□00 | 4.7 | 7.96MHz,1V | 0.094 | 2.00 | 20,30 | 4R7 |
| HVMC04035R6□00 | 5.6 | 7.96MHz,1V | 0.101 | 1.90 | 20,30 | 5R6 |
| HVMC04036R2□00 | 6.2 | 7.96MHz,1V | 0.110 | 1.70 | 20,30 | 6R2 |
| HVMC04036R8□00 | 6.8 | 7.96MHz,1V | 0.117 | 1.50 | 20,30 | 6R8 |
| HVMC04038R2□00 | 8.2 | 7.96MHz,1V | 0.132 | 1.35 | 20,30 | 8R2 |
| HVMC0403100□00 | 10 | 2.52MHz,1V | 0.182 | 1.22 | 10,20 | 100 |
| HVMC0403120□00 | 12 | 2.52MHz,1V | 0.210 | 1.17 | 10,20 | 120 |
| HVMC0403150□00 | 15 | 2.52MHz,1V | 0.235 | 1.08 | 10,20 | 150 |
| HVMC0403180□00 | 18 | 2.52MHz,1V | 0.338 | 0.96 | 10,20 | 180 |
| HVMC0403220□00 | 22 | 2.52MHz,1V | 0.378 | 0.92 | 10,20 | 220 |
| HVMC0403270□00 | 27 | 2.52MHz,1V | 0.522 | 0.90 | 10,20 | 270 |
| HVMC0403330□00 | 33 | 2.52MHz,1V | 0.540 | 0.85 | 10,20 | 330 |
| HVMC0403390□00 | 39 | 2.52MHz,1V | 0.587 | 0.82 | 10,20 | 390 |
| HVMC0403470□00 | 47 | 2.52MHz,1V | 0.844 | 0.76 | 10,20 | 470 |
| HVMC0403560□00 | 56 | 2.52MHz,1V | 0.937 | 0.67 | 10,20 | 560 |
| HVMC0403680□00 | 68 | 2.52MHz,1V | 1.117 | 0.53 | 10,20 | 680 |
| HVMC0403101□00 | 100 | 1kHz,1V | 2.00 | 0.48 | 10,20 | 101 |
| HVMC0403121□00 | 120 | 1kHz,1V | 1.80 | 0.43 | 10,20 | 121 |
| HVMC0403151□00 | 150 | 1kHz,1V | 2.80 | 0.35 | 10,20 | 151 |
| HVMC0403181□00 | 180 | 1kHz,1V | 3.20 | 0.33 | 10,20 | 181 |
| HVMC0403221□00 | 220 | 1kHz,1V | 4.00 | 0.27 | 10,20 | 221 |
| HVMC0403331□00 | 330 | 1kHz,1V | 5.85 | 0.20 | 10,20 | 331 |
| HVMC 0503 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC05031R0□00 | 1.0 | 7.96MHz,1V | 0.03 | 6.90 | 20,30 | 1R0 |
| HVMC05031R2□00 | 1.2 | 7.96MHz,1V | 0.03 | 5.80 | 20,30 | 1R2 |
| HVMC05031R5□00 | 1.5 | 7.96MHz,1V | 0.03 | 5.10 | 20,30 | 1R5 |
| HVMC05031R8□00 | 1.8 | 7.96MHz,1V | 0.03 | 5.00 | 20,30 | 1R8 |
| HVMC05032R0□00 | 2.0 | 7.96MHz,1V | 0.03 | 4.90 | 20,30 | 2R0 |
| HVMC05032R2□00 | 2.2 | 7.96MHz,1V | 0.03 | 4.70 | 20,30 | 2R2 |
| HVMC05032R7□00 | 2.7 | 7.96MHz,1V | 0.04 | 4.00 | 20,30 | 2R7 |
| HVMC05033R3□00 | 3.3 | 7.96MHz,1V | 0.05 | 3.60 | 20,30 | 3R3 |
| HVMC05033R9□00 | 3.9 | 7.96MHz,1V | 0.06 | 3.20 | 20,30 | 3R9 |
| HVMC05034R7□00 | 4.7 | 7.96MHz,1V | 0.07 | 3.00 | 20,30 | 4R7 |
| HVMC05035R6□00 | 5.6 | 7.96MHz,1V | 0.08 | 2.60 | 20,30 | 5R6 |
| HVMC05036R8□00 | 6.8 | 7.96MHz,1V | 0.09 | 2.40 | 20,30 | 6R8 |
| HVMC05038R2□00 | 8.2 | 7.96MHz,1V | 0.10 | 2.20 | 20,30 | 8R2 |
| HVMC0503100□00 | 10 | 2.52MHz,1V | 0.12 | 2.00 | 10,20 | 100 |
| HVMC0503120□00 | 12 | 2.52MHz,1V | 0.13 | 1.85 | 10,20 | 120 |
| HVMC0503150□00 | 15 | 2.52MHz,1V | 0.15 | 1.80 | 10,20 | 150 |
| HVMC0503180□00 | 18 | 2.52MHz,1V | 0.22 | 1.68 | 10,20 | 180 |
| HVMC0503220□00 | 22 | 2.52MHz,1V | 0.22 | 1.53 | 10,20 | 220 |
| HVMC0503270□00 | 27 | 2.52MHz,1V | 0.26 | 1.45 | 10,20 | 270 |
| HVMC0503330□00 | 33 | 2.52MHz,1V | 0.33 | 1.22 | 10,20 | 330 |
| HVMC0503390□00 | 39 | 2.52MHz,1V | 0.42 | 1.06 | 10,20 | 390 |
| HVMC0503470□00 | 47 | 2.52MHz,1V | 0.50 | 0.98 | 10,20 | 470 |
| HVMC0503560□00 | 56 | 2.52MHz,1V | 0.55 | 0.83 | 10,20 | 560 |
| HVMC0503680□00 | 68 | 2.52MHz,1V | 0.65 | 0.78 | 10,20 | 680 |
| HVMC0503820□00 | 82 | 2.52MHz,1V | 0.80 | 0.66 | 10,20 | 820 |
| HVMC0503101□00 | 100 | 1kHz,1V | 0.90 | 0.64 | 10,20 | 101 |
| HVMC0503121□00 | 120 | 1kHz,1V | 1.00 | 0.58 | 10,20 | 121 |
| HVMC0503151□00 | 150 | 1kHz,1V | 1.30 | 0.49 | 10,20 | 151 |
| HVMC0503181□00 | 180 | 1kHz,1V | 1.50 | 0.45 | 10,20 | 181 |
| HVMC0503221□00 | 220 | 1kHz,1V | 2.00 | 0.41 | 10,20 | 221 |
| HVMC0503271□00 | 270 | 1kHz,1V | 2.50 | 0.36 | 10,20 | 271 |
| HVMC0503331□00 | 330 | 1kHz,1V | 3.20 | 0.32 | 10,20 | 331 |
| HVMC0503391□00 | 390 | 1kHz,1V | 3.50 | 0.27 | 10,20 | 391 |
| HVMC0503471□00 | 470 | 1kHz,1V | 4.20 | 0.25 | 10,20 | 471 |
| HVMC0503561□00 | 560 | 1kHz,1V | 4.50 | 0.20 | 10,20 | 561 |
| HVMC0503681□00 | 680 | 1kHz,1V | 6.50 | 0.18 | 10,20 | 681 |
| HVMC0503821□00 | 820 | 1kHz,1V | 7.50 | 0.16 | 10,20 | 821 |
| HVMC0503102□00 | 1000 | 1kHz,1V | 8.00 | 0.15 | 10,20 | 102 |
| HVMC 0504 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC05041R8□00 | 1.8 | 7.96MHz,1V | 0.0200 | 5.80 | 20,30 | 1R8 |
| HVMC05042R2□00 | 2.2 | 7.96MHz,1V | 0.0230 | 3.60 | 20,30 | 2R2 |
| HVMC05043R3□00 | 3.3 | 7.96MHz,1V | 0.0314 | 3.00 | 20,30 | 3R3 |
| HVMC05043R5□00 | 3.5 | 7.96MHz,1V | 0.0300 | 2.80 | 20,30 | 3R5 |
| HVMC05044R7□00 | 4.7 | 7.96MHz,1V | 0.0372 | 2.70 | 20,30 | 4R7 |
| HVMC05046R8□00 | 6.8 | 7.96MHz,1V | 0.0570 | 2.20 | 20,30 | 6R8 |
| HVMC05048R2□00 | 8.2 | 7.96MHz,1V | 0.0594 | 2.10 | 20,30 | 8R2 |
| HVMC0504100□00 | 10 | 2.52MHz,1V | 0.10 | 1.80 | 10,20 | 100 |
| HVMC0504120□00 | 12 | 2.52MHz,1V | 0.12 | 1.50 | 10,20 | 120 |
| HVMC0504150□00 | 15 | 2.52MHz,1V | 0.14 | 1.40 | 10,20 | 150 |
| HVMC0504180□00 | 18 | 2.52MHz,1V | 0.15 | 1.30 | 10,20 | 180 |
| HVMC0504220□00 | 22 | 2.52MHz,1V | 0.18 | 1.15 | 10,20 | 220 |
| HVMC0504270□00 | 27 | 2.52MHz,1V | 0.20 | 1.00 | 10,20 | 270 |
| HVMC0504330□00 | 33 | 2.52MHz,1V | 0.23 | 0.91 | 10,20 | 330 |
| HVMC0504390□00 | 39 | 2.52MHz,1V | 0.32 | 0.85 | 10,20 | 390 |
| HVMC0504470□00 | 47 | 2.52MHz,1V | 0.37 | 0.76 | 10,20 | 470 |
| HVMC0504560□00 | 56 | 2.52MHz,1V | 0.42 | 0.71 | 10,20 | 560 |
| HVMC0504680□00 | 68 | 2.52MHz,1V | 0.46 | 0.64 | 10,20 | 680 |
| HVMC0504820□00 | 82 | 2.52MHz,1V | 0.60 | 0.60 | 10,20 | 820 |
| HVMC0504101□00 | 100 | 1kHz,1V | 0.70 | 0.55 | 10,20 | 101 |
| HVMC0504121□00 | 120 | 1kHz,1V | 0.93 | 0.52 | 10,20 | 121 |
| HVMC0504151□00 | 150 | 1kHz,1V | 1.10 | 0.43 | 10,20 | 151 |
| HVMC0504181□00 | 180 | 1kHz,1V | 1.38 | 0.40 | 10,20 | 181 |
| HVMC0504221□00 | 220 | 1kHz,1V | 1.57 | 0.37 | 10,20 | 221 |
| HVMC0504271□00 | 270 | 1kHz,1V | 1.85 | 0.31 | 10,20 | 271 |
| HVMC0504331□00 | 330 | 1kHz,1V | 2.00 | 0.30 | 10,20 | 331 |
| HVMC0504391□00 | 390 | 1kHz,1V | 2.60 | 0.28 | 10,20 | 391 |
| HVMC0504471□00 | 470 | 1kHz,1V | 3.00 | 0.20 | 10,20 | 471 |
| HVMC0504561□00 | 560 | 1kHz,1V | 4.19 | 0.15 | 10,20 | 561 |
| HVMC0504681□00 | 680 | 1kHz,1V | 4.44 | 0.10 | 10,20 | 681 |
| HVMC0504821□00 | 820 | 1kHz,1V | 5.12 | 0.08 | 10,20 | 821 |
| HVMC0504102□00 | 1000 | 1kHz,1V | 10.00 | 0.06 | 10,20 | 102 |
| HVMC 0703 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC07032R2□00 | 2.2 | 7.96MHz,1V | 0.03 | 4.30 | 20,30 | 2R2 |
| HVMC07034R7□00 | 4.7 | 2.52MHz,1V | 0.04 | 3.00 | 20,30 | 4R7 |
| HVMC0703100□00 | 10 | 2.52MHz,1V | 0.08 | 2.20 | 10,20 | 100 |
| HVMC0703120□00 | 12 | 2.52MHz,1V | 0.09 | 1.43 | 10,20 | 120 |
| HVMC0703150□00 | 15 | 2.52MHz,1V | 0.10 | 1.28 | 10,20 | 150 |
| HVMC0703180□00 | 18 | 2.52MHz,1V | 0.11 | 1.19 | 10,20 | 180 |
| HVMC0703220□00 | 22 | 2.52MHz,1V | 0.13 | 1.13 | 10,20 | 220 |
| HVMC0703270□00 | 27 | 2.52MHz,1V | 0.15 | 1.00 | 10,20 | 270 |
| HVMC0703330□00 | 33 | 2.52MHz,1V | 0.17 | 0.92 | 10,20 | 330 |
| HVMC0703390□00 | 39 | 2.52MHz,1V | 0.22 | 0.81 | 10,20 | 390 |
| HVMC0703470□00 | 47 | 2.52MHz,1V | 0.25 | 0.73 | 10,20 | 470 |
| HVMC0703560□00 | 56 | 2.52MHz,1V | 0.28 | 0.68 | 10,20 | 560 |
| HVMC0703680□00 | 68 | 2.52MHz,1V | 0.33 | 0.62 | 10,20 | 680 |
| HVMC0703820□00 | 82 | 2.52MHz,1V | 0.41 | 0.55 | 10,20 | 820 |
| HVMC0703101□00 | 100 | 1kHz,1V | 0.48 | 0.52 | 10,20 | 101 |
| HVMC0703121□00 | 120 | 1kHz,1V | 0.54 | 0.50 | 10,20 | 121 |
| HVMC0703151□00 | 150 | 1kHz,1V | 0.75 | 0.43 | 10,20 | 151 |
| HVMC0703181□00 | 180 | 1kHz,1V | 1.02 | 0.39 | 10,20 | 181 |
| HVMC0703221□00 | 220 | 1kHz,1V | 1.20 | 0.33 | 10,20 | 221 |
| HVMC0703271□00 | 270 | 1kHz,1V | 1.31 | 0.30 | 10,20 | 271 |
| HVMC0703331□00 | 330 | 1kHz,1V | 1.50 | 0.29 | 10,20 | 331 |
| HVMC0703561□00 | 560 | 1kHz,1V | 2.50 | 0.15 | 10,20 | 561 |
| HVMC 0705 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC07051R4□00 | 1.4 | 7.96MHz,1V | 0.012 | 6.50 | 20,30 | 1R4 |
| HVMC07051R5□00 | 1.5 | 7.96MHz,1V | 0.014 | 6.20 | 20,30 | 1R5 |
| HVMC07051R8□00 | 1.8 | 7.96MHz,1V | 0.018 | 5.30 | 20,30 | 1R8 |
| HVMC07052R2□00 | 2.2 | 7.96MHz,1V | 0.020 | 4.80 | 20,30 | 2R2 |
| HVMC07052R7□00 | 2.7 | 7.96MHz,1V | 0.021 | 4.50 | 20,30 | 2R7 |
| HVMC07053R0□00 | 3.0 | 7.96MHz,1V | 0.025 | 4.30 | 20,30 | 3R0 |
| HVMC07053R3□00 | 3.3 | 7.96MHz,1V | 0.030 | 4.10 | 20,30 | 3R3 |
| HVMC07053R6□00 | 3.6 | 7.96MHz,1V | 0.032 | 4.00 | 20,30 | 3R6 |
| HVMC07053R9□00 | 3.9 | 7.96MHz,1V | 0.035 | 3.80 | 20,30 | 3R9 |
| HVMC07054R7□00 | 4.7 | 7.96MHz,1V | 0.038 | 3.60 | 20,30 | 4R7 |
| HVMC07055R6□00 | 5.6 | 7.96MHz,1V | 0.039 | 3.50 | 20,30 | 5R6 |
| HVMC07056R8□00 | 6.8 | 7.96MHz,1V | 0.04 | 3.20 | 20,30 | 6R8 |
| HVMC07058R2□00 | 8.2 | 7.96MHz,1V | 0.05 | 2.90 | 20,30 | 8R2 |
| HVMC0705100□00 | 10 | 2.52MHz,1V | 0.07 | 2.50 | 10,20 | 100 |
| HVMC0705120□00 | 12 | 2.52MHz,1V | 0.08 | 2.10 | 10,20 | 120 |
| HVMC0705150□00 | 15 | 2.52MHz,1V | 0.09 | 1.92 | 10,20 | 150 |
| HVMC0705180□00 | 18 | 2.52MHz,1V | 0.10 | 1.70 | 10,20 | 180 |
| HVMC0705220□00 | 22 | 2.52MHz,1V | 0.11 | 1.55 | 10,20 | 220 |
| HVMC0705270□00 | 27 | 2.52MHz,1V | 0.12 | 1.36 | 10,20 | 270 |
| HVMC0705330□00 | 33 | 2.52MHz,1V | 0.13 | 1.27 | 10,20 | 330 |
| HVMC0705390□00 | 39 | 2.52MHz,1V | 0.16 | 1.16 | 10,20 | 390 |
| HVMC0705470□00 | 47 | 2.52MHz,1V | 0.18 | 1.12 | 10,20 | 470 |
| HVMC0705560□00 | 56 | 2.52MHz,1V | 0.24 | 0.98 | 10,20 | 560 |
| HVMC0705680□00 | 68 | 2.52MHz,1V | 0.28 | 0.88 | 10,20 | 680 |
| HVMC0705820□00 | 82 | 2.52MHz,1V | 0.37 | 0.80 | 10,20 | 820 |
| HVMC0705101□00 | 100 | 1kHz,1V | 0.43 | 0.76 | 10,20 | 101 |
| HVMC0705121□00 | 120 | 1kHz,1V | 0.47 | 0.69 | 10,20 | 121 |
| HVMC0705151□00 | 150 | 1kHz,1V | 0.64 | 0.61 | 10,20 | 151 |
| HVMC0705181□00 | 180 | 1kHz,1V | 0.71 | 0.54 | 10,20 | 181 |
| HVMC0705221□00 | 220 | 1kHz,1V | 0.96 | 0.50 | 10,20 | 221 |
| HVMC0705271□00 | 270 | 1kHz,1V | 1.11 | 0.45 | 10,20 | 271 |
| HVMC0705331□00 | 330 | 1kHz,1V | 1.26 | 0.42 | 10,20 | 331 |
| HVMC0705391□00 | 390 | 1kHz,1V | 1.77 | 0.38 | 10,20 | 391 |
| HVMC0705471□00 | 470 | 1kHz,1V | 1.96 | 0.36 | 10,20 | 471 |
| HVMC0705561□00 | 560 | 1kHz,1V | 2.41 | 0.33 | 10,20 | 561 |
| HVMC0705681□00 | 680 | 1kHz,1V | 2.50 | 0.30 | 10,20 | 681 |
| HVMC0705102□00 | 1000 | 1kHz,1V | 2.80 | 0.21 | 10,20 | 102 |
| HVMC 1004 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC10043R8□00 | 3.8 | 7.96MHz,1V | 0.022 | 4.86 | 20,30 | 3R8 |
| HVMC1004100□00 | 10 | 2.52MHz,1V | 0.05 | 2.95 | 10,20 | 100 |
| HVMC1004120□00 | 12 | 2.52MHz,1V | 0.06 | 2.55 | 10,20 | 120 |
| HVMC1004150□00 | 15 | 2.52MHz,1V | 0.07 | 2.10 | 10,20 | 150 |
| HVMC1004180□00 | 18 | 2.52MHz,1V | 0.08 | 2.00 | 10,20 | 180 |
| HVMC1004220□00 | 22 | 2.52MHz,1V | 0.09 | 1.88 | 10,20 | 220 |
| HVMC1004270□00 | 27 | 2.52MHz,1V | 0.10 | 1.79 | 10,20 | 270 |
| HVMC1004330□00 | 33 | 2.52MHz,1V | 0.12 | 1.73 | 10,20 | 330 |
| HVMC1004390□00 | 39 | 2.52MHz,1V | 0.15 | 1.56 | 10,20 | 390 |
| HVMC1004470□00 | 47 | 2.52MHz,1V | 0.17 | 1.24 | 10,20 | 470 |
| HVMC1004560□00 | 56 | 2.52MHz,1V | 0.20 | 1.10 | 10,20 | 560 |
| HVMC1004680□00 | 68 | 2.52MHz,1V | 0.22 | 1.00 | 10,20 | 680 |
| HVMC1004820□00 | 82 | 2.52MHz,1V | 0.30 | 0.88 | 10,20 | 820 |
| HVMC1004101□00 | 100 | 1kHz,1V | 0.34 | 0.78 | 10,20 | 101 |
| HVMC1004121□00 | 120 | 1kHz,1V | 0.40 | 0.73 | 10,20 | 121 |
| HVMC1004151□00 | 150 | 1kHz,1V | 0.54 | 0.65 | 10,20 | 151 |
| HVMC1004181□00 | 180 | 1kHz,1V | 0.62 | 0.60 | 10,20 | 181 |
| HVMC1004221□00 | 220 | 1kHz,1V | 0.72 | 0.56 | 10,20 | 221 |
| HVMC1004271□00 | 270 | 1kHz,1V | 0.95 | 0.49 | 10,20 | 271 |
| HVMC1004331□00 | 330 | 1kHz,1V | 1.10 | 0.43 | 10,20 | 331 |
| HVMC1004391□00 | 390 | 1kHz,1V | 1.24 | 0.40 | 10,20 | 391 |
| HVMC1004471□00 | 470 | 1kHz,1V | 1.53 | 0.37 | 10,20 | 471 |
| HVMC1004561□00 | 560 | 1kHz,1V | 1.90 | 0.34 | 10,20 | 561 |
| HVMC 1005 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC10053R3□00 | 3.3 | 7.96MHz,1V | 0.028 | 6.20 | 20,30 | 3R3 |
| HVMC10054R7□00 | 4.7 | 7.96MHz,1V | 0.030 | 5.60 | 20,30 | 4R7 |
| HVMC10055R6□00 | 5.6 | 7.96MHz,1V | 0.037 | 5.30 | 20,30 | 5R6 |
| HVMC10056R8□00 | 6.8 | 7.96MHz,1V | 0.04 | 5.10 | 20,30 | 6R8 |
| HVMC10058R2□00 | 8.2 | 7.96MHz,1V | 0.05 | 4.30 | 20,30 | 8R2 |
| HVMC1005100□00 | 10 | 2.52MHz,1V | 0.06 | 3.50 | 10,20 | 100 |
| HVMC1005120□00 | 12 | 2.52MHz,1V | 0.07 | 3.10 | 10,20 | 120 |
| HVMC1005150□00 | 15 | 2.52MHz,1V | 0.08 | 2.96 | 10,20 | 150 |
| HVMC1005180□00 | 18 | 2.52MHz,1V | 0.09 | 2.63 | 10,20 | 180 |
| HVMC1005220□00 | 22 | 2.52MHz,1V | 0.10 | 2.15 | 10,20 | 220 |
| HVMC1005270□00 | 27 | 2.52MHz,1V | 0.11 | 1.97 | 10,20 | 270 |
| HVMC1005330□00 | 33 | 2.52MHz,1V | 0.12 | 1.66 | 10,20 | 330 |
| HVMC1005390□00 | 39 | 2.52MHz,1V | 0.14 | 1.52 | 10,20 | 390 |
| HVMC1005470□00 | 47 | 2.52MHz,1V | 0.17 | 1.39 | 10,20 | 470 |
| HVMC1005560□00 | 56 | 2.52MHz,1V | 0.19 | 1.28 | 10,20 | 560 |
| HVMC1005680□00 | 68 | 2.52MHz,1V | 0.22 | 1.20 | 10,20 | 680 |
| HVMC1005820□00 | 82 | 2.52MHz,1V | 0.25 | 1.16 | 10,20 | 820 |
| HVMC1005101□00 | 100 | 1kHz,1V | 0.35 | 1.05 | 10,20 | 101 |
| HVMC1005121□00 | 120 | 1kHz,1V | 0.40 | 0.94 | 10,20 | 121 |
| HVMC1005151□00 | 150 | 1kHz,1V | 0.47 | 0.85 | 10,20 | 151 |
| HVMC1005181□00 | 180 | 1kHz,1V | 0.63 | 0.81 | 10,20 | 181 |
| HVMC1005221□00 | 220 | 1kHz,1V | 0.73 | 0.76 | 10,20 | 221 |
| HVMC1005271□00 | 270 | 1kHz,1V | 0.97 | 0.62 | 10,20 | 271 |
| HVMC1005331□00 | 330 | 1kHz,1V | 1.15 | 0.57 | 10,20 | 331 |
| HVMC1005391□00 | 390 | 1kHz,1V | 1.30 | 0.53 | 10,20 | 391 |
| HVMC1005471□00 | 470 | 1kHz,1V | 1.48 | 0.50 | 10,20 | 471 |
| HVMC1005561□00 | 560 | 1kHz,1V | 1.90 | 0.46 | 10,20 | 561 |
| HVMC1005681□00 | 680 | 1kHz,1V | 2.25 | 0.39 | 10,20 | 681 |
| HVMC1005821□00 | 820 | 1kHz,1V | 2.55 | 0.33 | 10,20 | 821 |
| HVMC1005102□00 | 1000 | 1kHz,1V | 3.10 | 0.25 | 10,20 | 102 |
| HVMC 1006 series Standard Specifications | ||||||
| Part No. | Inductance | Test Freq. | DCR(Ω) | Isat | Tolerance | Marking |
| (μH ) | Max | (A) | (±%) | |||
| HVMC1006471□00 | 470 | 1kHz,1V | 1.421 | 0.82 | 10,20 | 471 |
| HVMC1006102□00 | 1000 | 1kHz,1V | 2.9 | 0.60 | 10,20 | 102 |
| HVMC1006122□00 | 1200 | 1kHz,1V | 3.5 | 0.50 | 10,20 | 122 |
| HVMC1006152□00 | 1500 | 1kHz,1V | 3.8 | 0.45 | 10,20 | 152 |
| HVMC1006202□00 | 2000 | 1kHz,1V | 6.6 | 0.40 | 10,20 | 202 |
| HVMC1006222□00 | 2200 | 1kHz,1V | 6.8 | 0.40 | 10,20 | 222 |
| HVMC1006602□00 | 6000 | 1kHz,1V | 14.0 | 0.27 | 10,20 | 602 |
| HVMC1006822□00 | 8200 | 1kHz,1V | 50.0 | 0.20 | 10,20 | 822 |
