Product Description
Appearance size
Models and features

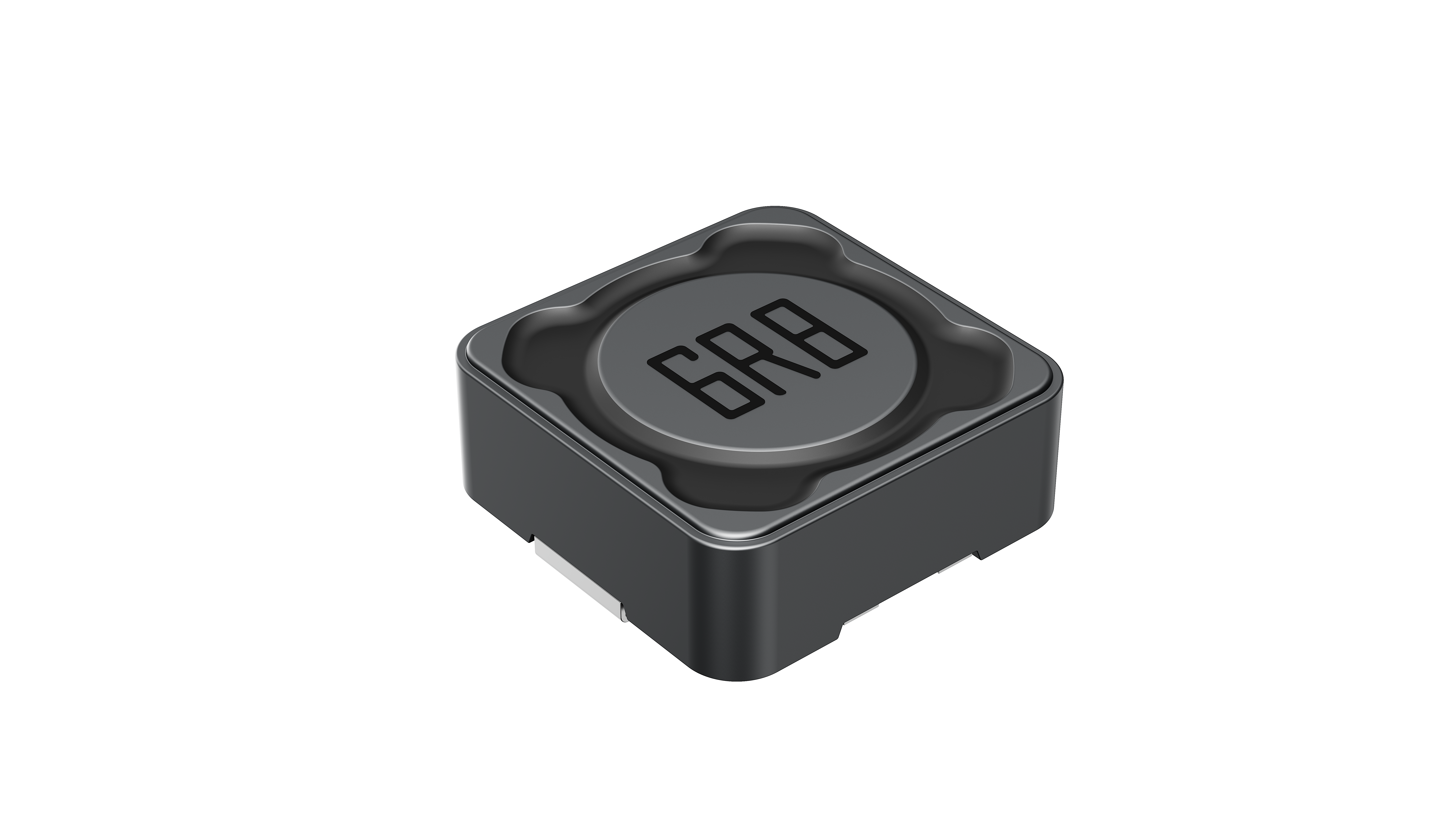

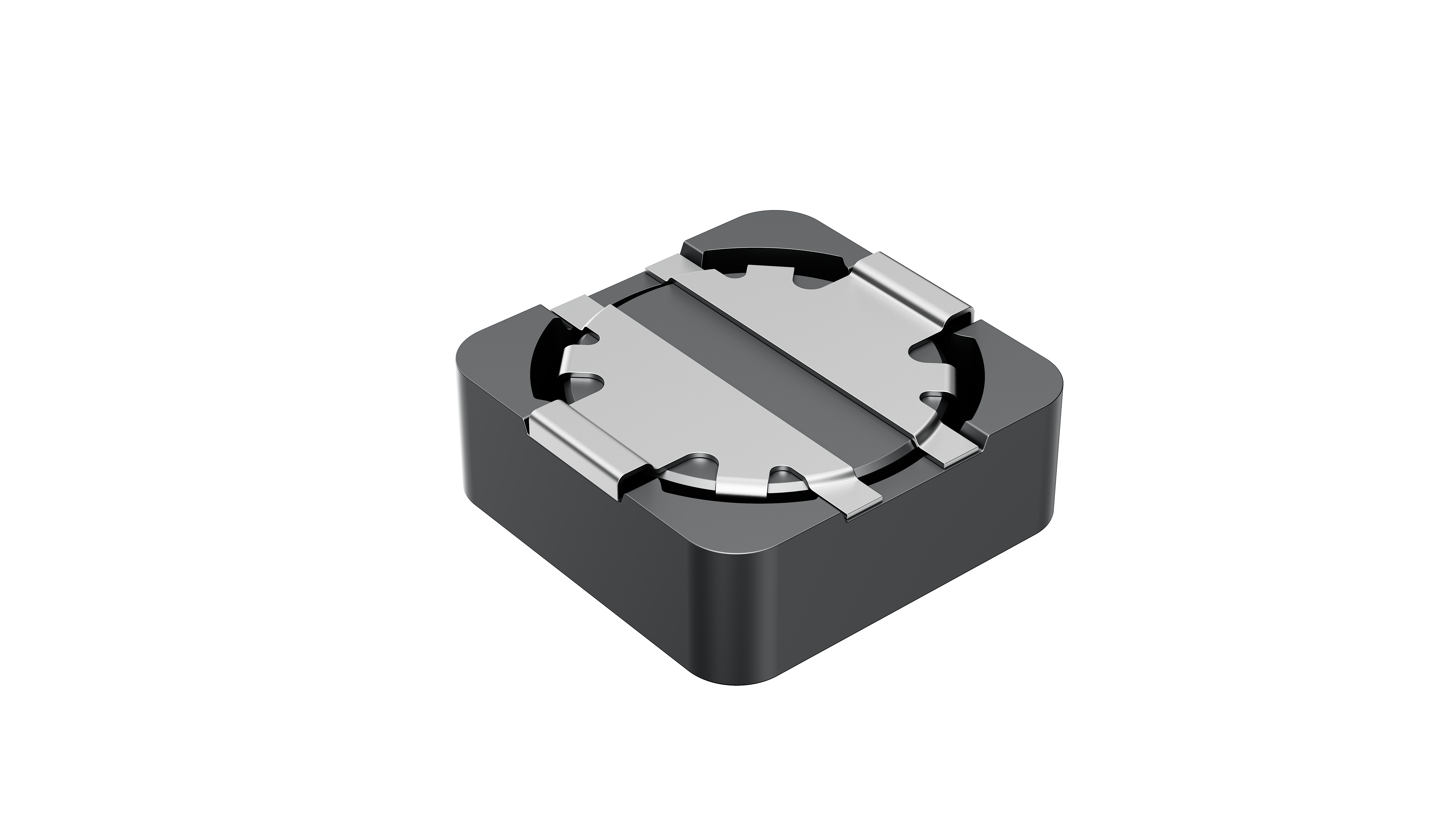

HDR SERIES

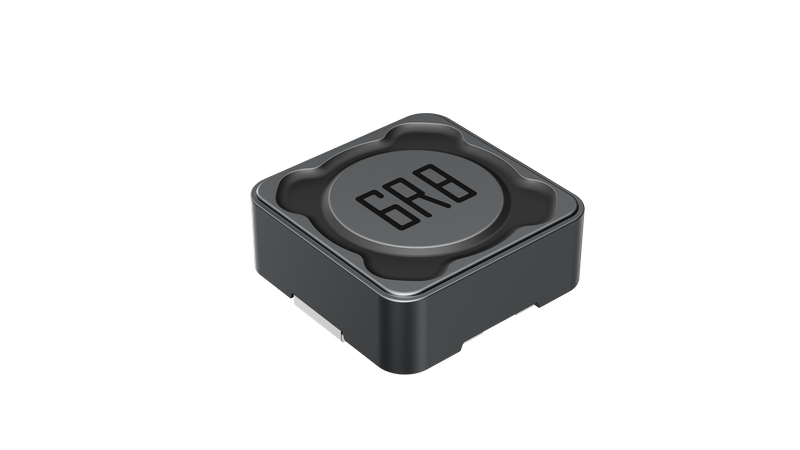

Picture 2 Product number HDR SERIES
manufacturer HUASUN
PID
Supply method Self-operated
product cycle In mass production
RoHs & lead-free situation Lead-free/RoHs compliant
describe Excellent price, good quality, wide range of values, and good reliability.

HDR SERIES appearance dimensions  In mm

8

TYPE A B C D E
A B C
73 7.3±0.2 7.3±0.2 3.4+0 1.8

8.4 4.4 2.2
73 7.3±0.2 7.3±0.2 4.5+0 1.8

8.4 4.4 2.2
124 12.5+0 12.5+0 4.5+0 5 7.6
13.0 7.0 5.4
125 12.5+0 12.5+0 6.0+0 5 7.6
13.0 7.0 5.4
127 12.5+0 12.5+0 8.0+0 5 7.6
13.0 7.0 5.4
129 12.5+0 12.5+0 10.0+0 5 7.6
13.0 7.0 5.4



HDRN 73 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN73N1R5□Y00 1.5 1kHz,1V 0.030 6.50 30 1R5
HDRN73N2R2□Y00 2.2 1kHz,1V 0.030 5.80 30 2R2
HDRN73N3R3□Y00 3.3 1kHz,1V 0.040 4.20 30 3R3
HDRN73N6R8□Y00 6.8 1kHz,1V 0.060 3.00 20,30 6R8
HDRN73N100□Y00 10 1kHz,1V 0.072 2.50 20,30 100
HDRN73N120□Y00 12 1kHz,1V 0.098 2.20 20,30 120
HDRN73N150□Y00 15 1kHz,1V 0.130 1.80 20,30 150
HDRN73N180□Y00 18 1kHz,1V 0.140 1.60 20,30 180
HDRN73N220□Y00 22 1kHz,1V 0.190 1.50 20,30 220
HDRN73N270□Y00 27 1kHz,1V 0.210 1.20 20,30 270
HDRN73N330□Y00 33 1kHz,1V 0.240 1.10 20,30 330
HDRN73N390□Y00 39 1kHz,1V 0.320 0.89 20,30 390
HDRN73N470□Y00 47 1kHz,1V 0.360 0.85 20,30 470
HDRN73N560□Y00 56 1kHz,1V 0.470 0.82 20,30 560
HDRN73N680□Y00 68 1kHz,1V 0.520 0.79 20,30 680
HDRN73N820□Y00 82 1kHz,1V 0.690 0.76 20,30 820
HDRN73N101□Y00 100 1kHz,1V 0.790 0.73 20,30 101
HDRN73N121□Y00 120 1kHz,1V 0.890 0.68 20,30 121
HDRN73N151□Y00 150 1kHz,1V 1.270 0.60 20,30 151
HDRN73N181□Y00 180 1kHz,1V 1.450 0.55 20,30 181
HDRN73N221□Y00 220 1kHz,1V 1.650 0.53 20,30 221
HDRN73N271□Y00 270 1kHz,1V 2.310 0.45 20,30 271
HDRN73N331□Y00 330 1kHz,1V 2.620 0.40 20,30 331
HDRN73N391□Y00 390 1kHz,1V 2.940 0.37 20,30 391
HDRN73N471□Y00 470 1kHz,1V 4.180 0.32 20,30 471
HDRN73N561□Y00 560 1kHz,1V 4.670 0.26 20,30 561
HDRN73N681□Y00 680 1kHz,1V 5.730 0.22 20,30 681
HDRN73N821□Y00 820 1kHz,1V 6.540 0.21 20,30 821
HDRN73N102□Y00 1000 1kHz,1V 9.440 0.19 20,30 102







HDRN 74 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN74N1R5□Y00 1.5 1kHz,1V 0.020 5.00 30 1R5
HDRN74N1R8□Y00 1.8 1kHz,1V 0.025 4.00 30 1R8
HDRN74N2R2□Y00 2.2 1kHz,1V 0.025 3.50 30 2R2
HDRN74N2R7□Y00 2.7 1kHz,1V 0.030 3.50 30 2R7
HDRN74N3R3□Y00 3.3 1kHz,1V 0.035 3.50 30 3R3
HDRN74N3R6□Y00 3.6 1kHz,1V 0.035 3.20 30 3R6
HDRN74N4R7□Y00 4.7 1kHz,1V 0.035 3.00 30 4R7
HDRN74N6R8□Y00 6.8 1kHz,1V 0.045 2.50 20,30 6R8
HDRN74N100□Y00 10 1kHz,1V 0.049 1.84 20,30 100
HDRN74N120□Y00 12 1kHz,1V 0.058 1.71 20,30 120
HDRN74N150□Y00 15 1kHz,1V 0.081 1.47 20,30 150
HDRN74N180□Y00 18 1kHz,1V 0.091 1.31 20,30 180
HDRN74N220□Y00 22 1kHz,1V 0.110 1.23 20,30 220
HDRN74N270□Y00 27 1kHz,1V 0.150 1.12 20,30 270
HDRN74N330□Y00 33 1kHz,1V 0.170 0.96 20,30 330
HDRN74N390□Y00 39 1kHz,1V 0.230 0.91 20,30 390
HDRN74N470□Y00 47 1kHz,1V 0.260 0.88 20,30 470
HDRN74N560□Y00 56 1kHz,1V 0.350 0.75 20,30 560
HDRN74N680□Y00 68 1kHz,1V 0.380 0.69 20,30 680
HDRN74N820□Y00 82 1kHz,1V 0.430 0.61 20,30 820
HDRN74N101□Y00 100 1kHz,1V 0.610 0.60 20,30 101
HDRN74N121□Y00 120 1kHz,1V 0.660 0.52 20,30 121
HDRN74N151□Y00 150 1kHz,1V 0.880 0.46 20,30 151
HDRN74N181□Y00 180 1kHz,1V 0.980 0.42 20,30 181
HDRN74N221□Y00 220 1kHz,1V 1.170 0.36 20,30 221
HDRN74N271□Y00 270 1kHz,1V 1.640 0.34 20,30 271
HDRN74N331□Y00 330 1kHz,1V 1.860 0.32 20,30 331
HDRN74N391□Y00 390 1kHz,1V 2.850 0.29 20,30 391
HDRN74N471□Y00 470 1kHz,1V 3.010 0.26 20,30 471
HDRN74N561□Y00 560 1kHz,1V 3.620 0.23 20,30 561
HDRN74N681□Y00 680 1kHz,1V 4.630 0.22 20,30 681
HDRN74N821□Y00 820 1kHz,1V 5.200 0.20 20,30 821
HDRN74N102 Y00 1000 1kHz,1V 6.000 0.18 20,30 102







HDRN 124 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN124N3R3□L00 3.3 100kHz,1V 0.015 9.50 30 3R3
HDRN124N3R9□L00 3.9 100kHz,1V 0.015 9.20 30 3R9
HDRN124N4R7□L00 4.7 100kHz,1V 0.018 8.20 30 4R7
HDRN124N6R8□L00 6.8 100kHz,1V 0.023 6.00 20,30 6R8
HDRN124N100□L00 10 100kHz,1V 0.028 5.50 20,30 100
HDRN124N120□L00 12 100kHz,1V 0.038 5.20 20,30 120
HDRN124N150□L00 15 100kHz,1V 0.050 4.60 20,30 150
HDRN124N180□L00 18 100kHz,1V 0.057 3.50 20,30 180
HDRN124N220□L00 22 100kHz,1V 0.066 3.20 20,30 220
HDRN124N270□L00 27 100kHz,1V 0.080 3.00 20,30 270
HDRN124N330□L00 33 100kHz,1V 0.097 2.90 20,30 330
HDRN124N390□L00 39 100kHz,1V 0.132 2.50 20,30 390
HDRN124N470□L00 47 100kHz,1V 0.150 2.10 20,30 470
HDRN124N560□L00 56 100kHz,1V 0.190 2.00 20,30 560
HDRN124N680□L00 68 100kHz,1V 0.220 1.80 20,30 680
HDRN124N820□L00 82 100kHz,1V 0.260 1.60 20,30 820
HDRN124N101□L00 100 100kHz,1V 0.308 1.50 20,30 101
HDRN124N121□L00 120 100kHz,1V 0.380 1.20 20,30 121
HDRN124N151□L00 150 100kHz,1V 0.530 1.00 20,30 151
HDRN124N181□L00 180 100kHz,1V 0.620 0.90 20,30 181
HDRN124N221□L00 220 100kHz,1V 0.700 0.85 20,30 221
HDRN124N271□L00 270 100kHz,1V 0.876 0.70 20,30 271
HDRN124N331□L00 330 100kHz,1V 0.990 0.55 20,30 331







HDRN 125 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN125N3R3□L00 3.3 1kHz,1V 0.015 10.50 30 3R3
HDRN125N4R7□L00 4.7 1kHz,1V 0.018 10.00 30 4R7
HDRN125N6R4□L00 6.4 1kHz,1V 0.018 8.30 20,30 6R4
HDRN125N8R2□L00 8.2 1kHz,1V 0.025 6.80 20,30 8R2
HDRN125N100□L00 10 1kHz,1V 0.025 5.50 20,30 100
HDRN125N120□L00 12 1kHz,1V 0.027 4.60 20,30 120
HDRN125N150□L00 15 1kHz,1V 0.03 4.20 20,30 150
HDRN125N180□L00 18 1kHz,1V 0.034 4.00 20,30 180
HDRN125N220□L00 22 1kHz,1V 0.036 3.60 20,30 220
HDRN125N270□L00 27 1kHz,1V 0.051 3.20 20,30 270
HDRN125N330□L00 33 1kHz,1V 0.057 3.00 20,30 330
HDRN125N390□L00 39 1kHz,1V 0.068 2.50 20,30 390
HDRN125N470□L00 47 1kHz,1V 0.075 2.20 20,30 470
HDRN125N560□L00 56 1kHz,1V 0.11 2.00 20,30 560
HDRN125N680□L00 68 1kHz,1V 0.12 1.90 20,30 680
HDRN125N820□L00 82 1kHz,1V 0.14 1.60 20,30 820
HDRN125N101□L00 100 1kHz,1V 0.16 1.50 20,30 101
HDRN125N121□L00 120 1kHz,1V 0.17 1.30 20,30 121
HDRN125N151□L00 150 1kHz,1V 0.23 1.20 20,30 151
HDRN125N181□L00 180 1kHz,1V 0.29 0.95 20,30 181
HDRN125N221□L00 220 1kHz,1V 0.4 0.86 20,30 221
HDRN125N271□L00 270 1kHz,1V 0.46 0.82 20,30 271
HDRN125N331□L00 330 1kHz,1V 0.51 0.80 20,30 331
HDRN125N391□L00 390 1kHz,1V 0.69 0.76 20,30 391
HDRN125N471□L00 470 1kHz,1V 0.77 0.63 20,30 471
HDRN125N561□L00 560 1kHz,1V 0.86 0.57 20,30 561
HDRN125N681□L00 680 1kHz,1V 1.2 0.52 20,30 681
HDRN125N821□L00 820 1kHz,1V 1.34 0.48 20,30 821
HDRN125N102□L00 1000 1kHz,1V 1.53 0.43 20,30 102
HDRN125N302□L00 3000 1kHz,1V 6 0.30 20,30 302







HDRN 127 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN127N1R2□L00 1.2 100kHz,1V 0.007 23.00 30 1R2
HDRN127N1R5□L00 1.5 100kHz,1V 0.008 21.00 30 1R5
HDRN127N2R2□L00 2.2 100kHz,1V 0.0115 19.00 30 2R2
HDRN127N2R4□L00 2.4 100kHz,1V 0.0115 18.00 30 2R4
HDRN127N3R3□L00 3.3 100kHz,1V 0.0135 16.00 30 3R3
HDRN127N3R5□L00 3.5 100kHz,1V 0.0135 14.00 30 3R5
HDRN127N4R7□L00 4.7 100kHz,1V 0.0158 12.00 30 4R7
HDRN127N6R1□L00 6.1 100kHz,1V 0.0176 9.00 20,30 6R1
HDRN127N6R8□L00 6.8 100kHz,1V 0.02 8.80 20,30 6R8
HDRN127N7R6□L00 7.6 100kHz,1V 0.02 8.50 20,30 7R6
HDRN127N100□L00 10 1kHz,1V 0.0216 8.00 20,30 100
HDRN127N120□L00 12 1kHz,1V 0.0243 7.80 20,30 120
HDRN127N150□L00 15 1kHz,1V 0.027 7.50 20,30 150
HDRN127N180□L00 18 1kHz,1V 0.0392 7.00 20,30 180
HDRN127N220□L00 22 1kHz,1V 0.0432 6.00 20,30 220
HDRN127N270□L00 27 1kHz,1V 0.0459 5.80 20,30 270
HDRN127N330□L00 33 1kHz,1V 0.0648 5.20 20,30 330
HDRN127N390□L00 39 1kHz,1V 0.0729 4.50 20,30 390
HDRN127N470□L00 47 1kHz,1V 0.1 4.10 20,30 470
HDRN127N560□L00 56 1kHz,1V 0.11 3.50 20,30 560
HDRN127N680□L00 68 1kHz,1V 0.14 3.30 20,30 680
HDRN127N820□L00 82 1kHz,1V 0.16 3.00 20,30 820
HDRN127N101□L00 100 1kHz,1V 0.22 2.50 20,30 101
HDRN127N121□L00 120 1kHz,1V 0.25 2.20 20,30 121
HDRN127N151□L00 150 1kHz,1V 0.28 1.90 20,30 151
HDRN127N181□L00 180 1kHz,1V 0.35 1.60 20,30 181
HDRN127N221□L00 220 1kHz,1V 0.39 1.35 20,30 221
HDRN127N271□L00 270 1kHz,1V 0.56 1.27 20,30 271
HDRN127N331□L00 330 1kHz,1V 0.64 1.15 20,30 331
HDRN127N391□L00 390 1kHz,1V 0.7 1.08 20,30 391
HDRN127N471□L00 470 1kHz,1V 0.98 0.98 20,30 471
HDRN127N561□L00 560 1kHz,1V 1.07 0.85 20,30 561
HDRN127N681□L00 680 1kHz,1V 1.46 0.76 20,30 681
HDRN127N821□L00 820 1kHz,1V 1.64 0.72 20,30 821
HDRN127N102□L00 1000 1kHz,1V 1.82 0.63 20,30 102







HDRN 129 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRN129N100□L00 10 100kHz,1V 0.022 10.0 20,30 100
HDRN129N150□L00 15 100kHz,1V 0.022 9.5 20,30 150
HDRN129N220□L00 22 100kHz,1V 0.03 7.2 20,30 220
HDRN129N330□L00 33 100kHz,1V 0.058 5.3 20,30 330
HDRN129N470□L00 47 100kHz,1V 0.065 4.8 20,30 470
HDRN129N680□L00 68 100kHz,1V 0.08 3.6 20,30 680
HDRN129N101□L00 100 100kHz,1V 0.1599 2.8 20,30 101
HDRN129N121□L00 120 100kHz,1V 0.165 2.6 20,30 121
HDRN129N151□L00 150 100kHz,1V 0.185 2.2 20,30 151
HDRN129N181□L00 180 100kHz,1V 0.203 2.0 20,30 181
HDRN129N221□L00 220 100kHz,1V 0.24 1.9 20,30 221
HDRN129N331□L00 330 100kHz,1V 0.45 1.6 20,30 331
HDRN129N471□L00 470 100kHz,1V 0.51 1.5 20,30 471
HDRN129N681□L00 680 100kHz,1V 0.63 1.3 20,30 681
HDRN129N102□L00 1000 100kHz,1V 0.96 1.1 20,30 102




HDRC 73 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC73N1R5□P00 1.5 1kHz,1V 0.030 6.50 30 1R5
HDRC73N2R2□P00 2.2 1kHz,1V 0.030 5.80 30 2R2
HDRC73N3R3□P00 3.3 1kHz,1V 0.040 4.20 30 3R3
HDRC73N6R8□P00 6.8 1kHz,1V 0.060 3.00 20,30 6R8
HDRC73N100□P00 10 1kHz,1V 0.072 2.50 20,30 100
HDRC73N120□P00 12 1kHz,1V 0.098 2.20 20,30 120
HDRC73N150□P00 15 1kHz,1V 0.130 1.80 20,30 150
HDRC73N180□P00 18 1kHz,1V 0.140 1.60 20,30 180
HDRC73N220□P00 22 1kHz,1V 0.190 1.50 20,30 220
HDRC73N270□P00 27 1kHz,1V 0.210 1.20 20,30 270
HDRC73N330□P00 33 1kHz,1V 0.240 1.10 20,30 330
HDRC73N390□P00 39 1kHz,1V 0.320 0.89 20,30 390
HDRC73N470□P00 47 1kHz,1V 0.360 0.85 20,30 470
HDRC73N560□P00 56 1kHz,1V 0.470 0.82 20,30 560
HDRC73N680□P00 68 1kHz,1V 0.520 0.79 20,30 680
HDRC73N820□P00 82 1kHz,1V 0.690 0.76 20,30 820
HDRC73N101□P00 100 1kHz,1V 0.790 0.73 20,30 101
HDRC73N121□P00 120 1kHz,1V 0.890 0.68 20,30 121
HDRC73N151□P00 150 1kHz,1V 1.270 0.60 20,30 151
HDRC73N181□P00 180 1kHz,1V 1.450 0.55 20,30 181
HDRC73N221□P00 220 1kHz,1V 1.650 0.53 20,30 221
HDRC73N271□P00 270 1kHz,1V 2.310 0.45 20,30 271
HDRC73N331□P00 330 1kHz,1V 2.620 0.40 20,30 331
HDRC73N391□P00 390 1kHz,1V 2.940 0.37 20,30 391
HDRC73N471□P00 470 1kHz,1V 4.180 0.32 20,30 471
HDRC73N561□P00 560 1kHz,1V 4.670 0.26 20,30 561
HDRC73N681□P00 680 1kHz,1V 5.730 0.22 20,30 681
HDRC73N821□P00 820 1kHz,1V 6.540 0.21 20,30 821
HDRC73N102□P00 1000 1kHz,1V 9.440 0.19 20,30 102







HDRC 74 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC74N1R5□P00 1.5 1kHz,1V 0.020 5.00 30 1R5
HDRC74N1R8□P00 1.8 1kHz,1V 0.025 4.00 30 1R8
HDRC74N2R2□P00 2.2 1kHz,1V 0.025 3.50 30 2R2
HDRC74N2R7□P00 2.7 1kHz,1V 0.030 3.50 30 2R7
HDRC74N3R3□P00 3.3 1kHz,1V 0.035 3.50 30 3R3
HDRC74N3R6□P00 3.6 1kHz,1V 0.035 3.20 30 3R6
HDRC74N4R7□P00 4.7 1kHz,1V 0.035 3.00 30 4R7
HDRC74N6R8□P00 6.8 1kHz,1V 0.045 2.50 20,30 6R8
HDRC74N100□P00 10 1kHz,1V 0.049 1.84 20,30 100
HDRC74N120□P00 12 1kHz,1V 0.058 1.71 20,30 120
HDRC74N150□P00 15 1kHz,1V 0.081 1.47 20,30 150
HDRC74N180□P00 18 1kHz,1V 0.091 1.31 20,30 180
HDRC74N220□P00 22 1kHz,1V 0.110 1.23 20,30 220
HDRC74N270□P00 27 1kHz,1V 0.150 1.12 20,30 270
HDRC74N330□P00 33 1kHz,1V 0.170 0.96 20,30 330
HDRC74N390□P00 39 1kHz,1V 0.230 0.91 20,30 390
HDRC74N470□P00 47 1kHz,1V 0.260 0.88 20,30 470
HDRC74N560□P00 56 1kHz,1V 0.350 0.75 20,30 560
HDRC74N680□P00 68 1kHz,1V 0.380 0.69 20,30 680
HDRC74N820□P00 82 1kHz,1V 0.430 0.61 20,30 820
HDRC74N101□P00 100 1kHz,1V 0.610 0.60 20,30 101
HDRC74N121□P00 120 1kHz,1V 0.660 0.52 20,30 121
HDRC74N151□P00 150 1kHz,1V 0.880 0.46 20,30 151
HDRC74N181□P00 180 1kHz,1V 0.980 0.42 20,30 181
HDRC74N221□P00 220 1kHz,1V 1.170 0.36 20,30 221
HDRC74N271□P00 270 1kHz,1V 1.640 0.34 20,30 271
HDRC74N331□P00 330 1kHz,1V 1.860 0.32 20,30 331
HDRC74N391□P00 390 1kHz,1V 2.850 0.29 20,30 391
HDRC74N471□P00 470 1kHz,1V 3.010 0.26 20,30 471
HDRC74N561□P00 560 1kHz,1V 3.620 0.23 20,30 561
HDRC74N681□P00 680 1kHz,1V 4.630 0.22 20,30 681
HDRC74N821□P00 820 1kHz,1V 5.200 0.20 20,30 821
HDRC74N102□P00 1000 1kHz,1V 6.000 0.18 20,30 102







HDRC 124 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC124N3R3□P00 3.3 100kHz,1V 0.015 9.50 30 3R3
HDRC124N3R9□P00 3.9 100kHz,1V 0.015 9.20 30 3R9
HDRC124N4R7□P00 4.7 100kHz,1V 0.018 8.20 30 4R7
HDRC124N6R8□P00 6.8 100kHz,1V 0.023 6.00 20,30 6R8
HDRC124N100□P00 10 100kHz,1V 0.028 5.50 20,30 100
HDRC124N120□P00 12 100kHz,1V 0.038 5.20 20,30 120
HDRC124N150□P00 15 100kHz,1V 0.050 4.60 20,30 150
HDRC124N180□P00 18 100kHz,1V 0.057 3.50 20,30 180
HDRC124N220□P00 22 100kHz,1V 0.066 3.20 20,30 220
HDRC124N270□P00 27 100kHz,1V 0.080 3.00 20,30 270
HDRC124N330□P00 33 100kHz,1V 0.097 2.90 20,30 330
HDRC124N390□P00 39 100kHz,1V 0.132 2.50 20,30 390
HDRC124N470□P00 47 100kHz,1V 0.150 2.10 20,30 470
HDRC124N560□P00 56 100kHz,1V 0.190 2.00 20,30 560
HDRC124N680□P00 68 100kHz,1V 0.220 1.80 20,30 680
HDRC124N820□P00 82 100kHz,1V 0.260 1.60 20,30 820
HDRC124N101□P00 100 100kHz,1V 0.308 1.50 20,30 101
HDRC124N121□P00 120 100kHz,1V 0.380 1.20 20,30 121
HDRC124N151□P00 150 100kHz,1V 0.530 1.00 20,30 151
HDRC124N181□P00 180 100kHz,1V 0.620 0.90 20,30 181
HDRC124N221□P00 220 100kHz,1V 0.700 0.85 20,30 221
HDRC124N271□P00 270 100kHz,1V 0.876 0.70 20,30 271
HDRC124N331□P00 330 100kHz,1V 0.990 0.55 20,30 331







HDRC 125 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC125N3R3□P00 3.3 1kHz,1V 0.015 10.50 30 3R3
HDRC125N4R7□P00 4.7 1kHz,1V 0.018 10.00 30 4R7
HDRC125N6R4□P00 6.4 1kHz,1V 0.018 8.30 20,30 6R4
HDRC125N8R2□P00 8.2 1kHz,1V 0.025 6.80 20,30 8R2
HDRC125N100□P00 10 1kHz,1V 0.025 5.50 20,30 100
HDRC125N120□P00 12 1kHz,1V 0.027 4.60 20,30 120
HDRC125N150□P00 15 1kHz,1V 0.03 4.20 20,30 150
HDRC125N180□P00 18 1kHz,1V 0.034 4.00 20,30 180
HDRC125N220□P00 22 1kHz,1V 0.036 3.60 20,30 220
HDRC125N270□P00 27 1kHz,1V 0.051 3.20 20,30 270
HDRC125N330□P00 33 1kHz,1V 0.057 3.00 20,30 330
HDRC125N390□P00 39 1kHz,1V 0.068 2.50 20,30 390
HDRC125N470□P00 47 1kHz,1V 0.075 2.20 20,30 470
HDRC125N560□P00 56 1kHz,1V 0.11 2.00 20,30 560
HDRC125N680□P00 68 1kHz,1V 0.12 1.90 20,30 680
HDRC125N820□P00 82 1kHz,1V 0.14 1.60 20,30 820
HDRC125N101□P00 100 1kHz,1V 0.16 1.50 20,30 101
HDRC125N121□P00 120 1kHz,1V 0.17 1.30 20,30 121
HDRC125N151□P00 150 1kHz,1V 0.23 1.20 20,30 151
HDRC125N181□P00 180 1kHz,1V 0.29 0.95 20,30 181
HDRC125N221□P00 220 1kHz,1V 0.4 0.86 20,30 221
HDRC125N271□P00 270 1kHz,1V 0.46 0.82 20,30 271
HDRC125N331□P00 330 1kHz,1V 0.51 0.80 20,30 331
HDRC125N391□P00 390 1kHz,1V 0.69 0.76 20,30 391
HDRC125N471□P00 470 1kHz,1V 0.77 0.63 20,30 471
HDRC125N561□P00 560 1kHz,1V 0.86 0.57 20,30 561
HDRC125N681□P00 680 1kHz,1V 1.2 0.52 20,30 681
HDRC125N821□P00 820 1kHz,1V 1.34 0.48 20,30 821
HDRC125N102□P00 1000 1kHz,1V 1.53 0.43 20,30 102
HDRC125N302□P00 3000 1kHz,1V 6 0.30 20,30 302







HDRC 127 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC127N1R2□P00 1.2 100kHz,1V 0.007 23.00 30 1R2
HDRC127N1R5□P00 1.5 100kHz,1V 0.008 21.00 30 1R5
HDRC127N2R2□P00 2.2 100kHz,1V 0.0115 19.00 30 2R2
HDRC127N2R4□P00 2.4 100kHz,1V 0.0115 18.00 30 2R4
HDRC127N3R3□P00 3.3 100kHz,1V 0.0135 16.00 30 3R3
HDRC127N3R5□P00 3.5 100kHz,1V 0.0135 14.00 30 3R5
HDRC127N4R7□P00 4.7 100kHz,1V 0.0158 12.00 30 4R7
HDRC127N6R1□P00 6.1 100kHz,1V 0.0176 9.00 20,30 6R1
HDRC127N6R8□P00 6.8 100kHz,1V 0.02 8.80 20,30 6R8
HDRC127N7R6□P00 7.6 100kHz,1V 0.02 8.50 20,30 7R6
HDRC127N100□P00 10 1kHz,1V 0.0216 8.00 20,30 100
HDRC127N120□P00 12 1kHz,1V 0.0243 7.80 20,30 120
HDRC127N150□P00 15 1kHz,1V 0.027 7.50 20,30 150
HDRC127N180□P00 18 1kHz,1V 0.0392 7.00 20,30 180
HDRC127N220□P00 22 1kHz,1V 0.0432 6.00 20,30 220
HDRC127N270□P00 27 1kHz,1V 0.0459 5.80 20,30 270
HDRC127N330□P00 33 1kHz,1V 0.0648 5.20 20,30 330
HDRC127N390□P00 39 1kHz,1V 0.0729 4.50 20,30 390
HDRC127N470□P00 47 1kHz,1V 0.1 4.10 20,30 470
HDRC127N560□P00 56 1kHz,1V 0.11 3.50 20,30 560
HDRC127N680□P00 68 1kHz,1V 0.14 3.30 20,30 680
HDRC127N820□P00 82 1kHz,1V 0.16 3.00 20,30 820
HDRC127N101□P00 100 1kHz,1V 0.22 2.50 20,30 101
HDRC127N121□P00 120 1kHz,1V 0.25 2.20 20,30 121
HDRC127N151□P00 150 1kHz,1V 0.28 1.90 20,30 151
HDRC127N181□P00 180 1kHz,1V 0.35 1.60 20,30 181
HDRC127N221□P00 220 1kHz,1V 0.39 1.35 20,30 221
HDRC127N271□P00 270 1kHz,1V 0.56 1.27 20,30 271
HDRC127N331□P00 330 1kHz,1V 0.64 1.15 20,30 331
HDRC127N391□P00 390 1kHz,1V 0.7 1.08 20,30 391
HDRC127N471□P00 470 1kHz,1V 0.98 0.98 20,30 471
HDRC127N561□P00 560 1kHz,1V 1.07 0.85 20,30 561
HDRC127N681□P00 680 1kHz,1V 1.46 0.76 20,30 681
HDRC127N821□P00 820 1kHz,1V 1.64 0.72 20,30 821
HDRC127N102□P00 1000 1kHz,1V 1.82 0.63 20,30 102







HDRC 129 series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A) Tolerance Marking
(μH )
Max.
(±%)
HDRC129N100□P00 10 100kHz,1V 0.022 10.0 20,30 100
HDRC129N150□P00 15 100kHz,1V 0.022 9.5 20,30 150
HDRC129N220□P00 22 100kHz,1V 0.03 7.2 20,30 220
HDRC129N330□P00 33 100kHz,1V 0.058 5.3 20,30 330
HDRC129N470□P00 47 100kHz,1V 0.065 4.8 20,30 470
HDRC129N680□P00 68 100kHz,1V 0.08 3.6 20,30 680
HDRC129N101□P00 100 100kHz,1V 0.1599 2.8 20,30 101
HDRC129N121□P00 120 100kHz,1V 0.165 2.6 20,30 121
HDRC129N151□P00 150 100kHz,1V 0.185 2.2 20,30 151
HDRC129N181□P00 180 100kHz,1V 0.203 2.0 20,30 181
HDRC129N221□P00 220 100kHz,1V 0.24 1.9 20,30 221
HDRC129N331□P00 330 100kHz,1V 0.45 1.6 20,30 331
HDRC129N471□P00 470 100kHz,1V 0.51 1.5 20,30 471
HDRC129N681□P00 680 100kHz,1V 0.63 1.3 20,30 681
HDRC129N102□P00 1000 100kHz,1V 0.96 1.1 20,30 102


Product Description
Appearance size
Models and features

Related Products

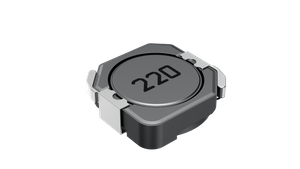

HDR103R~105R SERIES
HDR103R~105R SERIES

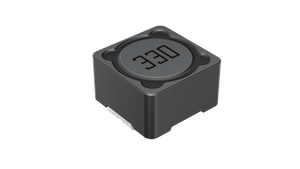

HDR3D~6D SERIES
HDR3D~6D SERIES
HUNAN HUASUN M AND E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact: Wang Ping
Address: Luojiuhuasheng Science and Technology Park, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2025 HUNAN HUASUN M AND E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
Copyright© 2025 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
