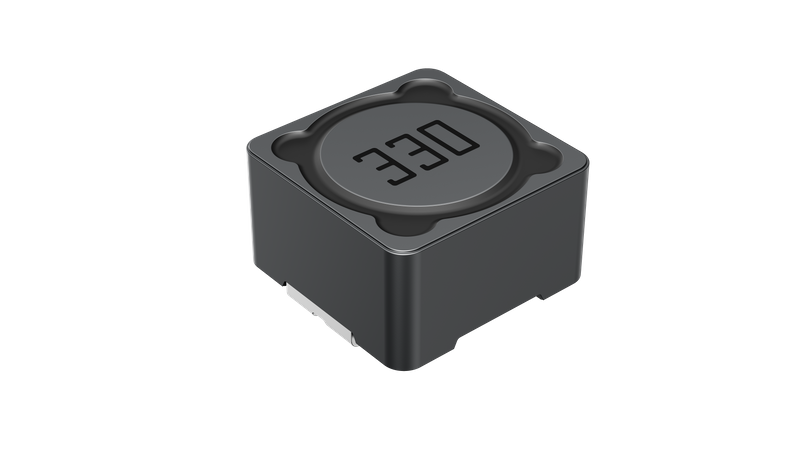

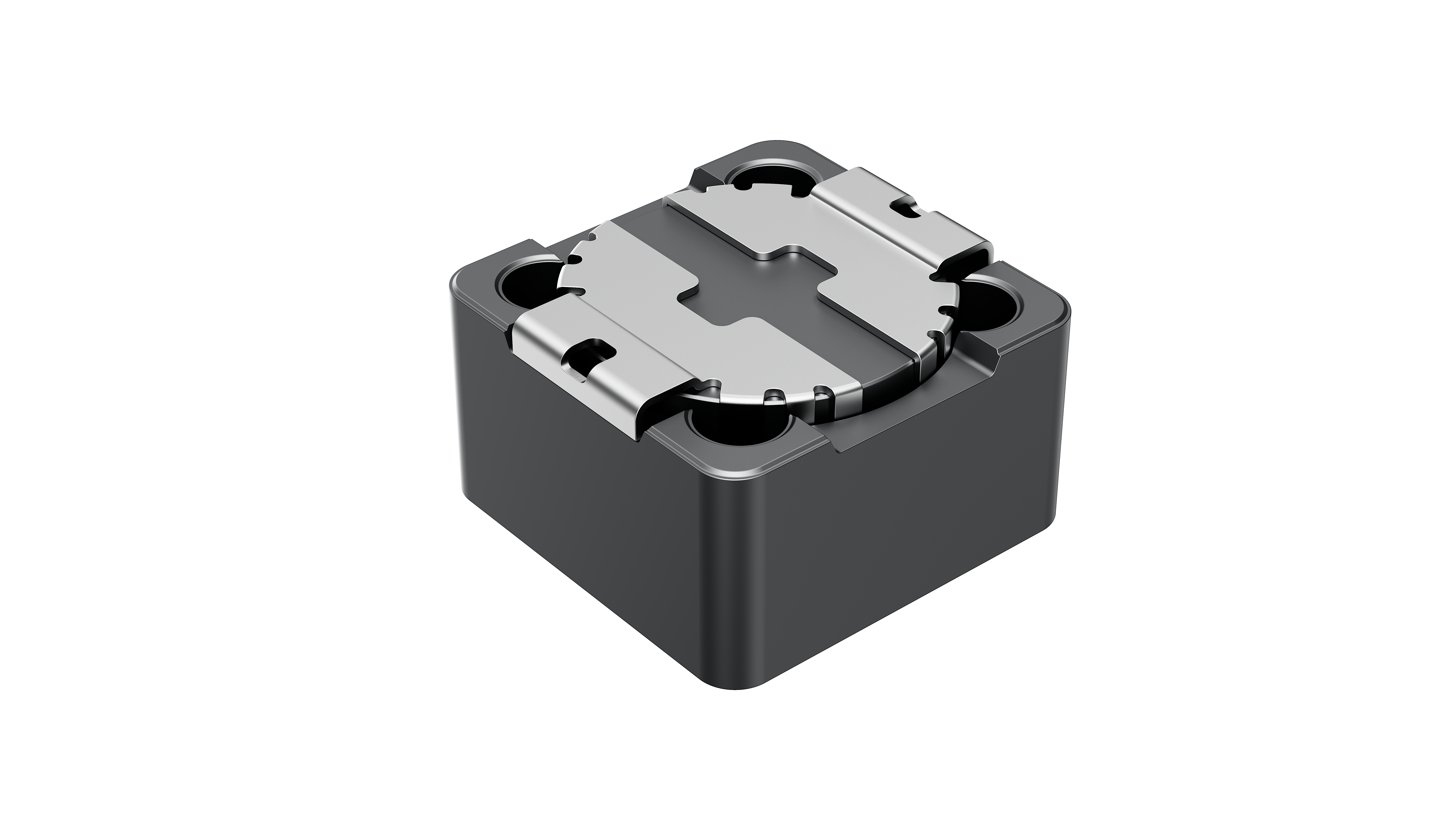

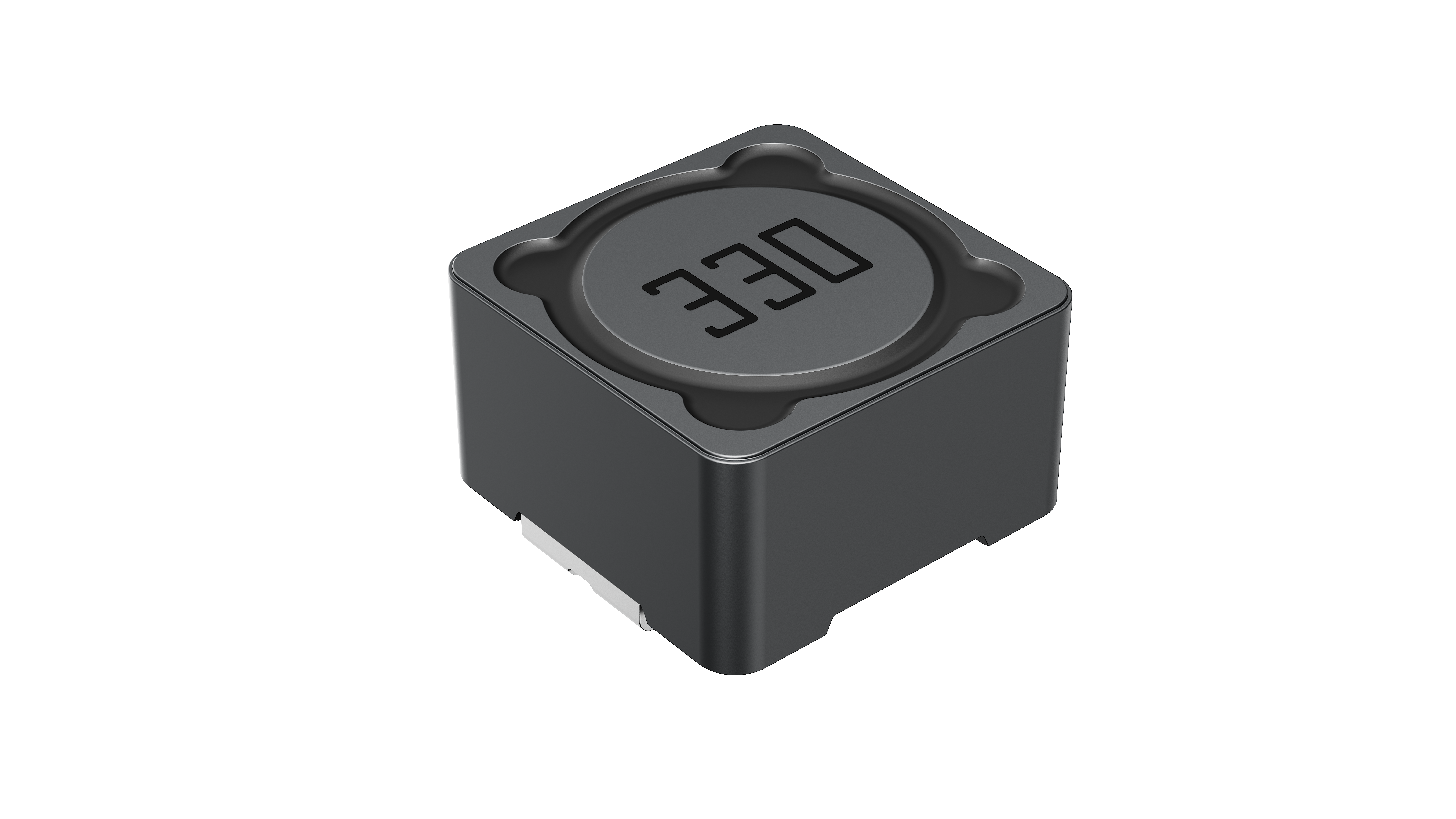

HDR3D~6D SERIES

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
Appearance size
Model and features
HDR3D~6D SERIES
HDRN-127-1 Product number HDR3D~6D SERIES
manufacturer HUASUN
PID
Supply method Self-operated
product cycle In mass production
RoHs & lead-free situation Lead-free/RoHs compliant
describe Excellent price, good quality, wide range of values, and good reliability.

HDR3D~6D SERIES Appearance sizeIn  mm

1

TYPE A B C D E TYPE A B C
HDRN3D16 4.00+0 4.00+0 1.8+0 5.2+0 1.0 HCRI3D16 1.6 1.4 4.6
HDRN4D18 4.7±0.3 4.7±0.3 2.0+0 6.9+0 1.5 HCRI4D18 1.9 1.5 5.3
HDRN4D28 4.7±0.3 4.7±0.3 3.0+0 6.9+0 1.5 HCRI4D28 1.9 1.5 5.3
HDRN4D40 4.7±0.3 4.7±0.3 4.0+0 6.9+0 1.5 HCRI4D40 1.9 1.5 5.3
HDRN5D18 5.7±0.3 5.7±0.3 2.0+0 8.2+0 2.0 HCRI5D18 2.15 2.0 6.3
HDRN5D28 5.7±0.3 5.7±0.3 3.0+0 8.2+0 2.0 HCRI5D28 2.15 2.0 6.3
HDRN6D28 6.7±0.3 6.7±0.3 3.0+0 9.5+0 2.0 HCRI6D28 2.65 2.0 7.3
HDRN6D38 7.00+0 7.00+0 4.0+0 9.5+0 2.0 HCRI6D38 2.65 2.0 7.3



HDRN 3D16 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN3D16N1R0□L00 1.00 100kHz,0.1V 0.040 1.60 30 1R0
HDRN3D16N1R5□L00 1.50 100kHz,0.1V 0.052 1.55 30 1R5
HDRN3D16N2R2□L00 2.20 100kHz,0.1V 0.072 1.20 30 2R2
HDRN3D16N3R3□L00 3.30 100kHz,0.1V 0.085 1.10 30 3R3
HDRN3D16N3R6□L00 3.60 100kHz,0.1V 0.090 0.95 30 3R6
HDRN3D16N4R7□L00 4.70 100kHz,0.1V 0.105 0.90 30 4R7
HDRN3D16N6R8□L00 6.80 100kHz,0.1V 0.170 0.73 30 6R8
HDRN3D16N100□L00 10.0 100kHz,0.1V 0.210 0.55 20,30 100
HDRN3D16N150□L00 15.0 100kHz,0.1V 0.295 0.45 20,30 150
HDRN3D16N220□L00 22.0 100kHz,0.1V 0.430 0.40 20,30 220
HDRN3D16N270□L00 27.0 100kHz,0.1V 0.620 0.35 20,30 270
HDRN3D16N330□L00 33.0 100kHz,0.1V 0.675 0.32 20,30 330
HDRN3D16N680□L00 68.0 100kHz,0.1V 1.700 0.18 20,30 680
HDRN3D16N101□L00 100 100kHz,0.1V 2.750 0.13 20,30 101
HDRN3D16N221□L00 220 100kHz,0.1V 5.500 0.08 20,30 221
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 4D18 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN4D18N1R0□L00 1.00 7.96MHz,1V 0.045 1.72 30 1R0
HDRN4D18N1R5□L00 1.50 7.96MHz,1V 0.060 1.50 30 1R5
HDRN4D18N1R8□L00 1.80 7.96MHz,1V 0.070 1.35 30 1R8
HDRN4D18N2R2□L00 2.20 7.96MHz,1V 0.075 1.32 30 2R2
HDRN4D18N2R7□L00 2.70 7.96MHz,1V 0.105 1.28 30 2R7
HDRN4D18N3R3□L00 3.30 7.96MHz,1V 0.110 1.04 30 3R3
HDRN4D18N3R9□L00 3.90 7.96MHz,1V 0.155 0.88 30 3R9
HDRN4D18N4R7□L00 4.70 7.96MHz,1V 0.162 0.84 30 4R7
HDRN4D18N5R6□L00 5.60 7.96MHz,1V 0.170 0.80 30 5R6
HDRN4D18N6R3□L00 6.30 7.96MHz,1V 0.180 0.78 30 6R3
HDRN4D18N6R8□L00 6.80 7.96MHz,1V 0.200 0.76 30 6R8
HDRN4D18N8R2□L00 8.20 7.96MHz,1V 0.245 0.68 30 8R2
HDRN4D18N100□L00 10.0 100kHz,1V 0.280 0.61 20,30 100
HDRN4D18N120□L00 12.0 100kHz,1V 0.320 0.56 20,30 120
HDRN4D18N150□L00 15.0 100kHz,1V 0.360 0.50 20,30 150
HDRN4D18N180□L00 18.0 100kHz,1V 0.400 0.48 20,30 180
HDRN4D18N220□L00 22.0 100kHz,1V 0.480 0.41 20,30 220
HDRN4D18N270□L00 27.0 100kHz,1V 0.570 0.35 20,30 270
HDRN4D18N330□L00 33.0 100kHz,1V 0.694 0.32 20,30 330
HDRN4D18N390□L00 39.0 100kHz,1V 0.800 0.30 20,30 390
HDRN4D18N470□L00 47.0 100kHz,1V 0.950 0.28 20,30 470
HDRN4D18N560□L00 56.0 100kHz,1V 1.080 0.26 20,30 560
HDRN4D18N680□L00 68.0 100kHz,1V 1.300 0.24 20,30 680
HDRN4D18N101□L00 100 100kHz,1V 2.000 0.20 20,30 101
HDRN4D18N151□L00 150 100kHz,1V 2.840 0.15 20,30 151
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 4D28 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN4D28N1R2□L00 1.20 100kHz,1V 0.0236 2.56 30 1R2
HDRN4D28N1R8□L00 1.80 100kHz,1V 0.0275 2.20 30 1R8
HDRN4D28N2R0□L00 2.00 100kHz,1V 0.0290 2.10 30 2R0
HDRN4D28N2R2□L00 2.20 100kHz,1V 0.0313 2.04 30 2R2
HDRN4D28N2R7□L00 2.70 100kHz,1V 0.0433 1.60 30 2R7
HDRN4D28N3R3□L00 3.30 100kHz,1V 0.0492 1.57 30 3R3
HDRN4D28N3R9□L00 3.90 100kHz,1V 0.0648 1.44 30 3R9
HDRN4D28N4R7□L00 4.70 100kHz,1V 0.0720 1.32 30 4R7
HDRN4D28N5R6□L00 5.60 100kHz,1V 0.1009 1.17 30 5R6
HDRN4D28N6R8□L00 6.80 100kHz,1V 0.1089 1.12 30 6R8
HDRN4D28N8R2□L00 8.20 100kHz,1V 0.1175 1.04 30 8R2
HDRN4D28N100□L00 10.0 100kHz,1V 0.1283 1.00 20,30 100
HDRN4D28N120□L00 12.0 100kHz,1V 0.1316 0.84 20,30 120
HDRN4D28N150□L00 15.0 100kHz,1V 0.1490 0.76 20,30 150
HDRN4D28N180□L00 18.0 100kHz,1V 0.1660 0.72 20,30 180
HDRN4D28N220□L00 22.0 100kHz,1V 0.2350 0.70 20,30 220
HDRN4D28N270□L00 27.0 100kHz,1V 0.2610 0.58 20,30 270
HDRN4D28N330□L00 33.0 100kHz,1V 0.3313 0.56 20,30 330
HDRN4D28N390□L00 39.0 100kHz,1V 0.3837 0.50 20,30 390
HDRN4D28N470□L00 47.0 100kHz,1V 0.5870 0.48 20,30 470
HDRN4D28N560□L00 56.0 100kHz,1V 0.6245 0.41 20,30 560
HDRN4D28N680□L00 68.0 100kHz,1V 0.6990 0.35 20,30 680
HDRN4D28N820□L00 82.0 100kHz,1V 0.9148 0.32 20,30 820
HDRN4D28N101□L00 100 100kHz,1V 1.02 0.29 20,30 101
HDRN4D28N121□L00 120 100kHz,1V 1.27 0.27 20,30 121
HDRN4D28N151□L00 150 100kHz,1V 1.35 0.24 20,30 151
HDRN4D28N181□L00 180 100kHz,1V 1.54 0.22 20,30 181
HDRN4D28N221□L00 220 100kHz,1V 2.00 0.20 20,30 221
HDRN4D28N331□L00 330 100kHz,1V 3.40 0.19 20,30 331
HDRN4D28N391□L00 390 100kHz,1V 3.56 0.18 20,30 391
HDRN4D28N681□L00 680 100kHz,1V 5.20 0.10 20,30 681
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 4D40 series  Standard Specifications



DCR(mΩ)           Rated

Rated




Inductance




Tolerance






Part No.
Test Freq.
Current-1 Current-2
Marking

(μH)
ZMax. (A) (A) (±%)

HDRN4D40N2R2□L00 2.2 100kHz,1V 0.022 4.6 4.3 30 2R2
HDRN4D40N3R3□L00 3.3 100kHz,1V 0.033 3.4 3.6 30 3R3
HDRN4D40N4R7□L00 4.7 100kHz,1V 0.044 2.8 3.0 30 4R7
HDRN4D40N6R8□L00 6.8 100kHz,1V 0.046 2.6 2.8 30 6R8
HDRN4D40N100□L00 10 100kHz,1V 0.15 1.8 1.6 20,30 100
HDRN4D40N150□L00 15 100kHz,1V 0.21 1.6 1.4 20,30 150
HDRN4D40N220□L00 22 100kHz,1V 0.27 1.4 1.0 20,30 220
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 5D18 series  Standard Specifications

Inductance
DCR(mΩ) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN5D18T-1R0□ 1.00 10kHz,1V 0.038 2.80 30 1R0
HDRN5D18T-1R5□ 1.50 10kHz,1V 0.038 2.50 30 1R5
HDRN5D18T-2R0□ 2.00 10kHz,1V 0.045 2.50 30 2R0
HDRN5D18T-2R2□ 2.20 10kHz,1V 0.048 1.90 30 2R2
HDRN5D18T-3R3□ 3.30 10kHz,1V 0.056 1.90 30 3R3
HDRN5D18T-4R1□ 4.10 10kHz,1V 0.057 1.95 30 4R1
HDRN5D18T-4R7□ 4.70 10kHz,1V 0.076 1.60 30 4R7
HDRN5D18T-5R4□ 5.42 10kHz,1V 0.076 1.60 30 5R4
HDRN5D18T-6R2□ 6.22 10kHz,1V 0.096 1.40 30 6R2
HDRN5D18T-6R8□ 6.82 10kHz,1V 0.100 1.35 30 6R8
HDRN5D18T-8R9□ 8.92 10kHz,1V 0.116 1.25 30 8R9
HDRN5D18T-100□ 10.0 10kHz,1V 0.124 1.20 20,30 100
HDRN5D18T-120□ 12.0 10kHz,1V 0.153 1.10 20,30 120
HDRN5D18T-150□ 15.0 10kHz,1V 0.196 0.97 20,30 150
HDRN5D18T-180□ 18.0 10kHz,1V 0.210 0.85 20,30 180
HDRN5D18T-220□ 22.0 10kHz,1V 0.290 0.80 20,30 220
HDRN5D18T-270□ 27.0 10kHz,1V 0.330 0.75 20,30 270
HDRN5D18T-330□ 33.0 10kHz,1V 0.386 0.65 20,30 330
HDRN5D18T-390□ 39.0 10KHz,1V 0.520 0.57 20,30 390
HDRN5D18T-470□ 47.0 10kHz,1V 0.595 0.54 20,30 470
HDRN5D18T-560□ 56.0 10kHz,1V 0.665 0.50 20,30 560
HDRN5D18T-680□ 68.0 10kHz,1V 0.840 0.43 20,30 680
HDRN5D18T-820□ 82.0 10kHz,1V 0.978 0.41 20,30 820
HDRN5D18T-101□ 100 10kHz,1V 1.200 0.36 20,30 101
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 5D28 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN5D28N1R0□L00 1.00 10kHz,1V 0.015 3.50 30 1R0
HDRN5D28N1R5□L00 1.50 10kHz,1V 0.015 3.00 30 1R5
HDRN5D28N2R2□L00 2.20 10kHz,1V 0.018 2.60 30 2R2
HDRN5D28N2R5□L00 2.50 10kHz,1V 0.018 2.60 30 2R5
HDRN5D28N2R6□L00 2.60 10kHz,1V 0.022 2.40 30 2R6
HDRN5D28N2R7□L00 2.70 10kHz,1V 0.024 2.40 30 2R7
HDRN5D28N3R0□L00 3.00 10kHz,1V 0.024 2.40 30 3R0
HDRN5D28N3R3□L00 3.30 10kHz,1V 0.027 2.10 30 3R3
HDRN5D28N4R2□L00 4.20 10kHz,1V 0.031 2.20 30 4R2
HDRN5D28N4R3□L00 4.30 10kHz,1V 0.041 2.10 30 4R3
HDRN5D28N4R7□L00 4.70 10kHz,1V 0.038 1.90 30 4R7
HDRN5D28N5R0□L00 5.00 10kHz,1V 0.038 1.90 30 5R0
HDRN5D28N5R3□L00 5.30 10kHz,1V 0.038 1.90 30 5R3
HDRN5D28N6R2□L00 6.20 10kHz,1V 0.045 1.80 30 6R2
HDRN5D28N6R8□L00 6.80 10kHz,1V 0.050 1.65 30 6R8
HDRN5D28N8R2□L00 8.20 10kHz,1V 0.053 1.60 30 8R2
HDRN5D28N100□L00 10.0 10kHz,1V 0.065 1.30 20,30 100
HDRN5D28N120□L00 12.0 10kHz,1V 0.076 1.20 20,30 120
HDRN5D28N150□L00 15.0 10kHz,1V 0.103 1.10 20,30 150
HDRN5D28N180□L00 18.0 10kHz,1V 0.110 1.00 20,30 180
HDRN5D28N220□L00 22.0 10kHz,1V 0.122 0.90 20,30 220
HDRN5D28N270□L00 27.0 10kHz,1V 0.175 0.85 20,30 270
HDRN5D28N330□L00 33.0 10kHz,1V 0.189 0.75 20,30 330
HDRN5D28N390□L00 39.0 10kHz,1V 0.212 0.70 20,30 390
HDRN5D28N470□L00 47.0 10kHz,1V 0.250 0.62 20,30 470
HDRN5D28N560□L00 56.0 10kHz,1V 0.305 0.58 20,30 560
HDRN5D28N680□L00 68.0 10kHz,1V 0.355 0.52 20,30 680
HDRN5D28N820□L00 82.0 10kHz,1V 0.463 0.46 20,30 820
HDRN5D28N101□L00 100 10kHz,1V 0.520 0.42 20,30 101
HDRN5D28N181□L00 180 10kHz,1V 1.050 0.29 20,30 181
HDRN5D28N221□L00 220 10kHz,1V 1.200 0.28 20,30 221
HDRN5D28N331□L00 330 10kHz,1V 1.700 0.19 20,30 331
HDRN5D28N391□L00 390 10kHz,1V 1.800 0.18 20,30 391
HDRN5D28N471□L00 470 10kHz,1V 2.500 0.15 20,30 471
HDRN5D28N561□L00 560 10kHz,1V 3.200 0.12 20,30 561
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 6D28 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN6D28N1R0□L00 1.00 10kHz,1V 0.0240 3.50 30 1R0
HDRN6D28N1R5□L00 1.50 10kHz,1V 0.0195 3.40 30 1R5
HDRN6D28N3R0□L00 3.00 10kHz,1V 0.0240 3.00 30 3R0
HDRN6D28N3R3□L00 3.30 10kHz,1V 0.0250 3.00 30 3R3
HDRN6D28N3R9□L00 3.90 10kHz,1V 0.0270 2.60 30 3R9
HDRN6D28N4R7□L00 4.70 10kHz,1V 0.0310 2.40 30 4R7
HDRN6D28N5R0□L00 5.00 10kHz,1V 0.0310 2.40 30 5R0
HDRN6D28N6R0□L00 6.00 10kHz,1V 0.0350 2.25 30 6R0
HDRN6D28N6R2□L00 6.20 10kHz,1V 0.0510 2.40 30 6R2
HDRN6D28N6R8□L00 6.80 10kHz,1V 0.0500 2.15 30 6R8
HDRN6D28N7R3□L00 7.30 10kHz,1V 0.0540 2.10 30 7R3
HDRN6D28N8R6□L00 8.60 10kHz,1V 0.0580 1.85 30 8R6
HDRN6D28N100□L00 10.0 10kHz,1V 0.065 1.70 20,30 100
HDRN6D28N120□L00 12.0 10kHz,1V 0.070 1.55 20,30 120
HDRN6D28N150□L00 15.0 10kHz,1V 0.084 1.40 20,30 150
HDRN6D28N180□L00 18.0 10kHz,1V 0.095 1.32 20,30 180
HDRN6D28N220□L00 22.0 10kHz,1V 0.128 1.20 20,30 220
HDRN6D28N270□L00 27.0 10kHz,1V 0.142 1.05 20,30 270
HDRN6D28N330□L00 33.0 10kHz,1V 0.165 0.97 20,30 330
HDRN6D28N390□L00 39.0 10kHz,1V 0.210 0.86 20,30 390
HDRN6D28N470□L00 47.0 10kHz,1V 0.238 0.80 20,30 470
HDRN6D28N560□L00 56.0 10kHz,1V 0.277 0.73 20,30 560
HDRN6D28N680□L00 68.0 10kHz,1V 0.304 0.65 20,30 680
HDRN6D28N820□L00 82.0 10kHz,1V 0.390 0.60 20,30 820
HDRN6D28N101□L00 100 10kHz,1V 0.535 0.54 20,30 101
HDRN6D28N121□L00 120 10kHz,1V 0.600 0.40 20,30 121
HDRN6D28N221□L00 220 10kHz,1V 1.300 0.30 20,30 221
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.
HDRN 6D38 series  Standard Specifications

Inductance
DCR(Ω) Rated Current Tolerance

Part No.
Test Freq.


Marking

(μH)
Max. (A) (±%)

HDRN6D38N2R2□L00 2.20 10kHz,0.1V 0.018 3.80 30 2R2
HDRN6D38N2R7□L00 2.70 10kHz,0.1V 0.020 3.60 30 2R7
HDRN6D38N3R3□L00 3.30 10kHz,0.1V 0.020 3.50 30 3R3
HDRN6D38N4R7□L00 4.70 10kHz,0.1V 0.022 3.10 30 4R7
HDRN6D38N5R0□L00 5.00 10kHz,0.1V 0.024 2.90 30 5R0
HDRN6D38N5R6□L00 5.60 10kHz,0.1V 0.027 2.50 30 5R6
HDRN6D38N6R2□L00 6.20 10kHz,0.1V 0.027 2.50 30 6R2
HDRN6D38N6R8□L00 6.80 10kHz,0.1V 0.031 2.30 30 6R8
HDRN6D38N7R4□L00 7.40 10kHz,0.1V 0.031 2.30 30 7R4
HDRN6D38N8R7□L00 8.70 10kHz,0.1V 0.034 2.20 30 8R7
HDRN6D38N100□L00 10.0 10kHz,0.1V 0.038 2.00 20,30 100
HDRN6D38N120□L00 12.0 10kHz,0.1V 0.053 1.70 20,30 120
HDRN6D38N150□L00 15.0 10kHz,0.1V 0.057 1.60 20,30 150
HDRN6D38N180□L00 18.0 10kHz,0.1V 0.092 1.50 20,30 180
HDRN6D38N220□L00 22.0 10kHz,0.1V 0.096 1.30 20,30 220
HDRN6D38N270□L00 27.0 10kHz,0.1V 0.109 1.20 20,30 270
HDRN6D38N330□L00 33.0 10kHz,0.1V 0.124 1.10 20,30 330
HDRN6D38N390□L00 39.0 10kHz,0.1V 0.138 1.00 20,30 390
HDRN6D38N470□L00 47.0 10kHz,0.1V 0.150 0.95 20,30 470
HDRN6D38N560□L00 56.0 10kHz,0.1V 0.202 0.85 20,30 560
HDRN6D38N680□L00 68.0 10kHz,0.1V 0.234 0.75 20,30 680
HDRN6D38N820□L00 82.0 10kHz,0.1V 0.324 0.70 20,30 820
HDRN6D38N101□L00 100 10kHz,0.1V 0.358 0.65 20,30 101
HDRN6D38N561□L00 560 10kHz,0.1V 1.800 0.22 20,30 561
NOTE:    □-Tolerance   M=±20% / T=±30%
1.Operating temperature range - 40℃～ 125℃ (Including self - temperature rise)
2.Rate current: The rate current indicates the current when the inductance decreases to 65% over of  it's nominal value or DCcurrent when the temperature rising △ T=40℃ lower, whichever is lower.
3.RDC test method: place testing device to the 2 solder ends of wounding and test the value.




Product Description
Appearance size
Model and features

Related Products

HDR103~105 SERIES
HDR103~105 SERIES

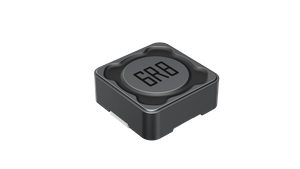

HDR SERIES
HDR SERIES
HUNAN HUASUN M AND E TECHNOLOGY CO.,LTD

contact us

Tel: 0745-6711668
Mobile phone: 18797558295
Email: sales@huasuntech.cn
Contact: Wang Ping
Address: Luojiuhuasheng Science and Technology Park, Zhijiang Dong Autonomous County, Hunan Province

Quick Links

Product Categories

Copyright© 2025 HUNAN HUASUN M AND E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
contact us
Copyright© 2025 HUNAN HUASUN M&E TECHNOLOGY CO.,LTD All rights reserved. Sitemap |
