HNP SERIES

application:
switching circuit
Operational Amplifier
electronic product

Features:
Good price and good quality
Wide range of inductors
High reliability
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description
physical dimension
Models and features

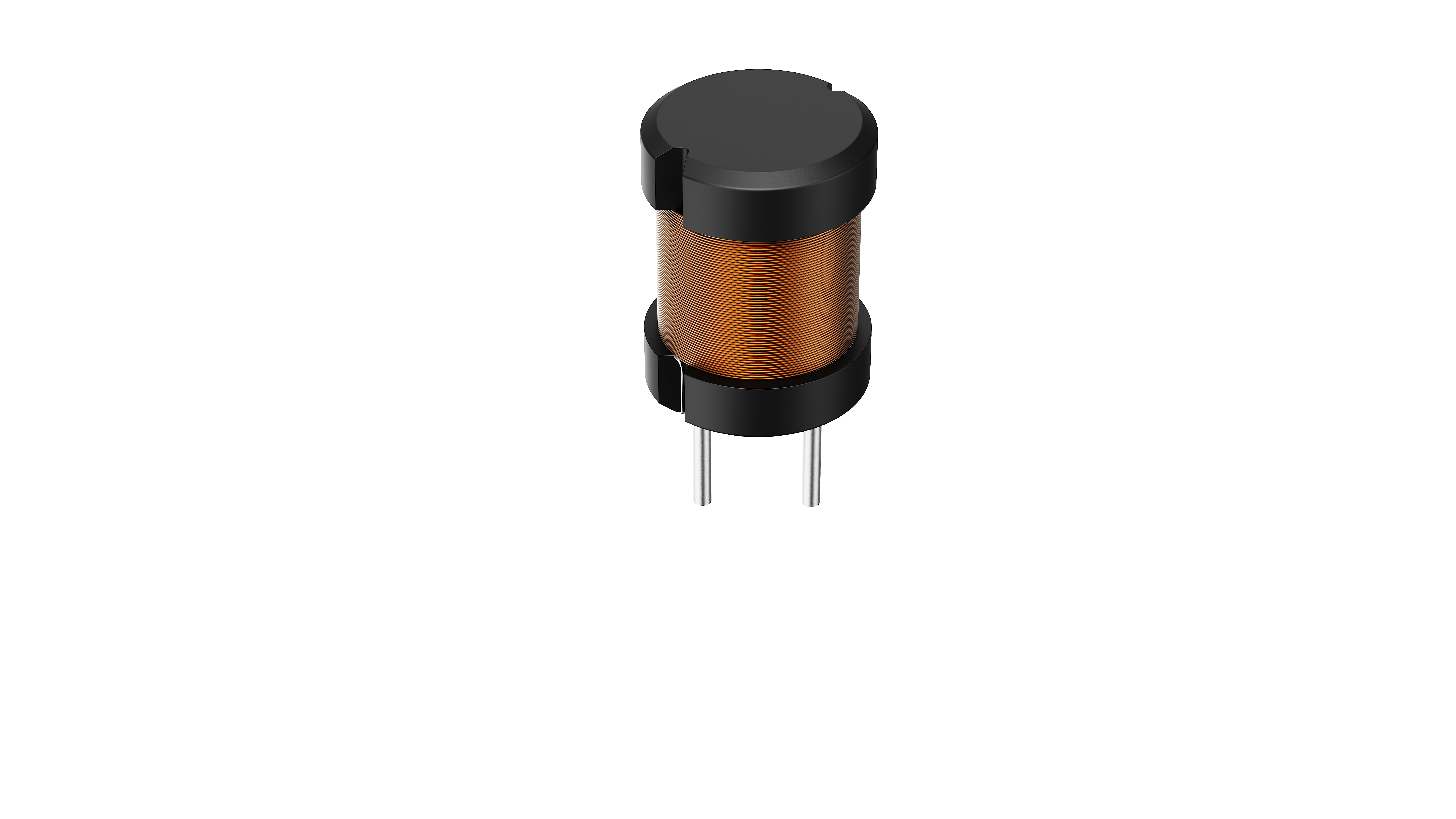

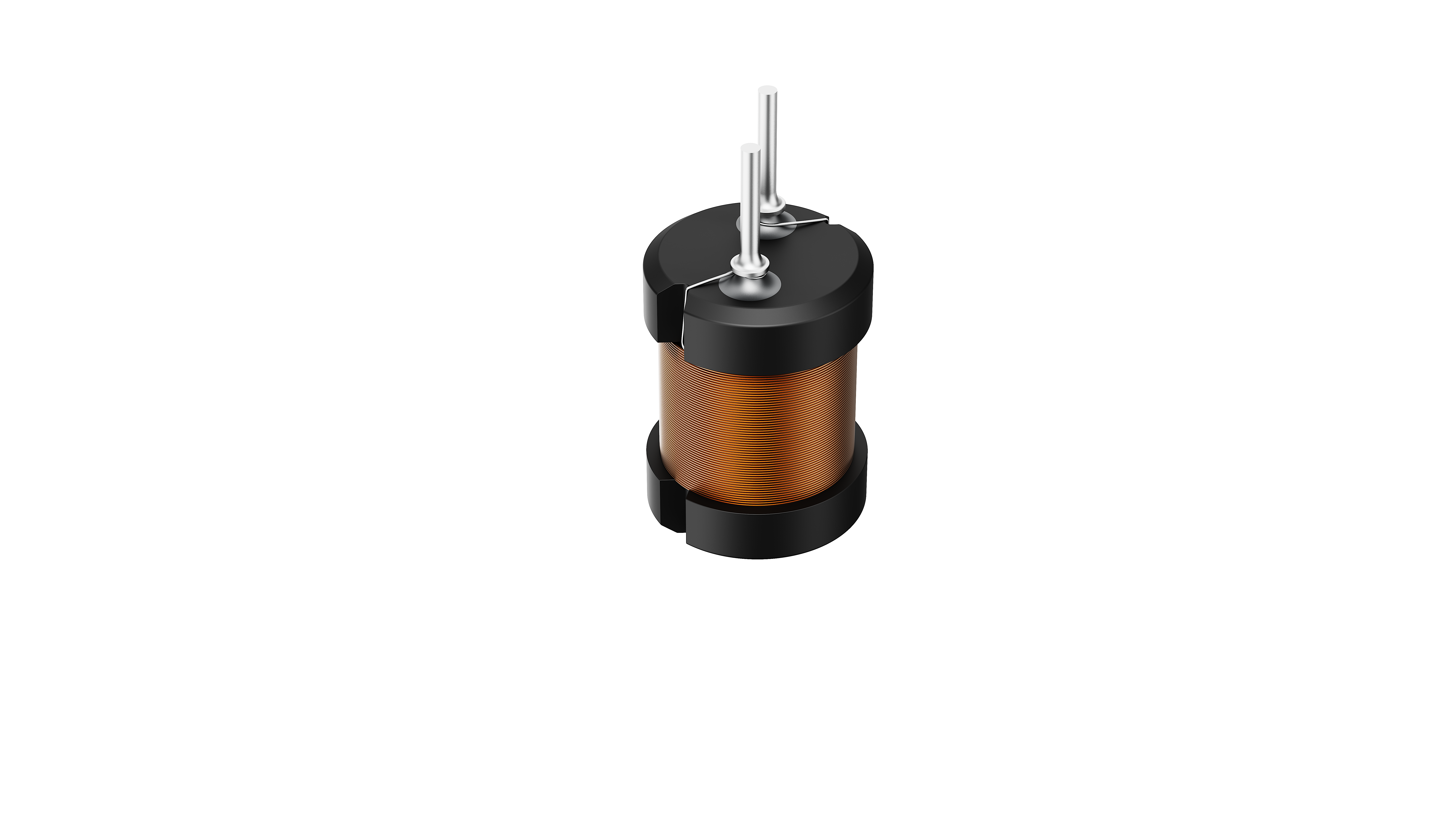

HNP SERIES

Picture 9

 Product number               HNP SERIES
manufacturer               HUASUN
PID
Supply method               Self-operated
product cycle               In mass production
RoHs & lead-free situation   Lead-free/RoHs compliant
describe

Excellent price, good quality, wide range of values, and good reliability.








HNP SERIES Appearance Dimensions

16

TYPE A B C D E
0406 6.0+0 8.0+0 10-0 2.0±0.5 0.5
0608 8.0+0 10.0+0 10-0 3.5±0.5 0.65
0810 10.0+0 12.0+0 10-0 5.0±0.5 0.65
1016 13.0+0 19.0+0 10-0 6.5±0.5 0.8
1216 15.0+0 19.0+0 10-0 7.5±0.5 0.8
HNPN0406  series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) Isat(mA)
(μH)
Min Max Max
HNPN0406N1R0□NT00 1.0 7.96MHz 50 0.150 300
HNPN0406N1R2□NT00 1.2 7.96MHz 50 0.150 300
HNPN0406N1R5□NT00 1.5 7.96MHz 55 0.200 300
HNPN0406N1R8□NT00 1.8 7.96MHz 70 0.200 300
HNPN0406N2R2□NT00 2.2 7.96MHz 75 0.250 300
HNPN0406N2R7□NT00 2.7 7.96MHz 80 0.250 300
HNPN0406N3R3□NT00 3.3 7.96MHz 80 0.250 300
HNPN0406N3R9□NT00 3.9 7.96MHz 80 0.300 300
HNPN0406N4R7□NT00 4.7 7.96MHz 75 0.300 300
HNPN0406N5R6□NT00 5.6 7.96MHz 75 0.350 300
HNPN0406N6R8□NT00 6.8 7.96MHz 70 0.350 300
HNPN0406N8R2□NT00 8.2 7.96MHz 70 0.350 300
HNPN0406N100□NT00 10 2.52MHz 80 0.600 200
HNPN0406N120□NT00 12 2.52MHz 80 0.650 200
HNPN0406N150□NT00 15 2.52MHz 80 0.750 200
HNPN0406N180□NT00 18 2.52MHz 75 0.850 200
HNPN0406N220□NT00 22 2.52MHz 75 1.000 200
HNPN0406N270□NT00 27 2.52MHz 75 1.200 200
HNPN0406N330□NT00 33 2.52MHz 75 1.300 200
HNPN0406N390□NT00 39 2.52MHz 70 1.500 200
HNPN0406N470□NT00 47 2.52MHz 70 1.600 200
HNPN0406N560□NT00 56 2.52MHz 65 1.650 200
HNPN0406N680□NT00 68 2.52MHz 60 1.800 200
HNPN0406N820□NT00 82 2.52MHz 55 1.850 200
HNPN0406N101□NT00 100 0.796MHz 80 2.000 200
HNPN0406N121□NT00 120 0.796MHz 80 2.500 100
HNPN0406N151□NT00 150 0.796MHz 80 3.000 100
HNPN0406N181□NT00 180 0.796MHz 75 3.500 100
HNPN0406N221□NT00 220 0.796MHz 75 4.000 100
HNPN0406N271□NT00 270 0.796MHz 70 5.000 50
HNPN0406N331□NT00 330 0.796MHz 70 6.000 50
HNPN0406N391□NT00 390 0.796MHz 70 6.500 50
HNPN0406N471□NT00 470 0.796MHz 70 7.500 50
HNPN0406N561□NT00 560 0.796MHz 70 8.000 50
HNPN0406N681□NT00 680 0.796MHz 70 8.500 50
HNPN0406N821□NT00 820 0.796MHz 70 9.500 50






HNPN0608  series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) Isat(mA)
(μH)
Min Max Max
HNPN0608N102□NT00 1000 252KHz 80 4.0 110
HNPN0608N122□NT00 1200 252KHz 80 4.7 95
HNPN0608N152□NT00 1500 252KHz 80 5.9 90
HNPN0608N182□NT00 1800 252KHz 80 6.0 80
HNPN0608N222□NT00 2200 252KHz 80 7.3 70
HNPN0608N272□NT00 2700 252KHz 80 9.0 65
HNPN0608N332□NT00 3300 252KHz 80 10.0 60
HNPN0608N392□NT00 3900 252KHz 80 11.0 55
HNPN0608N472□NT00 4700 252KHz 80 15.0 52
HNPN0608N562□NT00 5600 252KHz 80 16.0 50
HNPN0608N682□NT00 6800 252KHz 80 22.0 45
HNPN0608N822□NT00 8200 252KHz 80 25.0 40
HNPN0608N103□NT00 10000 252KHz 80 32.5 35
HNPN0608N123□NT00 12000 252KHz 80 53.0 32
HNPN0608N153□NT00 15000 252KHz 80 62.0 30
HNPN0608N183□NT00 18000 252KHz 80 68.0 28
HNPN0608N223□NT00 22000 252KHz 80 78.0 25
HNPN0608N273□NT00 27000 252KHz 80 90.0 22
HNPN0608N333□NT00 33000 252KHz 80 150.0 20
HNPN0608N393□NT00 39000 252KHz 80 160.0 16
HNPN0608N473□NT00 47000 252KHz 80 190.0 15






HNPN0810  series  Standard Specifications
Part No. Inductance Test Freq. Q DCR(Ω) Isat(mA)
(μH)
Min Max Max
HNPN0810N1R0MNT00 1 7.96MHz 90 0.02 3400
HNPN0810N1R2MNT00 1.2 7.96MHz 90 0.02 3400
HNPN0810N1R5MNT00 1.5 7.96MHz 95 0.02 3400
HNPN0810N1R8MNT00 1.8 7.96MHz 95 0.03 3300
HNPN0810N2R2MNT00 2.2 7.96MHz 100 0.03 3000
HNPN0810N2R7MNT00 2.7 7.96MHz 110 0.04 3000
HNPN0810N3R3MNT00 3.3 7.96MHz 110 0.04 3000
HNPN0810N3R9MNT00 3.9 7.96MHz 110 0.05 2900
HNPN0810N4R7MNT00 4.7 7.96MHz 110 0.05 2900
HNPN0810N5R6MNT00 5.6 7.96MHz 110 0.06 2600
HNPN0810N6R8MNT00 6.8 7.96MHz 90 0.06 2500
HNPN0810N8R2MNT00 8.2 7.96MHz 80 0.06 2000
HNPN0810N100KNT00 10 2.52MHz 90 0.10 1600
HNPN0810N120KNT00 12 2.52MHz 90 0.10 1400
HNPN0810N150KNT00 15 2.52MHz 90 0.10 1300
HNPN0810N180KNT00 18 2.52MHz 80 0.11 1200
HNPN0810N220KNT00 22 2.52MHz 70 0.13 1100
HNPN0810N270KNT00 27 2.52MHz 70 0.14 1000
HNPN0810N330KNT00 33 2.52MHz 70 0.16 900
HNPN0810N390KNT00 39 2.52MHz 70 0.16 800
HNPN0810N470KNT00 47 2.52MHz 70 0.16 700
HNPN0810N560KNT00 56 2.52MHz 60 0.22 700
HNPN0810N680KNT00 68 2.52MHz 60 0.23 600
HNPN0810N820KNT00 82 2.52MHz 60 0.27 500
HNPN0810N101KNT00 100 796KHz 40 0.29 400
HNPN0810N121KNT00 120 796KHz 40 0.33 400
HNPN0810N151KNT00 150 796KHz 40 0.46 350
HNPN0810N181KNT00 180 796KHz 40 0.51 350
HNPN0810N221KNT00 220 796KHz 40 0.62 300
HNPN0810N271KNT00 270 796KHz 30 0.65 250
HNPN0810N331KNT00 330 796KHz 30 0.79 250
HNPN0810N391KNT00 390 796KHz 30 0.91 200
HNPN0810N471KNT00 470 796KHz 30 1.2 180
HNPN0810N561KNT00 560 796KHz 30 1.2 160
HNPN0810N681KNT00 680 796KHz 30 1.5 140
HNPN0810N821KNT00 820 796KHz 25 1.7 140
HNPN0810N102KNT00 1000 252KHz 50 2 120
HNPN0810N122KNT00 1200 252KHz 45 2.3 100
HNPN0810N152KNT00 1500 252KHz 45 2.9 80
HNPN0810N182KNT00 1800 252KHz 45 3.5 80
HNPN0810N222KNT00 2200 252KHz 50 4.2 70
HNPN0810N272KNT00 2700 252KHz 50 5.1 60
HNPN0810N332KNT00 3300 252KHz 50 6.1 60
HNPN0810N392KNT00 3900 252KHz 50 7.8 50
HNPN0810N472KNT00 4700 252KHz 55 11 50
HNPN0810N562KNT00 5600 252KHz 55 11 45
HNPN0810N682KNT00 6800 252KHz 55 14 45
HNPN0810N822KNT00 8200 252KHz 60 15 40
HNPN0810N103KNT00 10000 79.6KHz 100 20 35
HNPN0810N123KNT00 12000 79.6KHz 100 24 35
HNPN0810N153KNT00 15000 79.6KHz 100 28 35
HNPN0810N183KNT00 18000 79.6KHz 100 42 30
HNPN0810N223KNT00 22000 79.6KHz 100 43 30
HNPN0810N273KNT00 27000 79.6KHz 100 55 25
HNPN0810N333KNT00 33000 79.6KHz 90 65 25
HNPN0810N393KNT00 39000 79.6KHz 90 87 25
HNPN0810N473KNT00 47000 79.6KHz 85 98 25
HNPN0810N563KNT00 56000 79.6KHz 80 128 20
HNPN0810N683KNT00 68000 79.6KHz 70 141 20
HNPN0810N823KNT00 82000 79.6KHz 70 161 20
HNPN0810N104KNT00 100000 79.6KHz 55 180 20






HNPN1016  series  Standard Specifications
Part No. Inductance Test Freq. DCR(Ω) Isat(A)
(μH)
Max Max
HNPN1016N4R7□NT00 4.7 1KHz,1V 0.018 10.00
HNPN1016N6R8□NT00 6.8 1KHz,1V 0.020 10.00
HNPN1016N8R2□NT00 8.2 1KHz,1V 0.022 10.00
HNPN1016N100□NT00 10 1KHz,1V 0.027 7.60
HNPN1016N120□NT00 12 1KHz,1V 0.024 7.50
HNPN1016N150□NT00 15 1KHz,1V 0.031 6.50
HNPN1016N180□NT00 18 1KHz,1V 0.039 6.00
HNPN1016N220□NT00 22 1KHz,1V 0.039 5.40
HNPN1016N330□NT00 33 1KHz,1V 0.047 4.40
HNPN1016N470□NT00 47 1KHz,1V 0.053 3.80
HNPN1016N560□NT00 56 1KHz,1V 0.068 3.40
HNPN1016N680□NT00 68 1KHz,1V 0.078 3.00
HNPN1016N101□NT00 100 1KHz,1V 0.099 2.50
HNPN1016N121□NT00 120 1KHz,1V 0.128 2.00
HNPN1016N151□NT00 150 1KHz,1V 0.182 1.80
HNPN1016N181□NT00 180 1KHz,1V 0.195 1.60
HNPN1016N221□NT00 220 1KHz,1V 0.312 1.40
HNPN1016N271□NT00 270 1KHz,1V 0.320 1.30
HNPN1016N331□NT00 330 1KHz,1V 0.390 1.20
HNPN1016N391□NT00 390 1KHz,1V 0.400 1.10
HNPN1016N471□NT00 470 1KHz,1V 0.490 1.00
HNPN1016N561□NT00 560 1KHz,1V 0.520 0.95
HNPN1016N681□NT00 680 1KHz,1V 0.880 0.80
HNPN1016N821□NT00 820 1KHz,1V 0.890 0.75
HNPN1016N102□NT00 1000 1KHz,1V 1.500 0.65
HNPN1016N122□NT00 1200 1KHz,1V 1.150 0.60
HNPN1016N152□NT00 1500 1KHz,1V 1.300 0.52
HNPN1016N182□NT00 1800 1KHz,1V 1.800 0.50
HNPN1016N222□NT00 2200 1KHz,1V 2.000 0.45
HNPN1016N332□NT00 3300 1KHz,1V 4.600 0.35
HNPN1016N472□NT00 4700 1KHz,1V 5.600 0.30
HNPN1016N682□NT00 6800 1KHz,1V 7.000 0.25
HNPN1016N752□NT00 7500 1KHz,1V 7.700 0.24
HNPN1016N822□NT00 8200 1KHz,1V 10.400 0.23
HNPN1016N103□NT00 10000 1KHz,1V 11.700 0.18
HNPN1016N123□NT00 12000 1KHz,1V 13.800 0.16
HNPN1016N153□NT00 15000 1KHz,1V 15.600 0.15
HNPN1016N223□NT00 22000 1KHz,1V 23.400 0.10
